PUL-XP015L1LX
Images are for representation only. Actual product may differ in size, color or options.

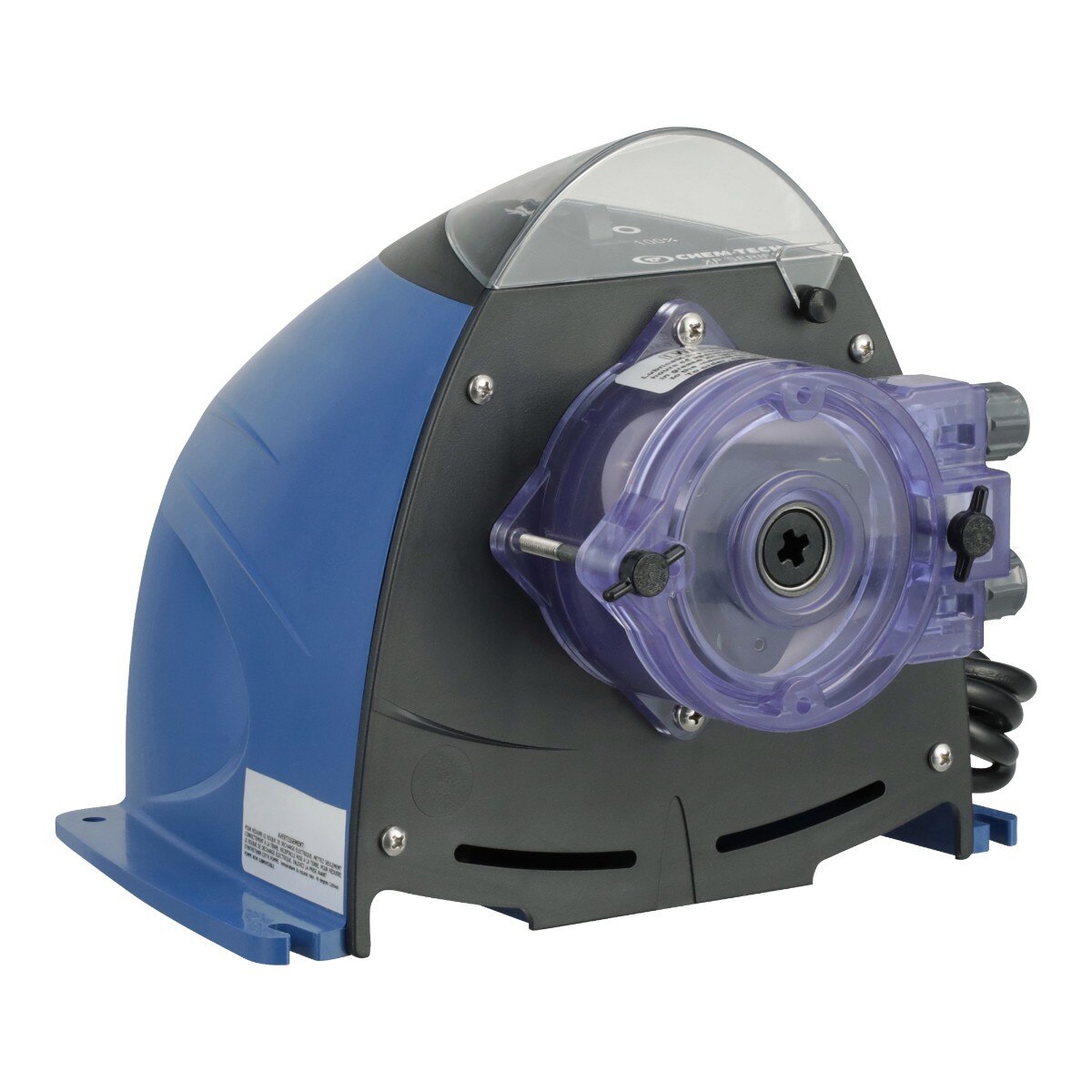

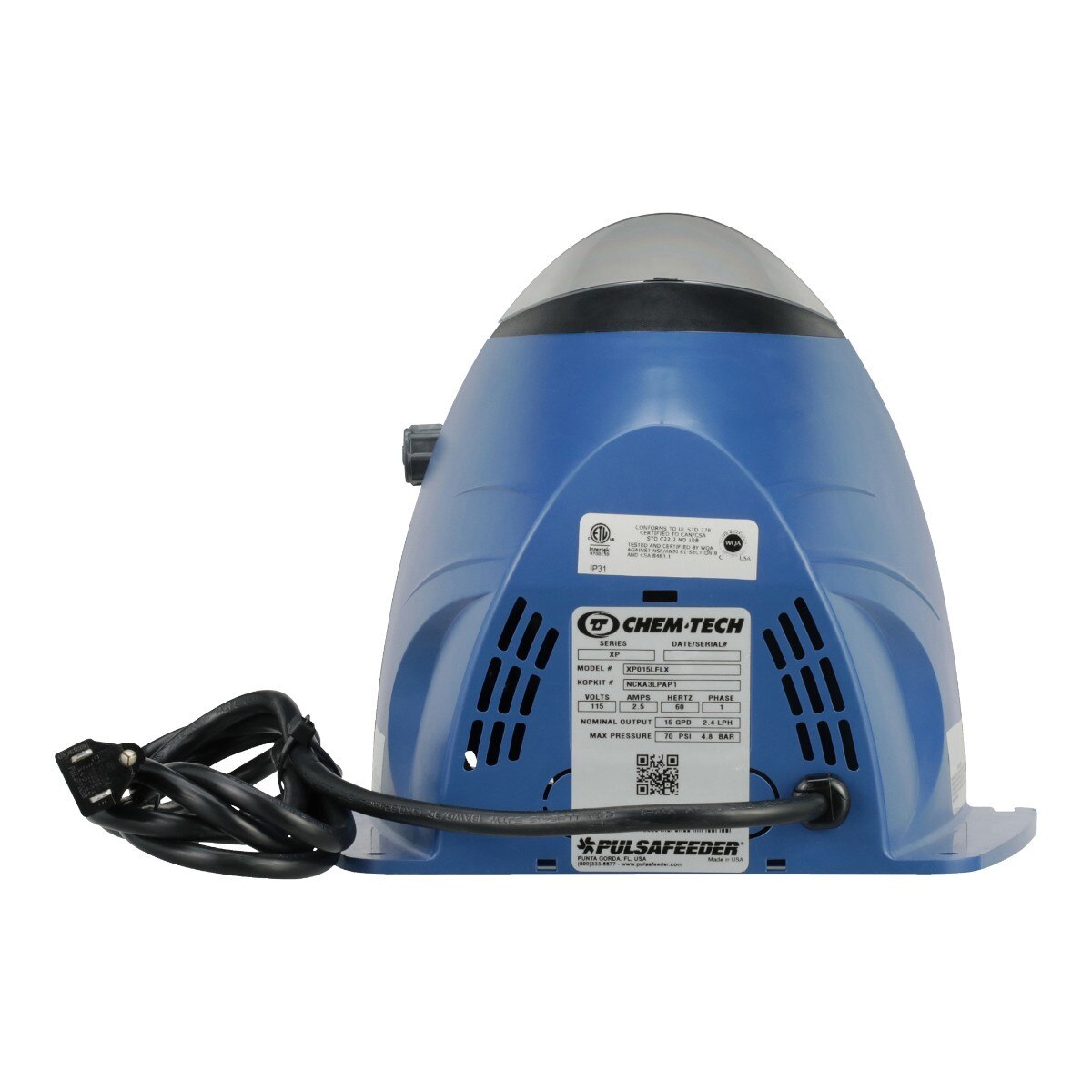

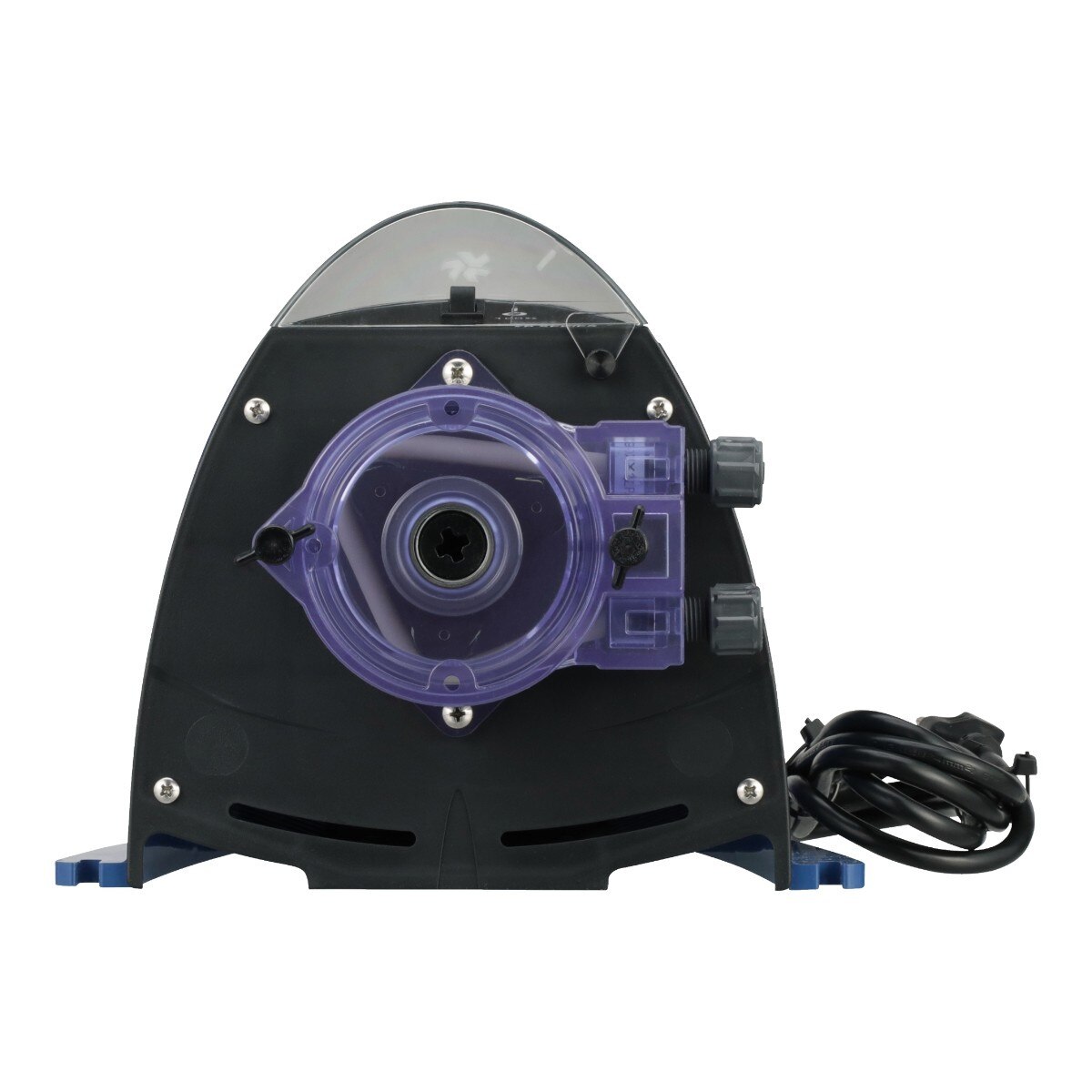

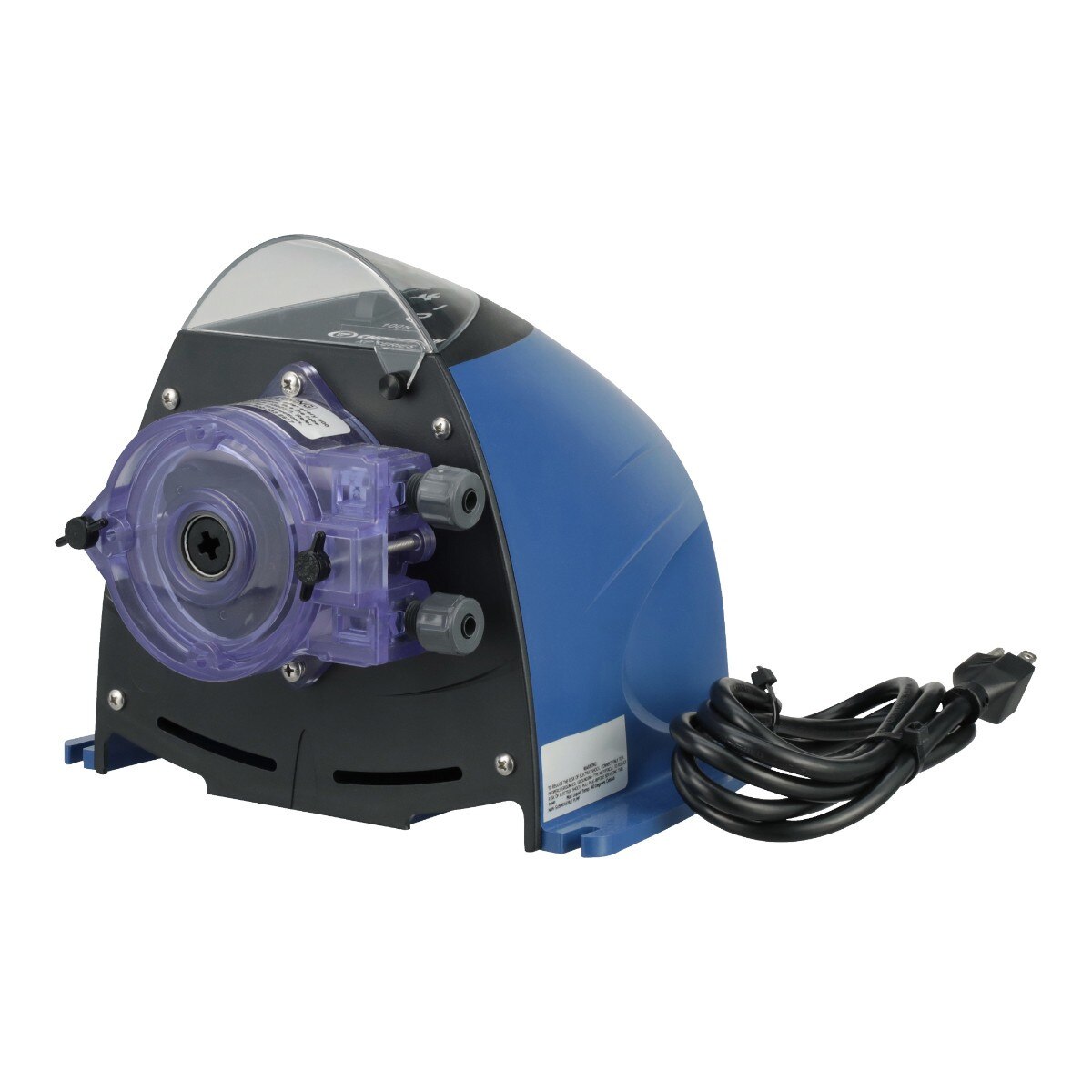

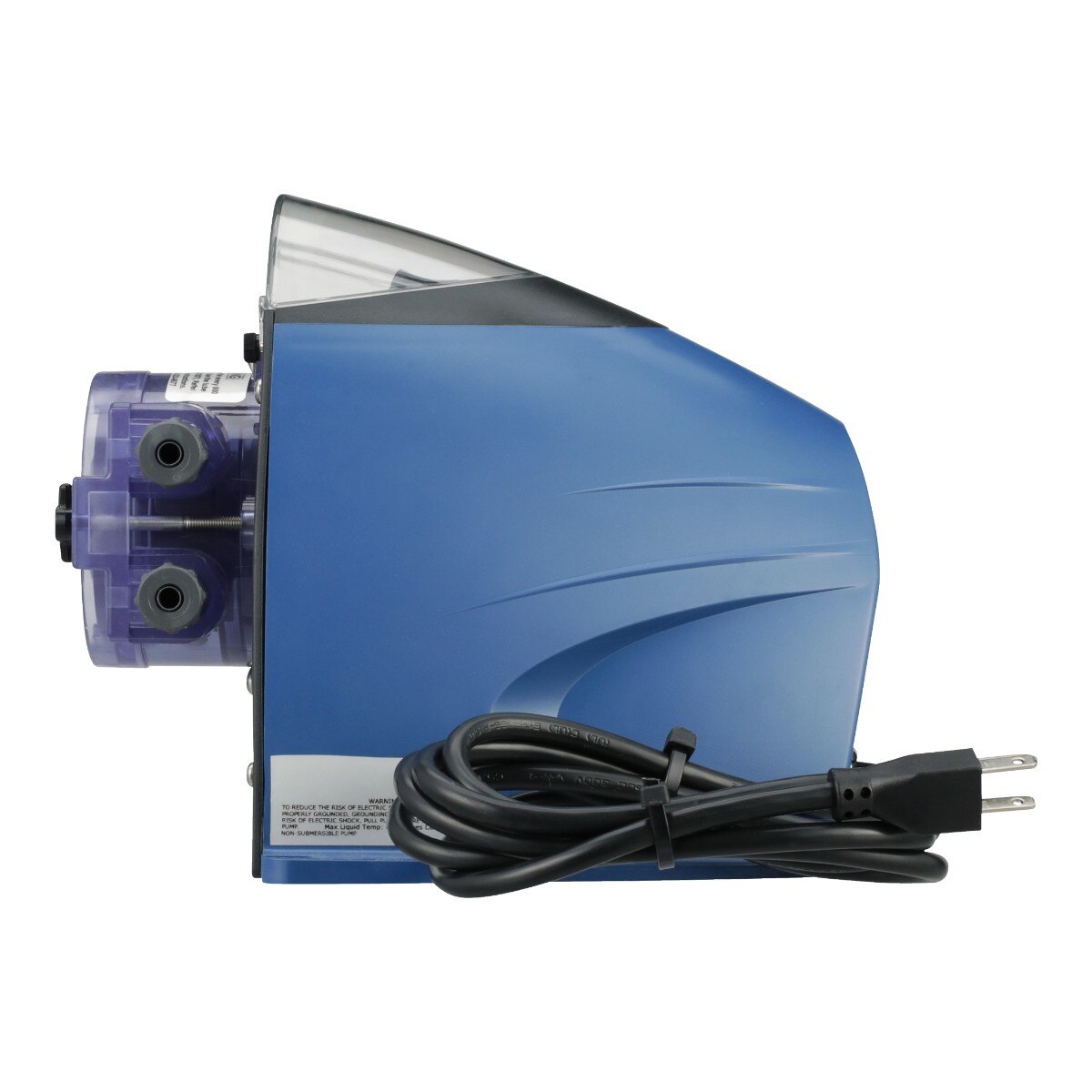

CHEM-TECH XP Series Peristaltic Metering Pump
15 GPD @ 70 PSI, 115 VAC
Pulse Input Control, 0.1 to 1 Second On Time
The pump is equipped with a 3-position rocker switch which has three positions (ON, OFF/Standby, and momentary-On) and a run time dial to adjust the ON time (0.1 to 1 second) per pulse input received.
General Description
Pulsafeeder CHEM-TECH XP Series peristaltic chemical metering pumps are peristaltic technology metering pumps. The CHEM-TECH Series XP with peristaltic technology delivers worry-free dosing in a modern design. Each and every component of the Series XP is designed and manufactured for optimum reliability and durability for REAL Performance. The intuitive interface and controls provide easy operation and the peristaltic design is virtually maintenance-free. Tailor-made for the water conditioning market, the Series XP offers affordable solutions in both initial cost and operation. A rugged gear train and computer-aided peristaltic design ensure long-lasting performance.
Pump Controls
The pump is equipped with a 3-position rocker switch and pulse input run time dial mounted above the peristaltic head. The rocker switch has three positions (ON, OFF/Standby, and momentary-On). The run time dial adjusts the ON time (0.1 to 1 second) per pulse received (the timer does not accumulate pulses that are received during run time).
Drive Assembly
The pump drive is totally enclosed with no exposed moving parts.
Materials of Construction
See Specifications tab. The compact, injection-molded housing and pump head offer both affordability and chemical resistance. All exposed fasteners are stainless steel. Peristaltic tubing is renewable by replacement.
Pulsafeeder CHEM-TECH XP Series peristaltic Chemical Metering Pump - Key Features
15 GPD @ 70 PSI, 115 VAC
Pulse Input Control, 0.1 to 1 Second On Time
The pump is equipped with a 3-position rocker switch which has three positions (ON, OFF/Standby, and momentary-On) and a run time dial to adjust the ON time (0.1 to 1 second) per pulse input received.
General Description
Pulsafeeder CHEM-TECH XP Series peristaltic chemical metering pumps are peristaltic technology metering pumps. The CHEM-TECH Series XP with peristaltic technology delivers worry-free dosing in a modern design. Each and every component of the Series XP is designed and manufactured for optimum reliability and durability for REAL Performance. The intuitive interface and controls provide easy operation and the peristaltic design is virtually maintenance-free. Tailor-made for the water conditioning market, the Series XP offers affordable solutions in both initial cost and operation. A rugged gear train and computer-aided peristaltic design ensure long-lasting performance.
Pump Controls
The pump is equipped with a 3-position rocker switch and pulse input run time dial mounted above the peristaltic head. The rocker switch has three positions (ON, OFF/Standby, and momentary-On). The run time dial adjusts the ON time (0.1 to 1 second) per pulse received (the timer does not accumulate pulses that are received during run time).
Drive Assembly
The pump drive is totally enclosed with no exposed moving parts.
Materials of Construction
See Specifications tab. The compact, injection-molded housing and pump head offer both affordability and chemical resistance. All exposed fasteners are stainless steel. Peristaltic tubing is renewable by replacement.
Pulsafeeder CHEM-TECH XP Series peristaltic Chemical Metering Pump - Key Features
- Simple and straight forward fixed rate pump.
- Pulse Input. The internal timer accepts pulses from a contacting head water meter. Adjustable to run the pumps from 0.1 to 1 second per pulse input. The pump includes a 10' signal cable with two bare leads.
- Reliable metering performance.
- Mixed fluid capable. Inherently degassing.
- Extended tube life.
- Rugged, sealed gear train.
- Easy tube change-out.
- Self-priming.
- Chemical resistant materials.
- Simple installation.
| Product Type: | Peristaltic Metering Pump |
| Brand: | Pulsafeeder |
| Product Line: | Chem-Tech Series XP |
| Speed: | 50 RPM |
| Max Flow (GPH): | 0.63 |
| Max Flow (GPD): | 15 |
| Max Pressure (PSI): | 70 |
| Max Viscosity (CPS): | 300 |
| Flow Control: | Pulse Input Control, 0.1 to 1 Second On Time |
| Turn Down Ratio: | Timer |
| Head/Fittings: | Clear PVC / PVC |
| Head Tubing: | Norprene, Tube Size: 3 |
| Connections: | 1/4" O.D. Tube Fittings (Suction, Discharge) |
| Power Supply: | 115 VAC 60 Hz, US Plug |
| Operating Modes: | Pulse Input |
| Net Weight: | 8.0 lbs |
| Includes: | A spare peristaltic tube assembly, a weighted foot valve/strainer assembly, a 1/4" NPT male injection fitting/back pressure check valve assembly, a 1/4" NPT to 1/2" NPT adapter, 15' polyethylene suction/discharge tubing and Owners Manual. |
