SP Bel-Art Mini-Sieve Micro Sieve Set with 8 Assorted Mesh Inserts, Plastic
Images are for representation only. Actual product may differ in size, color or options.
SP Bel-Art Mini-Sieve Micro Sieve Set with 8 Assorted Mesh Inserts, Plastic

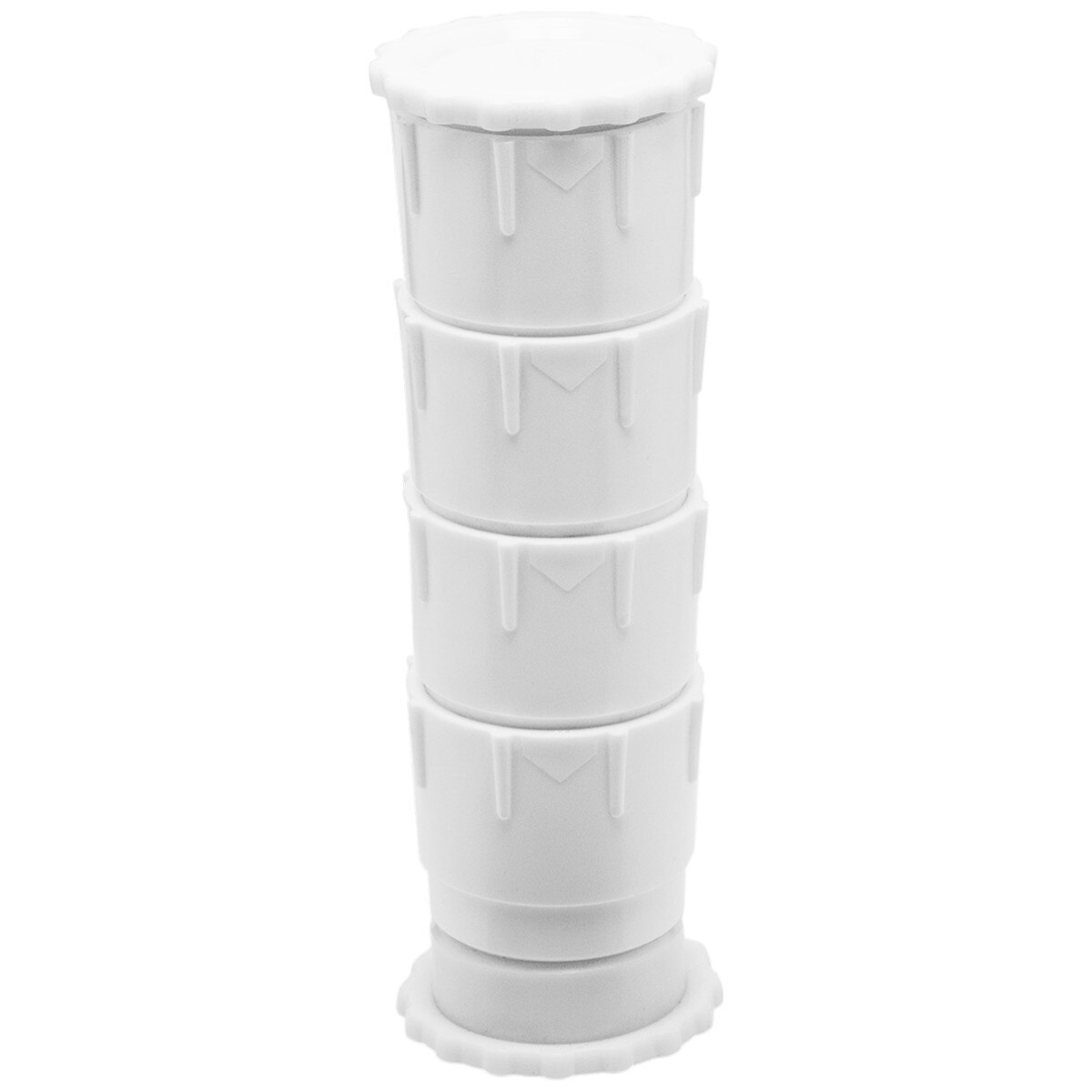

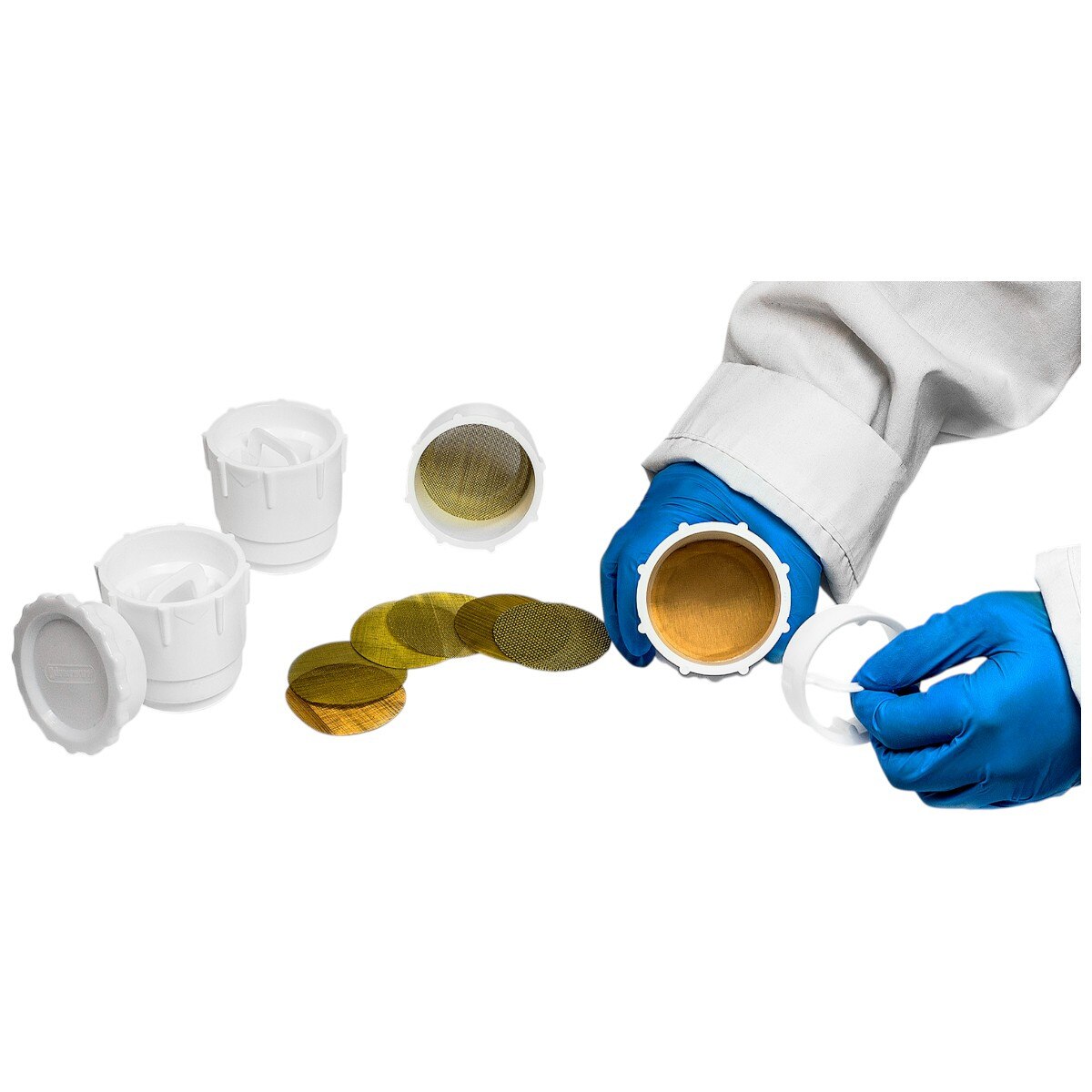

The SP Bel-Art Mini-Sieve Micro Sieve Set (F37845-1000) is a compact, interchangeable polypropylene sieving system designed for fine particle separation and sample fractionation. The set includes four friction-fit screen holding sections, a catch pan, a cover, and four screen retaining rings. Sorting parameters can be customized by exchanging the removable phosphor-bronze mesh inserts. Eight mesh inserts are included, covering a full range of standard sieve sizes.
- Part Number: F37845-1000
- Construction: Polypropylene holding sections, pan, cover, and retaining rings
- Section Dimensions: 56 mm (2¼") I.D. × 41 mm (1⅝") high
- Section Capacity: Approximately 60 cc per section
- Assembled Dimensions (with pan & cover): 21.6 cm (8½") high × 7.2 cm (2⅛") max diameter
- Assembly: Friction-fit sections for easy stacking and sample retrieval
- Included Mesh Inserts (1 each): 25, 35, 45, 60, 80, 120, 170, 230 standard mesh
- Insert Material: Phosphor-bronze
- Function: Micro-sieving and fine particle separation
Optional Accessories

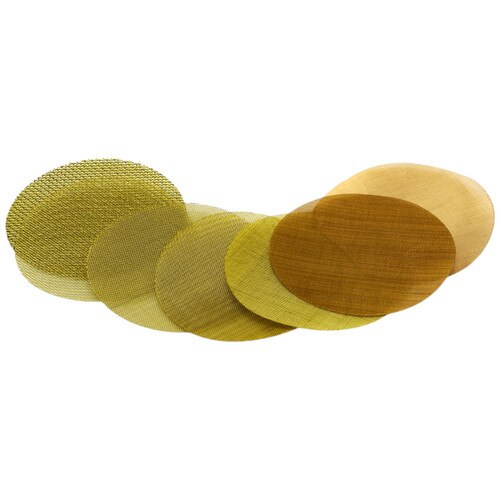

- Additional Mesh Insert Pack: F37846-0000 — Set of 8 phosphor-bronze inserts (25–230 mesh)
| Product Type: | Micro Sieve Set |
| Brand: | Bel-Art |
| Material: | Polypropylene (PP) |
| Case Quantity: | 12 |
