SP Bel-Art Roto-Flo Polystyrene Flow Indicator for ⁵/₁₆ to ⁷⁄₁₆ in. I.D. Tubing
Images are for representation only. Actual product may differ in size, color or options.

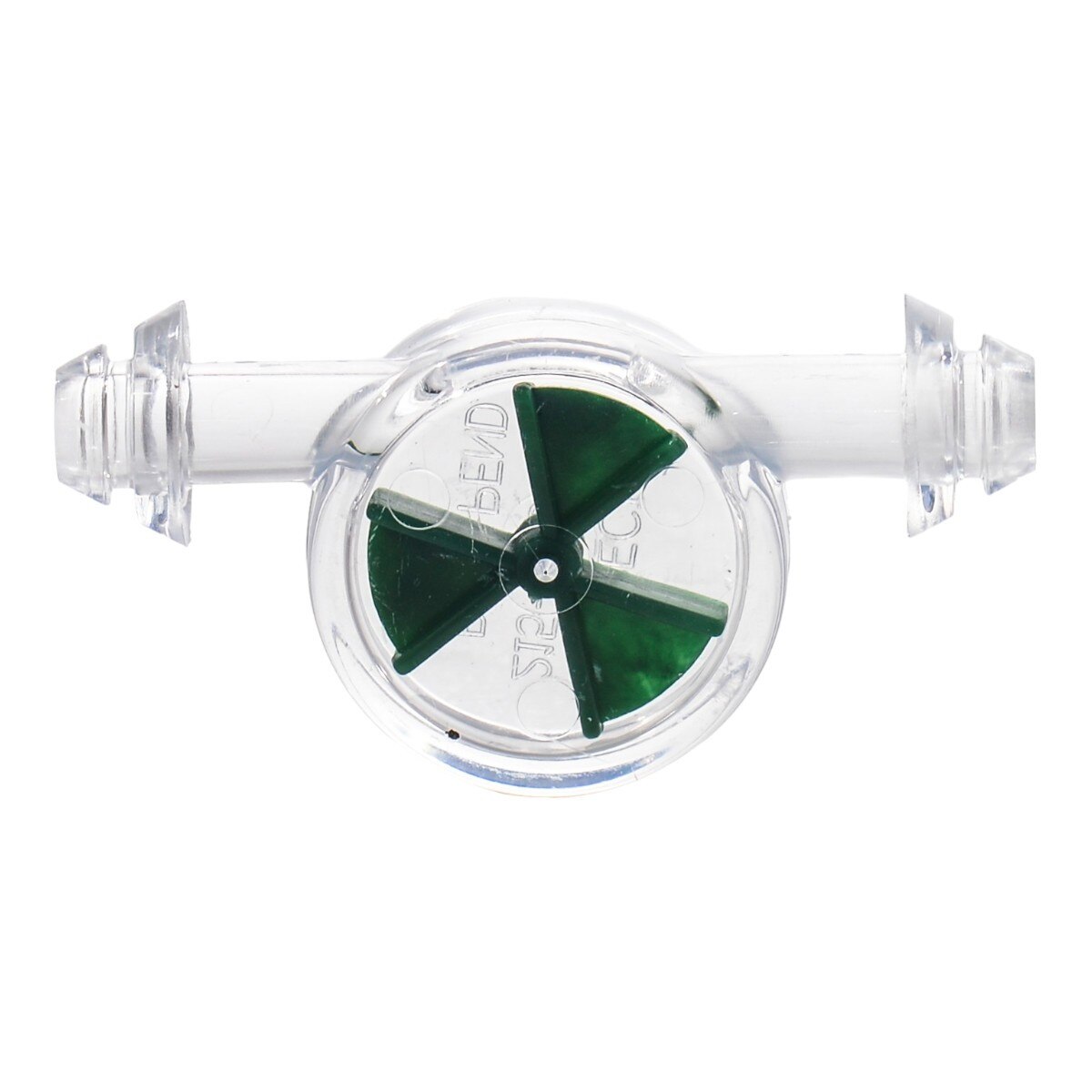

Roto-Flo Flow Indicator, Green, 5/16 inch to 7/16 inch ID (each)
Molded clear polystyrene body with smooth connecting barbs for easy installation. Internal flow channel diameter is 5mm, paddle wheel shell is 25mm, overall length is 51mm.
Molded clear polystyrene body with smooth connecting barbs for easy installation. Internal flow channel diameter is 5mm, paddle wheel shell is 25mm, overall length is 51mm.
- Immediate visualization of flow
- Brightly colored polypropylene paddle wheel spins when gas or liquid flows through a system
- Maximum recommended pressure is 10 p.s.i.g.
- Minimum flow: 0.5 LPM
- Maximum Flow: 10 LPM
- Not for use with corrosive chemicals or fluids with a temperature in excess of 64°C (147°F).
| Product Type: | Flow Indicator |
| Brand: | Bel-Art |
| Color: | Green |
| Inner Diameter: | 7.9 to 11mm (5/16 to 7/16 inch) Tubing |
| Net Weight: | .02 lbs |
