Vac-Ring Filter Seal, Neoprene for Funnel Stems up to 2.5 cm

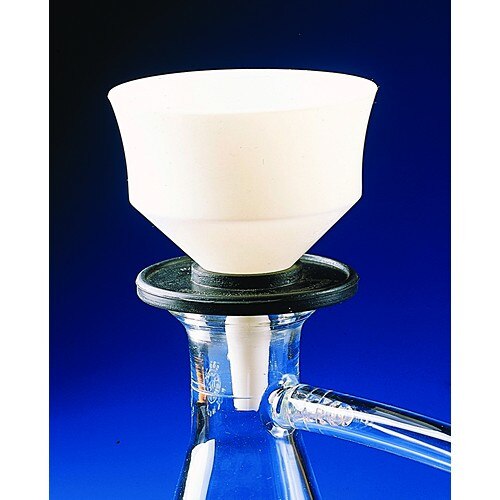

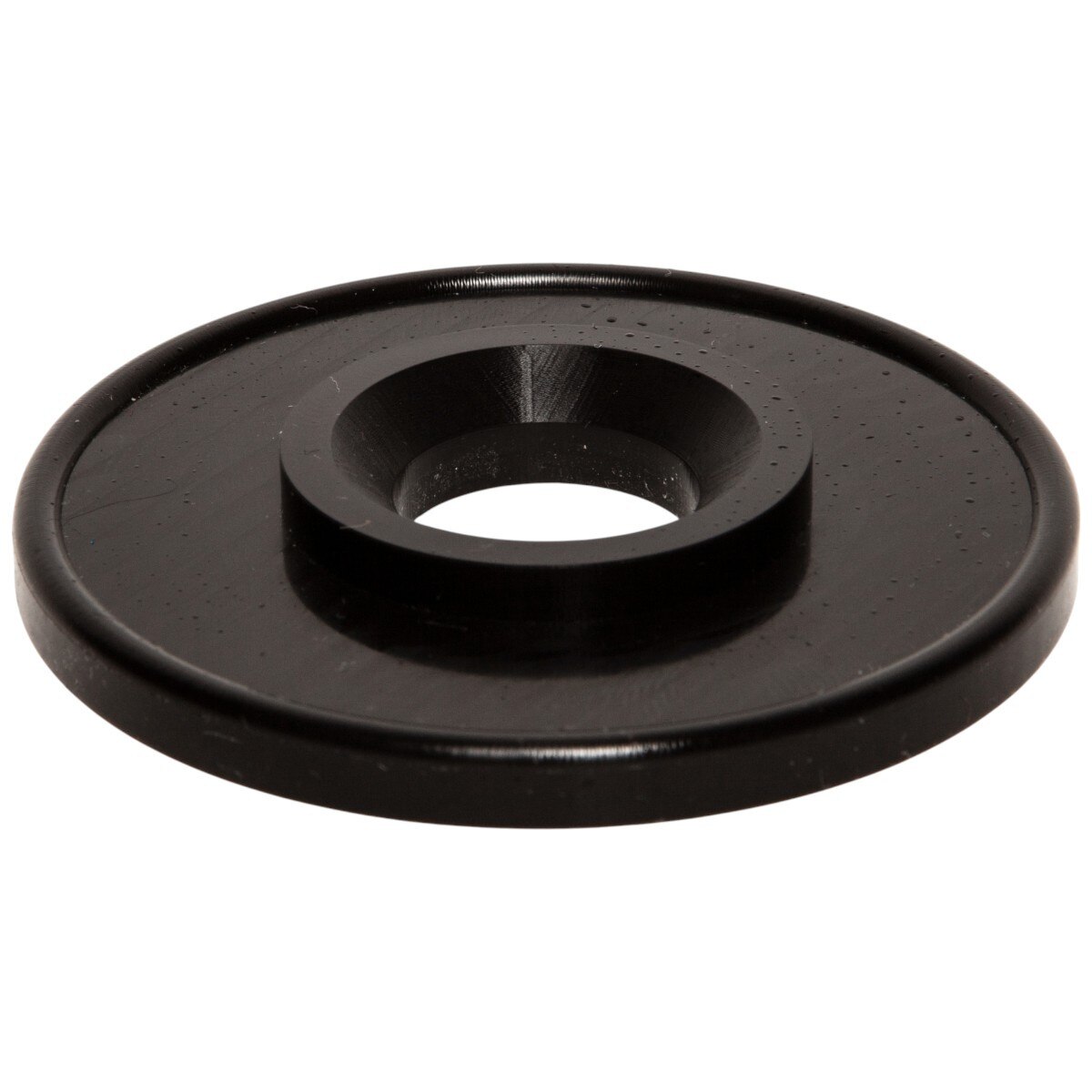

The H38959-0000 Vac-Ring Filter Seal is a reusable neoprene sealing ring designed to provide a quick, leak‑resistant connection between Buchner funnel stems and vacuum flask necks. It eliminates the need for rubber stoppers or adapters, streamlining filtration setup and ensuring a secure seal under vacuum. Compatible with funnel stems up to 2.5 cm in diameter.
Specifications
- Part Number: H38959-0000
- Material: Neoprene
- Maximum Funnel Stem Diameter: 2.5 cm
- Seal Type: Compression fit; reusable
- Compatibility: Designed for use with Bel-Art one‑piece HDPE Buchner funnels (F14608‑0000 through F14611‑0000)
- Packaging: Each (1 seal ring)
Delivery Content
- Neoprene Vac-Ring Filter Seal (H38959-0000)
Applications

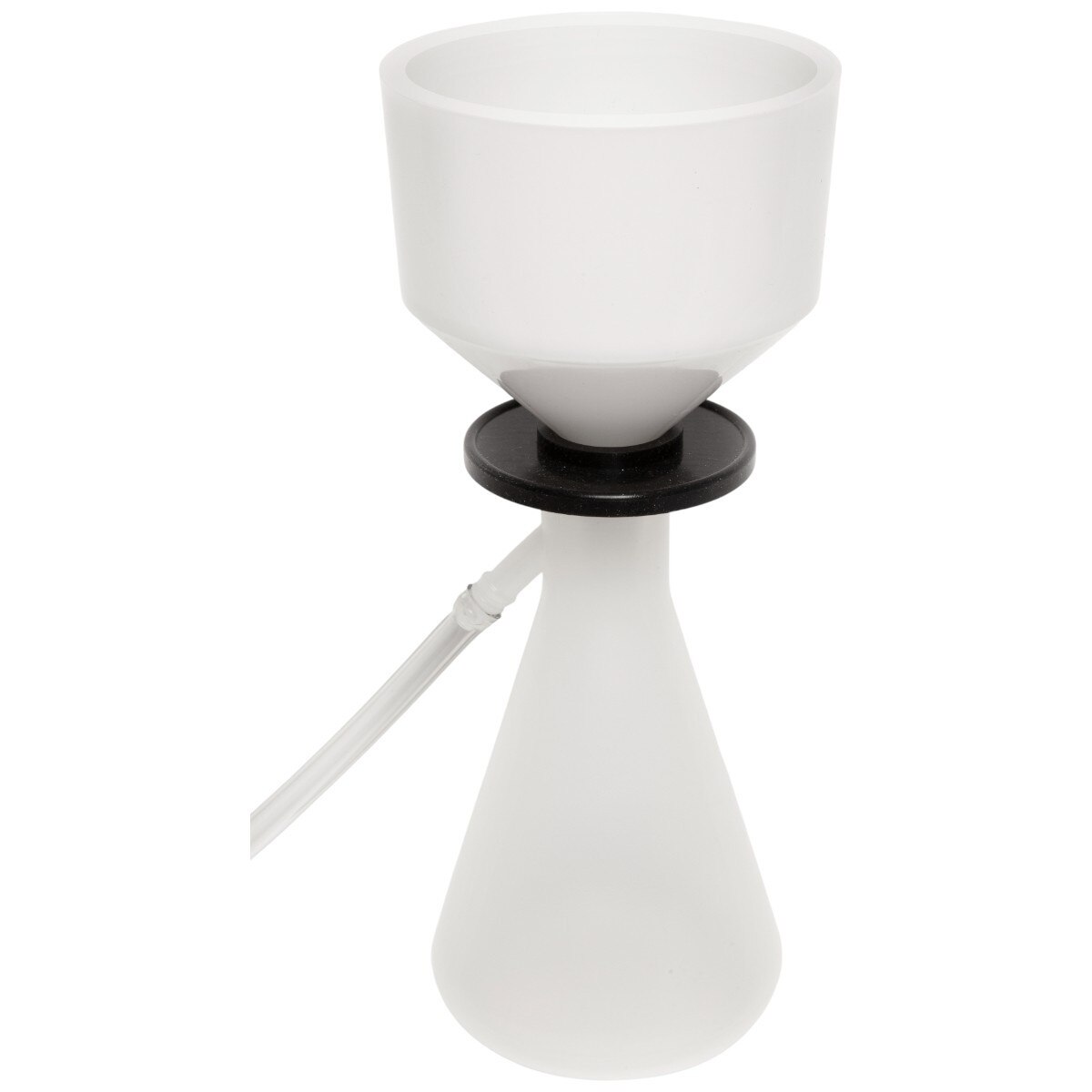

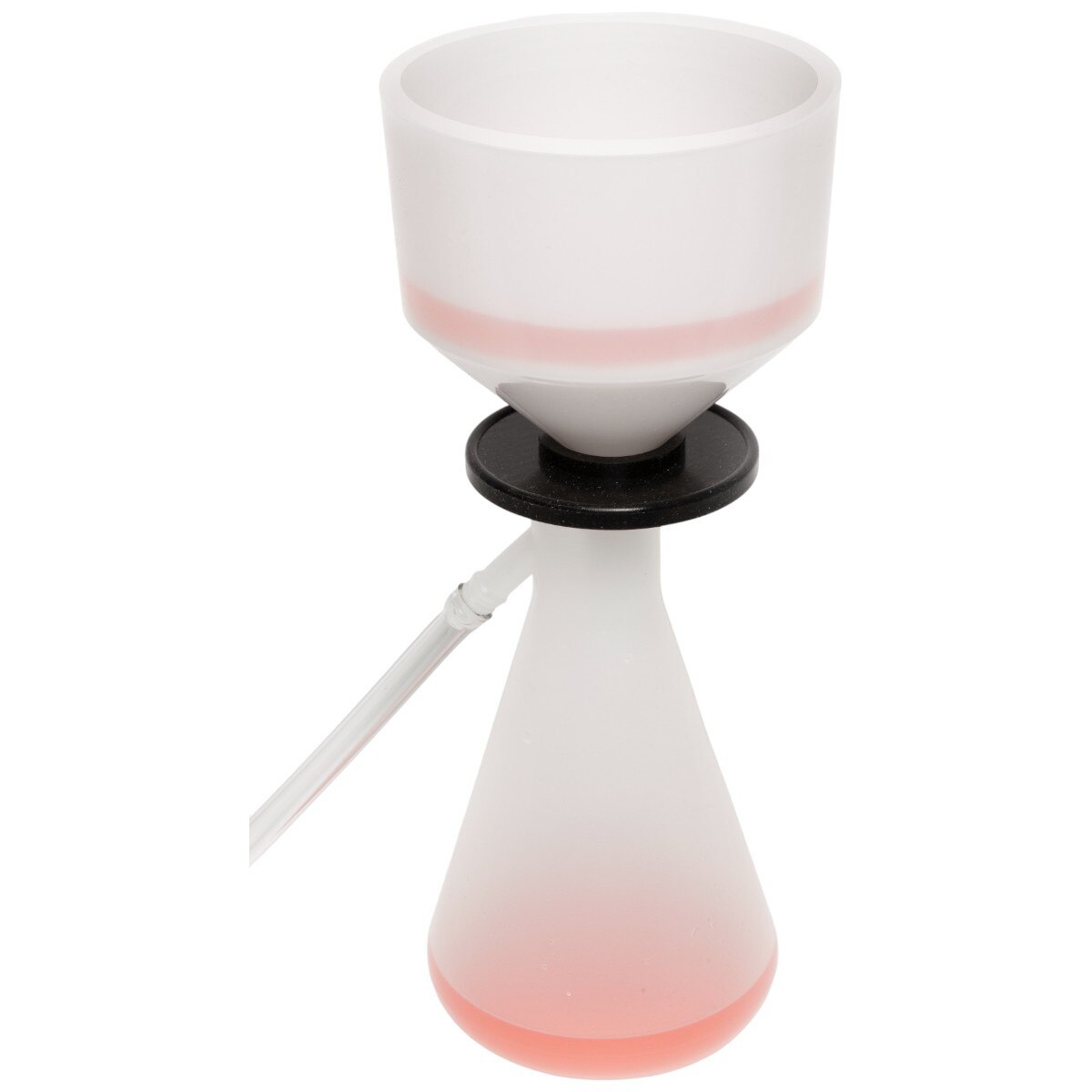

Provides a fast, reliable seal for vacuum filtration setups. Ideal for pairing with Bel-Art HDPE Buchner funnels to simplify assembly, prevent vacuum leaks, and eliminate the need for separate rubber stoppers or adapters.
| Product Type: | Seal |
| Brand: | Bel-Art |
| Class: | Filtering Flasks |
| Material: | Chemical-resistant neoprene |
| Color: | Black |
| Overall Dimensions: | I.D.: stems up to 22mm, O.D.: 76mm, Thickness: 9.5mm |
