SPB-H40407-0075
Images are for representation only. Actual product may differ in size, color or options.

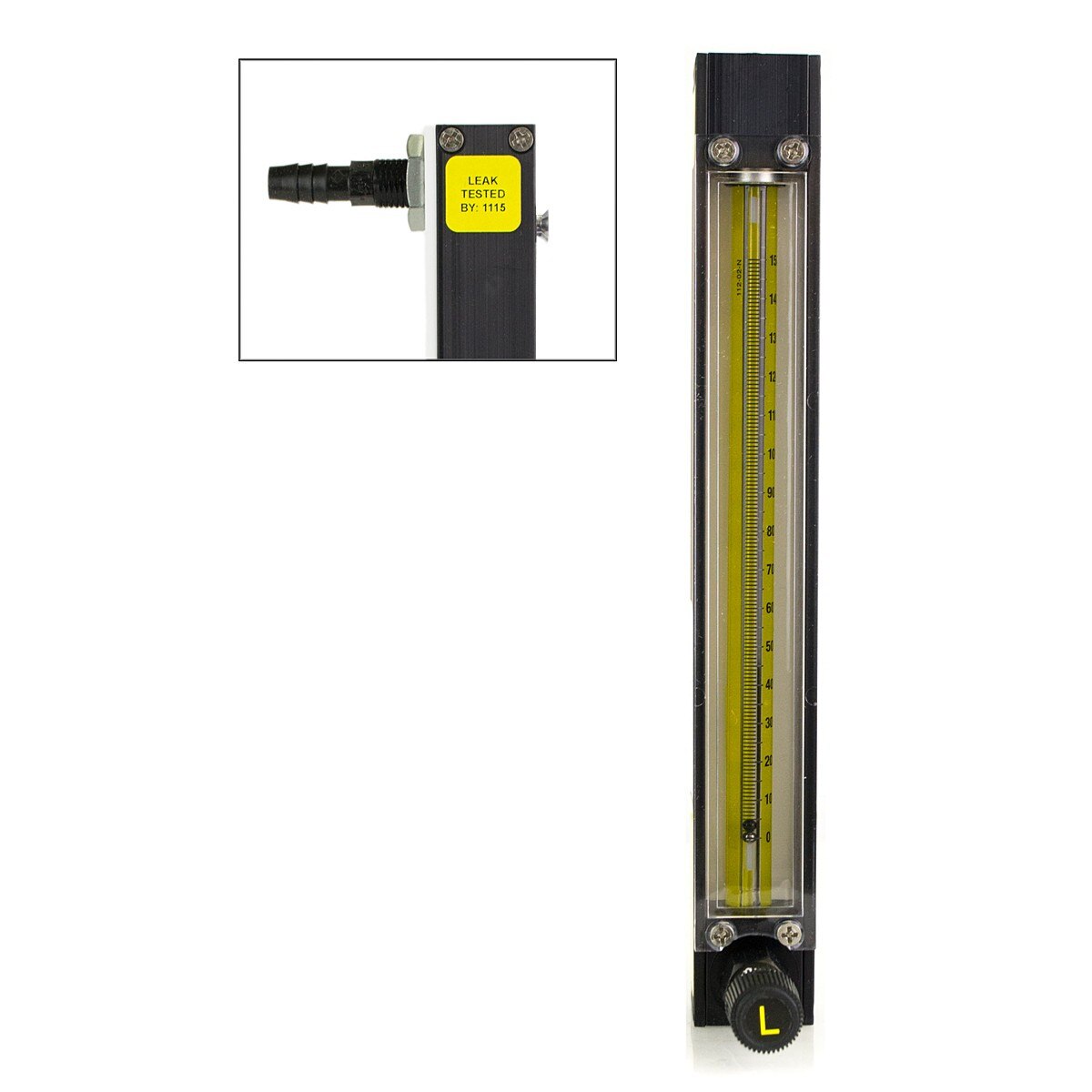

Riteflow Aluminum Mounted Flowmeter, 150mm scale, (each)
Size 2
Mounted Flowmeters with Aluminum Fittings are economical ad have Buna-N, 316 stainless steel and Delrin valves with hose barbs that accept tubing from 8mm (5/16") to 9.5mm (3/8") I.D., which can be removed for use with female 3.2mm (1/8") NPT fittings.
150mm scale
Size 2
Mounted Flowmeters with Aluminum Fittings are economical ad have Buna-N, 316 stainless steel and Delrin valves with hose barbs that accept tubing from 8mm (5/16") to 9.5mm (3/8") I.D., which can be removed for use with female 3.2mm (1/8") NPT fittings.
150mm scale
- Maximum operating pressure 200 p.s.i.g.
- Maximum operating temperature 121°C (250°F).
- Dimensions are 26.6cm x 3.2cm wide (10.5 x 1.25").
- 15.9mm (5/8") mounting holes are located 222.3mm (8-3/4") center to center.
| Product Type: | Flow Meter |
| Brand: | Bel-Art |
| Product Line: | Riteflow Flowmeters |
| Class: | Riteflow Aluminum Mounted Flow Meters 150mm scale |
