SPB-H46420-0002
Images are for representation only. Actual product may differ in size, color or options.
Inhalation Narcosis Chamber (each)
PP and Acrylic

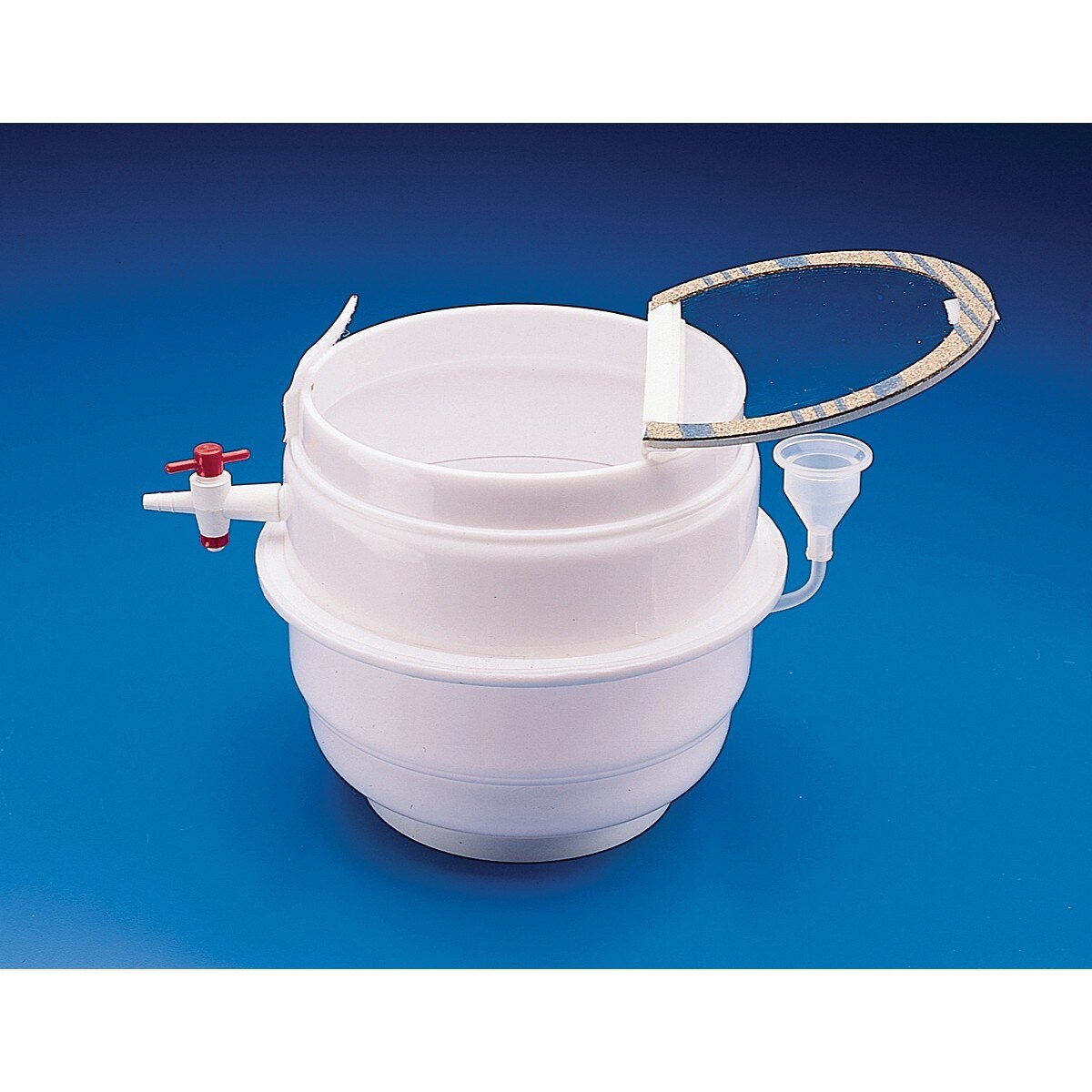

A clear acrylic, hinged cover permits observation of small animals during anesthetizing. Cover and additional polypropylene components are not affected by anesthetic compounds. A folding perforated platform is removed to fill the bottom with cotton and replaced to support the animal. Anesthetic is poured into the small funnel at the side and runs into the bottom of the chamber where it is absorbed by cotton. A stopcock permits entrance of fresh air during anesthesia to prevent suffocation and accepts 4mm-6mm ID tubing. Maximum I.D. is 19.7cm (7-3/4"), top I.D. is 17.8cm (7"), height from platform to top is 12.7cm (5"), height under platform is 5.7cm (2-1/4"), overall height is 19.7cm (7-3/4").
PP and Acrylic
A clear acrylic, hinged cover permits observation of small animals during anesthetizing. Cover and additional polypropylene components are not affected by anesthetic compounds. A folding perforated platform is removed to fill the bottom with cotton and replaced to support the animal. Anesthetic is poured into the small funnel at the side and runs into the bottom of the chamber where it is absorbed by cotton. A stopcock permits entrance of fresh air during anesthesia to prevent suffocation and accepts 4mm-6mm ID tubing. Maximum I.D. is 19.7cm (7-3/4"), top I.D. is 17.8cm (7"), height from platform to top is 12.7cm (5"), height under platform is 5.7cm (2-1/4"), overall height is 19.7cm (7-3/4").
| Product Type: | Inhalation Narcosis Chamber |
| Brand: | Bel-Art |
| Class: | Inhalation Narcosis Chamber |
| Material: | PP and Acrylic |
