Taylor Drop Test KIt, Chelant (total), Complexometric, 1 drop = 2 or 5 ppm EDTA
Images are for representation only. Actual product may differ in size, color or options.
Taylor Drop Test Kit, Chelant (total), Complexometric, 1 drop = 2 or 5 ppm EDTA
Chelants have many applications in industrial water testing because of their ability to tie up metal ions in solution. In water treatment programs for boilers or ultrapure water systems, for instance, EDTA (ethylenediaminetetraacetic acid) or NTA (nitrilotriacetic acid) can be used in combination with other sequestering agents to prevent scaling caused by calcium, magnesium, iron, and other metals.
These field-friendly, drop-count titration tests allow you to quickly and accurately measure the “free” residual (uncomplexed) chelant in the system; that is, what is left over after all metals have been bound up. One kit, the K-1544, will also determine total (complexed and uncomplexed) chelant.
Turbid samples should be filtered prior to performing these tests to remove suspended solids such as oxides. A funnel and filter paper are included in the kits for this purpose. Separately, we offer a syringe filtration system (#9803) and 2.5 µm filter discs (#6257) to speed up the process.
Extremely high hardness can cause interference with these chelant tests, making them inappropriate for use in cooling towers. Other chelants will cause positive interference in all tests.
| Description of Tests | |||||||||||||
| |||||||||||||
Chelants have many applications in industrial water testing because of their ability to tie up metal ions in solution. In water treatment programs for boilers or ultrapure water systems, for instance, EDTA (ethylenediaminetetraacetic acid) or NTA (nitrilotriacetic acid) can be used in combination with other sequestering agents to prevent scaling caused by calcium, magnesium, iron, and other metals.
These field-friendly, drop-count titration tests allow you to quickly and accurately measure the “free” residual (uncomplexed) chelant in the system; that is, what is left over after all metals have been bound up. One kit, the K-1544, will also determine total (complexed and uncomplexed) chelant.
Turbid samples should be filtered prior to performing these tests to remove suspended solids such as oxides. A funnel and filter paper are included in the kits for this purpose. Separately, we offer a syringe filtration system (#9803) and 2.5 µm filter discs (#6257) to speed up the process.
Extremely high hardness can cause interference with these chelant tests, making them inappropriate for use in cooling towers. Other chelants will cause positive interference in all tests.
| Product Type: | Test Kit |
| Brand: | Taylor Technologies |
| Product Line: | Drop Test |
| Class: | Chelant (total) |
| Range: | 1 drop = 2 or 5 ppm EDTA |

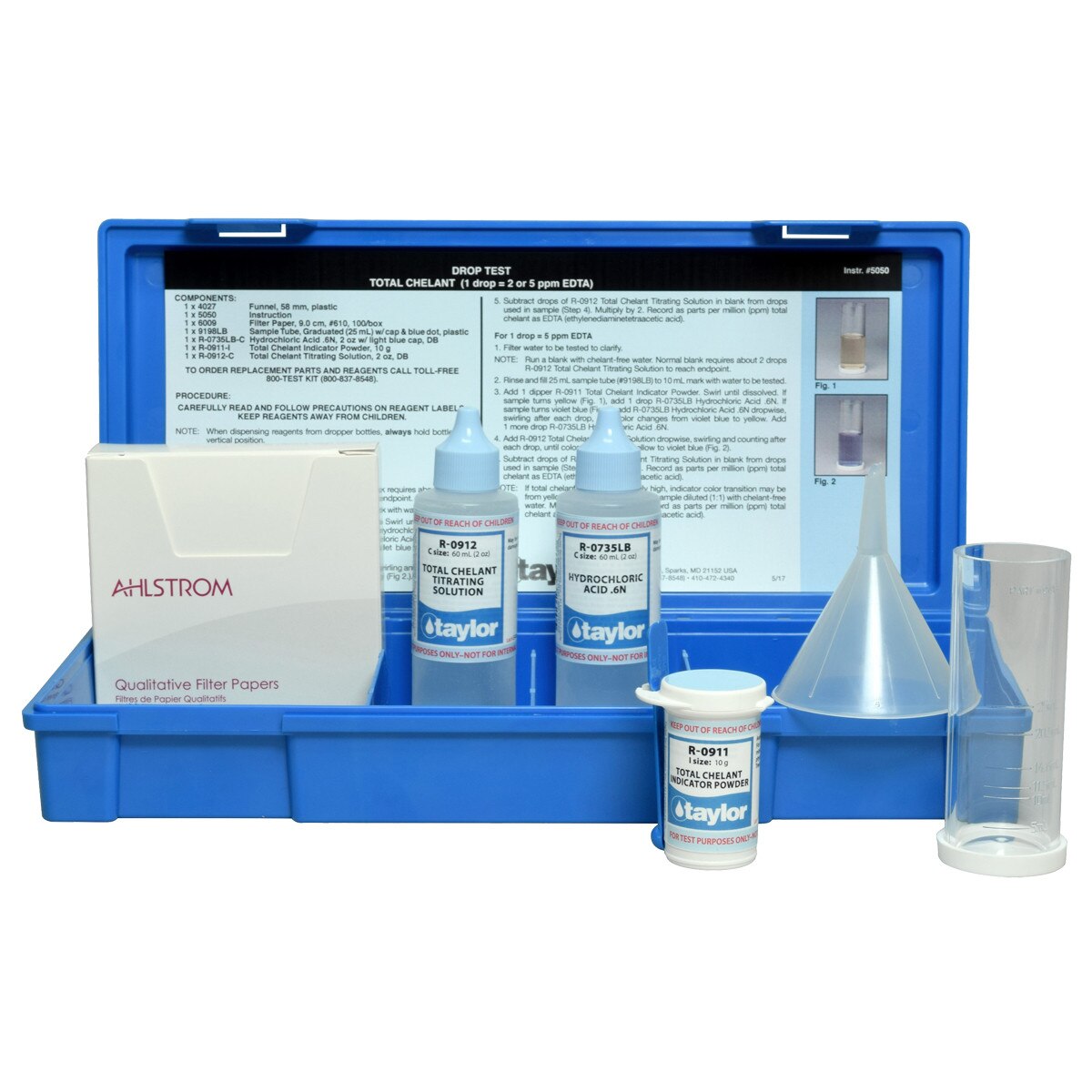

| Includes: | 1 of the 2103: LABEL,1 1/16 DIA PMS 283 1 of the 4027: FUNNEL,58 MM 1 of the 5050: INSTR,DT,CHELANT(TOT),DR= 1 of the 6009: FILTER PAPER,9.0 CM,#610, 1 of the 7040K: LABEL,KIARO PRINTER,2.5"X 1 of the 8126: KIMPAC 4.75 X 11 1 of the 9198: SAMPLE TUBE,GRAD(25 ML) W 1 of the 9211: CASE DTK W/O 1 RIB 11.5X5 1 of the R-0735LB-C: HYDROCHLORIC ACID .6N,LT 1 of the R-0911-I: TOTAL CHELANT IND PDR,10 1 of the R-0912-C: TOTAL CHELANT TITR SOL,2 |
| Notes: | Taylor items have a lead time of 3-15 days. |
