Graham Condenser – 24/40 Joint, 200 mm (each)

Graham Condenser – 24/40 Joint, 200 mm (each)

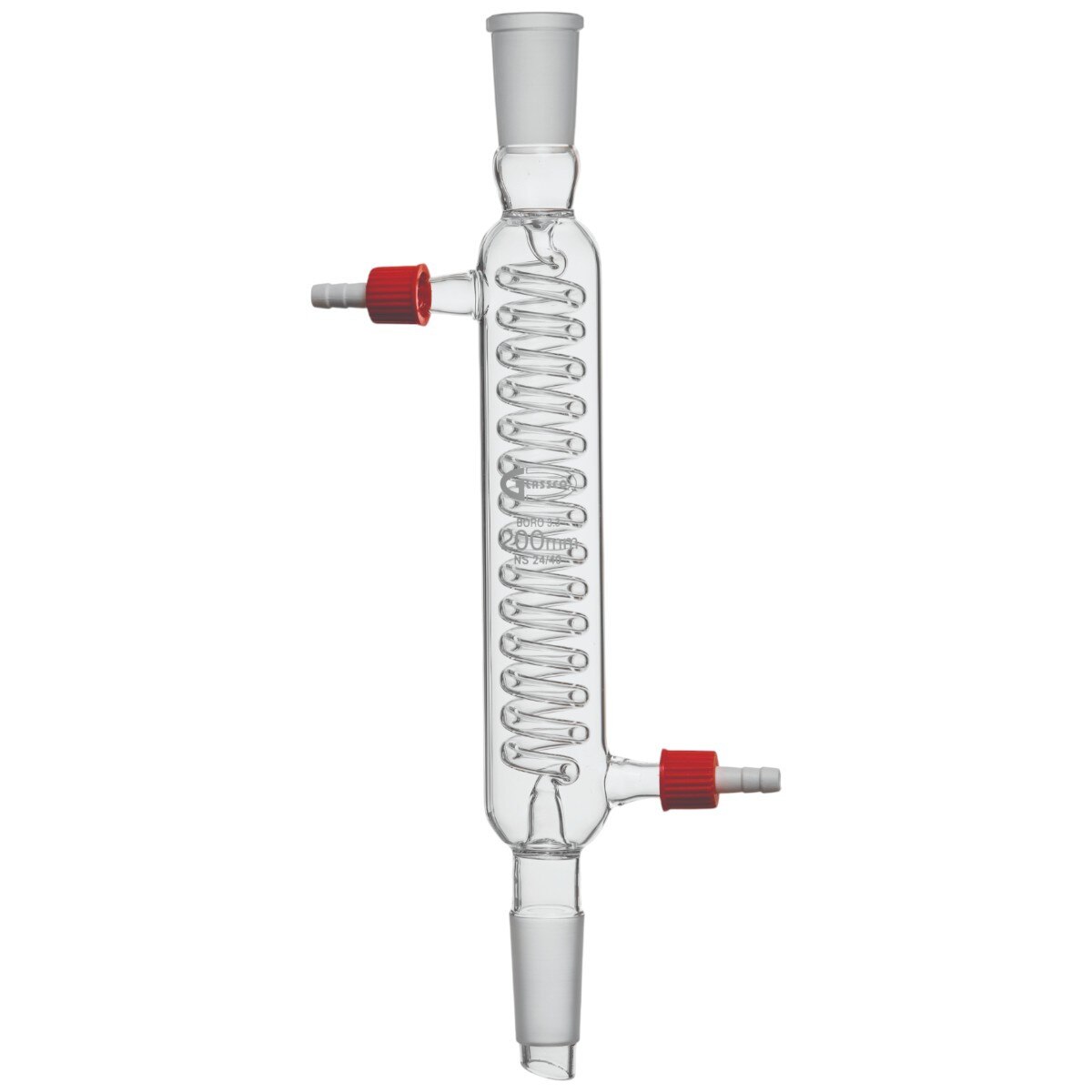

Graham condenser with a coiled inner tube surrounded by a water‑jacketed outer tube, providing maximum surface area for efficient vapor cooling in distillation setups. Both ends feature standard 24/40 joints, and screw‑thread hose connectors fit 1/4 in OD plastic tubing. Made from borosilicate glass for durability and autoclavable for laboratory hygiene.

Specifications

• Product Number: CNG200
• Joint Size: 24/40 (top and bottom sockets)
• Effective Length: 200 mm
• Hose Connections: Screw‑thread, fit 1/4 in (OD) plastic tubing
• Material: Borosilicate glass
• Autoclavable: Yes

Features

• Coiled inner tube increases cooling surface area
• Water‑jacket design for high‑efficiency condensation
• Standard 24/40 joints for compatibility with lab glassware
• Secure threaded hose fittings for 1/4 in OD tubing

Applications

Ideal for condensing vapors in distillation processes requiring enhanced cooling efficiency.
