Advanced Electricity and Magnetism Kit
Images are for representation only. Actual product may differ in size, color or options.
Advanced Electricity and Magnetism Kit
Comprehensive 58-piece kit designed to explore the foundational principles of electricity and magnetism. Includes upgraded components and expanded materials for investigating electrostatics, magnetic fields, electric circuits, and electromagnetic devices. Aligned with NGSS standards and supported by a detailed activity guide covering over 25 experiments.
Specifications
- Part Number: EMKIT5
- Total Components: 58 pieces
- Power Requirement: 3 × AA batteries (not included)
- Mounting: Molded bases with spring terminals
- Activity Guide: Included (covers 25 experiments)

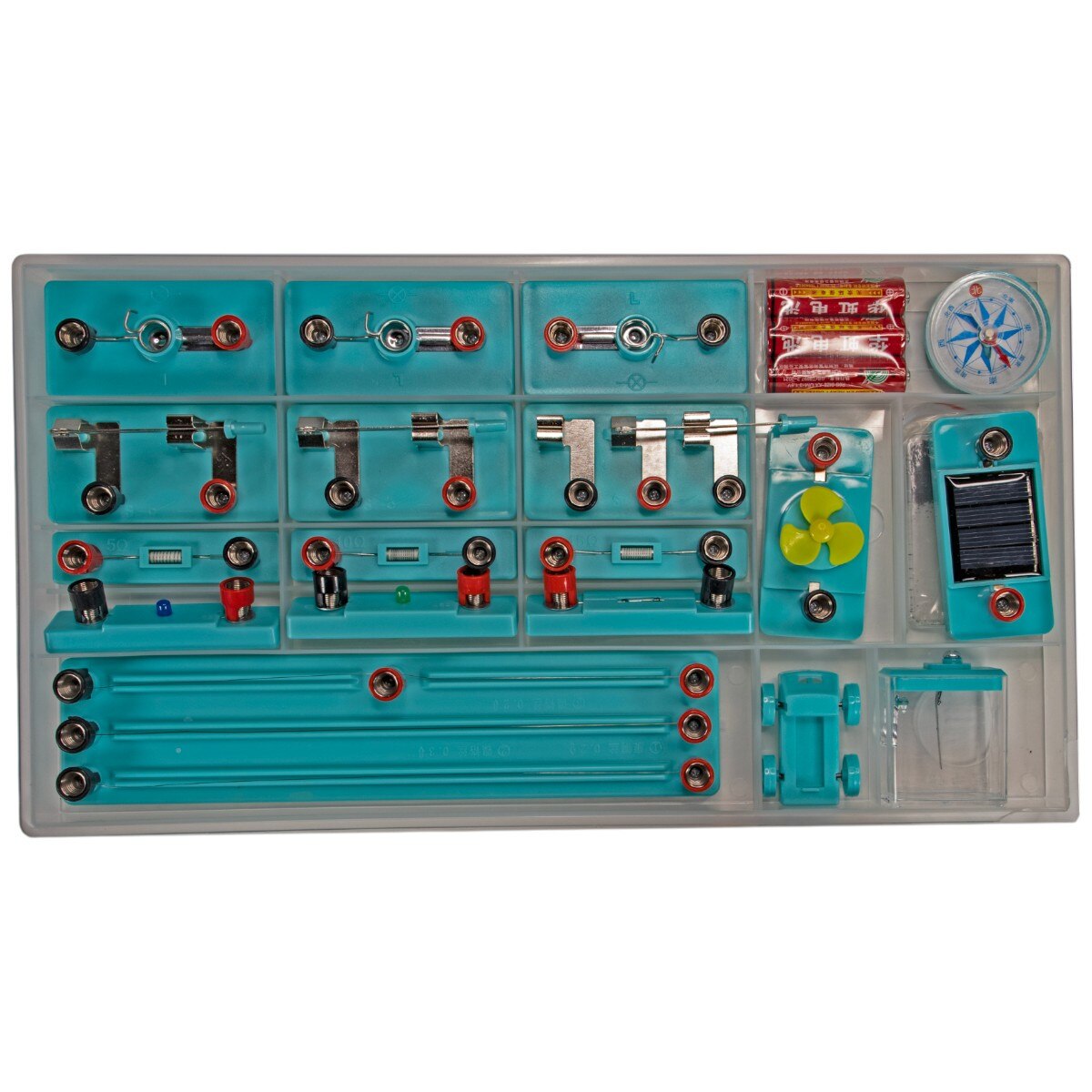

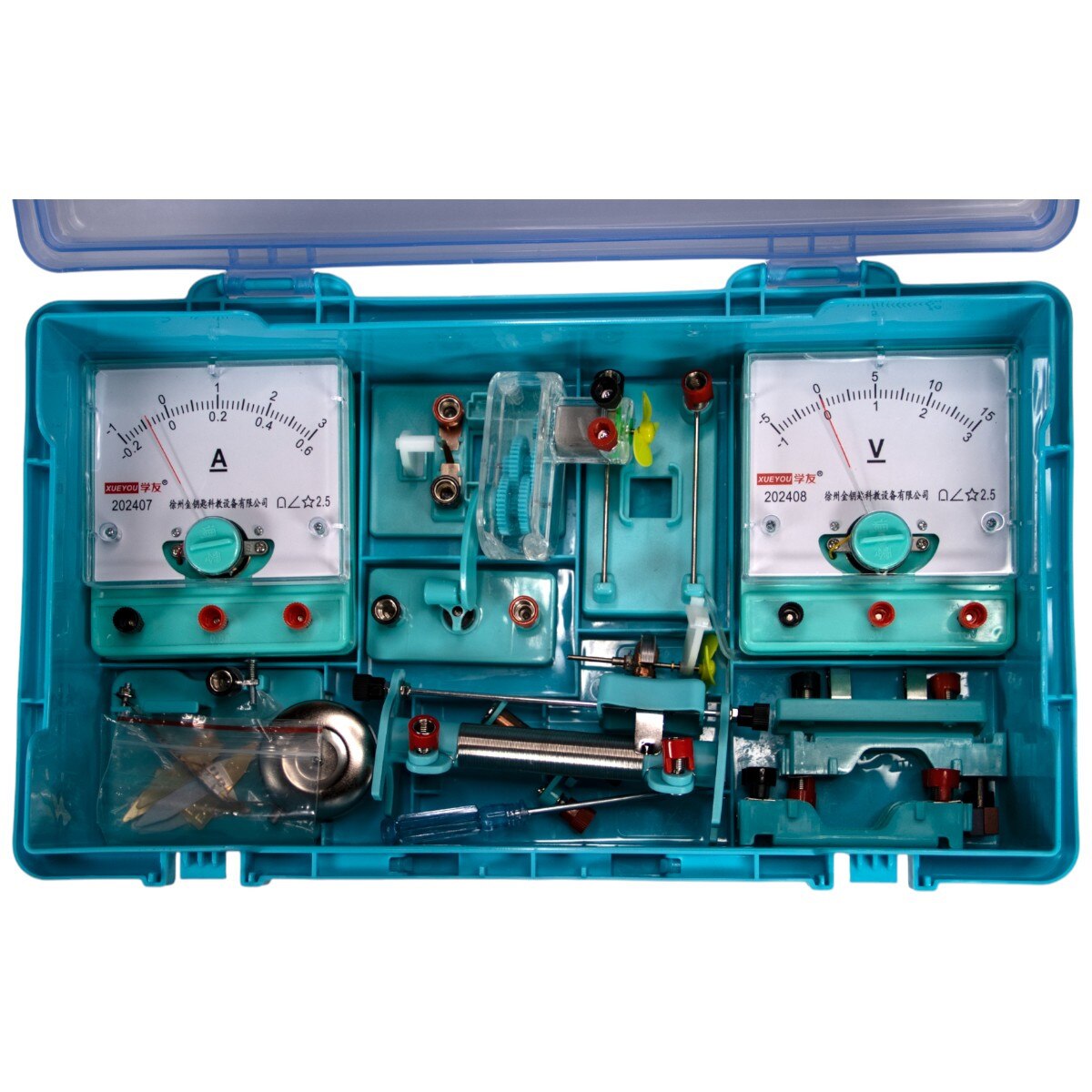

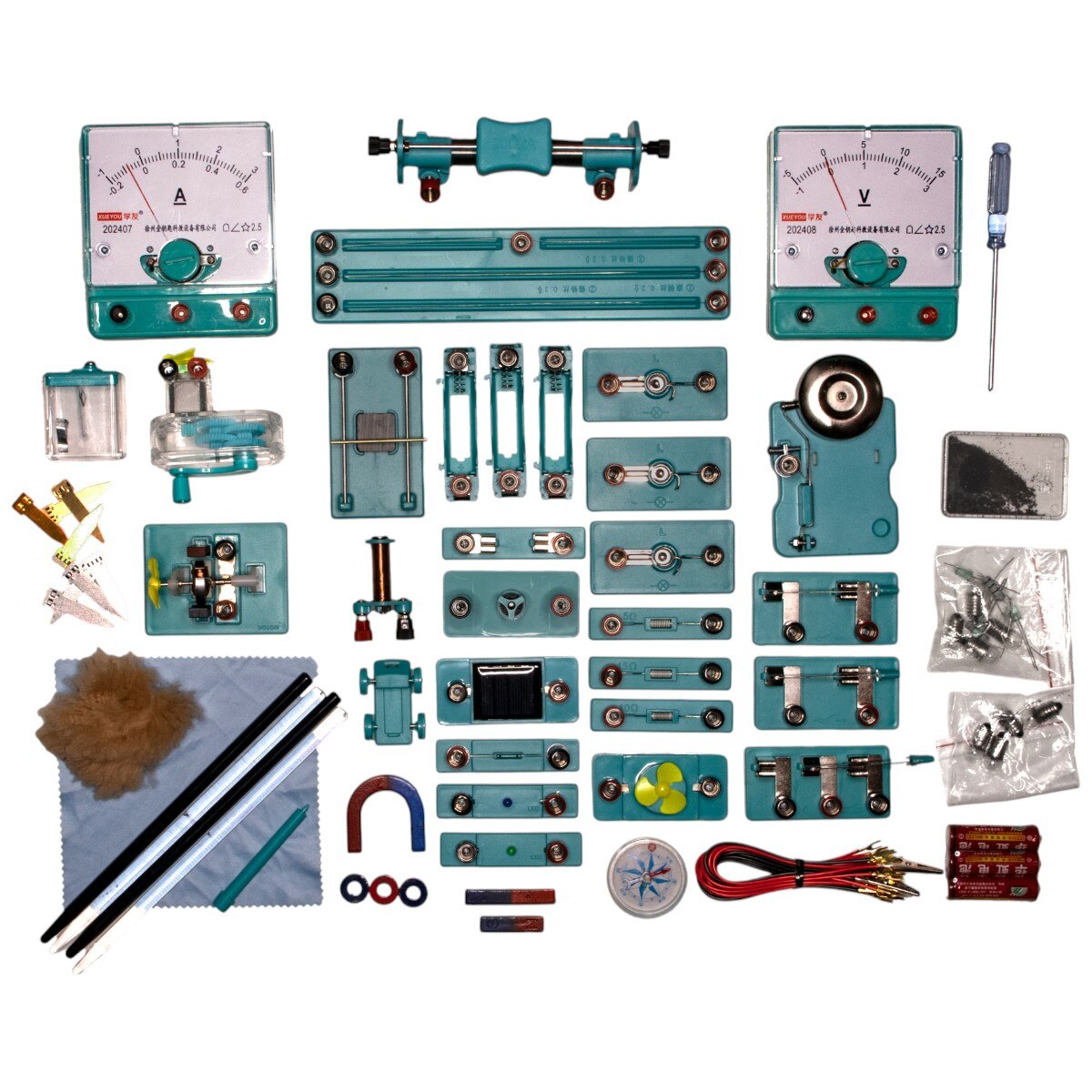

Included Components
- DC Ammeter (dual range)
- DC Voltmeter (dual range)
- Battery holders (3)
- Knife switches: SPST (2), SPDT (1)
- Lamp holders (3) + Miniature incandescent lamps (8)
- Motor model (2-part)
- Resistors: 5Ω, 10Ω, 15Ω
- Slide rheostat (20Ω, 2A)
- Wire resistance board
- Conductivity test board
- Bar magnets (2), U-shaped magnet (1), Ring magnets (3)
- Ring magnet carriage
- Compass, Magnetic field visualizer
- Electric bell, Electromagnet, Electromagnetic force device
- DC miniature motor, Hand generator
- LED boards (green & blue), Solar cell
- Buzzer, Magnetic reed switch
- Electrostatic test objects, Electroscope
- Connecting cords (16), Electrodes and spares
- Screwdriver
Key Topics & Activities
- Electrostatics: charging by friction, attraction/repulsion, electroscope
- Magnetism: field visualization, compass interaction, magnetic forces
- Electric circuits: conductors/insulators, voltage, current, Ohm’s Law
- Series vs. parallel circuits and load behavior
- Electromagnetism: field strength, force on conductors, motor principles
- Energy conversion: hand generator, solar cell, LEDs
- Technology applications: buzzer, reed switch, electric bell
NGSS Alignment
- Elementary: 3-PS2-3, 4-PS3-2
- Middle School: MS-PS2-3, MS-PS2-5, MS-PS3-2
- High School: HS-PS2-5, HS-PS3-5
Maintenance
- Clean components with soft cloth only
- Store in a dry, enclosed container
- Spare LEDs included
| Product Type: | Electromagnet Kit |
| Brand: | United Scientific |
| Class: | Magnetism |
| Warranty: | 1 Year |
| Packaging: | kit |
| Includes: | Activity Guide |
