Vacuum Filter Holder Set with Stainless Steel Screen – 47 mm
Images are for representation only. Actual product may differ in size, color or options.
Vacuum Filter Holder Set with Stainless Steel Screen – 47 mm

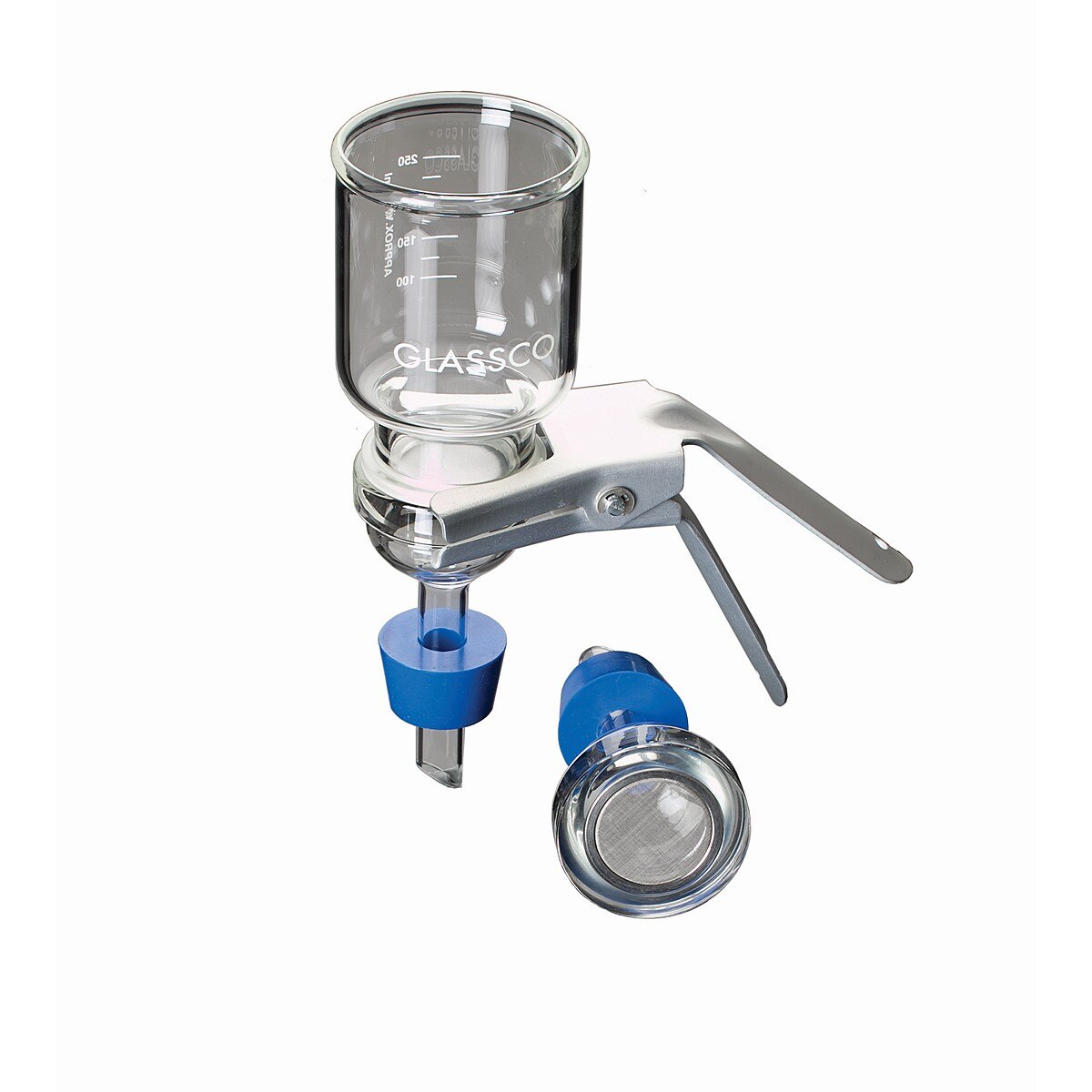

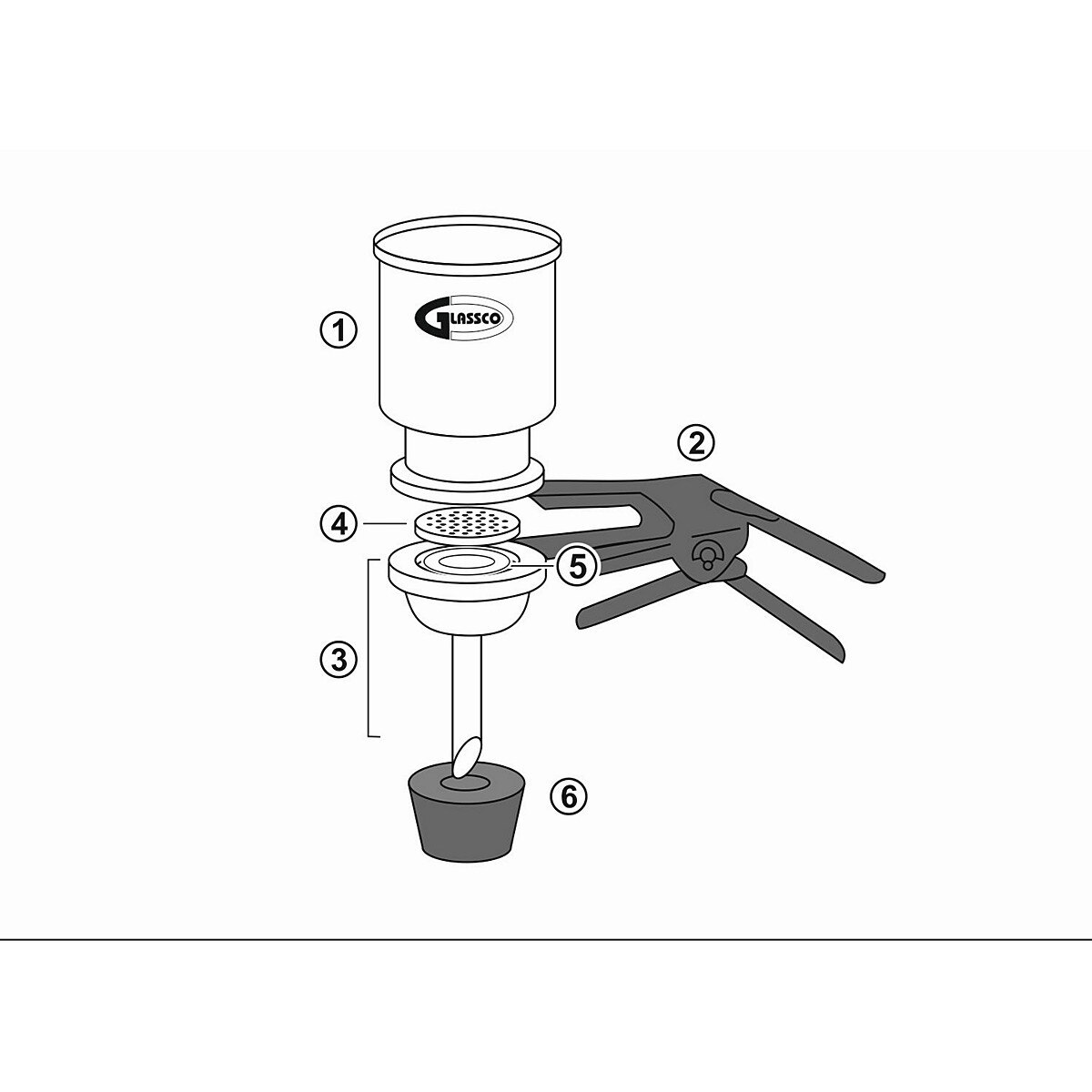

Vacuum filtration set designed for particulate contamination analysis of hydraulic fluids and oils using gravimetric or particle-counting methods, and suitable for exfoliative cytology. Complete assembly includes borosilicate glass funnel and base, stainless steel support screen, PTFE gasket, anodized aluminum spring clamp, and perforated silicone stopper for a secure, chemical‑resistant setup.
Specifications
- Product Number: FHSS47
- Filter Diameter: 47 mm
- Filtration Area: 9.6 cm²
- Funnel Capacity: 300 mL
- Support Type: Stainless steel screen
- Gasket: PTFE
- Funnel/Base Material: Borosilicate glass
- Clamp: Anodized aluminum spring clamp
- Stopper: Perforated silicone, size #8
- Outlet Fitting: 6 mm (1/4") O.D. tubulated cap sidearm to vacuum
- Dimensions: 22.9 cm (H) × 7.6 cm (Dia)
- Prefilter Compatibility: Thick depth prefilter 35 mm; membrane prefilter 47 mm
- Sterilization: UV sterilize or autoclave without filter in place
Features
- Optimized for hydraulic fluid/oil particulate analysis; suitable for exfoliative cytology
- Chemical‑resistant construction with borosilicate glass, stainless support, and PTFE gasket
- Secure, quick assembly via anodized aluminum spring clamp
- Standard 6 mm sidearm outlet integrates with common vacuum tubing
- Replacement components available for long service life
Applications
Used in quality control and lab analysis to capture and measure particulate contamination in hydraulic and lubricating fluids, and in cytology workflows requiring clean, reproducible filtrations.
| Product Type: | Filter System |
| Brand: | United Scientific |
