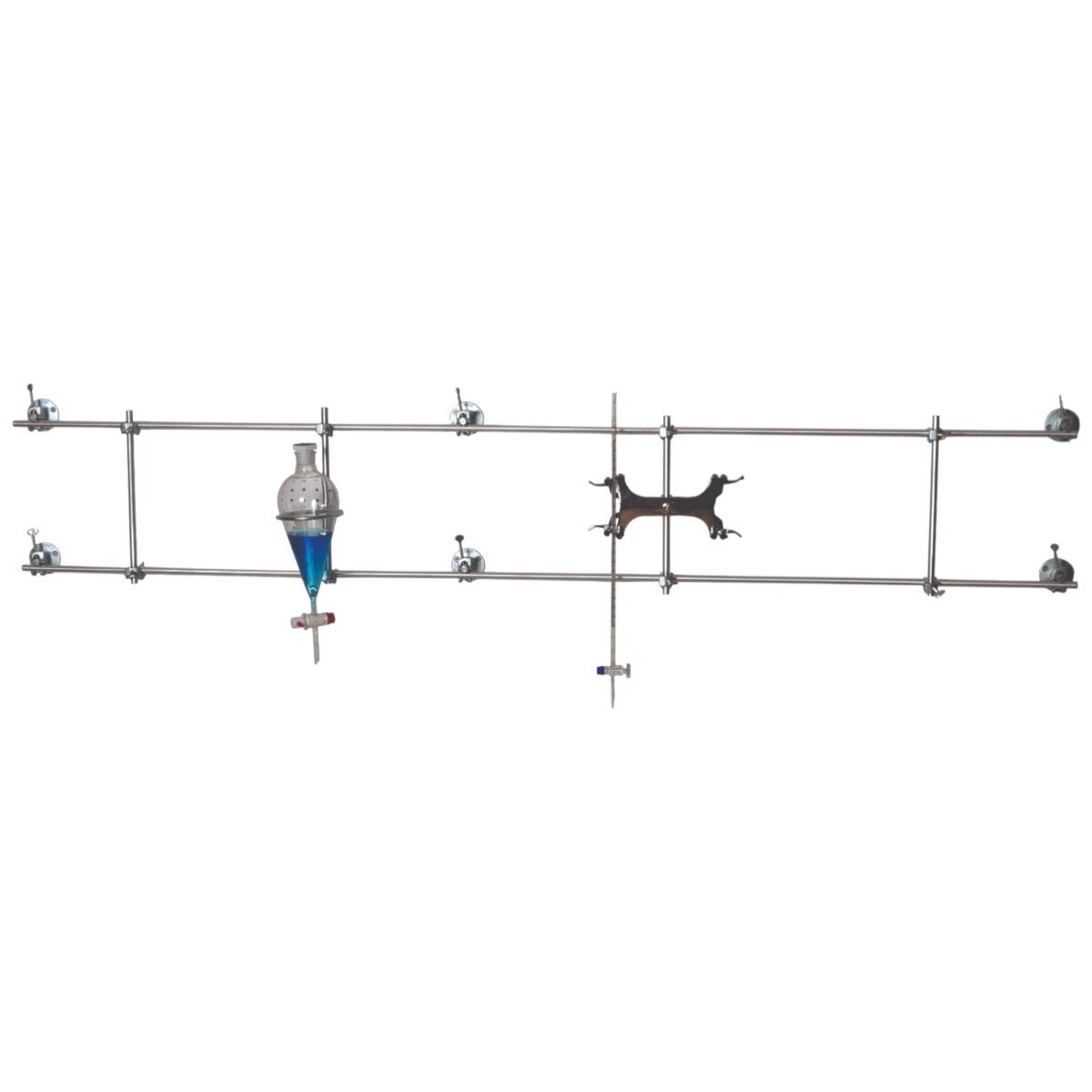

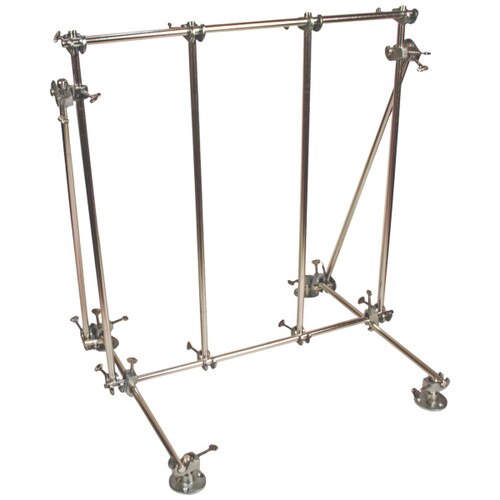

United Scientific Lattice Lab System – Set #4

The Lattice Lab System Set #4 (Catalog No. LLS004) provides maximum structural flexibility with support rods up to 72" in length. Designed for physics and chemistry labs, this modular system assembles easily with a screwdriver and features durable hard aluminum and cast alloy components.

Key Features

• System Type: Modular lattice support framework
• Material: Hard aluminum rods, cast alloy foot plates and connectors
• Assembly: Screwdriver required (no welding or adhesives)
• Configuration: Supports tall and wide lattice structures with extended reach

Contents

• Foot Plates (2-5/16" diameter): 8 pcs
• Set Screws for Foot Plates: 8 pcs
• Anchoring Screws for Foot Plates: 24 pcs
• Hook Connectors with Thumbscrews: 49 pcs
• Support Rods – 2" long, 1/2" diameter: 6 pcs
• Support Rods – 12" long, 1/2" diameter: 6 pcs
• Support Rods – 24" long, 1/2" diameter: 2 pcs
• Support Rods – 48" long, 1/2" diameter: 7 pcs
• Support Rods – 72" long, 1/2" diameter: 5 pcs

Applications

• Physics and chemistry lab setups
• Extended apparatus support and alignment
• Demonstration rigs and tall scaffolding structures

Assembly Notes

• Foot plates include countersunk holes for bench mounting
• Hook connectors join rods at right angles with thumbscrews
• Rod assortment enables vertical and angled expansion
