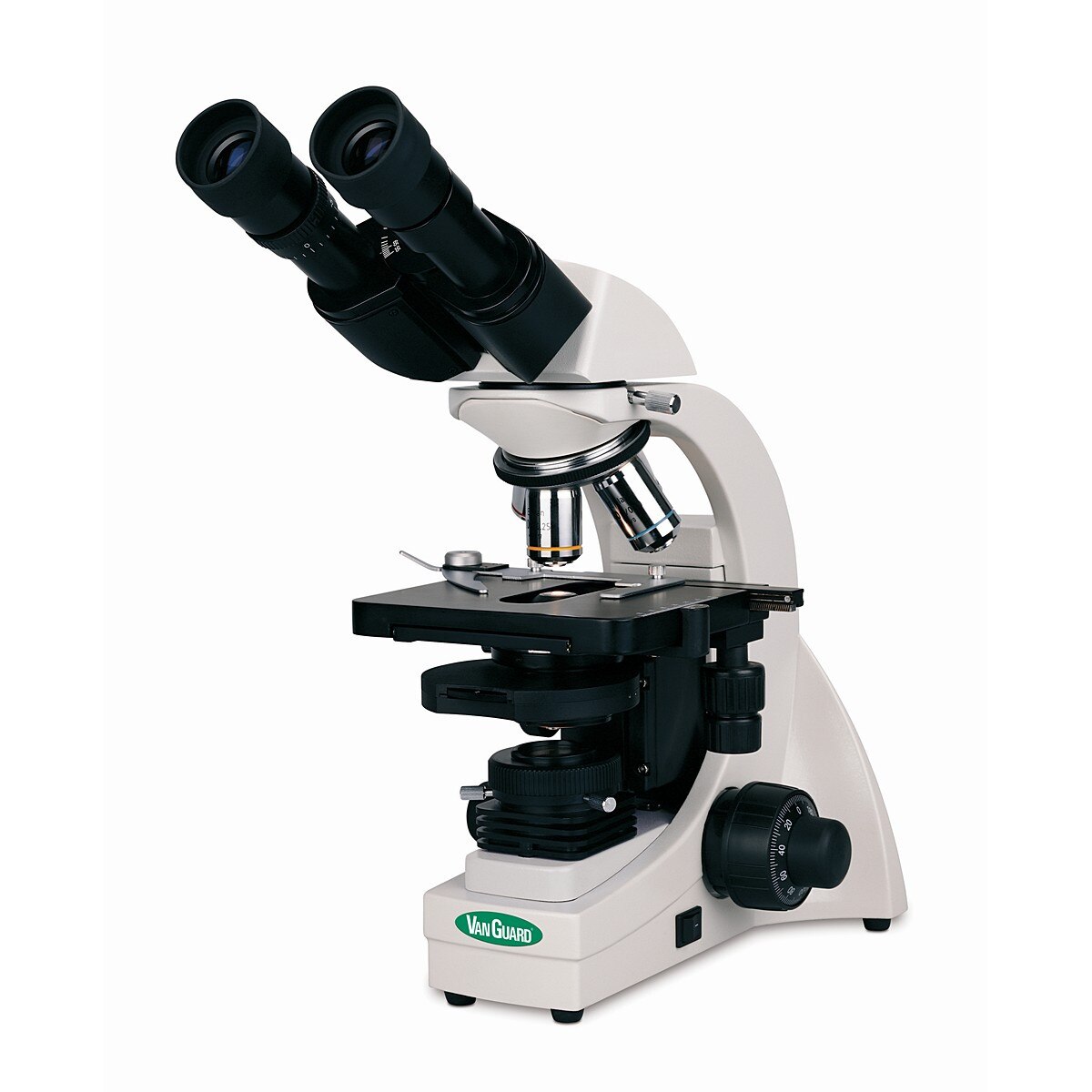

VanGuard Binocular Clinical Koehler Brightfield Phase Contrast Darkfield Microscope, 10X, 20X, 40X, 100X (Oil) Plan Achromatic Objectives
Images are for representation only. Actual product may differ in size, color or options.
VanGuard Binocular Clinical Koehler Brightfield Phase Contrast Darkfield Microscope
The vivid, infinity-corrected optics of the VanGuard 1300-Series Clinical Microscopes offer exceptionally high optical flatness and visual clarity. Ultra-low focusing controls and advanced ergonomics make them an excellent match for use in medical/veterinary clinics, universities, and industrial laboratories.
All models feature 10X WideField eyepieces, 20W variable quartz halogen, field diaphragms for Koehler illumination, and are backed by a 5-Year warranty.
Features:
The vivid, infinity-corrected optics of the VanGuard 1300-Series Clinical Microscopes offer exceptionally high optical flatness and visual clarity. Ultra-low focusing controls and advanced ergonomics make them an excellent match for use in medical/veterinary clinics, universities, and industrial laboratories.
All models feature 10X WideField eyepieces, 20W variable quartz halogen, field diaphragms for Koehler illumination, and are backed by a 5-Year warranty.
Features:
- VIOS Infinity-Corrected Optics
- Brightfield, Darkfield, & Phase Contrast
- Integrated Koehler Illumination
- Advanced Ergonomics
- Small Footprint
- High-Eyepoint Eyepieces (FD 20mm) w/ Rubber Eyecups
| Product Type: | Koehler Brightfield Phase Contrast Darkfield Microscope |
| Brand: | VEE GEE Scientific |
| Class: | Clinical |
| Grade: | Advanced |
| Power Supply: | 110 VAC (220 VAC available upon request) |
| Base: | 225 x 175 mm; Anti-Skid Rubber Feet |
| Body: | Ergonomic; Stain-Resistant Enamel Finish |
| Condenser: | 1.25 N.A. Zernike; Iris Diaphragm; Rack & Pinion Focusing Control; 10X, 20X, 40X, 100X Zernike Phase Stops; Telescoping Eyepiece For Phase Annuli Centering; Darkfield Stop |
| Dioptric Adjustment: | -6 to +6 |
| Eyepieces: | High-Eyepoint, Rubber Eyecups; 20 mm F.D. |
| Eyepiece Type: | Super Widefield |
| Eyepiece Magnification: | 10X |
| Focusing: | Coaxial, Ultra-Low Position, Coarse/Fine Controls; Tension Adjustment; Safety Auto-Stop; 20 mm Focusing Range; 0.002 mm Precision |
| Head: | Binocular |
| Illumination: | 20 W Variable Quartz Halogen; Centerable Field Diaphragm For Koehler; Filter Holder On Collector; Removable Collector For Simple Lamp Replacement |
| Infinity Optics: | Yes |
| Interpupillary Adjustment: | 55-75 mm |
| Nosepiece: | 4-Position; Reverse Pitch |
| Objective Magnification: | 10X, 20X, 40X, 100X (Oil) |
| Objective Type: | Plan Achromatic |
| Optical System: | VIOS Infinity-Corrected |
| Stage: | Rectangular 140 x 130 mm Mechanical; Drop-Down, Right-Hand, Rack & Pinion X-Y Control, 75 x 50 mm Cross Travel Range; Removable Spring-Clip Slide Holder; Chemical-Resistant Finish |
| Viewing Head: | 30° Inclination; 360° Rotatable |
| Warranty: | 5-Year Optical/Mechanical; 1-Year Electrical |
| Net Weight: | 15 lbs. |
| Overall Dimensions: | 370 (L) x 190 (W) x 400 (H) mm |
| Includes: | Dispersion Filter, Blue Filter, Green Filter, Telescoping Eyepiece, Spare Lamp & Fuse, Eyecups (2 Ea.), Dust Cover, & Operation Manual |
