VGS-C25L
Images are for representation only. Actual product may differ in size, color or options.

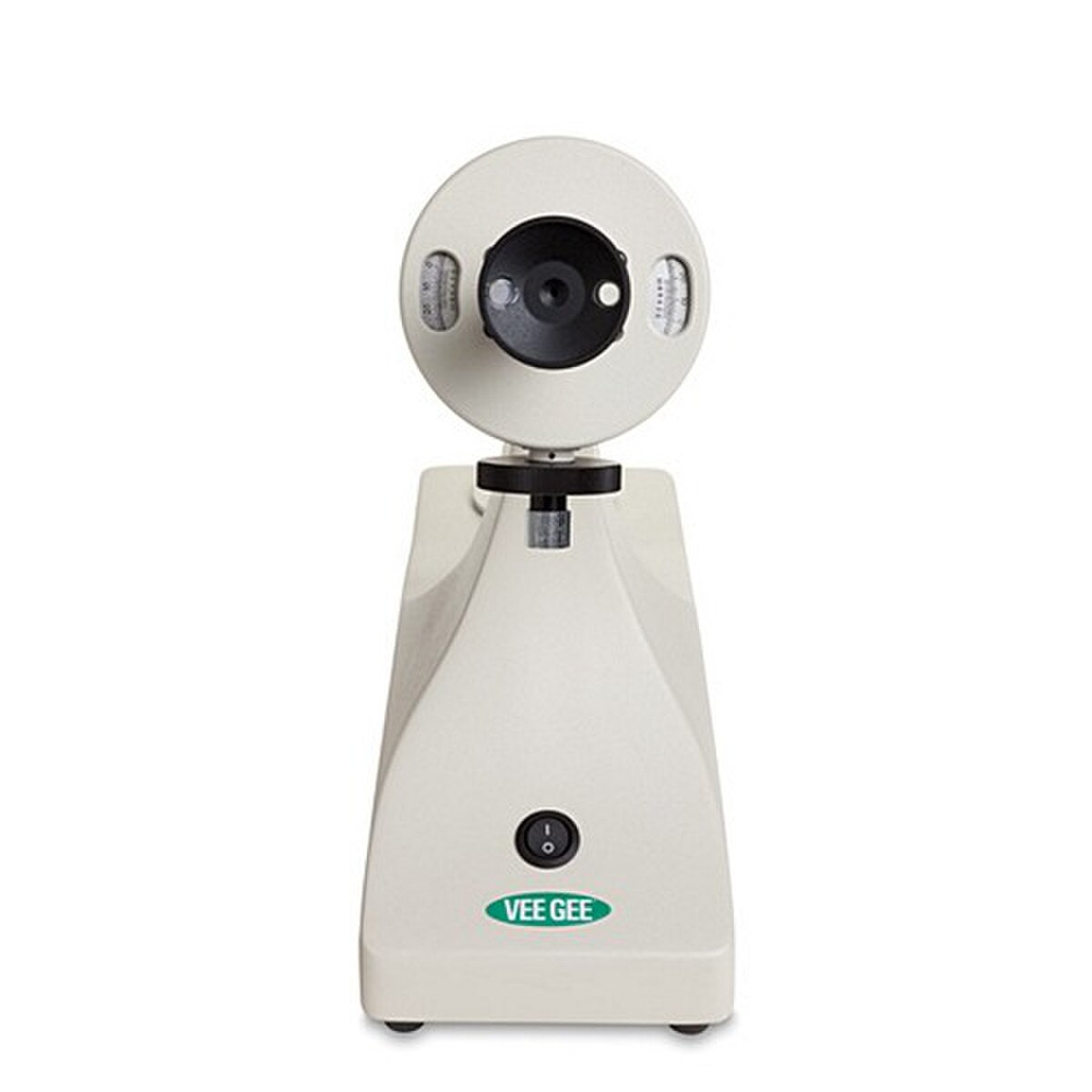

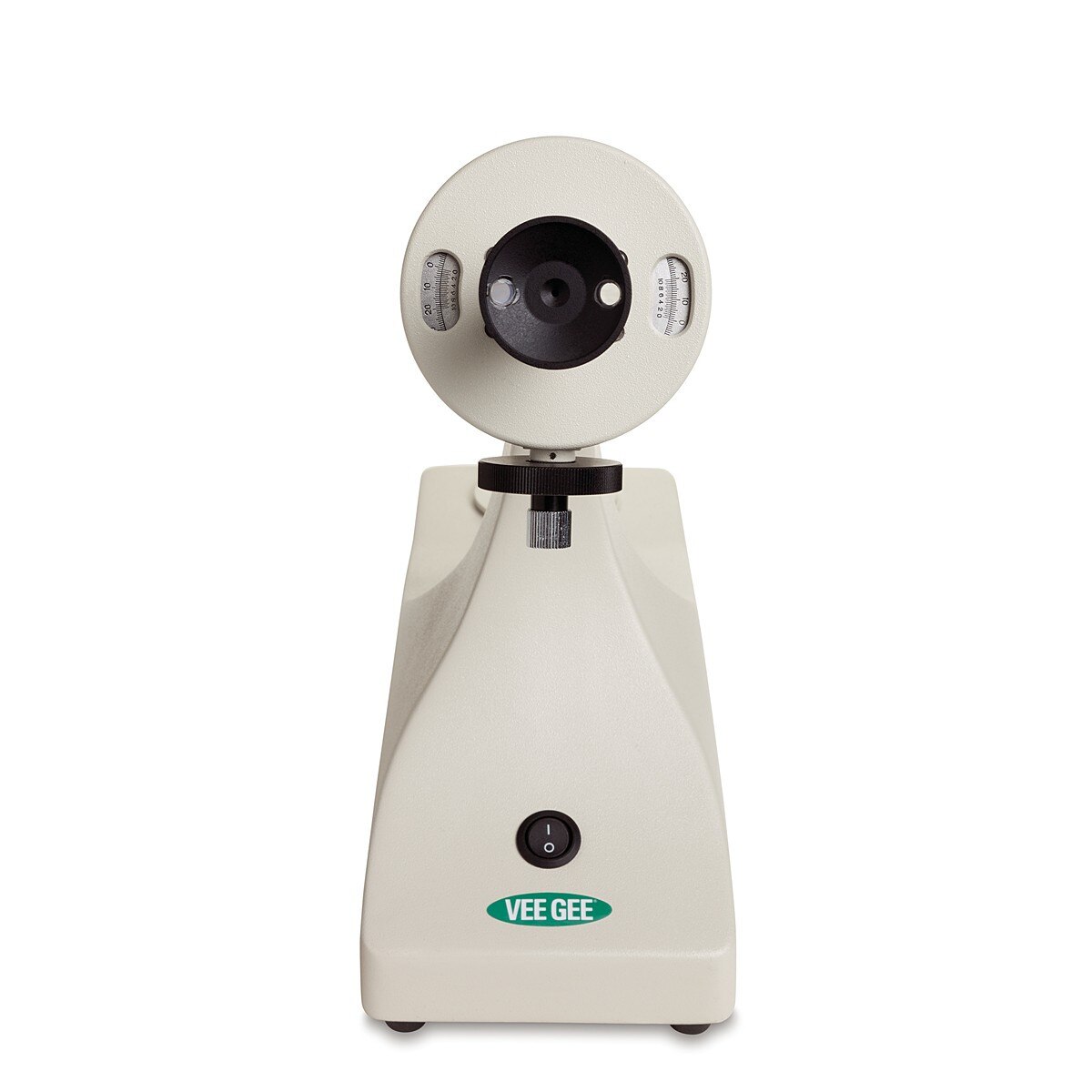

Vee Gee Manual Polarimeter
The VEE GEE Model C25L Manual Polarimeter features a full circular scale of ±180°. With the use of the Vernier scale, rotations can be measured to an accuracy of 0.1° (an experienced user can potentially achieve accuracy of 0.05°). The rugged design allows for heavy use at the instructional level.
Measurements are made by rotating the Vernier scale disc with the coarse/fine controls; which, in turn, adjusts the analyzer. The large diameter of the Vernier scale disc allows for highly sensitive comparisons of half shadows resulting in accuracy typically not possible with manual polarimeters.

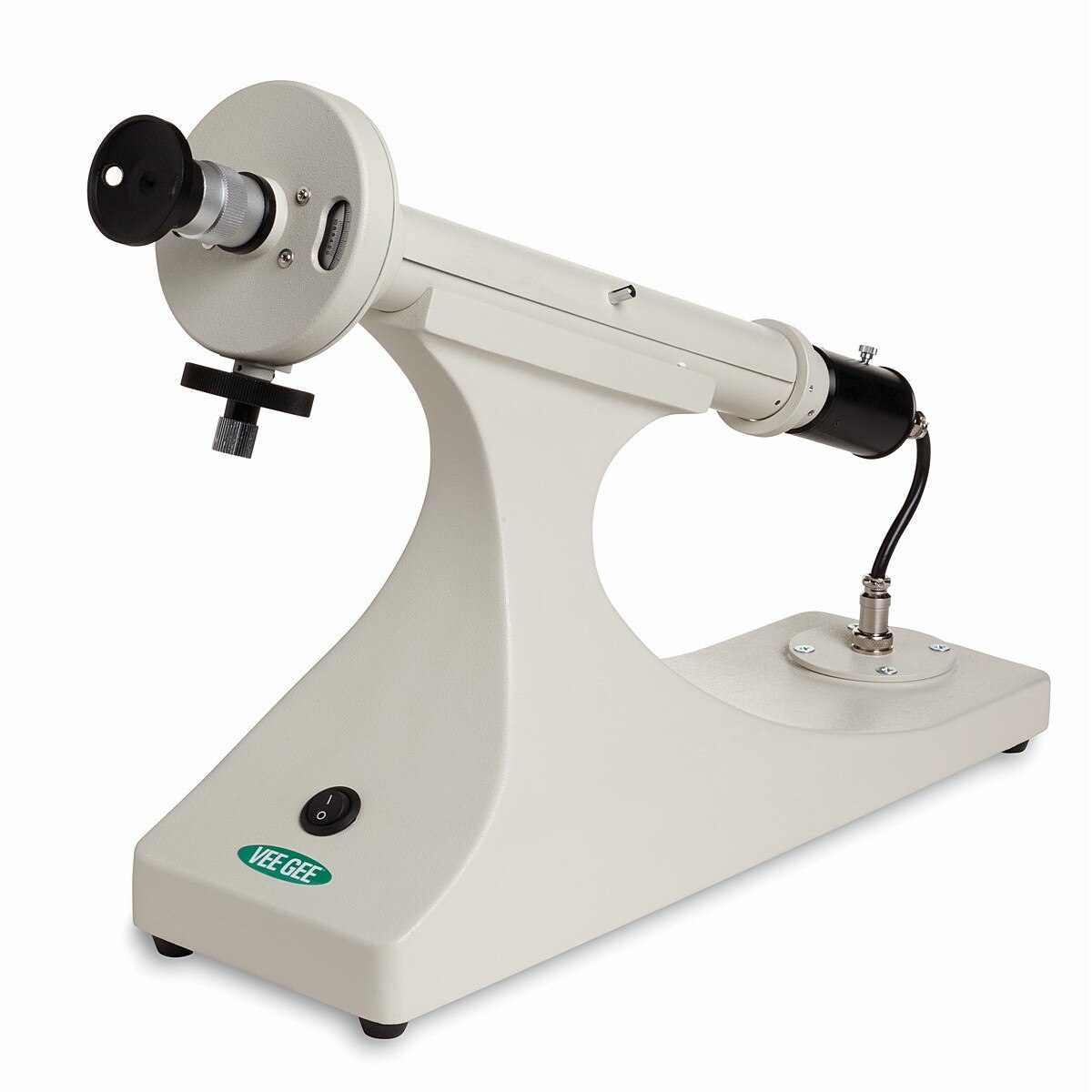

The optical assembly (Vernier scale disc, polarizer, analyzer, & sample compartment) is tilted 15° from horizontal. This results in more convenient and comfortable operation.
The polarizer is fitted with a thin, high-quality, 2-part quartz disc which produces the divided (2 half shadows) field of view. When the 2 half shadows are viewed during measurements, right-shadow shading indicates a dextrorotatory sample and left-side shading indicates a levorotatory sample.

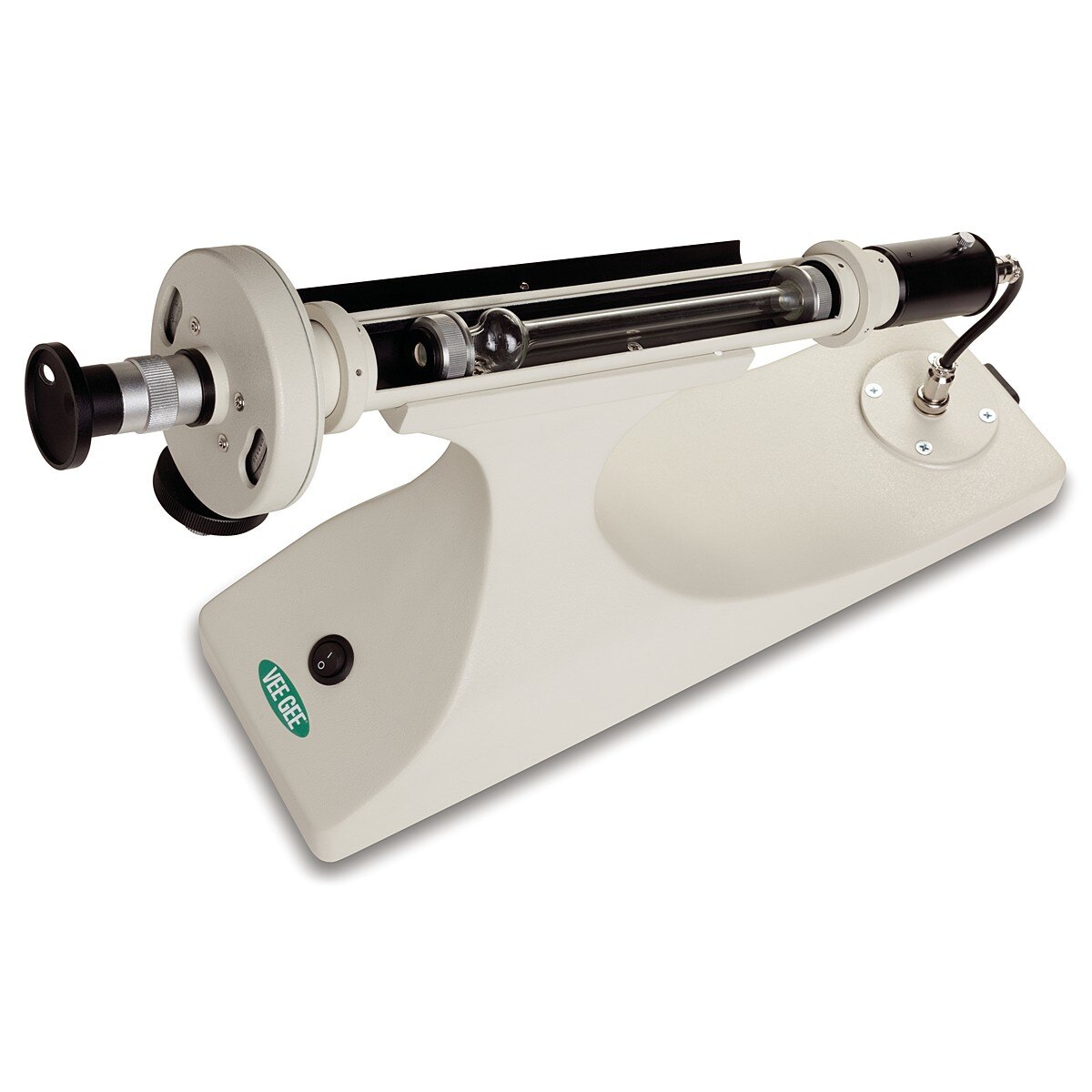

Model C25L features a long-life, energy-efficient LED light source with a 589nm filter. 100mm and 200mm sample cells are included with each polarimeter.
The VEE GEE Model C25L Manual Polarimeter features a full circular scale of ±180°. With the use of the Vernier scale, rotations can be measured to an accuracy of 0.1° (an experienced user can potentially achieve accuracy of 0.05°). The rugged design allows for heavy use at the instructional level.
Measurements are made by rotating the Vernier scale disc with the coarse/fine controls; which, in turn, adjusts the analyzer. The large diameter of the Vernier scale disc allows for highly sensitive comparisons of half shadows resulting in accuracy typically not possible with manual polarimeters.
The optical assembly (Vernier scale disc, polarizer, analyzer, & sample compartment) is tilted 15° from horizontal. This results in more convenient and comfortable operation.
The polarizer is fitted with a thin, high-quality, 2-part quartz disc which produces the divided (2 half shadows) field of view. When the 2 half shadows are viewed during measurements, right-shadow shading indicates a dextrorotatory sample and left-side shading indicates a levorotatory sample.
Model C25L features a long-life, energy-efficient LED light source with a 589nm filter. 100mm and 200mm sample cells are included with each polarimeter.
| Product Type: | Polarimeter |
| Brand: | VEE GEE Scientific |
| Range: | °Arc, ±180° |
| Resolution: | 0.1 |
| Accuracy: | ±0.1 |
| Length: | 589nm |
| Power Supply: | Main power cord |
| Unit Size: | 460 x 140 x 330 mm |
| Notes: | Sample Cell Length: 200mm |
