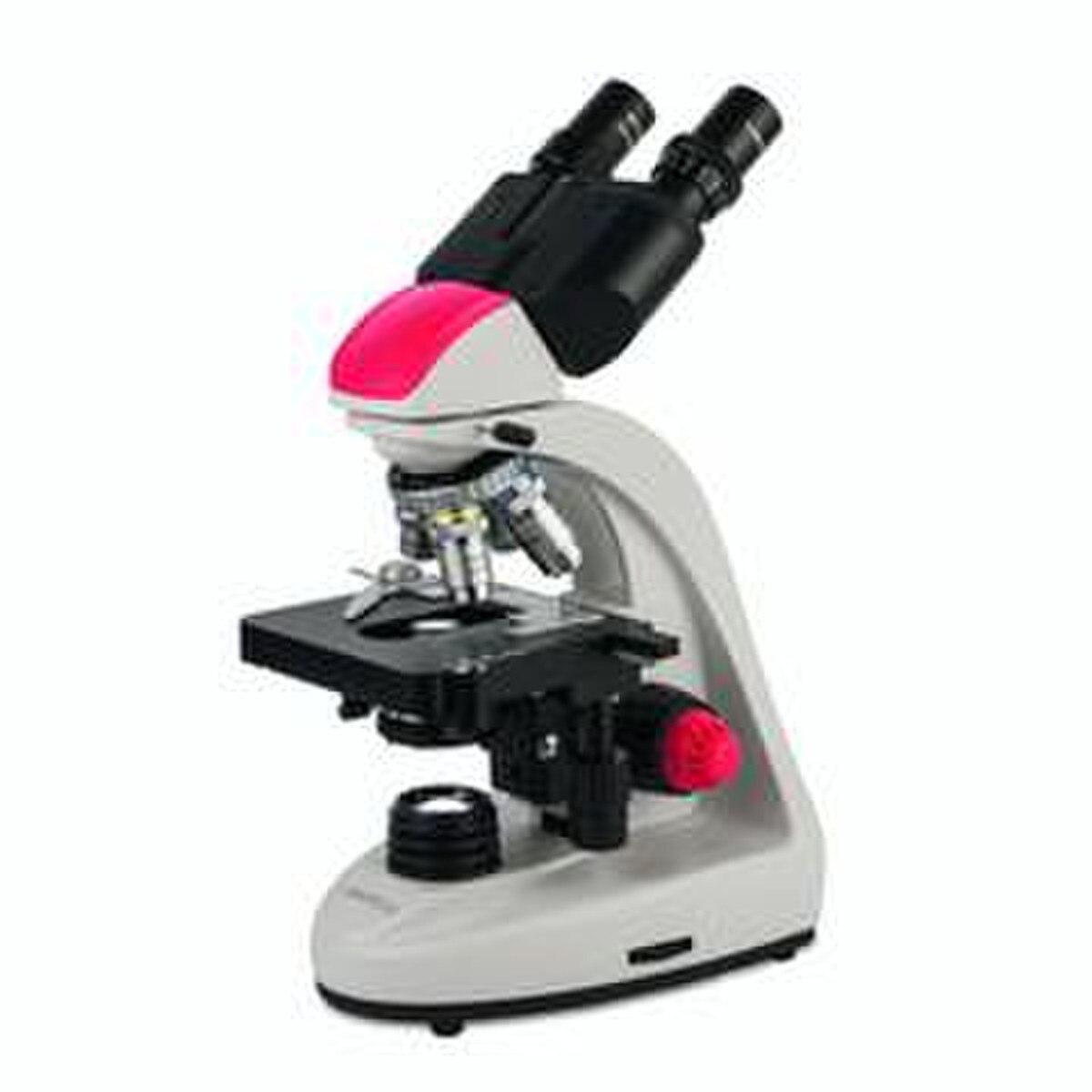

Biological Achromatic Binocular Microscope (each)
Images are for representation only. Actual product may differ in size, color or options.
Biological Achromatic Binocular Microscope (each)
The ideal microscope for all kinds of basic observation techniques. The BIOS complies with the necessary characteristics for routine work in clinical laboratories. Ideal for observing samples in areas such as histology, biomedicine and biotechnology.
SPECIFICATIONS
HEAD: Binocular head 45° inclined, 360° rotatable.
EYEPIECES: Pair WF 10x -18 mm, one eyepiece equipped with a diopter adjustment ring
NOSEPIECES: Quadruple revolving nosepiece, 360° full rotation.
OBJECTIVES : Achromatic Objectives 4X, 10X, 40X, 100X Oil immersion. With non-skid color ring for easy identification.
BODY: Stationary, robust, and reinforced body.
STAGE: Double layer mechanical stage with coaxial coarse, 110 x 126 mm, X-Y movement range and vernier.
CONDENSER: Abbe A.N. 1.25
DIAPHRAGM: Iris diaphragm and holder filter.
FOCUSING: Non-skid coaxial coarse and calibrated fine focus with tension adjustment.
ILLUMINATION: LED lamp with light intensity adjustment
POWER: Power supply 120 V-50/60 Hz, includes 3-AA rechargeable batteries
The ideal microscope for all kinds of basic observation techniques. The BIOS complies with the necessary characteristics for routine work in clinical laboratories. Ideal for observing samples in areas such as histology, biomedicine and biotechnology.
SPECIFICATIONS
HEAD: Binocular head 45° inclined, 360° rotatable.
EYEPIECES: Pair WF 10x -18 mm, one eyepiece equipped with a diopter adjustment ring
NOSEPIECES: Quadruple revolving nosepiece, 360° full rotation.
OBJECTIVES : Achromatic Objectives 4X, 10X, 40X, 100X Oil immersion. With non-skid color ring for easy identification.
BODY: Stationary, robust, and reinforced body.
STAGE: Double layer mechanical stage with coaxial coarse, 110 x 126 mm, X-Y movement range and vernier.
CONDENSER: Abbe A.N. 1.25
DIAPHRAGM: Iris diaphragm and holder filter.
FOCUSING: Non-skid coaxial coarse and calibrated fine focus with tension adjustment.
ILLUMINATION: LED lamp with light intensity adjustment
POWER: Power supply 120 V-50/60 Hz, includes 3-AA rechargeable batteries
| Product Type: | Microscope |
| Brand: | VELAB |
| Head: | Binocular |
| Overall Dimensions: | 9 x 16 x 13 in |
