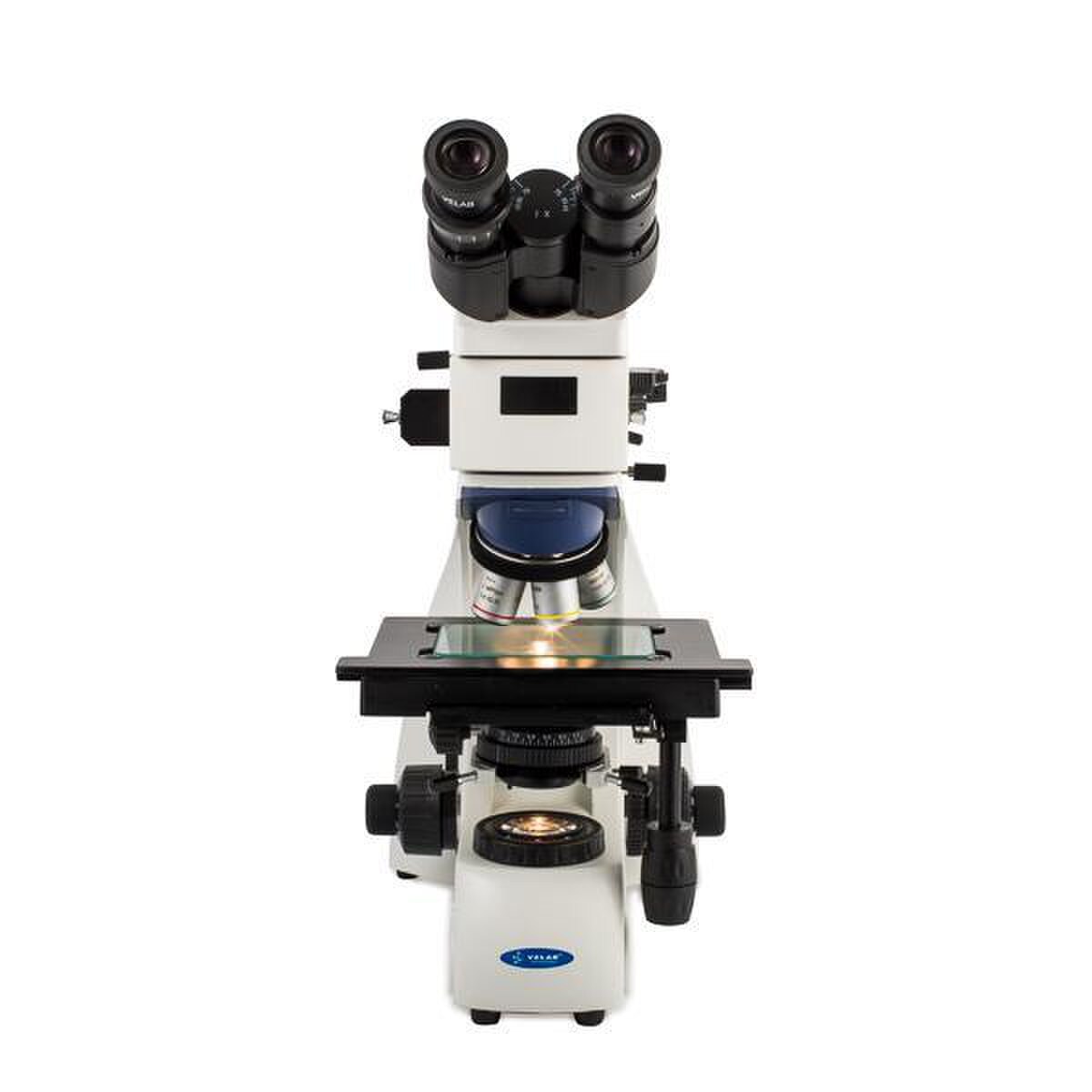

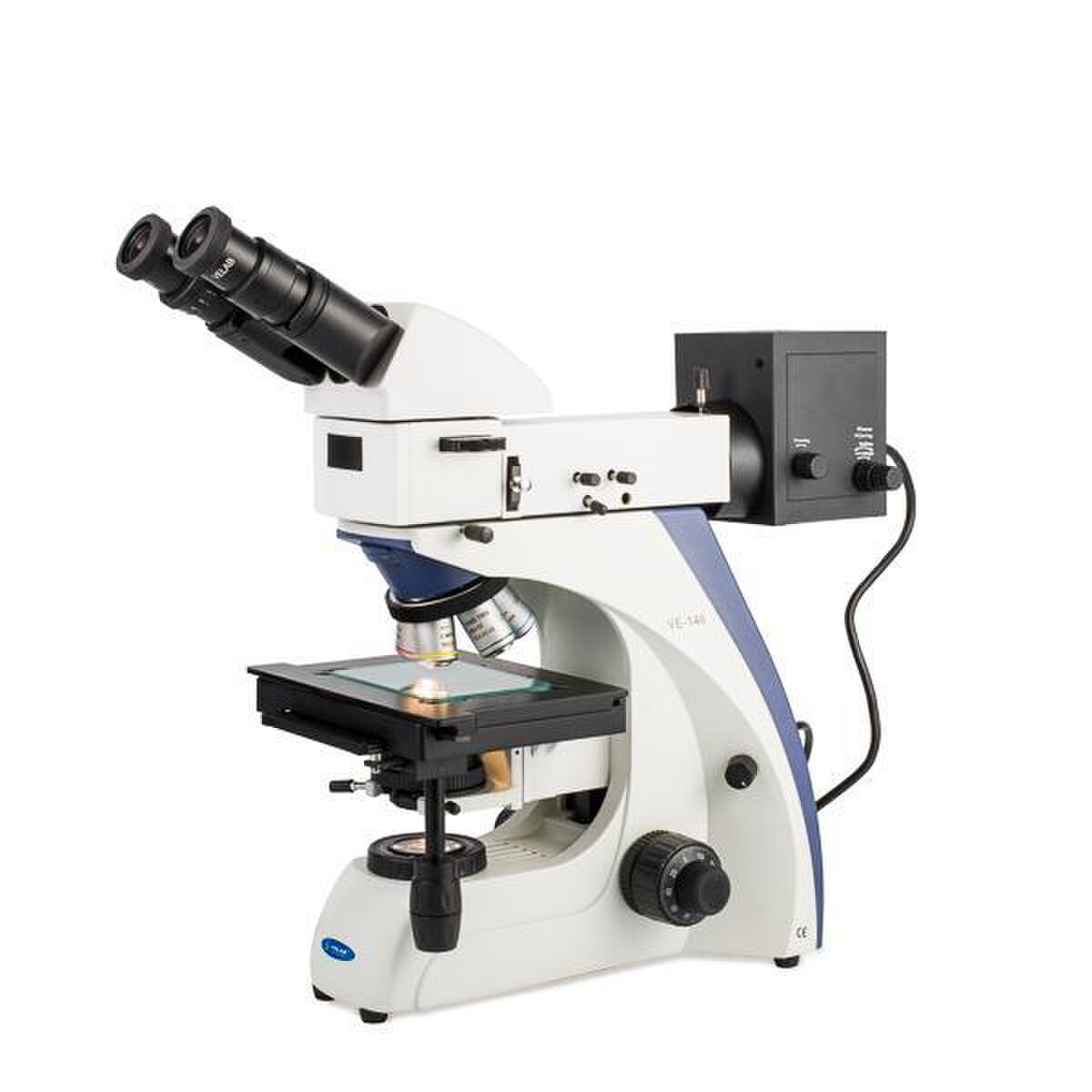

Vertical Binocular Metallographic Microscope (Advanced) (each)

The VE-146 metallographic microscope is ideal for materials science, it includes transmitted and incident light with polarization.

Ideal for observing metals, crystals, powders and translucent materials.

SPECIFICATIONS

EYEPIECES: WF 10x/22mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 30° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88" - 2.95". Adapted to epi-Kohler illumination and filter box with two positions. Includes polarizer 360 ° rotation.
NOSEPIECE: Quintuple with anti-slip grip and click-stops.
OBJECTIVES: 5X, 10X, 40X (retractable) and 100X (retractable) oil immersion of long work distance with infinity corrected plan achromatic optics, metallic finish and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Double plate with coaxial X-Y movement, 190 x 150mm / 7.48" x 5.90", with integrated clear glass surface and height adjustment stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment screw.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: Kohler halogen 12V/30W with variable intensity control and field diaphragm in the lamp.
POWER SUPPLY: 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 8.66" x 19.21" x 22.04"

ACCESSORIES INCLUDED
Power cord.
Dust cover.
lBD-2, IF550 and ND25 filters.
Blue, green and yellow filters.
Stage micrometer.
Micrometer eyepiece, DIV:0.1 mm.

WARRANTY
10-years limited warranty
