Binocular Polarization Microscope (each)
Images are for representation only. Actual product may differ in size, color or options.
Binocular Polarization Microscope (each)

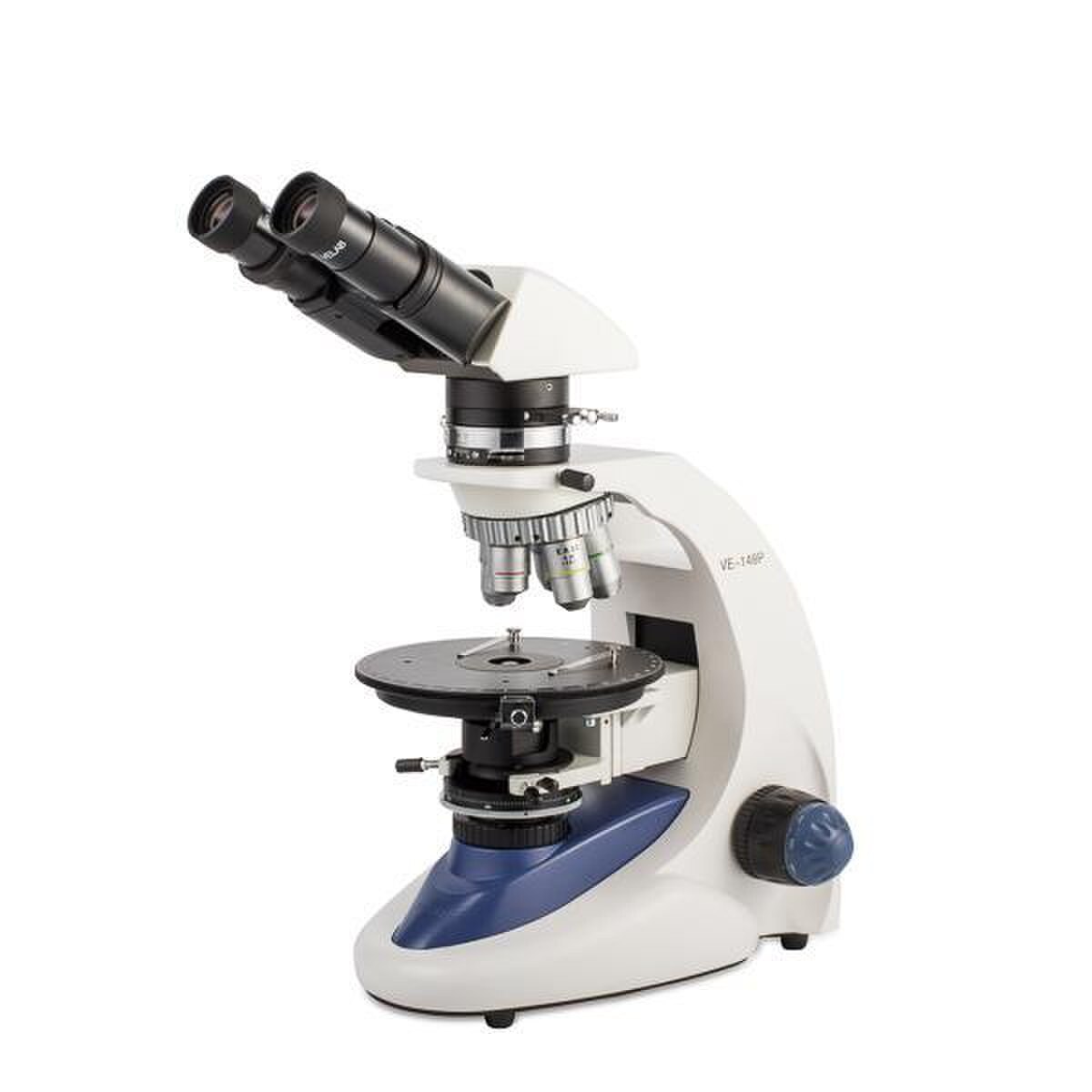

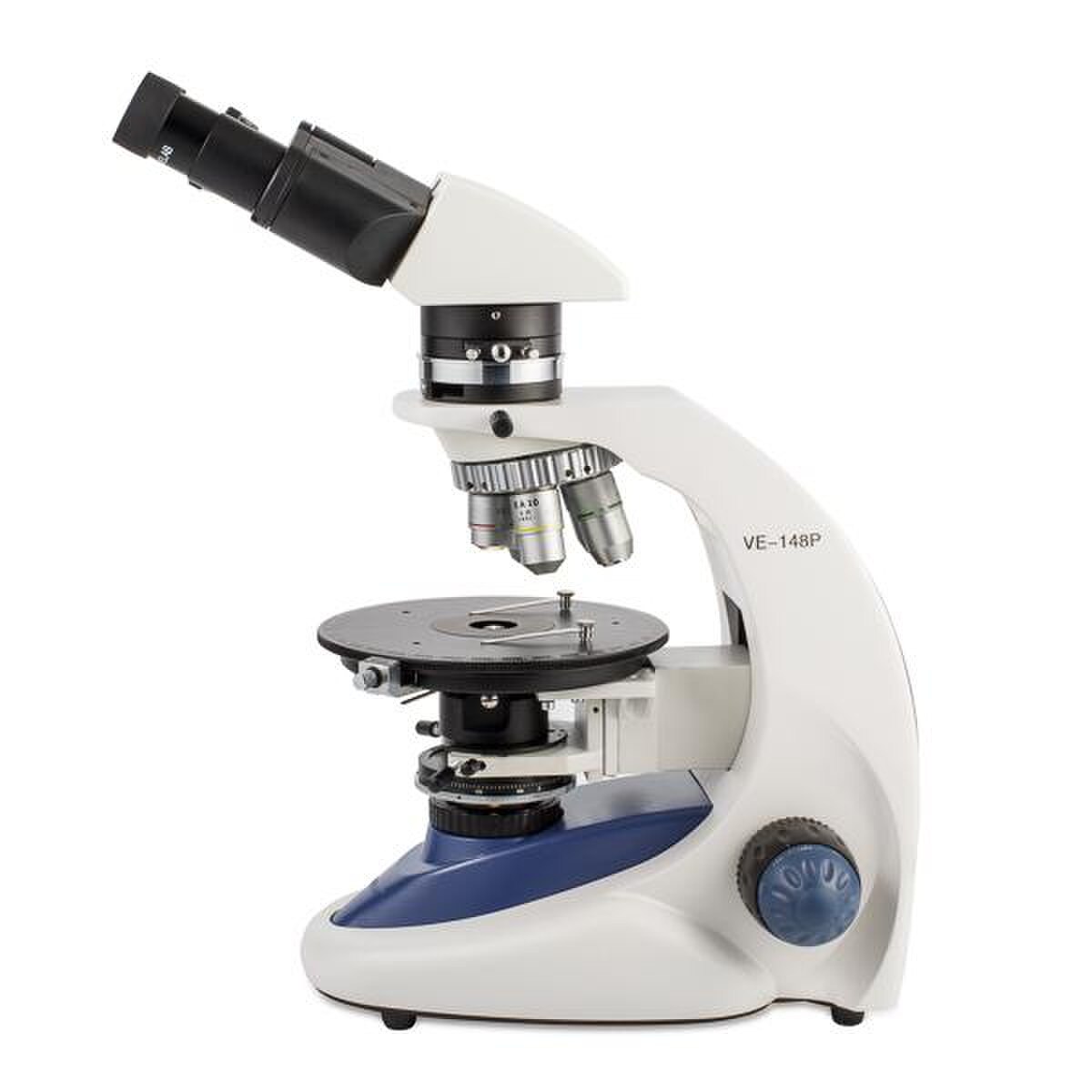

The VE-148P is a professional polarized light microscope, ideal for observing crystalline or fibrous materials and the identification or study of mineral textures. The VE-148P offers observations with 3 types of polarized light (conoscopic, simple and orthogonal) and has a rotating circular stage, divided by a 360° scale.
SPECIFICATIONS
EYEPIECES: WF 10x/20mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88" - 2.95" and Bertrand lens system.
NOSEPIECE: Quintuple nosepiece with anti-slip ring and click-stops.
OBJECTIVES: 4X, 10X, 25X (retractable), 40X (retractable) and 63X (retractable) with achromatic optics, metallic finish and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Circular mechanics with 170 mm / 6.69" diameter, divided in 360° scale, goniometer and double sample adjustment option, two clips or removable mechanical stage with X-Y movement.
CONDENSER: Abbe, A.N. 1.3 of oscillation.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: Kohler halogen 12V/30W with variable intensity control and field diaphragm in the lamp.
POWER SUPPLY: 120V, 50/60 Hz AC adapter.
DIMENSIONS: 10.43" x 18.30" x 11.61"

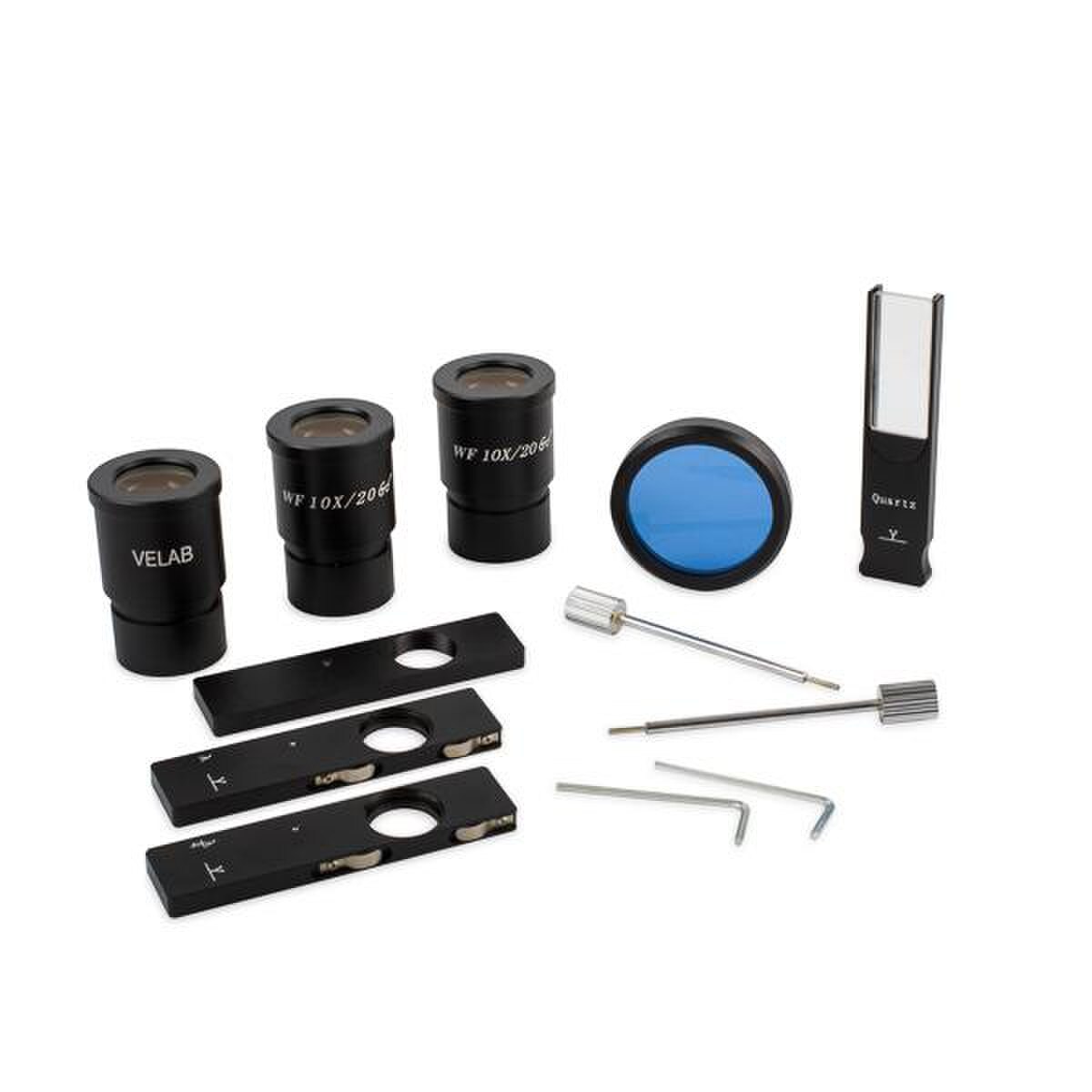

ACCESSORIES INCLUDED
2 Allen wrenches.
Dust cover.
Power cord.
Eyepiece 10X/20mm with grid reticle.
Gypsum (1 λ), mica (1/4 λ), quartz wedge and cover dust filters.
Micrometer eyepiece, DIV:0.1 mm.
Stage micrometer.
Eyepiece 10X/20mm with cross division reticle.
WARRANTY
10-years limited warranty
