Binocular Digital Microscope with Integrated 9" LCD Display (each)
Images are for representation only. Actual product may differ in size, color or options.
Binocular Digital Microscope with Integrated 9" LCD Display (each)

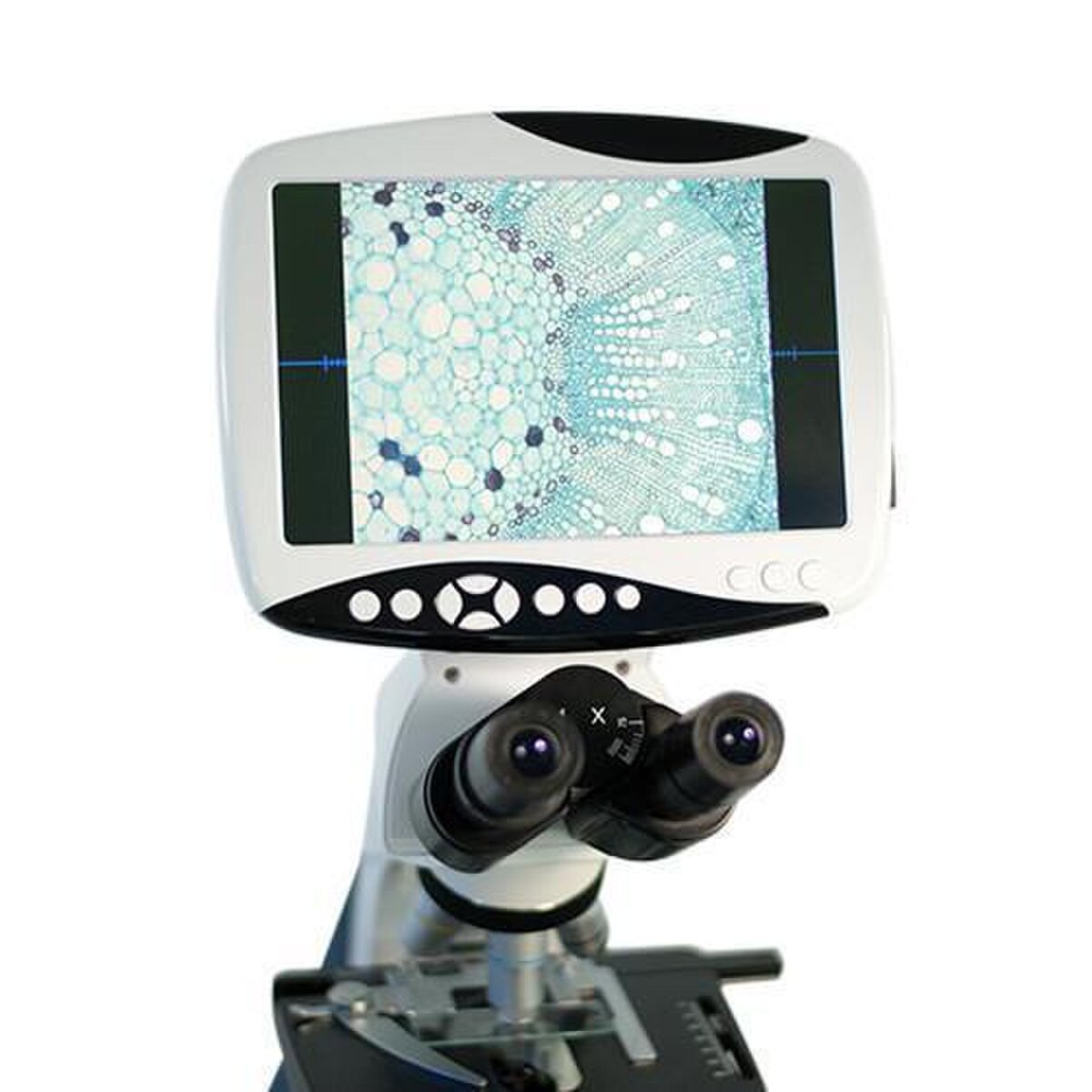

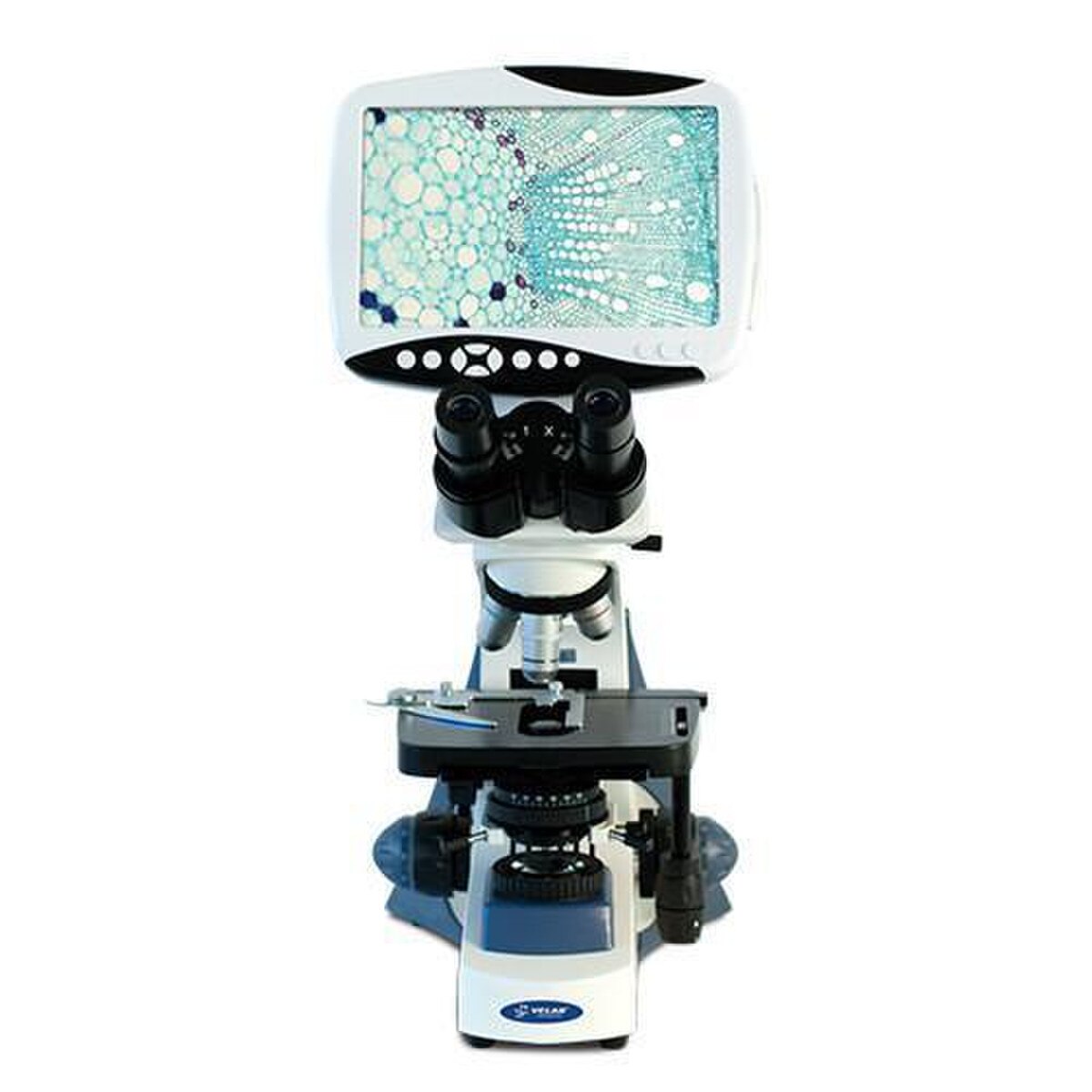

The VE-653 is a digital microscope for professional use and ideal for higher education, research and clinical laboratories. This model comes equipped with an LCD screen and an integrated digital camera.Its specialized software allows data storage and offers editing tools (pointer and arrow) and sample measurements (red, blue, white, black and green color strips).
The VE-653 also offers an innovative digital solution in addition to the optional configuration compatible with the phase contrast kit and polarization set.
SPECIFICATIONS
EYEPIECES WF 10X/18mm with rubber eyecups and diopter adjustment on one eyepiece.

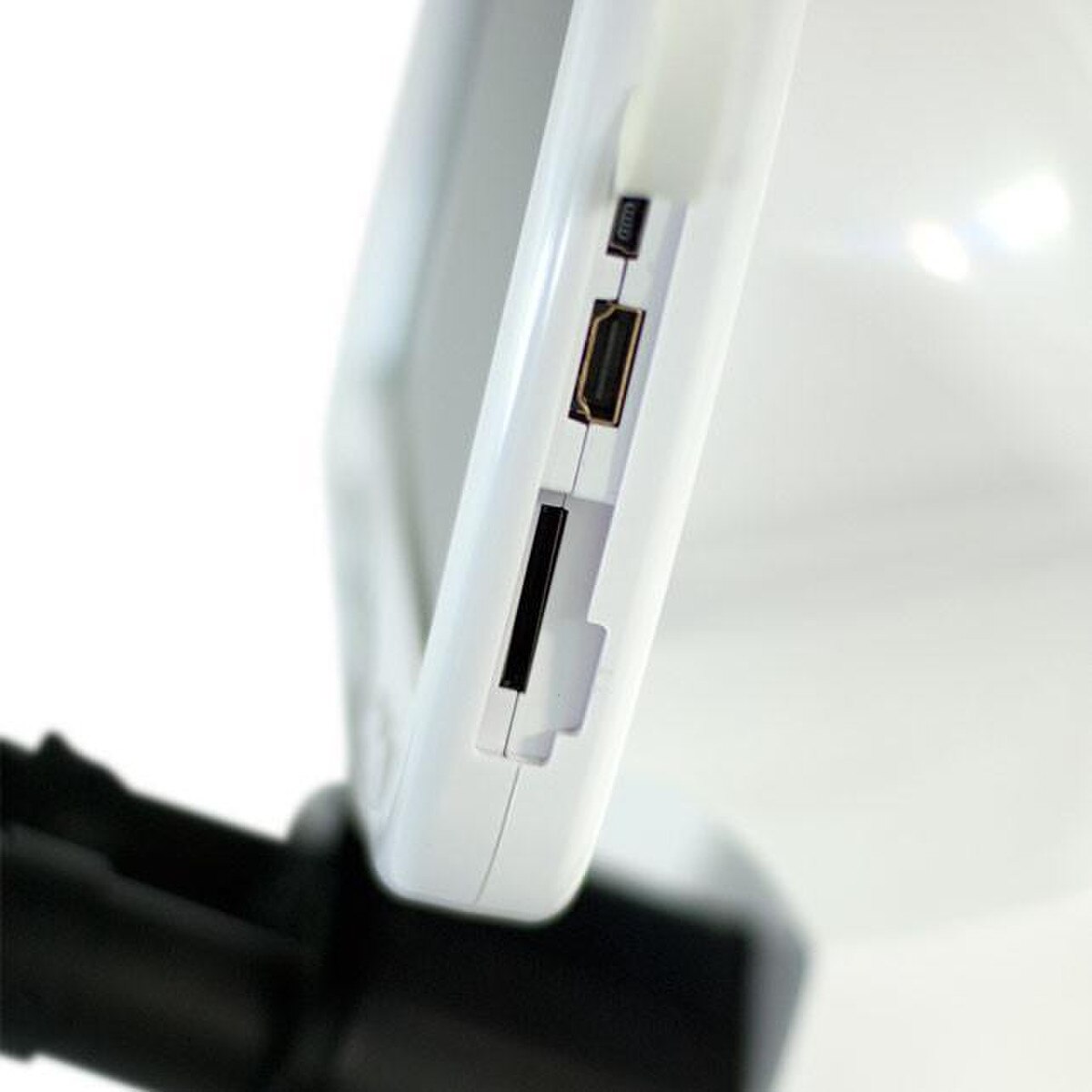

HEAD Binocular Siedentopf type, 45° inclined and 360° rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95" and 9" LCD screen (1280 x 800p resolution) with 5.0MP integrated camera, SD card slot, Mini USB and HDMI ports.
NOSEPIECE Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish.
STAGE Two-layer stage with X-Y coaxial movement, 5.90" x 5.19", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
DIAPHRAGM Iris with filter holder.
FOCUSING Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION Kohler LED with intensity control and field diaphragm in the lamp.
POWER SUPPLY
Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
AC/DC adapter.
Blue, green and yellow filters.
Dust cover.
Immersion oil.
Power cord.
SD memory card.
USB adapter for SD memory card.
ACCESSORIES NOT INCLUDED
Phase contrast kit.
Polarization set.
WARRANTY
10-years limited warranty
The VE-653 is a digital microscope for professional use and ideal for higher education, research and clinical laboratories. This model comes equipped with an LCD screen and an integrated digital camera.Its specialized software allows data storage and offers editing tools (pointer and arrow) and sample measurements (red, blue, white, black and green color strips).
The VE-653 also offers an innovative digital solution in addition to the optional configuration compatible with the phase contrast kit and polarization set.
SPECIFICATIONS
EYEPIECES WF 10X/18mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD Binocular Siedentopf type, 45° inclined and 360° rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95" and 9" LCD screen (1280 x 800p resolution) with 5.0MP integrated camera, SD card slot, Mini USB and HDMI ports.
NOSEPIECE Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish.
STAGE Two-layer stage with X-Y coaxial movement, 5.90" x 5.19", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
DIAPHRAGM Iris with filter holder.
FOCUSING Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION Kohler LED with intensity control and field diaphragm in the lamp.
POWER SUPPLY
Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
AC/DC adapter.
Blue, green and yellow filters.
Dust cover.
Immersion oil.
Power cord.
SD memory card.
USB adapter for SD memory card.
ACCESSORIES NOT INCLUDED
Phase contrast kit.
Polarization set.
WARRANTY
10-years limited warranty
| Product Type: | Microscope |
| Brand: | VELAB |
| Class: | Educational |
| Grade: | Professional |
| Diaphragm: | Iris with filter holder |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Body: | Stative Epoxy Paint Finish |
| Condenser: | 1.25 N.A. Abbe with height adjustment screw |
| Dioptric Adjustment: | One Eyepiece |
| Eyepieces: | 18 mm F.D. |
| Eyepiece Type: | Widefield |
| Eyepiece Magnification: | 10X |
| Focusing: | Coarse and fine anti-slip control knob with tension adjustment |
| Head: | Binocular |
| Illumination: | Kohler LED with intensity control and field diaphragm in the lamp |
| Interpupillary Adjustment: | 48 – 75 mm / 1.88 inch – 2.95 inch |
| Nosepiece: | Quadruple nosepiece with anti-slip grip and click-stops |
| Objective Magnification: | 4X, 10X, 40X (S) and 100X (S) (Oil) |
| Objective Type: | Achromatic optics, metallic finish and color ring for easy identification |
| Stage: | Double plate with X-Y coaxial movement, 5.90 x 5.19 inches, vernier, millimeter scale, clamp and height adjustment with stop |
| Stand: | Stative, robust and reinforced with epoxy paint finish |
| Viewing Head: | 45° Inclination; 360° Rotatable |
| Warranty: | 10 years limited |
| Net Weight: | 21.16 lb / 9.59 kg |
| Overall Dimensions: | 12 x 20 x 15 in |
| Includes: | AC/DC adapter, Blue, green and yellow filters, Dust cover, Immersion oil, Power cord, SD memory card, USB adapter for SD memory card. |
