Biological Binocular Microscope (Basic) (each)
Images are for representation only. Actual product may differ in size, color or options.
Biological Binocular Microscope (Basic) (each)

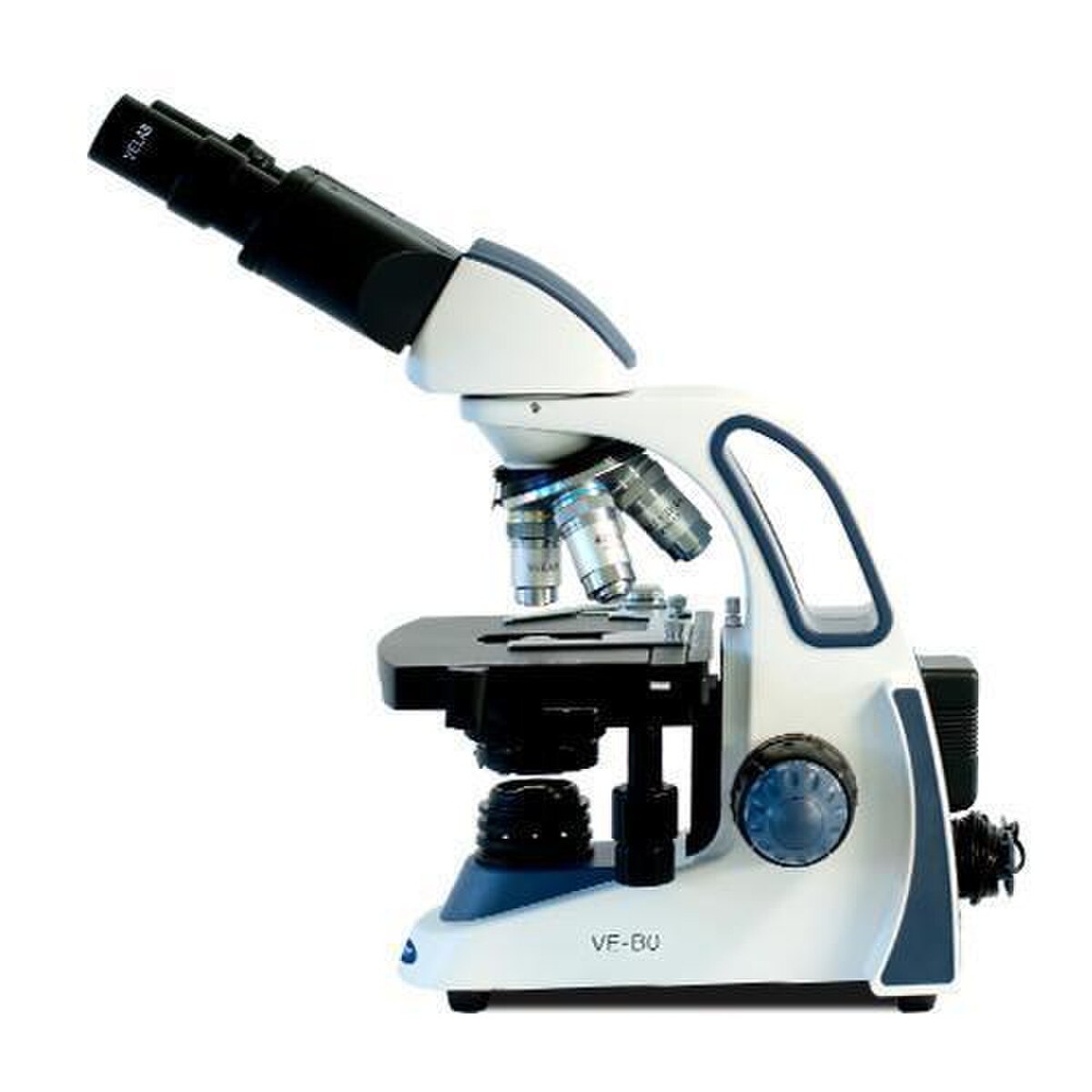

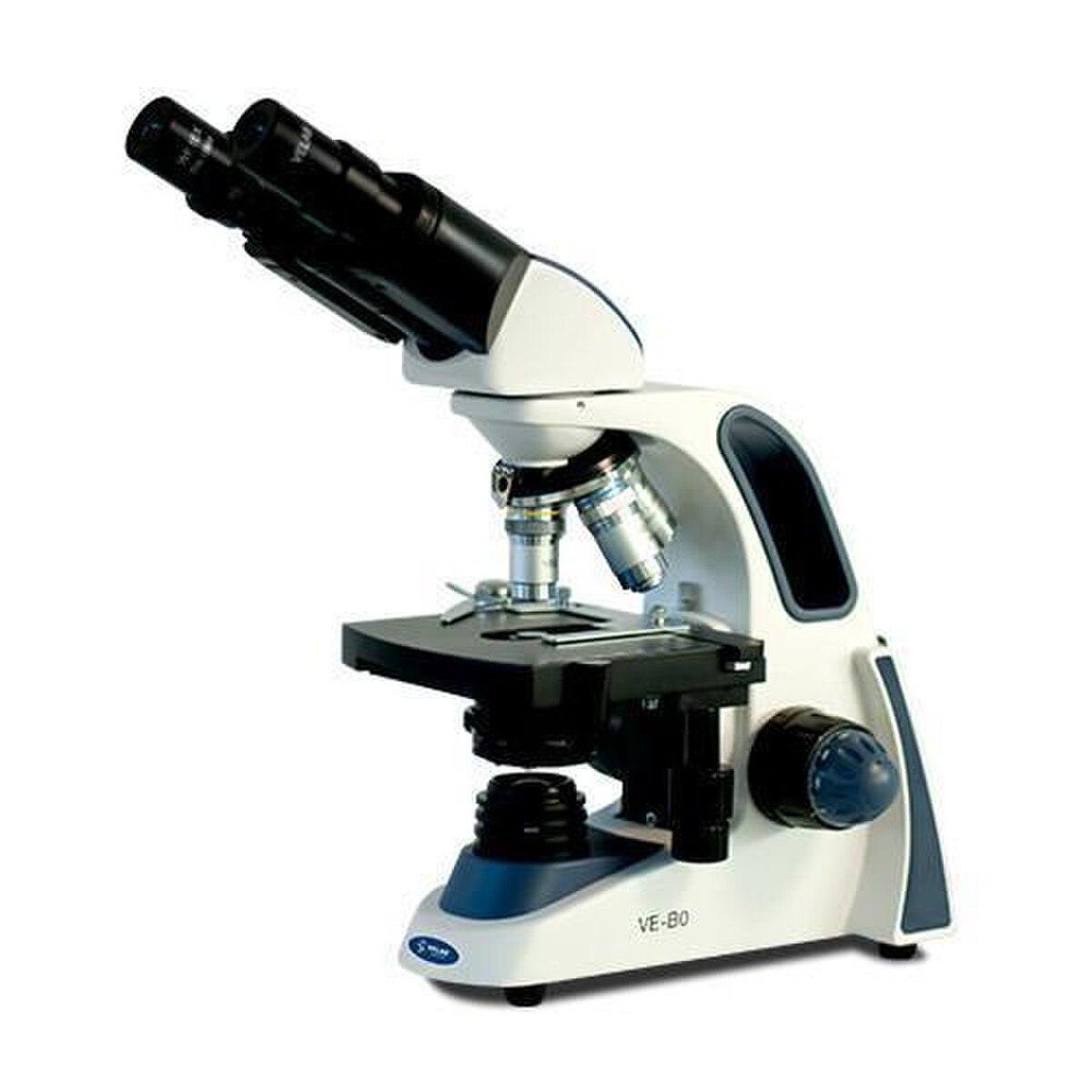

The ideal microscope for all kinds of basic and advanced techniques. The VE-B0 complies with the necessary characteristics for routine work in clinical laboratories.Ideal for observing samples in areas such as histology, biomedicine and biotechnology.
SPECIFICATIONS
EYEPIECES: WF 10x/18 mm with diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 45° inclined head, 360° rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95"
NOSEPIECE: Quadruple nosepiece with click-stops.

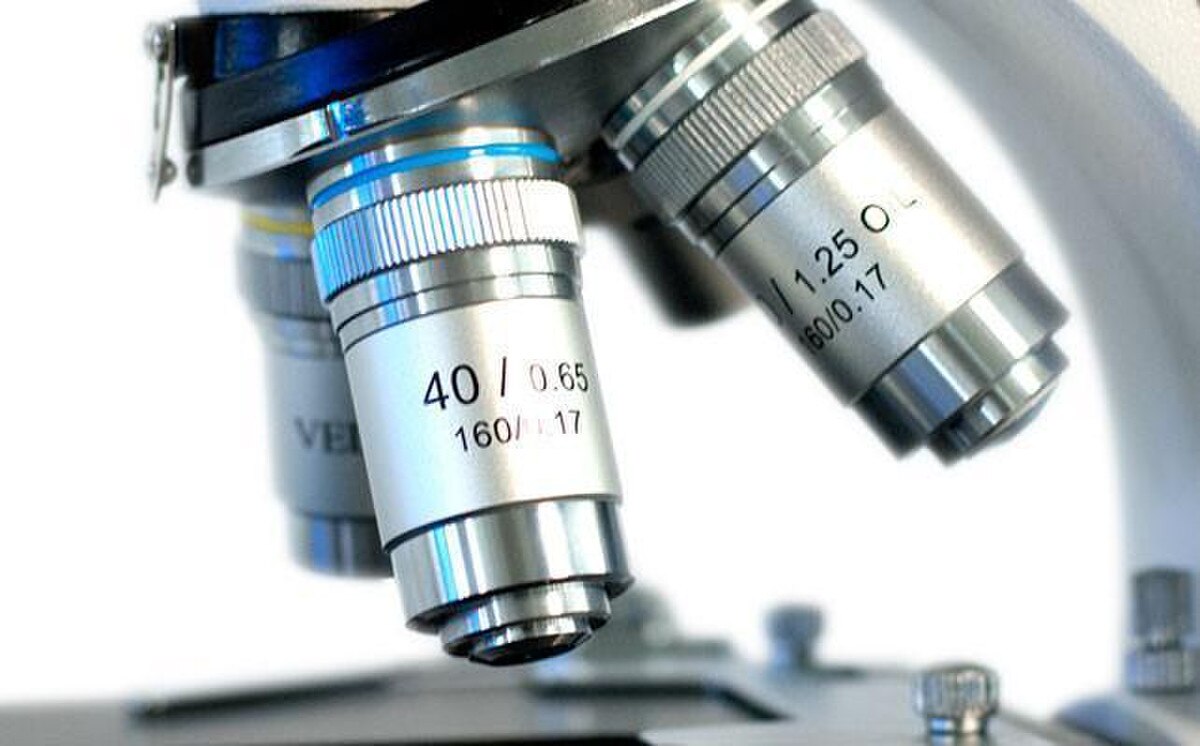

OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish
STAGE: Two-layer stage, with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment screw.
DIAPHRAGM : Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
WEIGHT: 14.73 lb / 6.68 kg.
DIMENSIONS: 10.04" x 12.99" x 16.34" / 255 x 329 x 415 mm
ILLUMINATION: LED with intensity control.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
AC/DC Adapter.
Adapter cable reel device.
Blue filter.
Dust cover.
Immersion oil..
WARRANTY
10-years limited warranty.
The ideal microscope for all kinds of basic and advanced techniques. The VE-B0 complies with the necessary characteristics for routine work in clinical laboratories.Ideal for observing samples in areas such as histology, biomedicine and biotechnology.
SPECIFICATIONS
EYEPIECES: WF 10x/18 mm with diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 45° inclined head, 360° rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95"
NOSEPIECE: Quadruple nosepiece with click-stops.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish
STAGE: Two-layer stage, with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment screw.
DIAPHRAGM : Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
WEIGHT: 14.73 lb / 6.68 kg.
DIMENSIONS: 10.04" x 12.99" x 16.34" / 255 x 329 x 415 mm
ILLUMINATION: LED with intensity control.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
AC/DC Adapter.
Adapter cable reel device.
Blue filter.
Dust cover.
Immersion oil..
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Product Line: | VELAB |
| Class: | Educational |
| Grade: | Basic |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Body: | Stative Epoxy Paint Finish |
| Condenser: | 1.25 N.A. Abbe with height adjustment screw |
| Dioptric Adjustment: | One Eyepiece |
| Eyepieces: | 18 mm F.D. |
| Eyepiece Type: | Widefield |
| Eyepiece Magnification: | 10X |
| Focusing: | Coarse and fine anti-slip control knob with tension adjustment |
| Head: | Binocular |
| Illumination: | LED with variable intensity control |
| Interpupillary Adjustment: | 48 – 75 mm / 1.88 inch – 2.95 inch |
| Nosepiece: | Quadruple nosepiece with click-stops |
| Objective Magnification: | 4X, 10X, 40X, 100X (Oil) |
| Objective Type: | Achromatic optics, metallic finish, anti-slip grip and color ring for easy identification |
| Stage: | Double plate with X-Y coaxial movement, 130 x 130 mm / 5.11 x 5.11 inches, vernier, millimeter scale, clamp and height adjustment with stop |
| Viewing Head: | 45° Inclination; 360° Rotatable |
| Warranty: | 10 years limited |
| Overall Dimensions: | 10 x 16 x 13 in |
| Includes: | Adapter cable reel device, Blue filter, Dust cover, Immersion oil, Operation manual |
