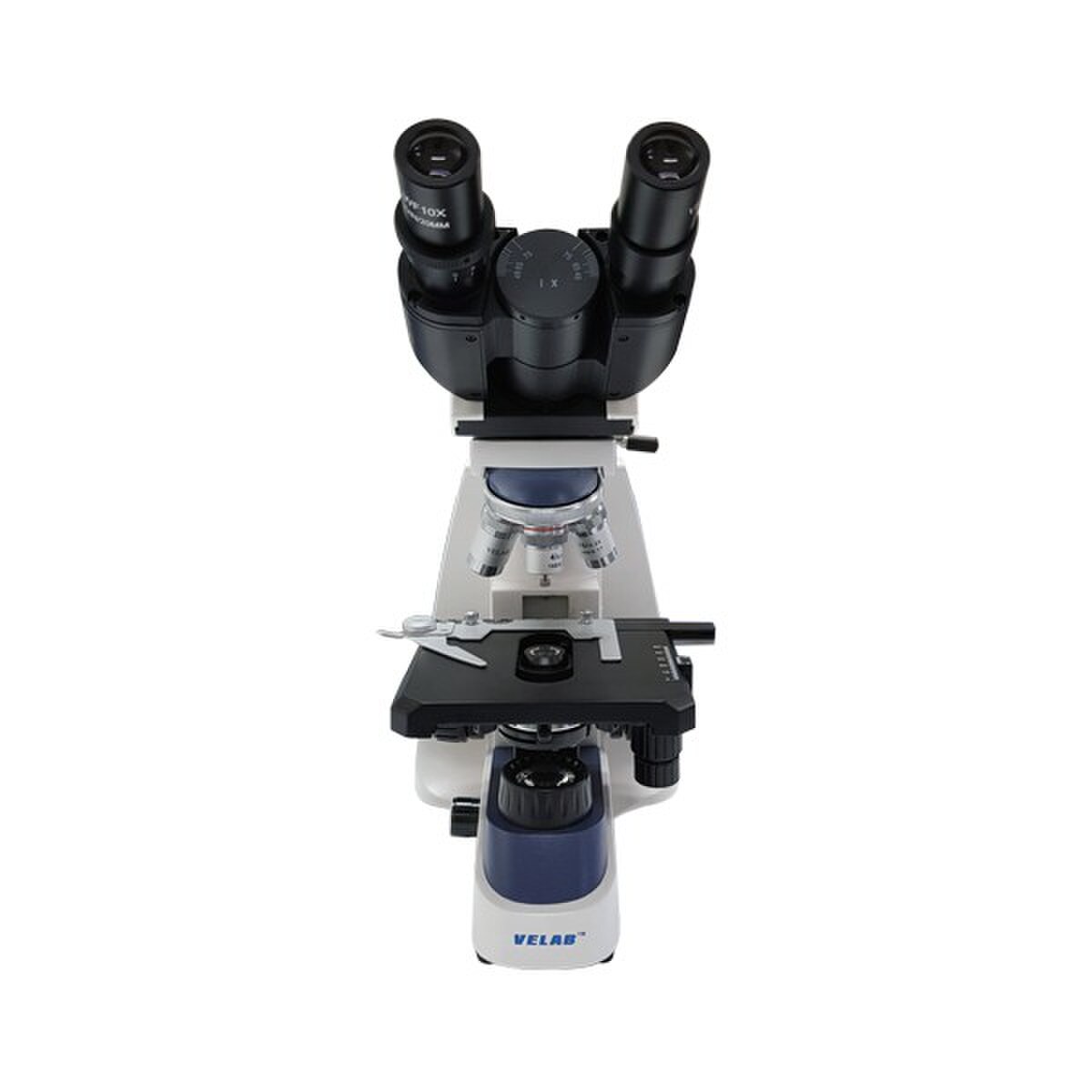

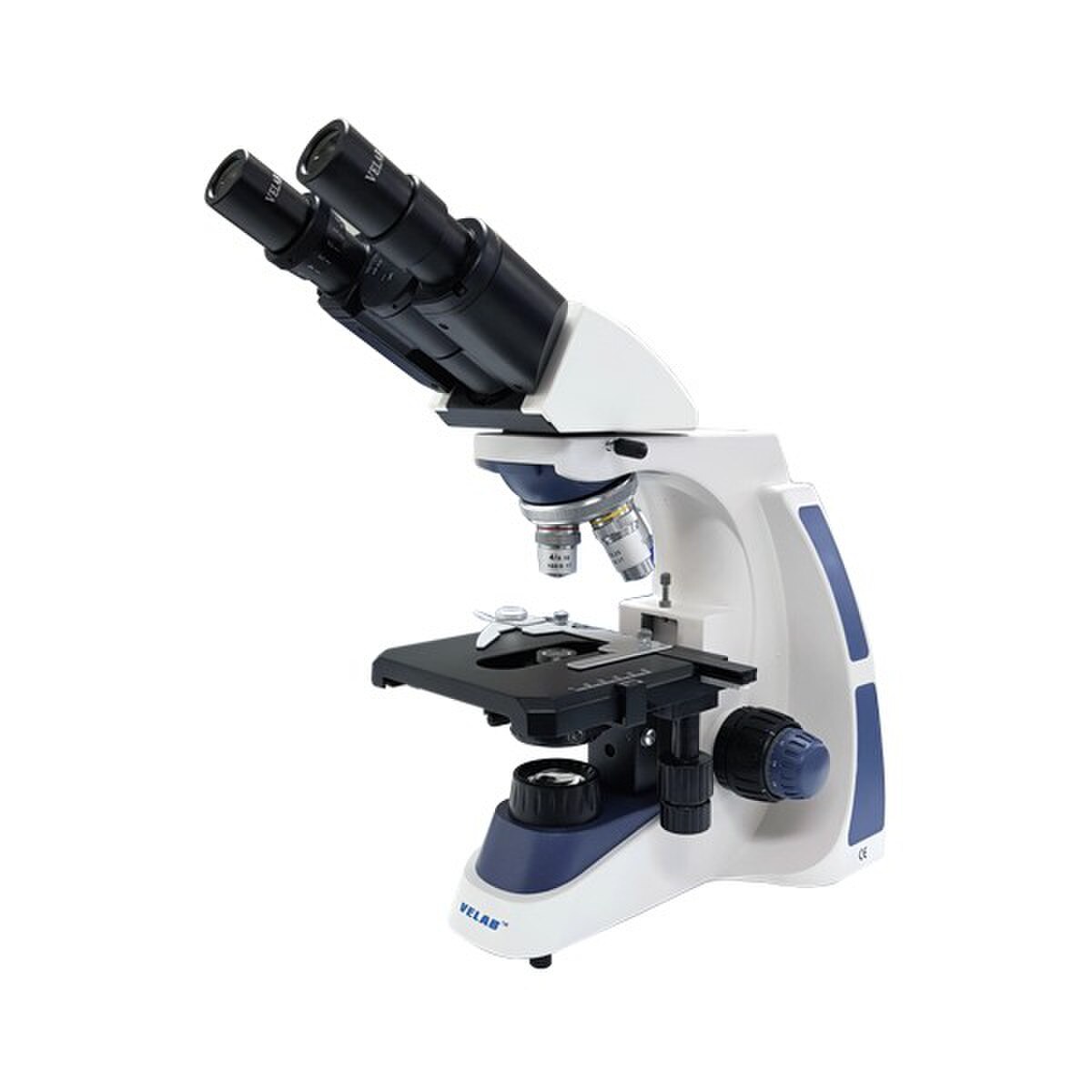

Basic Binocular Microscope Siedentopf Type (each)
Images are for representation only. Actual product may differ in size, color or options.
Basic Binocular Microscope Siedentopf Type (each)
The ideal microscope for all kinds of basic and advanced techniques. The VE-B1 complies with the necessary characteristics for routine work in clinical laboratories. Ideal for observing samples in areas such as histology, biomedicine and biotechnology.
SPECIFICATIONS
EYEPIECES: WF 10x/18 mm with diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 45° inclined head and 360° rotation, with interpupillary distance adjustment between 55 - 75mm / 2.16" - 2.95".
NOSEPIECE : Quadruple nosepiece with anti-slip grip and click-stops.

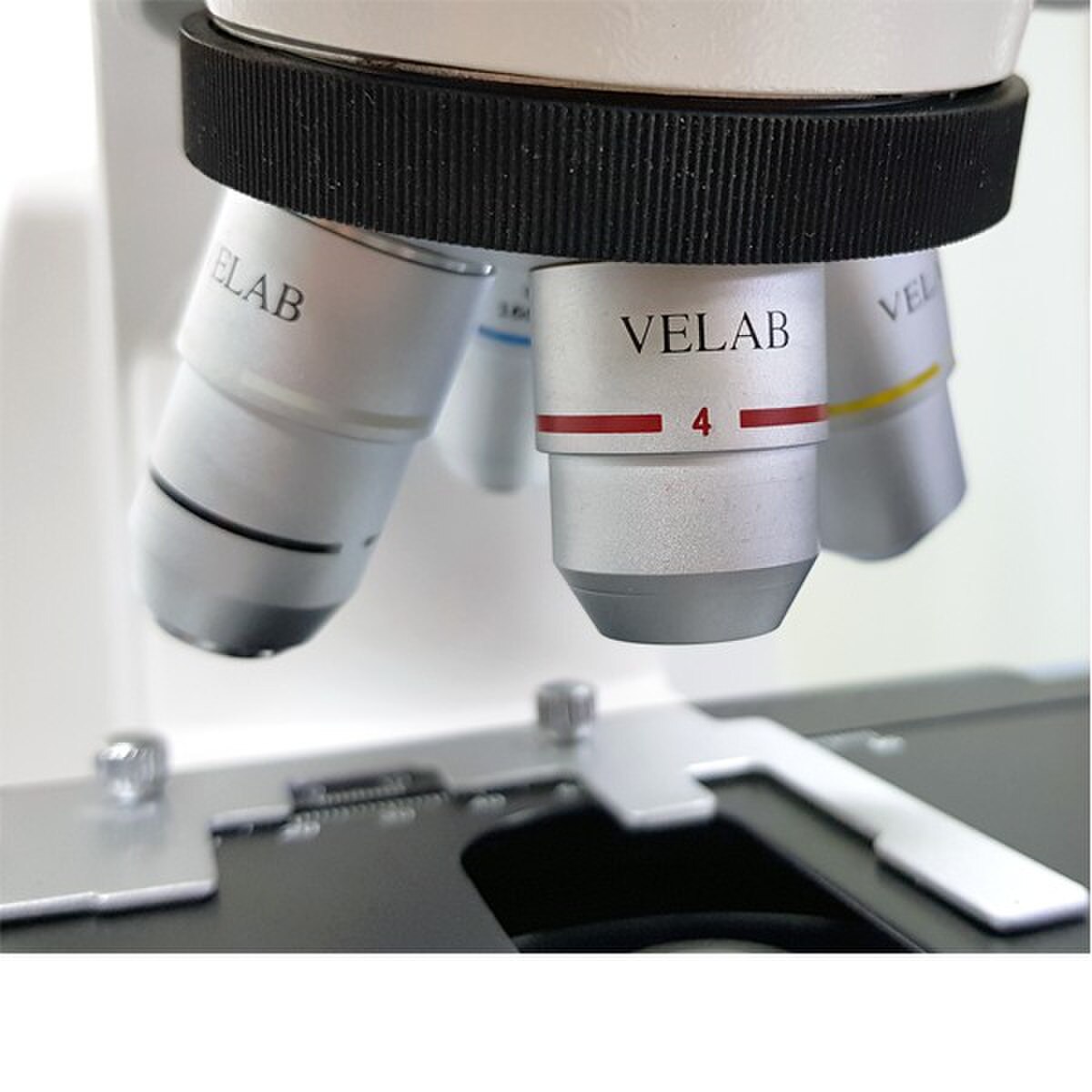

OBJECTIVES : 4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with achromatic optics, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage, with X-Y coaxial movement, 4.92" x 4.92", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: LED with variable intensity control.
WEIGHT: 5.95 lb / 6.68 kg.
DIMENSIONS: 9.06" x 14057" x 18.5" / 230 x 350 x 469 mm
POWER SUPPLY: 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
Blue filter.
Dust cover.
Immersion oil..
WARRANTY
10-years limited warranty.
The ideal microscope for all kinds of basic and advanced techniques. The VE-B1 complies with the necessary characteristics for routine work in clinical laboratories. Ideal for observing samples in areas such as histology, biomedicine and biotechnology.
SPECIFICATIONS
EYEPIECES: WF 10x/18 mm with diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 45° inclined head and 360° rotation, with interpupillary distance adjustment between 55 - 75mm / 2.16" - 2.95".
NOSEPIECE : Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES : 4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with achromatic optics, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage, with X-Y coaxial movement, 4.92" x 4.92", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: LED with variable intensity control.
WEIGHT: 5.95 lb / 6.68 kg.
DIMENSIONS: 9.06" x 14057" x 18.5" / 230 x 350 x 469 mm
POWER SUPPLY: 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
Blue filter.
Dust cover.
Immersion oil..
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Product Line: | VELAB |
| Class: | Clinical / Educational |
| Grade: | Basic |
| Power Supply: | 120 VAC, 50/60Hz |
| Body: | Stative Epoxy Paint Finish |
| Condenser: | 1.25 N.A. Abbe with height adjustment screw |
| Dioptric Adjustment: | One Eyepiece |
| Eyepieces: | 18 mm F.D. |
| Eyepiece Type: | Widefield |
| Eyepiece Magnification: | 10X |
| Focusing: | Coarse and fine anti-slip control knob with tension adjustment |
| Head: | Binocular |
| Illumination: | LED with variable intensity control |
| Interpupillary Adjustment: | 55 – 75 mm / 2.16 inch – 2.95 inch |
| Nosepiece: | Quadruple nosepiece with anti-slip grip and click-stops |
| Objective Magnification: | 4X, 10X, 40X, 100X (Oil) |
| Objective Type: | Achromatic optics, anti-slip grip and color ring for easy identification |
| Stage: | Double plate with X-Y coaxial movement, 125 x 125 mm / 4.92 x 4.92 inches, vernier, millimeter scale, clamp and height adjustment with stop |
| Viewing Head: | 45° Inclination; 360° Rotatable |
| Warranty: | 10 years limited |
| Overall Dimensions: | 9 x 18 x 14 in |
| Includes: | Blue filter, Dust cover, Immersion oil, Power Cord, Operation manual |
