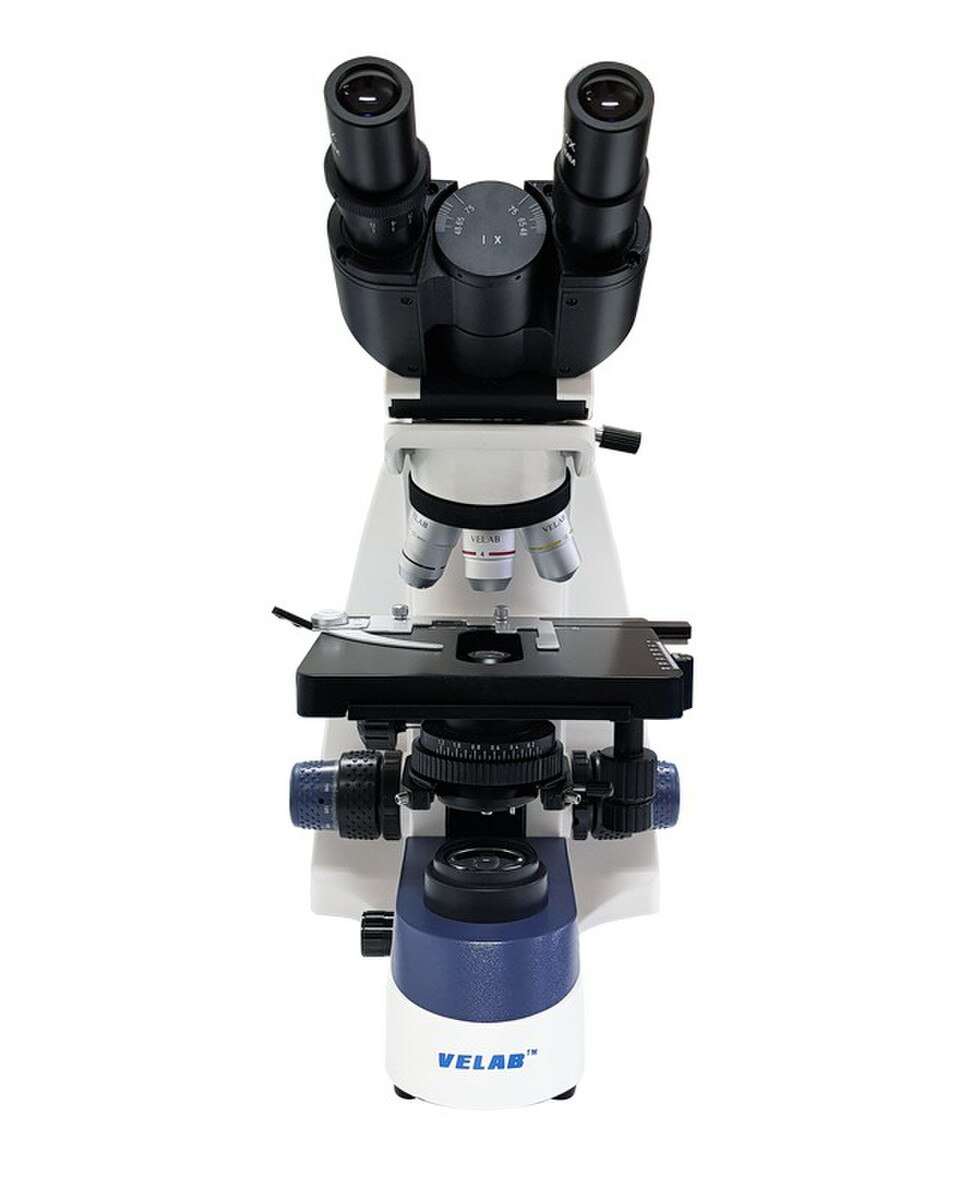

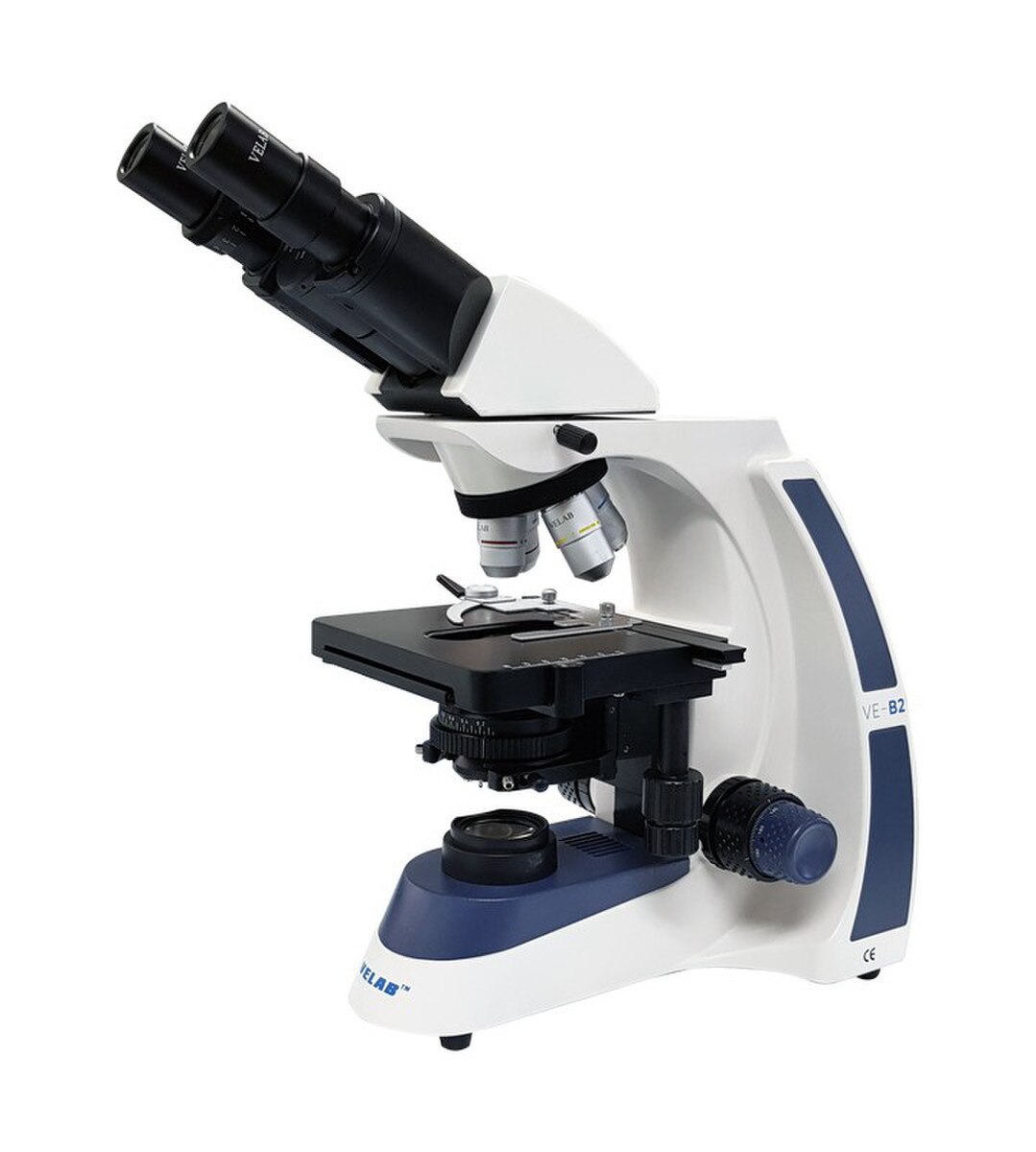

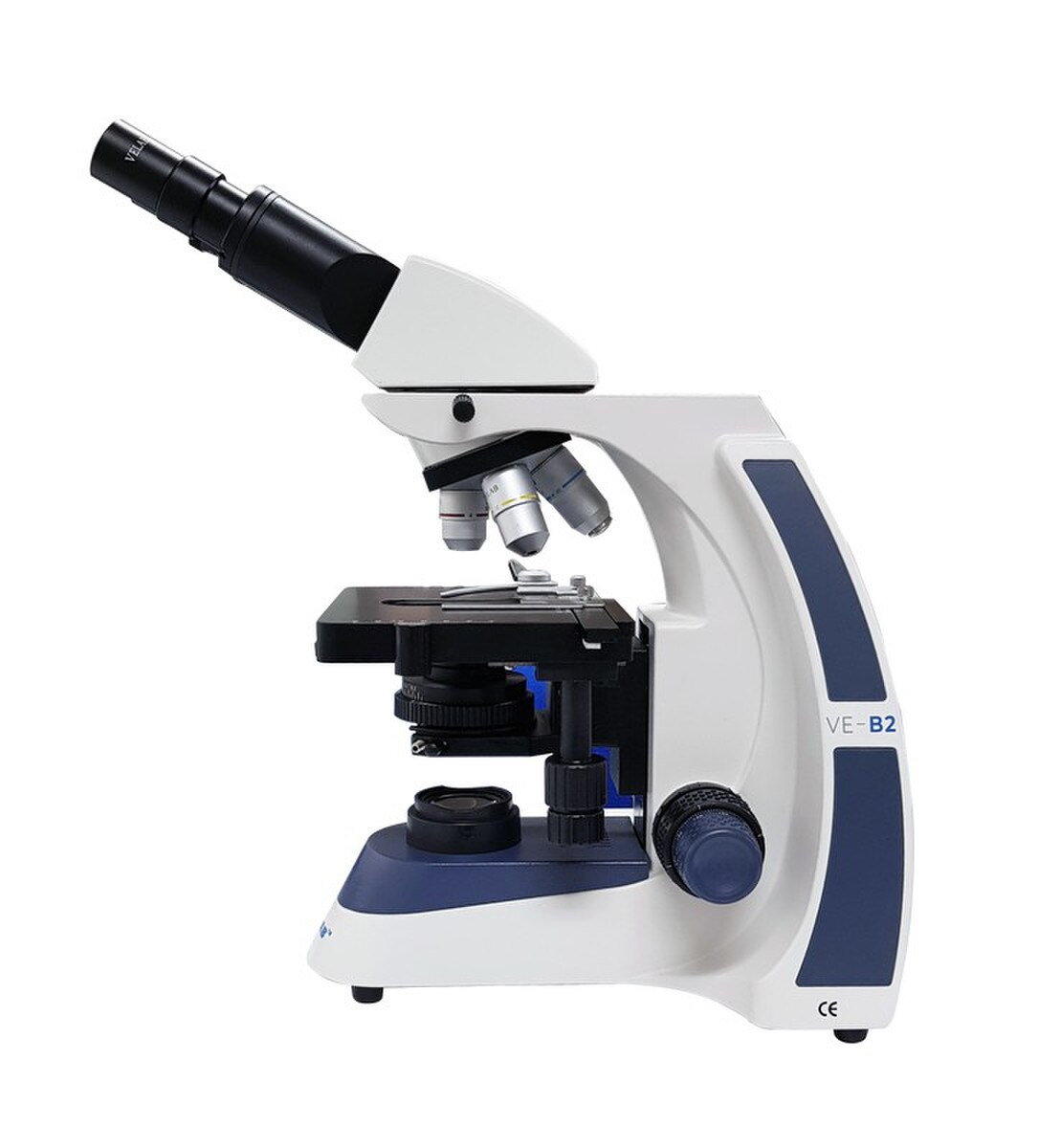

Binocular Microscope w/ LED Illumination and Quadruple Nose Piece (each)
Images are for representation only. Actual product may differ in size, color or options.
Binocular Microscope w/ LED Illumination and Quadruple Nose Piece (each)
The ideal microscope for all kinds of basic and advanced techniques. The VE-B2 complies with the necessary characteristics for routine work in clinical laboratories. Its eyepieces provide a wide field of observation and its extensive stage allows a comfortable displacement through the sample.
SPECIFICATIONS
EYEPIECES: WF 10x/20 mm with diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 45° inclined head and 360° rotatable, with interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95".
NOSEPIECE: Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 5.51" x 5.19", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25 with height adjustment.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: LED with intensity control.
WEIGHT: 17.41 lb / 7.89 kg.
DIMENSIONS: 10.04" x 12.99" x 21.26" / 255 x 329 x 540 mm
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
AC/DC Adapter.
Adapter cable reel device.
Blue filter.
Dust cover.
Immersion oil..
WARRANTY
10-years limited warranty.
The ideal microscope for all kinds of basic and advanced techniques. The VE-B2 complies with the necessary characteristics for routine work in clinical laboratories. Its eyepieces provide a wide field of observation and its extensive stage allows a comfortable displacement through the sample.
SPECIFICATIONS
EYEPIECES: WF 10x/20 mm with diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 45° inclined head and 360° rotatable, with interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95".
NOSEPIECE: Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 5.51" x 5.19", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25 with height adjustment.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: LED with intensity control.
WEIGHT: 17.41 lb / 7.89 kg.
DIMENSIONS: 10.04" x 12.99" x 21.26" / 255 x 329 x 540 mm
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
AC/DC Adapter.
Adapter cable reel device.
Blue filter.
Dust cover.
Immersion oil..
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Product Line: | VELAB |
| Class: | Clinical / Educational |
| Grade: | Basic |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Body: | Stative Epoxy Paint Finish |
| Condenser: | 1.25 N.A. Abbe with height adjustment screw |
| Dioptric Adjustment: | One Eyepiece |
| Eyepieces: | 20 mm |
| Eyepiece Type: | Widefield |
| Eyepiece Magnification: | 10X |
| Focusing: | Coarse and fine anti-slip control knob with tension adjustment |
| Head: | Binocular |
| Illumination: | LED with variable intensity control |
| Interpupillary Adjustment: | 48 – 75 mm / 1.88 inch – 2.95 inch |
| Nosepiece: | Quadruple nosepiece with anti-slip grip and click-stops |
| Objective Magnification: | 4X, 10X, 40X, 100X (Oil) |
| Objective Type: | Achromatic optics, anti-slip grip and color ring for easy identification |
| Stage: | Double plate with X-Y coaxial movement, 140 x 132 mm / 5.51 x 5.19 inches, vernier, millimeter scale, clamp and height adjustment with stop |
| Viewing Head: | 45° Inclination; 360° Rotatable |
| Warranty: | 10 years limited |
| Overall Dimensions: | 10 x 21 x 13 in |
| Includes: | AC/DC Adapter, Adapter cable reel device, Blue filter, Dust cover, Immersion oil, Operation manual |
