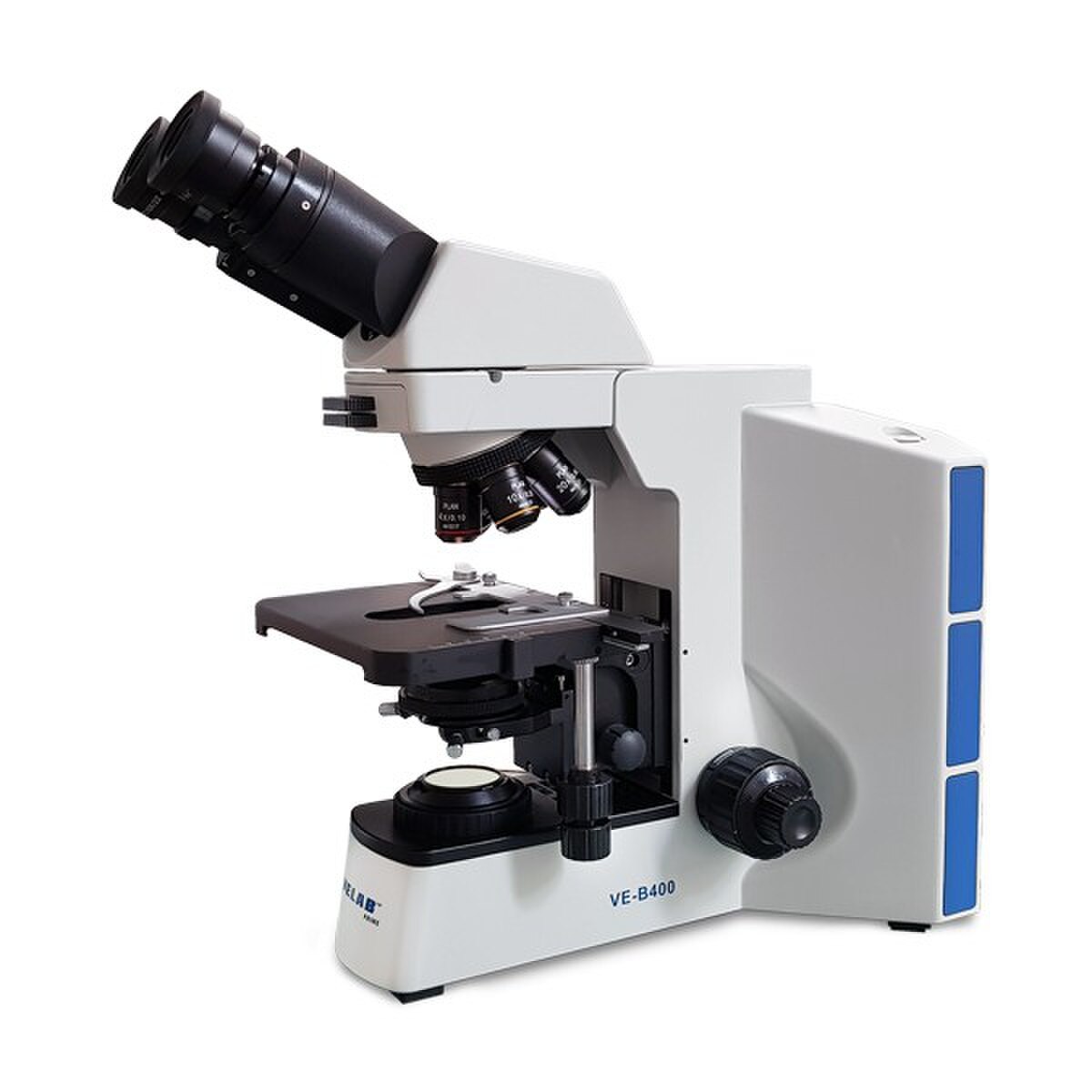

Biological Microscope (each)
Images are for representation only. Actual product may differ in size, color or options.
Biological Microscope (each)
Biological microscope for professional use, equipped with improved Koehler lighting system that allows observing clear and bright images under each magnification. Used for clinical diagnosis, experimentation for higher teaching and pathological tests.
High and steady structure, fully metallized at high pressure and supports Allen key on the upper left side. Provides optional configurations for various applications.
SPECIFICATIONS
EYEPIECES: PL 10X/20mm with ± 5 mm diopter adjustment in both eyepieces.
HEAD: Binocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm / 1.96"- 2.95".
NOSEPIECE: Quintuple nosepiece with anti-slip ring and clickstops, mounted on high-tension ball bearings.
OBJECTIVES: 4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with achromatic optics and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 6.88" x 5.70", vernier, millimeter scale (3.46" x 2.36"), clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25, with height adjustment.
DIAPHRAGM Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob and tension adjustment.
ILLUMINATION Kohler Halogen 6V/30W LED with variable intensity control and field diaphragm in the lamp.
POWER SUPPLY: 110-240V, 50/60 Hz, AC Adapter.
ACCESSORIES INCLUDED
Power cord.
Dust cover.
Immersion oil.
Allen key.
Light balance filter (LBD)
Biological microscope for professional use, equipped with improved Koehler lighting system that allows observing clear and bright images under each magnification. Used for clinical diagnosis, experimentation for higher teaching and pathological tests.
High and steady structure, fully metallized at high pressure and supports Allen key on the upper left side. Provides optional configurations for various applications.
SPECIFICATIONS
EYEPIECES: PL 10X/20mm with ± 5 mm diopter adjustment in both eyepieces.
HEAD: Binocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm / 1.96"- 2.95".
NOSEPIECE: Quintuple nosepiece with anti-slip ring and clickstops, mounted on high-tension ball bearings.
OBJECTIVES: 4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with achromatic optics and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 6.88" x 5.70", vernier, millimeter scale (3.46" x 2.36"), clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25, with height adjustment.
DIAPHRAGM Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob and tension adjustment.
ILLUMINATION Kohler Halogen 6V/30W LED with variable intensity control and field diaphragm in the lamp.
POWER SUPPLY: 110-240V, 50/60 Hz, AC Adapter.
ACCESSORIES INCLUDED
Power cord.
Dust cover.
Immersion oil.
Allen key.
Light balance filter (LBD)
| Product Type: | Microscope |
| Brand: | VELAB |
| Head: | Binocular |
| Overall Dimensions: | 22 x 11 x 22 in |
