Binocular Microscope for Clinical Diagnosis (Intermediate) (each)
Images are for representation only. Actual product may differ in size, color or options.
Binocular Microscope for Clinical Diagnosis (Intermediate) (each)
The VE-B5 is a professional microscope, ideal for research, higher education and routine work in clinical laboratories.
Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device.
The VE-B5 is adaptable to the needs of the user, it can be configured optionally to be compatible with a phase contrast kit and polarization set.
SPECIFICATIONS
EYEPIECES: WF 10x/22mm with rubber eyecups diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88" - 2.95".
NOSEPIECE: Quadruple nosepiece with anti-slip ring and click-stops.
OBJECTIVES: 4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with infinity corrected achromatic optics, metallic finish and color ring for easy identification.
BODY: Stative, robust and reinforced with epoxy paint finish.
STAGE: Double plate with X-Y coaxial movement, 150 x 132 mm / 5.90" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (no included).
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.

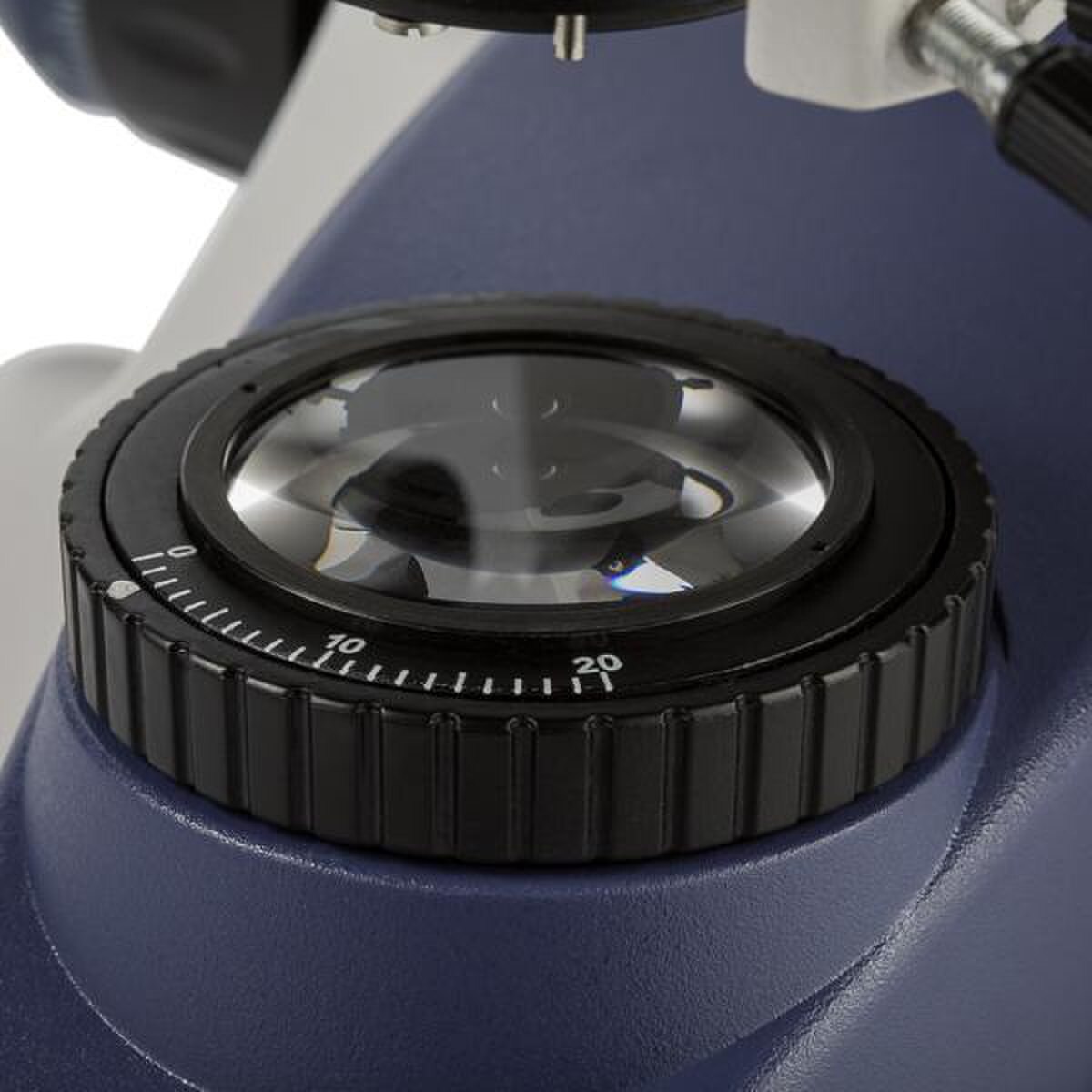

ILLUMINATION: Kohler LED with variable intensity control and field diaphragm in the lamp.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 10.43" x 16.92" x 11.61"
ACCESSORIES INCLUDED
Blue, green and yellow filters.
Dust cover.
Immersion oil.
Operation manual.
Power cord.
ACCESSORIES NOT INCLUDED
Phase contrast kit.
Polarization set..
WARRANTY
10-years limited warranty.
The VE-B5 is a professional microscope, ideal for research, higher education and routine work in clinical laboratories.
Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device.
The VE-B5 is adaptable to the needs of the user, it can be configured optionally to be compatible with a phase contrast kit and polarization set.
SPECIFICATIONS
EYEPIECES: WF 10x/22mm with rubber eyecups diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88" - 2.95".
NOSEPIECE: Quadruple nosepiece with anti-slip ring and click-stops.
OBJECTIVES: 4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with infinity corrected achromatic optics, metallic finish and color ring for easy identification.
BODY: Stative, robust and reinforced with epoxy paint finish.
STAGE: Double plate with X-Y coaxial movement, 150 x 132 mm / 5.90" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (no included).
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: Kohler LED with variable intensity control and field diaphragm in the lamp.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 10.43" x 16.92" x 11.61"
ACCESSORIES INCLUDED
Blue, green and yellow filters.
Dust cover.
Immersion oil.
Operation manual.
Power cord.
ACCESSORIES NOT INCLUDED
Phase contrast kit.
Polarization set..
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Head: | Binocular |
| Overall Dimensions: | 10 x 20 x 15 in |
