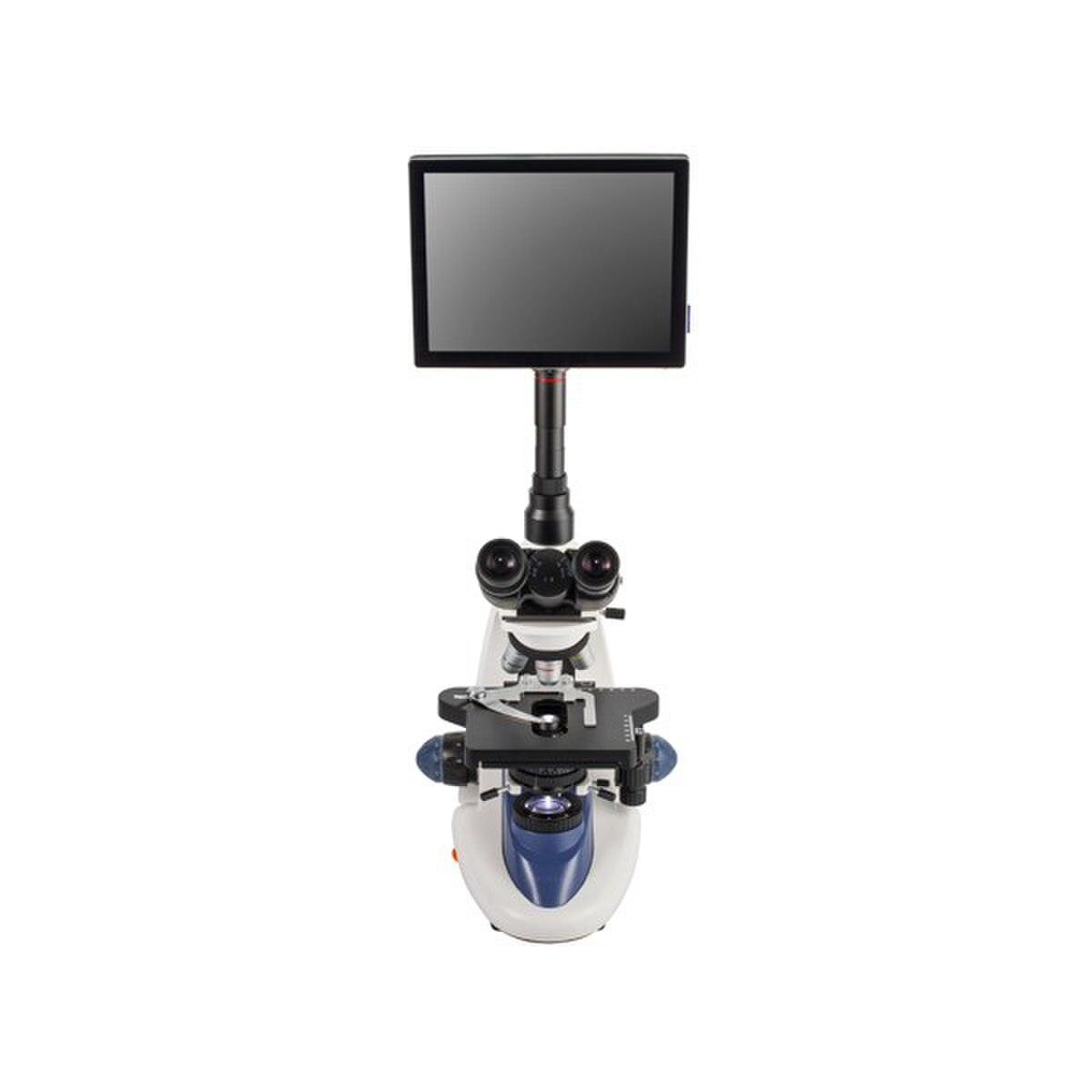

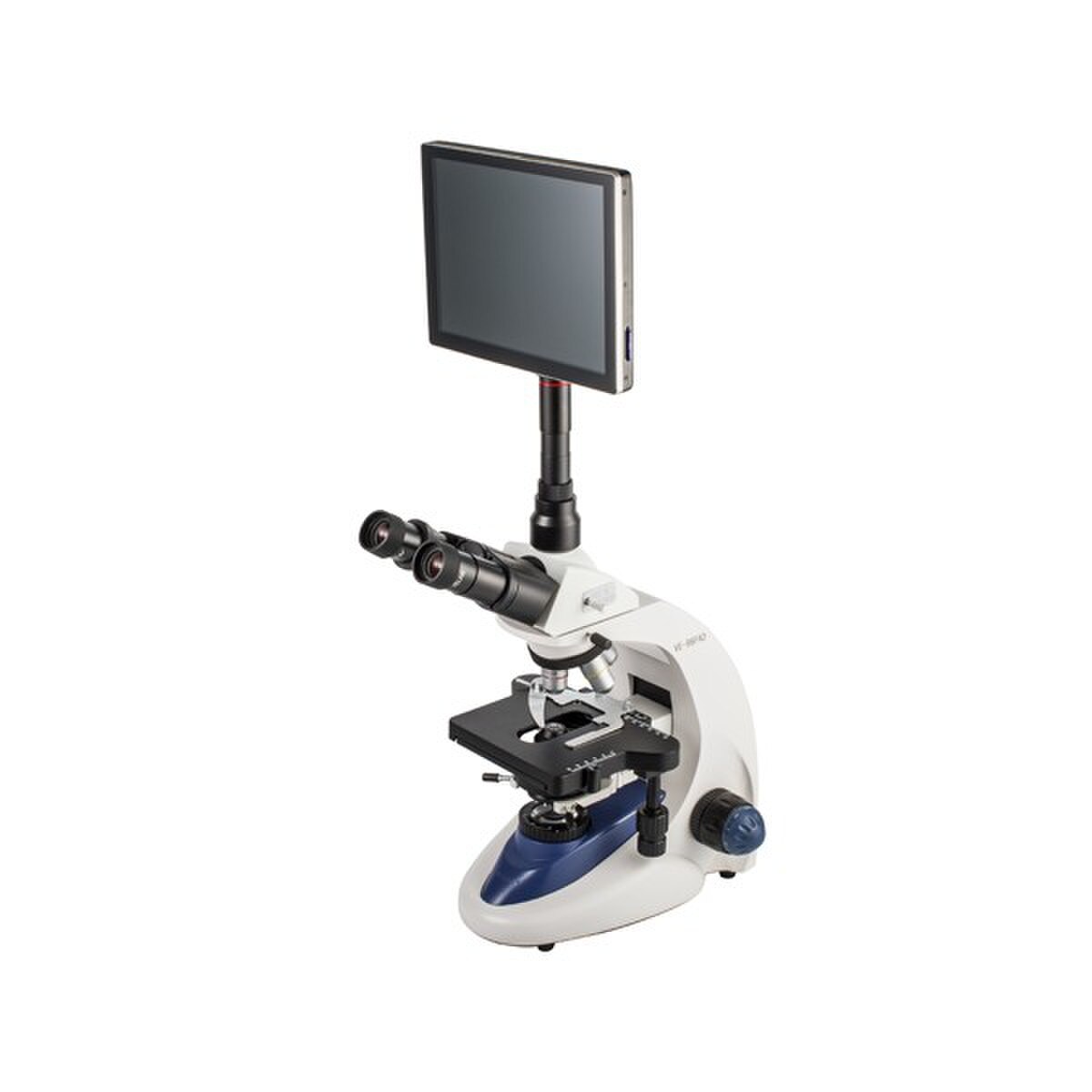

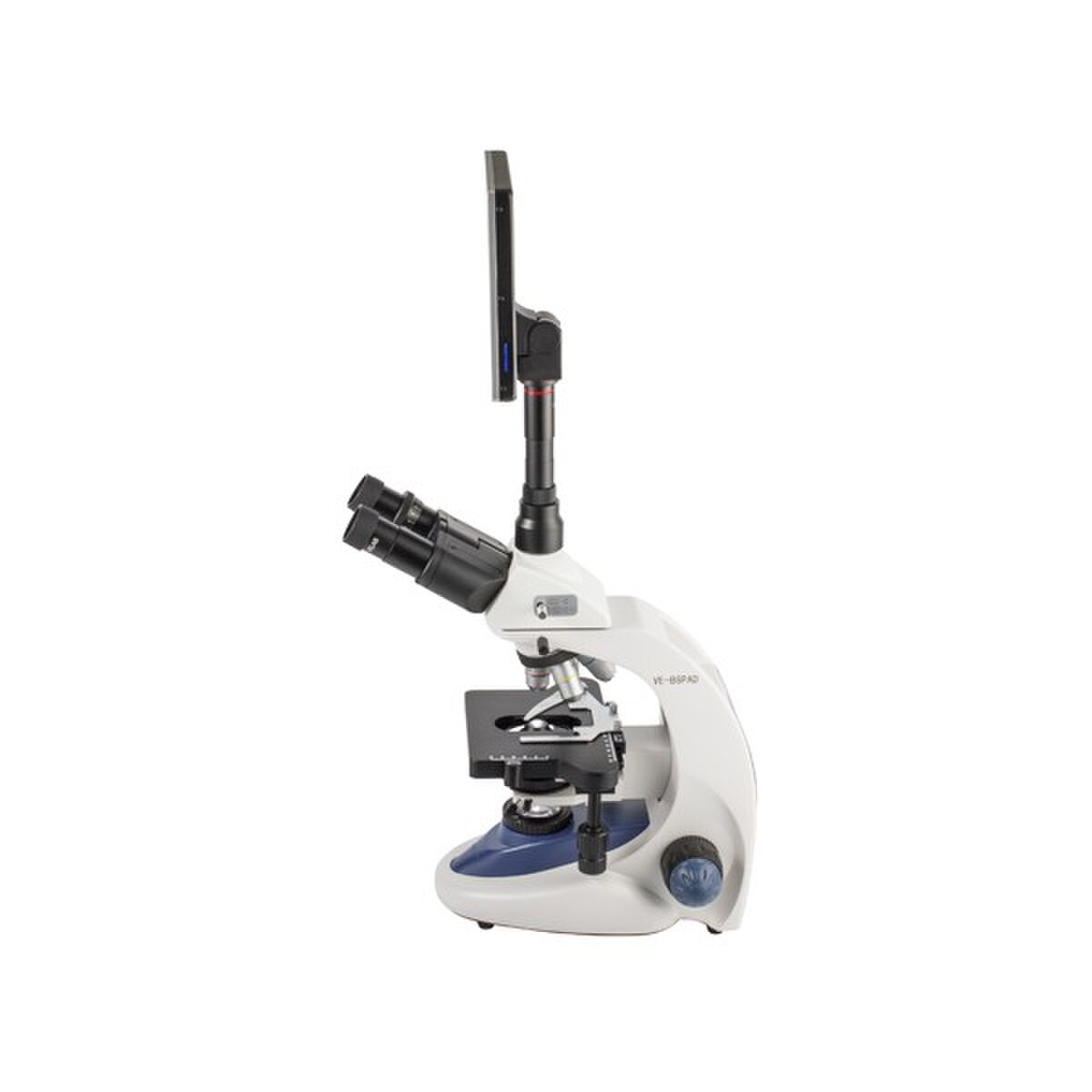

Trinocular Microscope with Integrated 9.7" Tablet (each)
Images are for representation only. Actual product may differ in size, color or options.
Trinocular Microscope with Integrated 9.7" Tablet (each)
The VE-B6 PAD is a professional microscope, ideal for research, higher education and routine work in clinical laboratories. Equipped with our SCOPEPAD device, which consists of a 5.0MP digital camera integrated into a completely removable 9.7" tablet with the Android operating system. The VE-B6 PAD includes the IMS Camera application which allows to edit and measure captures, as well as IAS Camera for particle counting. It offers an innovative digital solution and can also be configured optionally to be compatible with a phase contrast kit and polarization set.
SPECIFICATIONS MICROSCOPE
EYEPIECE WF 10X/20mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD Binocular Siedentopf type, 45° inclined and 360° rotatable, with interpupillary
distance adjustment between 48 – 75 mm / 1.88" - 2.95".
NOSEPIECE Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish.
STAGE Two-Layer stage with X-Y coaxial movement, 5.90" x 5.19", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
DIAPHRAGM Iris with filter holder.
FOCUSING Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION Kohler LED with intensity control and field diaphragm in the lamp.
WEIGHT 24.65 lb / 11.18 kg.
DIMENSIONS 12.01" x 14.96" x 20.08" / 305 x 379 x 510 mm.
POWER SUPPLY Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
SPECIFICATIONS TABLET
PROCESSOR
CPU RK3066 dual core 1.5 Hz.
SCREEN 9.7" touch screen with 1024 x 768p of resolution.
STORAGE 2GB DDR RAM and 32GB of maximum external support.
INTERFACE USB, mini USB and HDMI.
OPERATING SYSTEM Android 4.2.
CONNECTIVITY WIFI and Bluetooth.
APPLICATION - IMS Camera: Edition and measurement.
- IMS Camera: Particle counting.
POWER SUPPLY
110-240V, 50/60 Hz AC adapter.
SPECIFICATIONS CAMERA
TOTAL PIXELS 5.0MP
IMAGE SENSOR 1/2.5" CMOS.
RESOLUTION 2592 x 1944p.
WHITE BALANCE Automatic/Manual.
RECORDING SYSTEM Image and Video.
ACCESSORIES INCLUDED
Power cord.
Dust cover.
Adapter AC/DC.
Blue, green and yellow filters.
Immersion oil..
WARRANTY
10 YEARS
SD memory card.
Adapter rings Φ 30 and Φ 30.5 mm.
0.5X C-Mount.
ACCESSORIES NOT INCLUDED
Phase contrast kit.
Polarization set.
WARRANTY
10-years limited warranty.
The VE-B6 PAD is a professional microscope, ideal for research, higher education and routine work in clinical laboratories. Equipped with our SCOPEPAD device, which consists of a 5.0MP digital camera integrated into a completely removable 9.7" tablet with the Android operating system. The VE-B6 PAD includes the IMS Camera application which allows to edit and measure captures, as well as IAS Camera for particle counting. It offers an innovative digital solution and can also be configured optionally to be compatible with a phase contrast kit and polarization set.
SPECIFICATIONS MICROSCOPE
EYEPIECE WF 10X/20mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD Binocular Siedentopf type, 45° inclined and 360° rotatable, with interpupillary
distance adjustment between 48 – 75 mm / 1.88" - 2.95".
NOSEPIECE Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish.
STAGE Two-Layer stage with X-Y coaxial movement, 5.90" x 5.19", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
DIAPHRAGM Iris with filter holder.
FOCUSING Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION Kohler LED with intensity control and field diaphragm in the lamp.
WEIGHT 24.65 lb / 11.18 kg.
DIMENSIONS 12.01" x 14.96" x 20.08" / 305 x 379 x 510 mm.
POWER SUPPLY Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
SPECIFICATIONS TABLET
PROCESSOR
CPU RK3066 dual core 1.5 Hz.
SCREEN 9.7" touch screen with 1024 x 768p of resolution.
STORAGE 2GB DDR RAM and 32GB of maximum external support.
INTERFACE USB, mini USB and HDMI.
OPERATING SYSTEM Android 4.2.
CONNECTIVITY WIFI and Bluetooth.
APPLICATION - IMS Camera: Edition and measurement.
- IMS Camera: Particle counting.
POWER SUPPLY
110-240V, 50/60 Hz AC adapter.
SPECIFICATIONS CAMERA
TOTAL PIXELS 5.0MP
IMAGE SENSOR 1/2.5" CMOS.
RESOLUTION 2592 x 1944p.
WHITE BALANCE Automatic/Manual.
RECORDING SYSTEM Image and Video.
ACCESSORIES INCLUDED
Power cord.
Dust cover.
Adapter AC/DC.
Blue, green and yellow filters.
Immersion oil..
WARRANTY
10 YEARS
SD memory card.
Adapter rings Φ 30 and Φ 30.5 mm.
0.5X C-Mount.
ACCESSORIES NOT INCLUDED
Phase contrast kit.
Polarization set.
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Head: | Trinocular |
| Overall Dimensions: | 10 x 20 x 15 in |
