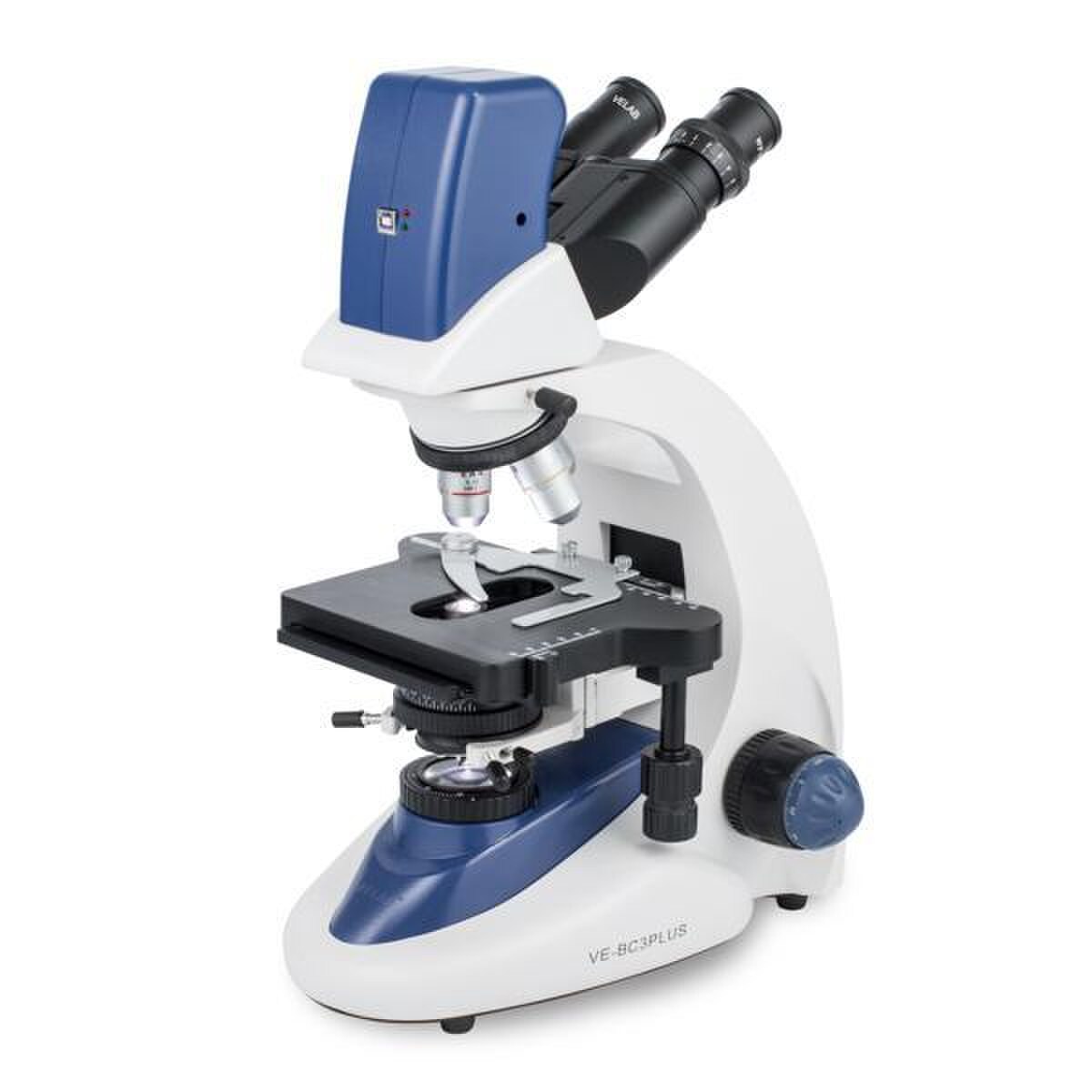

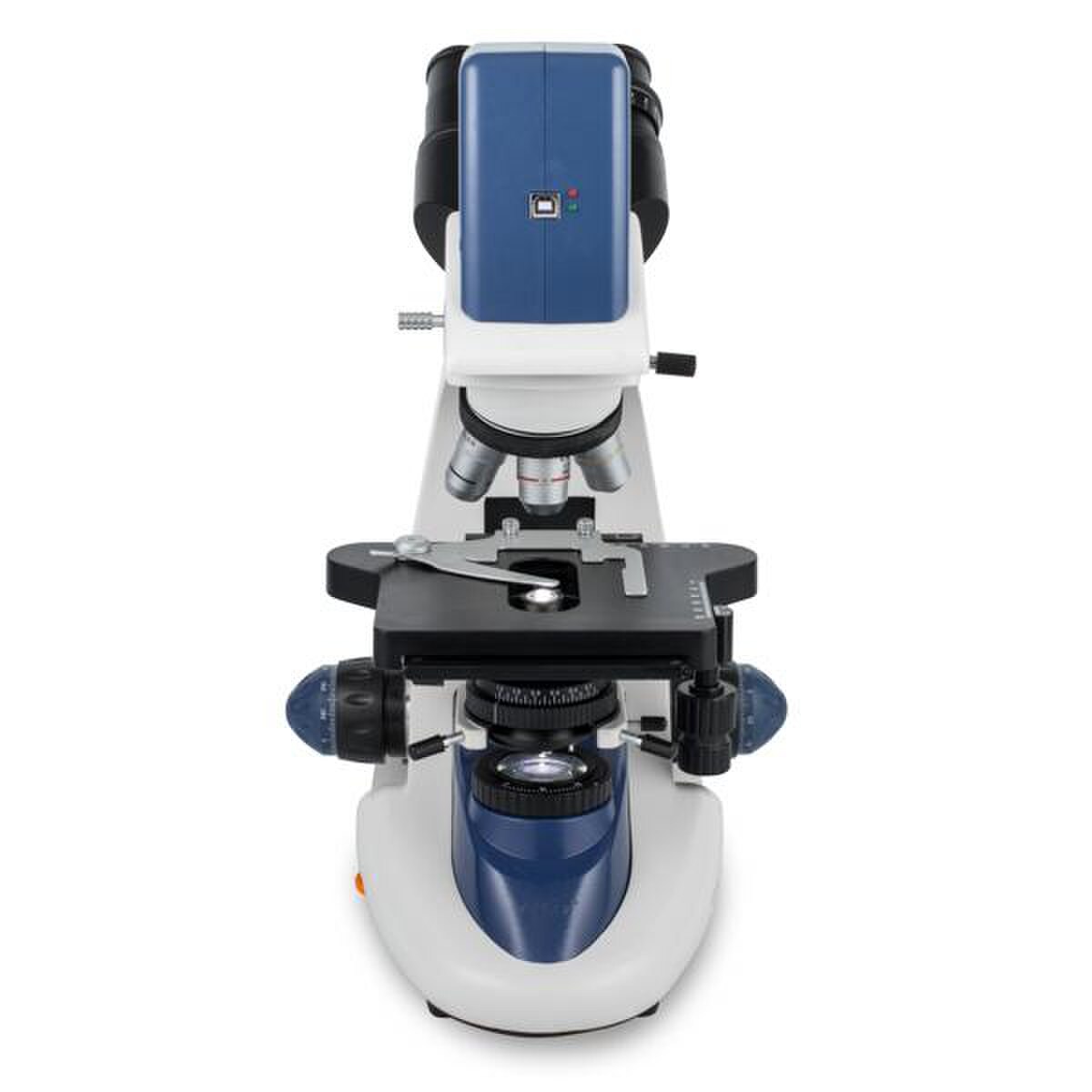

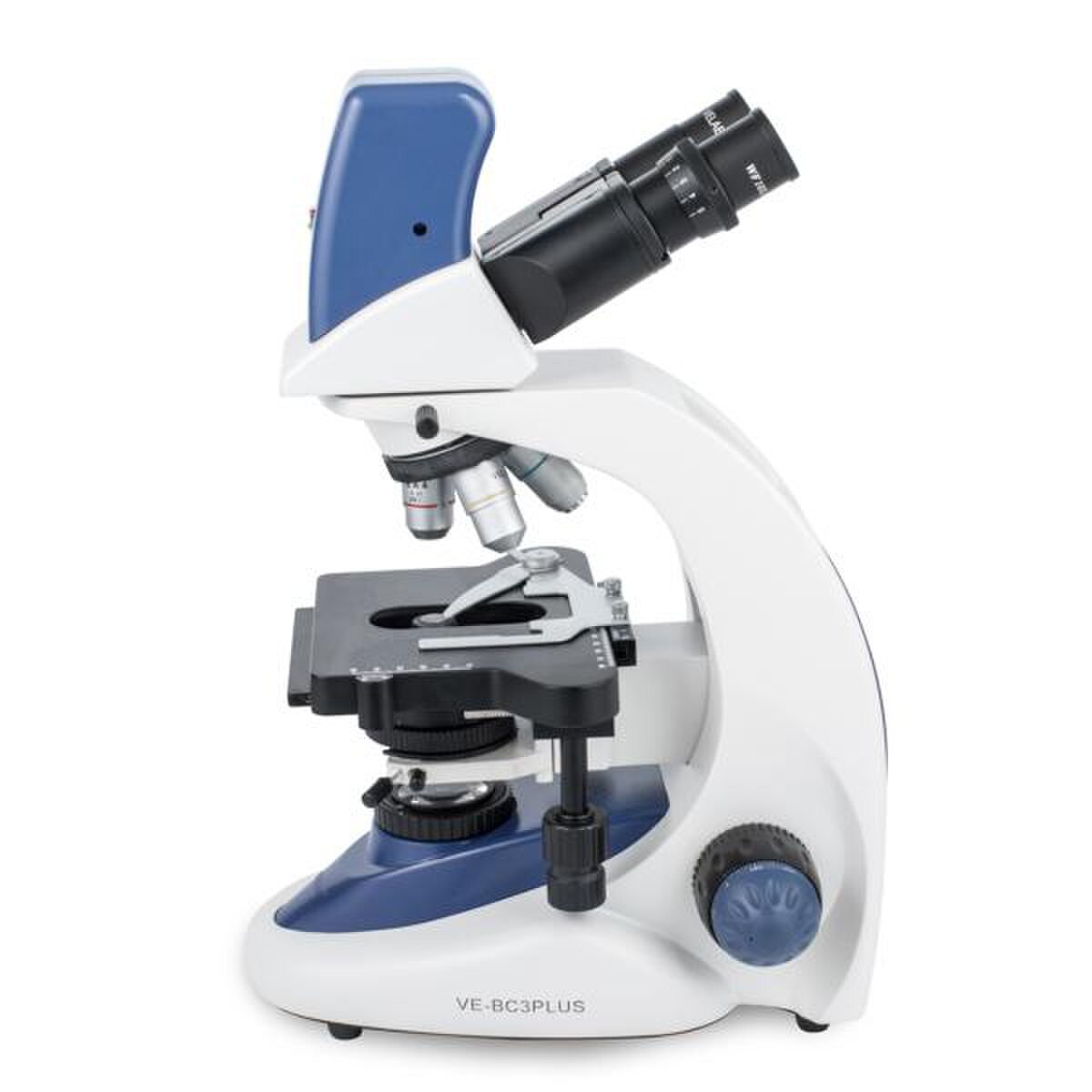

Binocular Microscope with Integrated 3.0 MP Digital Camera (Intermediate) (each)
Images are for representation only. Actual product may differ in size, color or options.
Binocular Microscope with Integrated 3.0 MP Digital Camera (Intermediate) (each)
The VE-BC3 PLUS digital microscope was designed for professional use and offers all the virtues of a biological microscope as well as being equipped with a 5.0MP digital camera. It includes a simple operational software compatible with Windows operating systems. Ideal for the observation of images in real time and for storing captures on a computer.
Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device in higher education, research and diagnosis.
SPECIFICATIONS
EYEPIECES: WF 10X/20mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88" - 2.95" and integrated 3.0MP digital camera.
NOSEPIECE: Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 5.90" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: Kohler LED with intensity control and field diaphragm in the lamp.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 10.43" x 17.51" x 11.61"
ACCESSORIES INCLUDED
Blue, green and yellow filters.
Dust cover.
Immersion oil.
Operation manual.
Power cord.
Software CD.
USB cable.
ACCESSORIES NOT INCLUDED
Phase contrast kit.
Polarization set.
WARRANTY
10-years limited warranty.
The VE-BC3 PLUS digital microscope was designed for professional use and offers all the virtues of a biological microscope as well as being equipped with a 5.0MP digital camera. It includes a simple operational software compatible with Windows operating systems. Ideal for the observation of images in real time and for storing captures on a computer.
Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device in higher education, research and diagnosis.
SPECIFICATIONS
EYEPIECES: WF 10X/20mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88" - 2.95" and integrated 3.0MP digital camera.
NOSEPIECE: Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 5.90" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: Kohler LED with intensity control and field diaphragm in the lamp.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 10.43" x 17.51" x 11.61"
ACCESSORIES INCLUDED
Blue, green and yellow filters.
Dust cover.
Immersion oil.
Operation manual.
Power cord.
Software CD.
USB cable.
ACCESSORIES NOT INCLUDED
Phase contrast kit.
Polarization set.
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Head: | Binocular |
| Overall Dimensions: | 12 x 20 x 15 in |
