VLB-VE-D50
Images are for representation only. Actual product may differ in size, color or options.

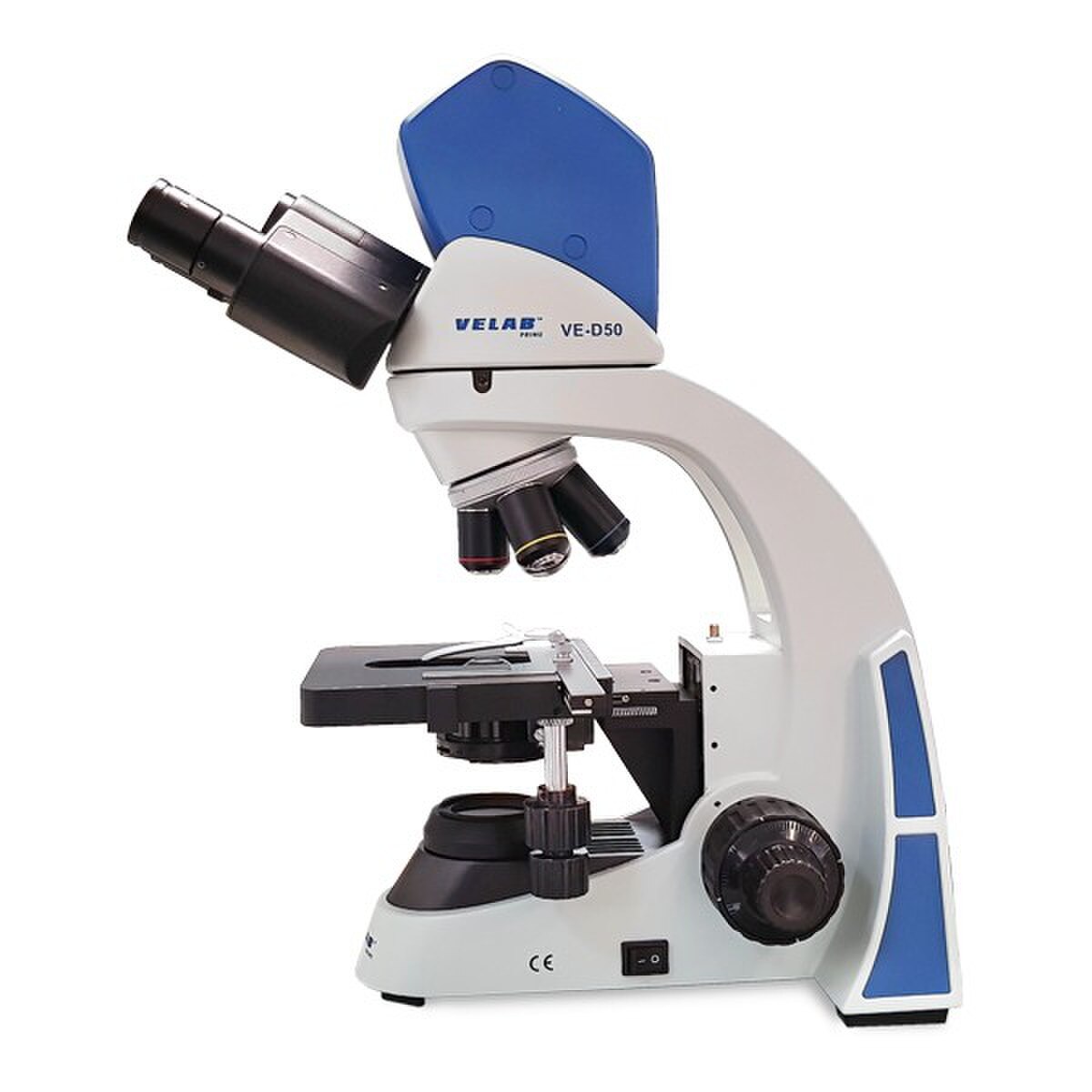

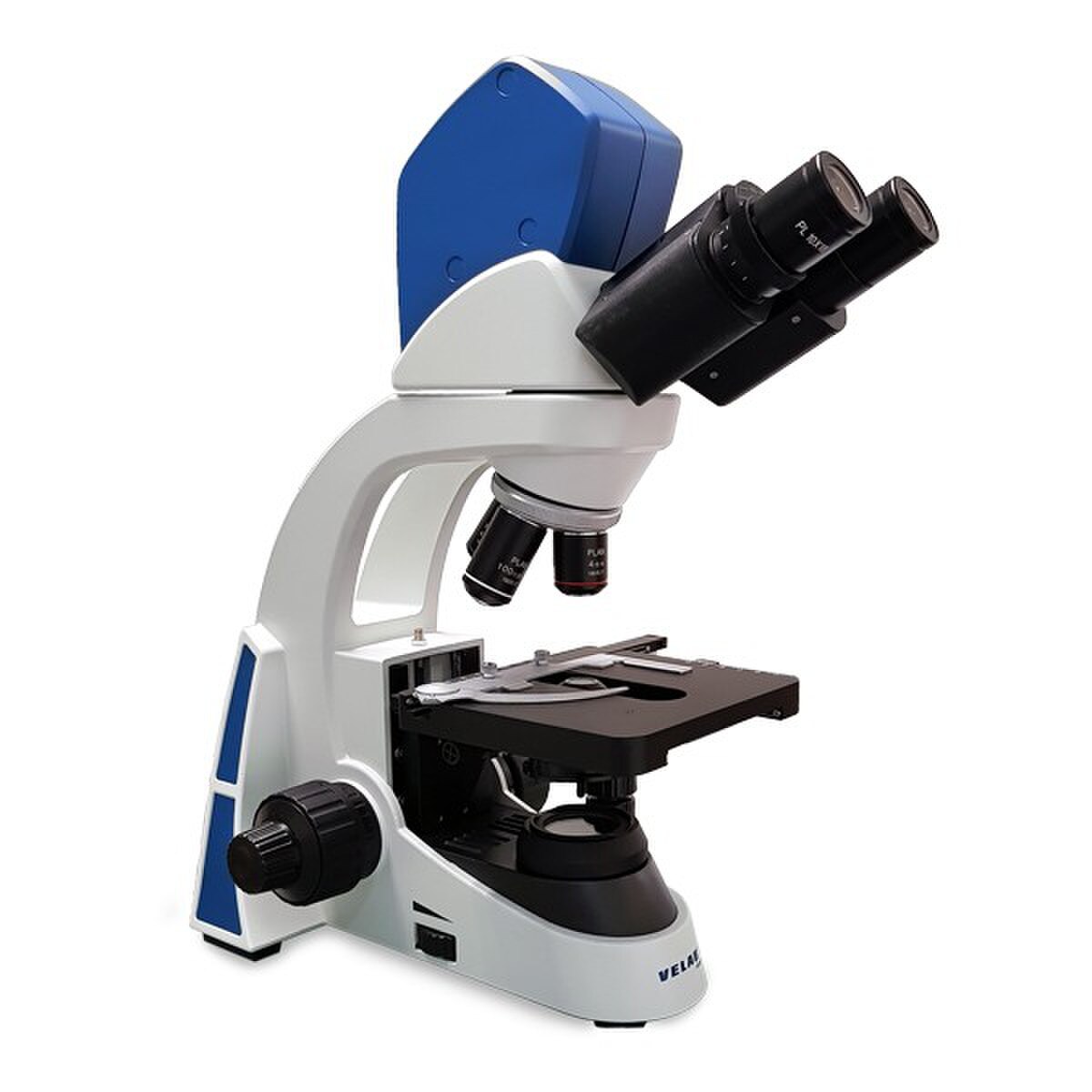

Digital Binocular Microscope (each)

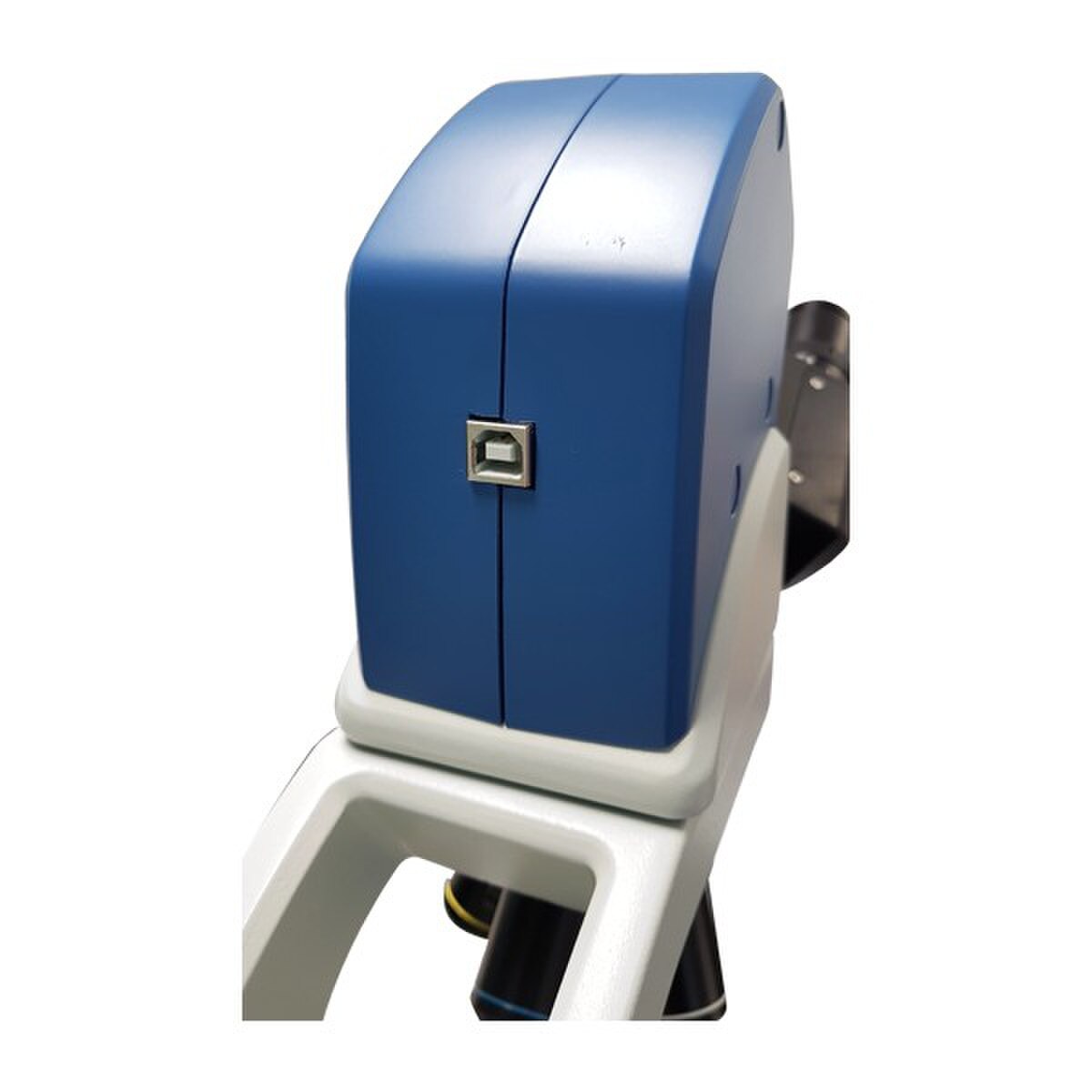

Digital microscope ideal for all kinds of advanced techniques. It has all the properties of a professional biological microscope, as well as being equipped with a 3.0 MPX digital camera. Used for research, higher education and diagnostic purposes in clinical laboratories.
Its stage provides fine and smooth movement control, providing precise orientation, a useful feature during histology and cytology tests. It has optical components of excellent quality and long useful life LED lighting. The diopter adjustment offers diopter adjustment
SPECIFICATIONS
EYEPIECES: PL 10X/18mm with ± 5 mm diopter adjustment in one eyepiece.
HEAD: Binocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm / 1.96"- 2.95".
NOSEPIECE: Quadruple nosepiece with anti-slip ring and click-stops., mounted on high-tension ball bearings.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 5.51" x 5.19", vernier, millimeter scale (3.46" x 2.36"), clamp and height adjustment with stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment screw.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with fine 0.002 mm precision and tension adjustment.
ILLUMINATION: 3W LED with variable intensity control.
POWER SUPPLY: 110-240V, 50/60 Hz, AC Adapter.
ACCESSORIES INCLUDED
Power cord.
USB cable.
Software CD.
Dust cover.
Immersion oil.
Warranty
10 -years limited warranty
Digital microscope ideal for all kinds of advanced techniques. It has all the properties of a professional biological microscope, as well as being equipped with a 3.0 MPX digital camera. Used for research, higher education and diagnostic purposes in clinical laboratories.
Its stage provides fine and smooth movement control, providing precise orientation, a useful feature during histology and cytology tests. It has optical components of excellent quality and long useful life LED lighting. The diopter adjustment offers diopter adjustment
SPECIFICATIONS
EYEPIECES: PL 10X/18mm with ± 5 mm diopter adjustment in one eyepiece.
HEAD: Binocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm / 1.96"- 2.95".
NOSEPIECE: Quadruple nosepiece with anti-slip ring and click-stops., mounted on high-tension ball bearings.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 5.51" x 5.19", vernier, millimeter scale (3.46" x 2.36"), clamp and height adjustment with stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment screw.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with fine 0.002 mm precision and tension adjustment.
ILLUMINATION: 3W LED with variable intensity control.
POWER SUPPLY: 110-240V, 50/60 Hz, AC Adapter.
ACCESSORIES INCLUDED
Power cord.
USB cable.
Software CD.
Dust cover.
Immersion oil.
Warranty
10 -years limited warranty
| Product Type: | Microscope |
| Brand: | VELAB |
| Head: | Binocular |
| Overall Dimensions: | 22 x 11 x 22 in |
