Biological Monocular Microscope (each)
Images are for representation only. Actual product may differ in size, color or options.
Biological Monocular Microscope (each)

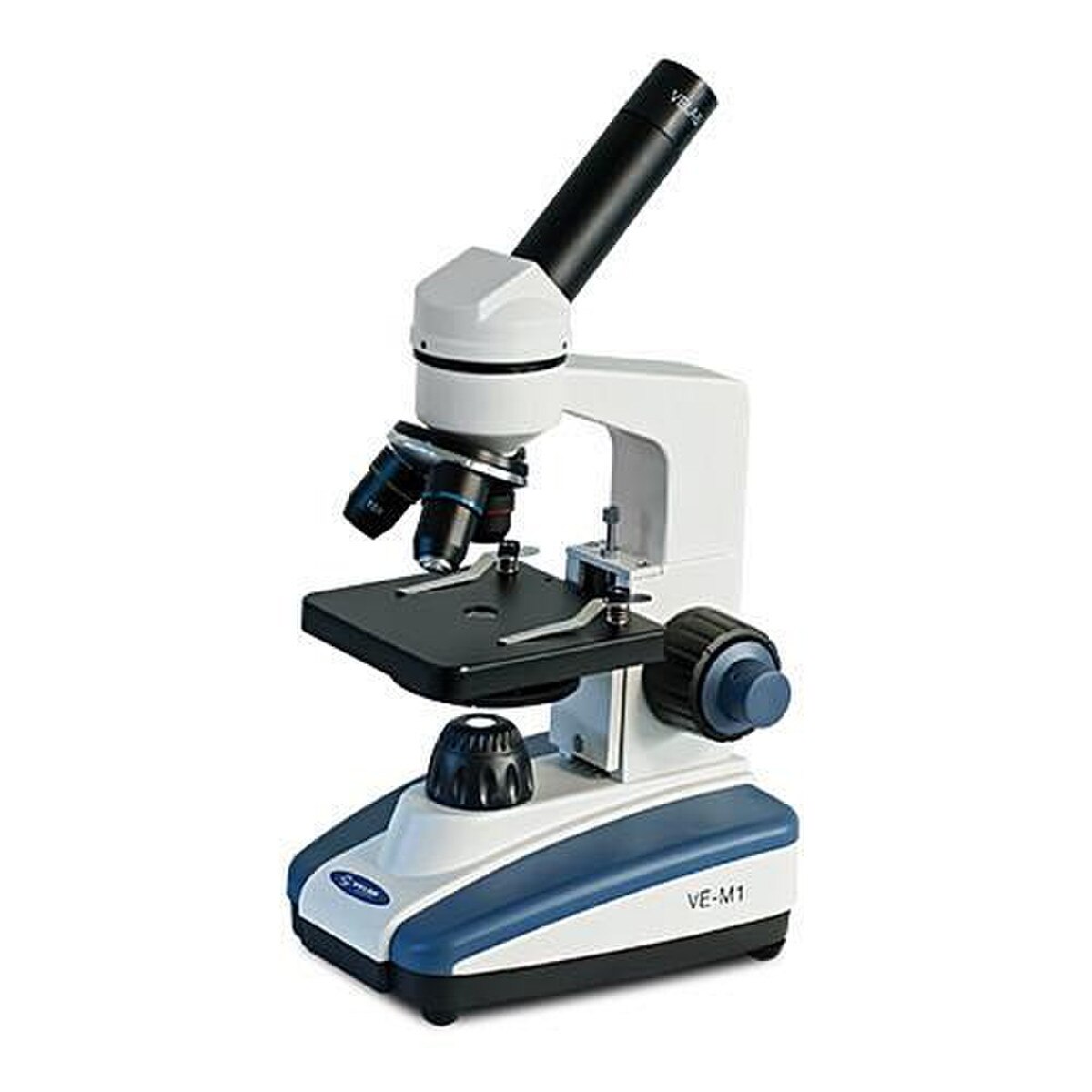

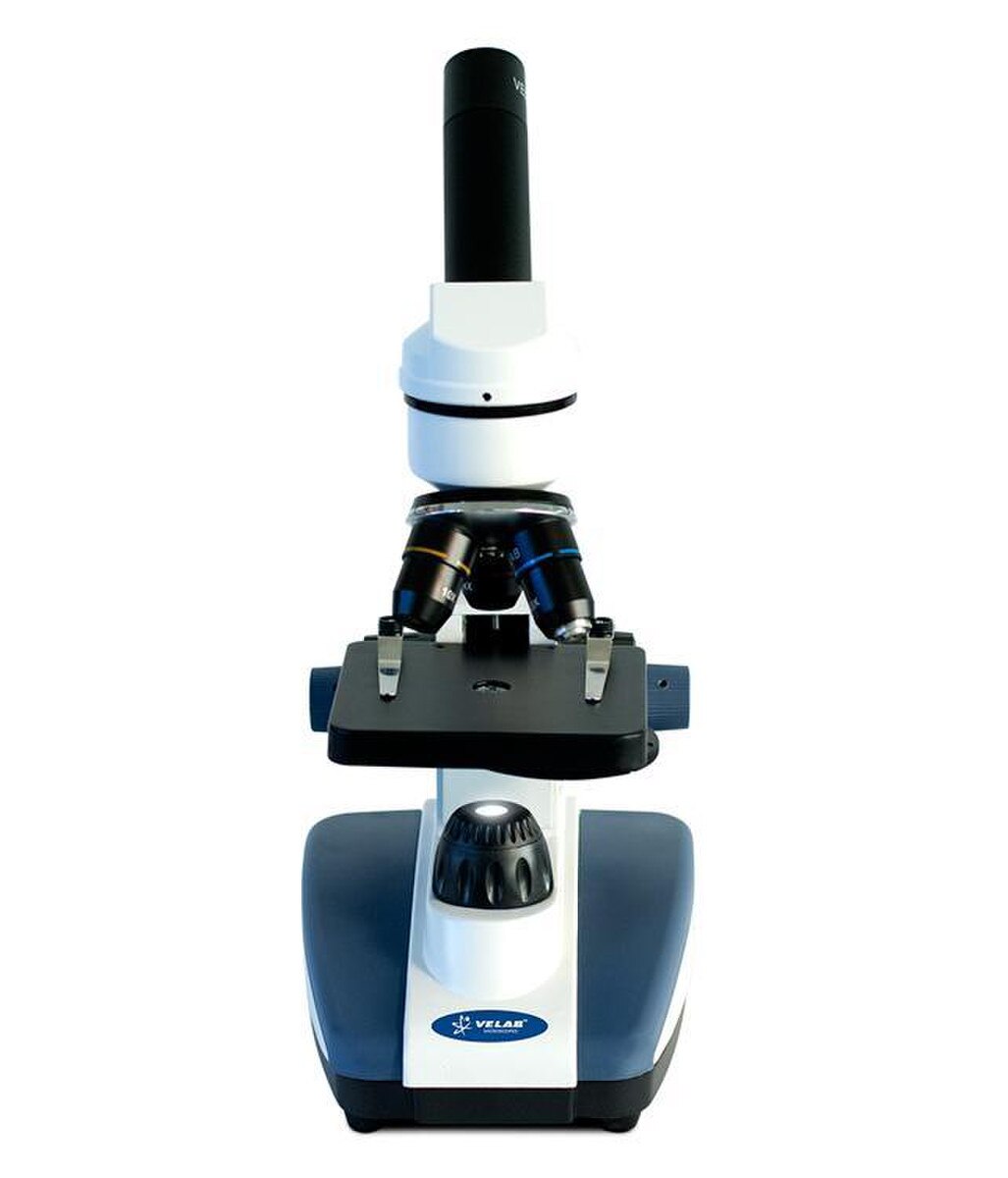

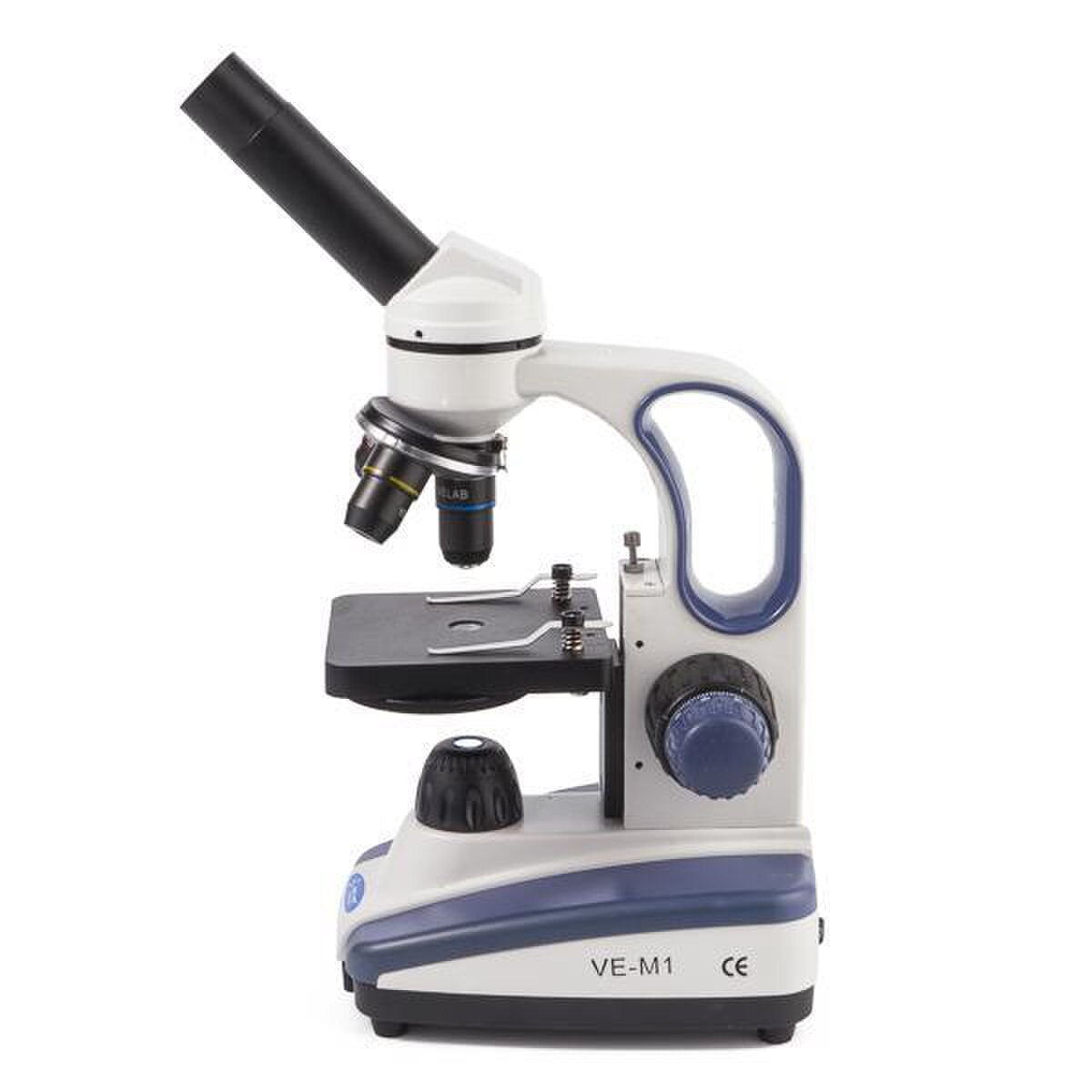

The VE-MI microscope was specially designed for educational purposes. Ideal for basic science applications and field work thanks to its rechargeable battery and up to 40 continuous hours of usage on a single charge. It’s simple design and excellent quality make it ideal for the observation of flowers, plants, fungi, pollen, insect extremities, protozoa and mold on bread or fruit.
SPECIFICATIONS
EYEPIECE WF 10X/18 mm with block screw.
HEAD Monocular head, 45° inclined and 360° rotatable
NOSEPIECE Triple nosepiece with click-stops.
OBJECTIVES 4X, 10X and 40X, achromatic optics and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish..
STAGE Flat, 3.70" x 3.70" with two stage clips and height adjustment.
CONDENSER N.A. 0.65.
DIAPHRAGM Disk type.
FOCUSING Coarse anti-slip control knobs.
ILLUMINATION LED
WEIGHT 6.16 lb / 2.79 kg.
DIMENSIONS 6.69" x 10.24" x 14.96" / 169.9 x 260 x 379.9 mm
POWER SUPPLY Three 1.2V AA rechargeable batteries (included) for 40 hours of continuous operation. 110-240, 50/60 Hz.
ACCESSORIES INCLUDED
AC/DC adapter.
Dust cover.
WARRANTY
10-years limited warranty.
The VE-MI microscope was specially designed for educational purposes. Ideal for basic science applications and field work thanks to its rechargeable battery and up to 40 continuous hours of usage on a single charge. It’s simple design and excellent quality make it ideal for the observation of flowers, plants, fungi, pollen, insect extremities, protozoa and mold on bread or fruit.
SPECIFICATIONS
EYEPIECE WF 10X/18 mm with block screw.
HEAD Monocular head, 45° inclined and 360° rotatable
NOSEPIECE Triple nosepiece with click-stops.
OBJECTIVES 4X, 10X and 40X, achromatic optics and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish..
STAGE Flat, 3.70" x 3.70" with two stage clips and height adjustment.
CONDENSER N.A. 0.65.
DIAPHRAGM Disk type.
FOCUSING Coarse anti-slip control knobs.
ILLUMINATION LED
WEIGHT 6.16 lb / 2.79 kg.
DIMENSIONS 6.69" x 10.24" x 14.96" / 169.9 x 260 x 379.9 mm
POWER SUPPLY Three 1.2V AA rechargeable batteries (included) for 40 hours of continuous operation. 110-240, 50/60 Hz.
ACCESSORIES INCLUDED
AC/DC adapter.
Dust cover.
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Product Line: | VELAB |
| Class: | Educational |
| Grade: | Basic |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Body: | Stative Epoxy Paint Finish |
| Condenser: | 0.65 N.A. |
| Eyepieces: | 18 mm F.D. |
| Eyepiece Type: | Widefield |
| Eyepiece Magnification: | 10X |
| Focusing: | Coarse and fine anti-slip control knobs |
| Head: | Monocular |
| Illumination: | LED |
| Nosepiece: | Triple nosepiece with click-stops |
| Objective Magnification: | 4X, 10X, 40X |
| Objective Type: | Achromatic optics and color ring for easy identification |
| Stage: | Flat 94 x 94 mm / 3.70 x 3.70 inches with two stage clips and height adjustment |
| Viewing Head: | 45° Inclination; 360° Rotatable |
| Warranty: | 10 years limited |
| Overall Dimensions: | 13 x 17 x 6 in |
| Includes: | AC/DC Adapter, Dust cover, Operation manual |
