Biological Monocular Microscope (each)
Images are for representation only. Actual product may differ in size, color or options.
Biological Monocular Microscope (each)
The VE-M3 microscope is specially designed for educational purposes. Ideal for application in sciences at the basic and intermediate levels. It is a fully portable device thanks to its rechargeable batteries, which allow 4 continuous hours of operation on a single charge. It includes a rear cable-winding reel for the power adapter and LED lighting which prevents the unit from heating up
SPECIFICATIONS
EYEPIECE WF10X/18 mm with block screw.
HEAD Monocular head, 45° inclined, 360° rotatable.
NOSEPIECE Triple nosepiece with click-stops.

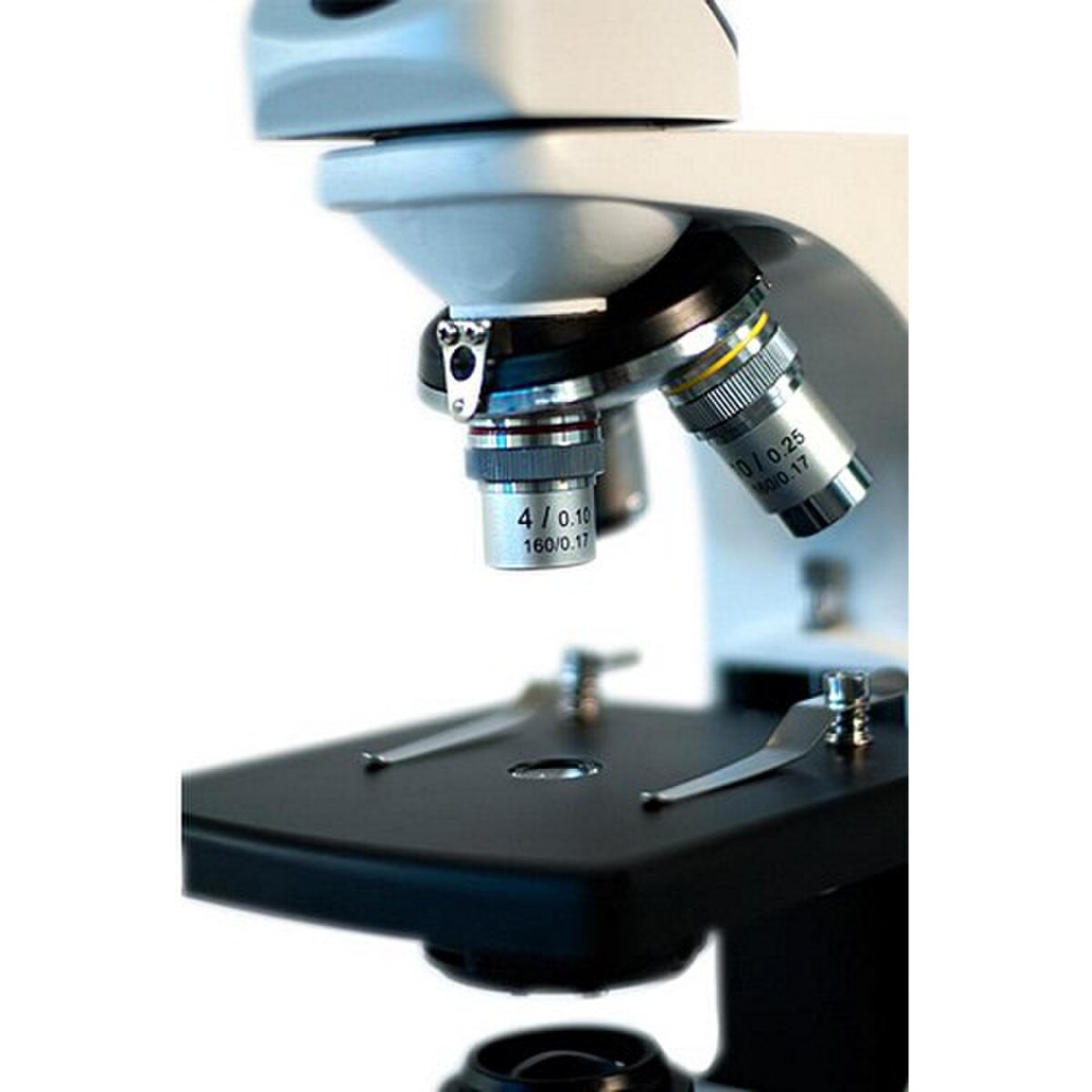

OBJECTIVES 4X, 10X and 40X (S), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish..
STAGE Flat, 4.72" x 4.72" with two object clips and height adjustment.
CONDENSER N.A. 0.65.
DIAPHRAGM Disk type.
FOCUSING Coarse anti-slip control knob.
ILLUMINATION LED with intensity control
WEIGHT 11.25 lb / 5.10 kg
DIMENSIONS 10.04" x 12.99" x 16.34" / 255 x 329 x 415 mm
POWER SUPPLY Three 1.2V AA rechargeable batteries (included) for 40 hours of continuous operation. 110-240, 50/60 Hz.
ACCESSORIES INCLUDED
AC/DC adapter.
Adapter cable reel device.
Dust cover.
WARRANTY
10-years limited warranty.
The VE-M3 microscope is specially designed for educational purposes. Ideal for application in sciences at the basic and intermediate levels. It is a fully portable device thanks to its rechargeable batteries, which allow 4 continuous hours of operation on a single charge. It includes a rear cable-winding reel for the power adapter and LED lighting which prevents the unit from heating up
SPECIFICATIONS
EYEPIECE WF10X/18 mm with block screw.
HEAD Monocular head, 45° inclined, 360° rotatable.
NOSEPIECE Triple nosepiece with click-stops.
OBJECTIVES 4X, 10X and 40X (S), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish..
STAGE Flat, 4.72" x 4.72" with two object clips and height adjustment.
CONDENSER N.A. 0.65.
DIAPHRAGM Disk type.
FOCUSING Coarse anti-slip control knob.
ILLUMINATION LED with intensity control
WEIGHT 11.25 lb / 5.10 kg
DIMENSIONS 10.04" x 12.99" x 16.34" / 255 x 329 x 415 mm
POWER SUPPLY Three 1.2V AA rechargeable batteries (included) for 40 hours of continuous operation. 110-240, 50/60 Hz.
ACCESSORIES INCLUDED
AC/DC adapter.
Adapter cable reel device.
Dust cover.
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Product Line: | VELAB |
| Class: | Educational |
| Grade: | Intermediate |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Body: | Stative Epoxy Paint Finish |
| Condenser: | 0.65 N.A. |
| Eyepieces: | 18 mm F.D. |
| Eyepiece Type: | Widefield |
| Eyepiece Magnification: | 10X |
| Focusing: | Coarse and fine anti-slip control knobs |
| Head: | Monocular |
| Illumination: | LED with variable intensity control |
| Nosepiece: | Triple nosepiece with click-stops |
| Objective Magnification: | 4X, 10X, 40X |
| Objective Type: | Achromatic optics, metallic finish, anti-slip grip and color ring for easy identification |
| Stage: | Flat 120 x 120 mm / 4.72 x 4.72 inches with two object clips and height adjustment |
| Viewing Head: | 45° Inclination; 360° Rotatable |
| Warranty: | 10 years limited |
| Overall Dimensions: | 10 x 16 x 13 in |
| Includes: | AC/DC Adapter, Adapter cable reel device, Dust cover, Operation manual |
