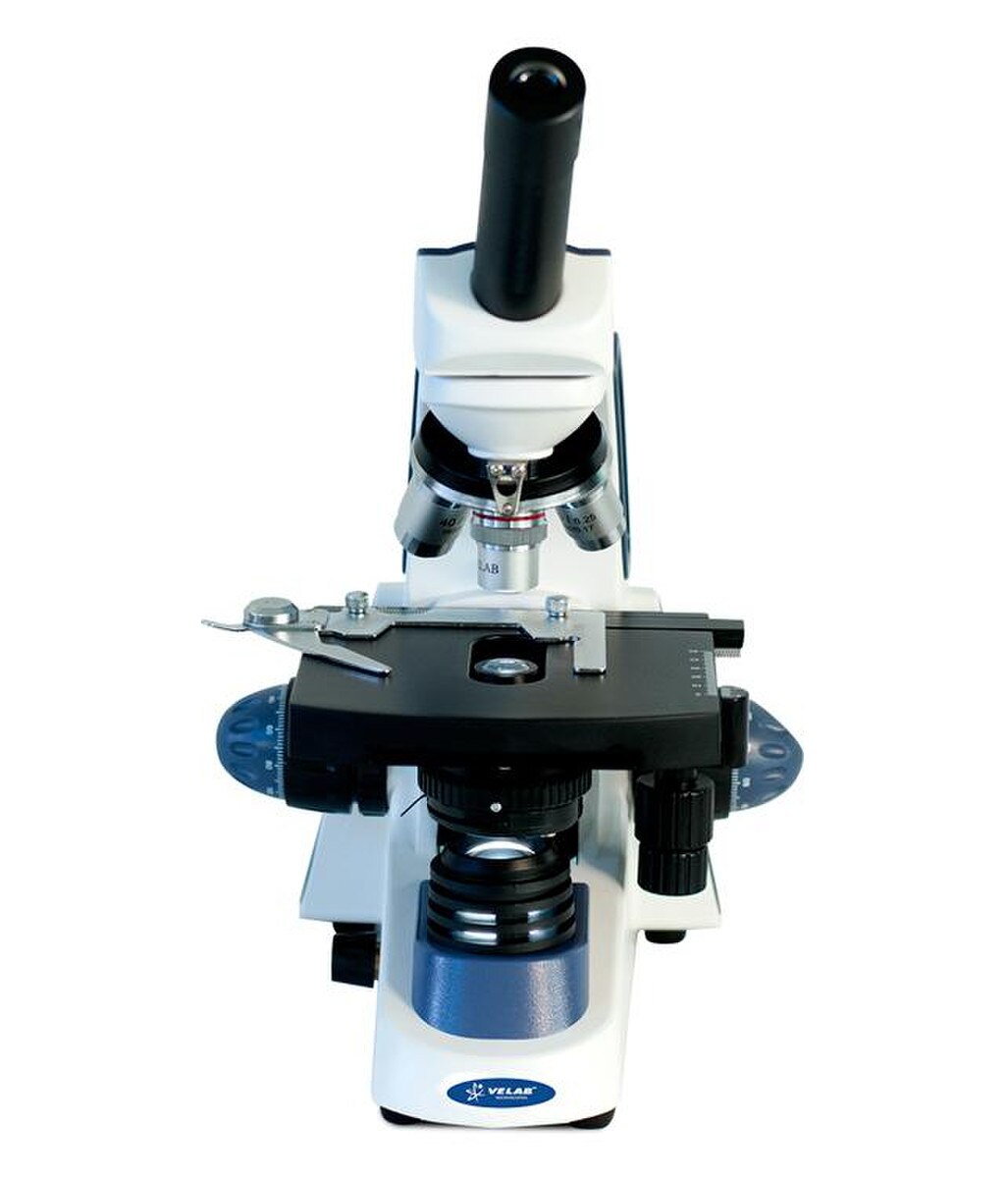

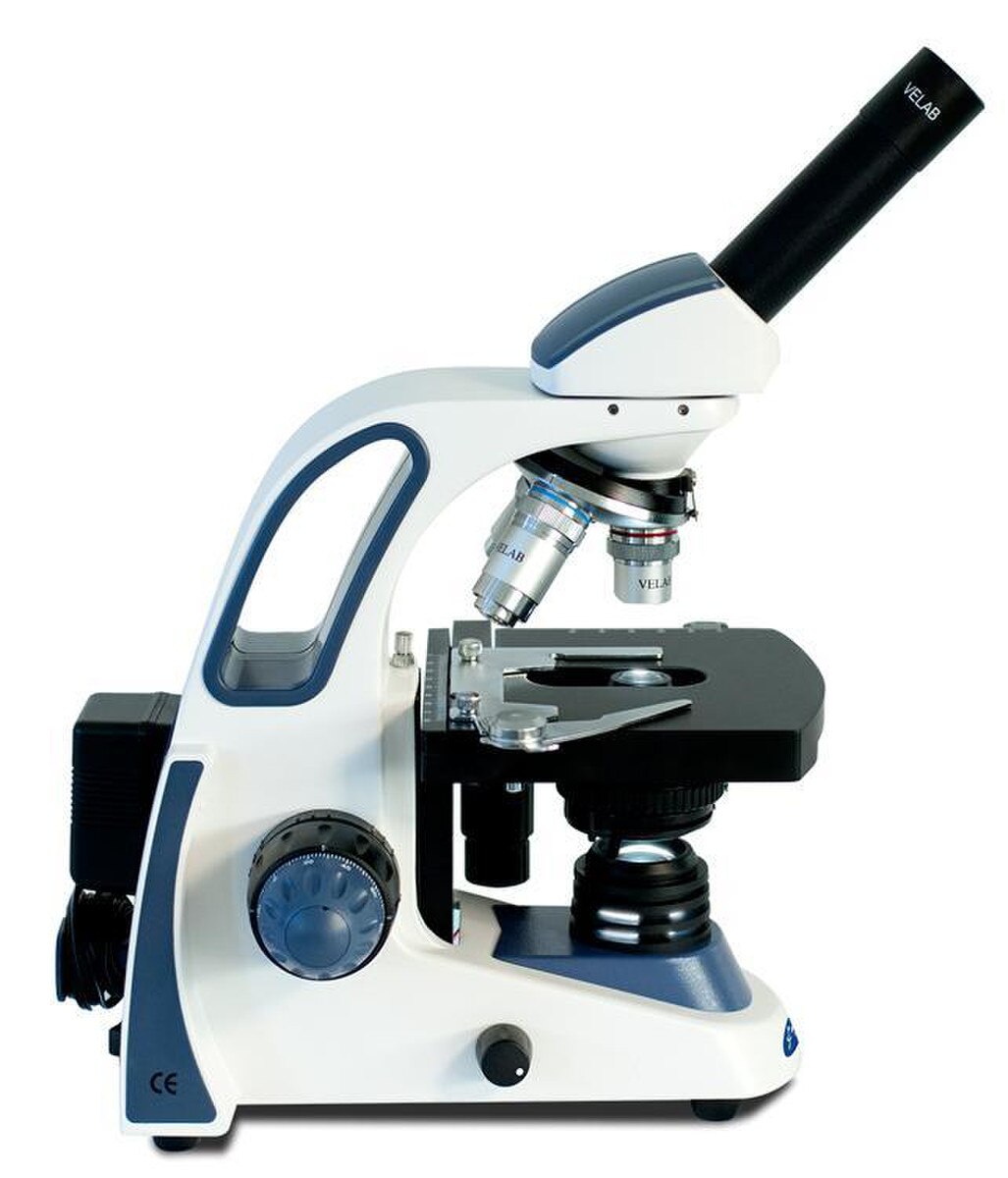

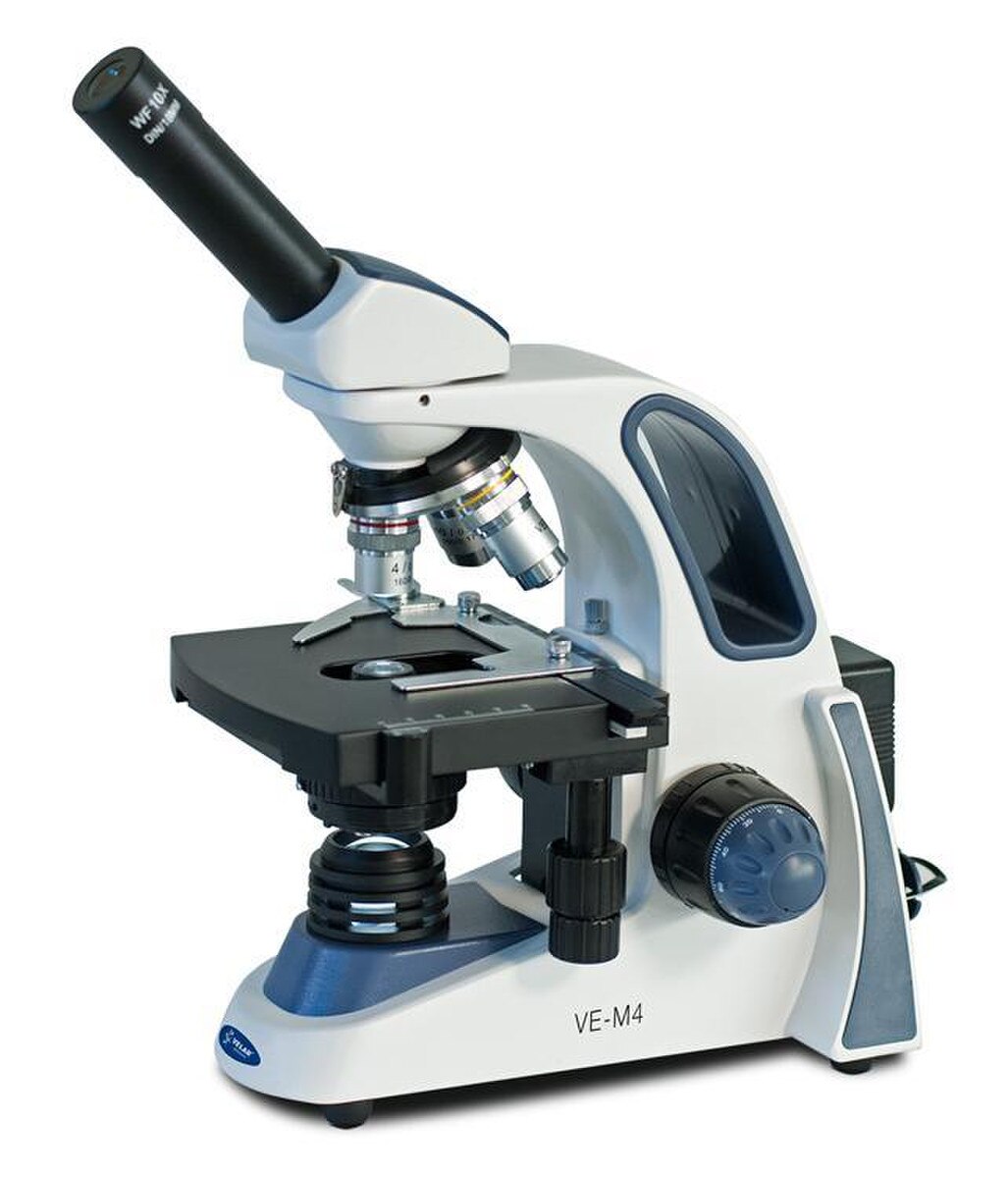

Biological Monocular Microscope w/ Triple Nose Piece (each)
Images are for representation only. Actual product may differ in size, color or options.
Biological Monocular Microscope w/ Triple Nose Piece (each)
The VE-M4 is the ideal microscope for education and laboratories settings. Its mechanical stage facilitates sample observations and the LED lighting prevents the device from heating up. The VE-M4 includes a rear cable-winding reel for the power adapter
SPECIFICATIONS
EYEPIECE WF 10X/18 mm with block screw.
HEAD Monocular head, 45° inclined, 360° rotatable.
NOSEPIECE Triple nosepiece with click-stops.

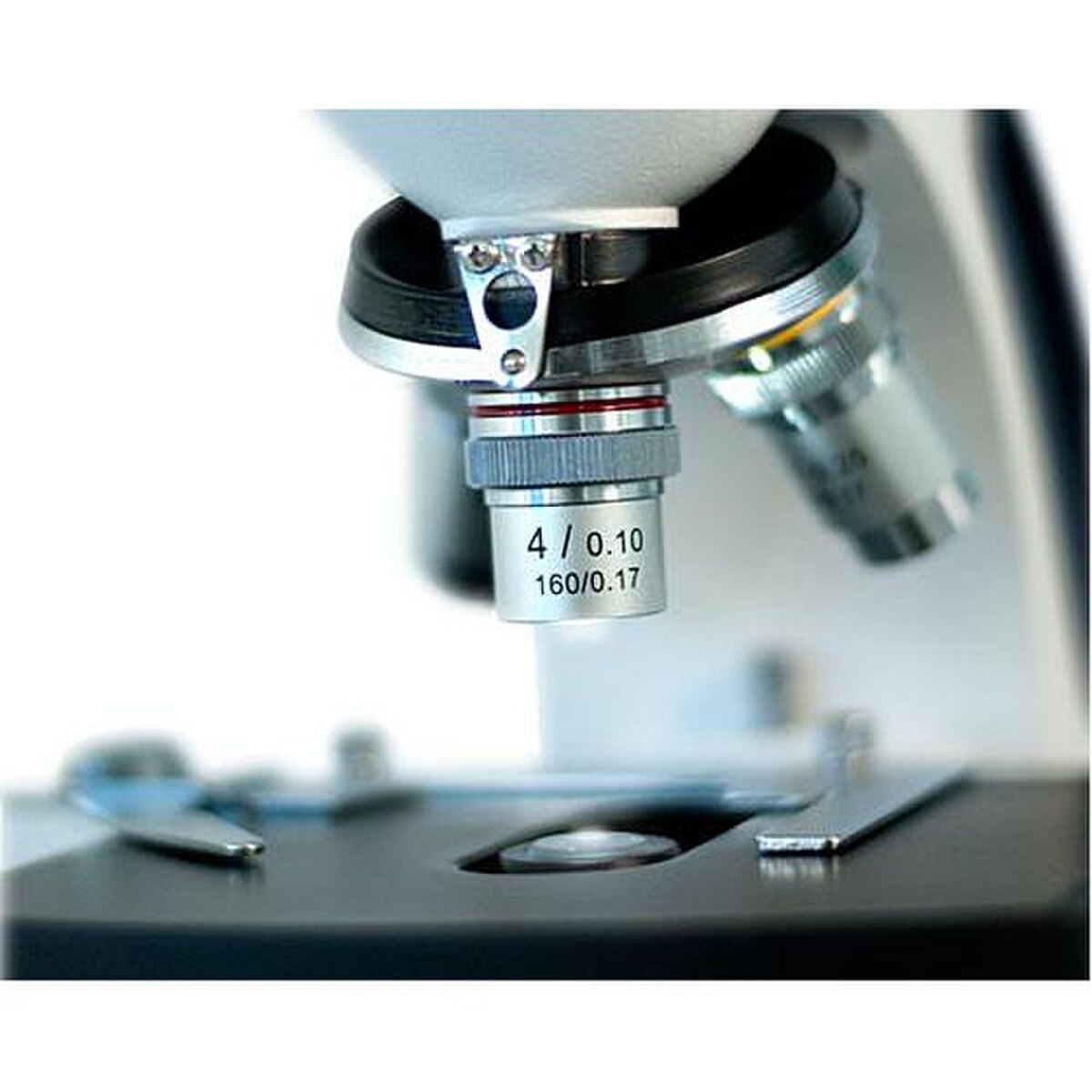

OBJECTIVES 4X, 10X and 40X (S), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish..
STAGE Two-layer stage, with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER Abbe, N.A. 1.25 with height adjustment screw.
DIAPHRAGM Iris type with filter holder.
FOCUSING Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION LED with intensity control
WEIGHT 12.32 lb / 5.58kg
DIMENSIONS 10.04" x 12.99" x 12.99" / 255 x 329 x 329 mm
POWER SUPPLY Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
AC/DC adapter.
Adapter cable reel device.
Dust cover.
WARRANTY
10-years limited warranty.
The VE-M4 is the ideal microscope for education and laboratories settings. Its mechanical stage facilitates sample observations and the LED lighting prevents the device from heating up. The VE-M4 includes a rear cable-winding reel for the power adapter
SPECIFICATIONS
EYEPIECE WF 10X/18 mm with block screw.
HEAD Monocular head, 45° inclined, 360° rotatable.
NOSEPIECE Triple nosepiece with click-stops.
OBJECTIVES 4X, 10X and 40X (S), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish..
STAGE Two-layer stage, with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER Abbe, N.A. 1.25 with height adjustment screw.
DIAPHRAGM Iris type with filter holder.
FOCUSING Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION LED with intensity control
WEIGHT 12.32 lb / 5.58kg
DIMENSIONS 10.04" x 12.99" x 12.99" / 255 x 329 x 329 mm
POWER SUPPLY Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
AC/DC adapter.
Adapter cable reel device.
Dust cover.
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Product Line: | VELAB |
| Class: | Educational |
| Grade: | Intermediate |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Body: | Stative Epoxy Paint Finish |
| Condenser: | 1.25 N.A. Abbe with height adjustment screw |
| Eyepieces: | 18 mm F.D. |
| Eyepiece Type: | Widefield |
| Eyepiece Magnification: | 10X |
| Focusing: | Coarse and fine anti-slip control knob with tension adjustment |
| Head: | Monocular |
| Illumination: | LED with variable intensity control |
| Nosepiece: | Triple nosepiece with click-stops |
| Objective Magnification: | 4X, 10X, 40X |
| Objective Type: | Achromatic optics, metallic finish, anti-slip grip and color ring for easy identification |
| Stage: | Double plate with X-Y coaxial movement, 130 x 130 mm / 5.11 x 5.11 inches, vernier, millimeter scale, clamp and height adjustment with stop |
| Viewing Head: | 45° Inclination; 360° Rotatable |
| Warranty: | 10 years limited |
| Overall Dimensions: | 10 x 16 x 13 in |
| Includes: | AC/DC Adapter, Adapter cable reel device, Dust cover, Operation manual |
