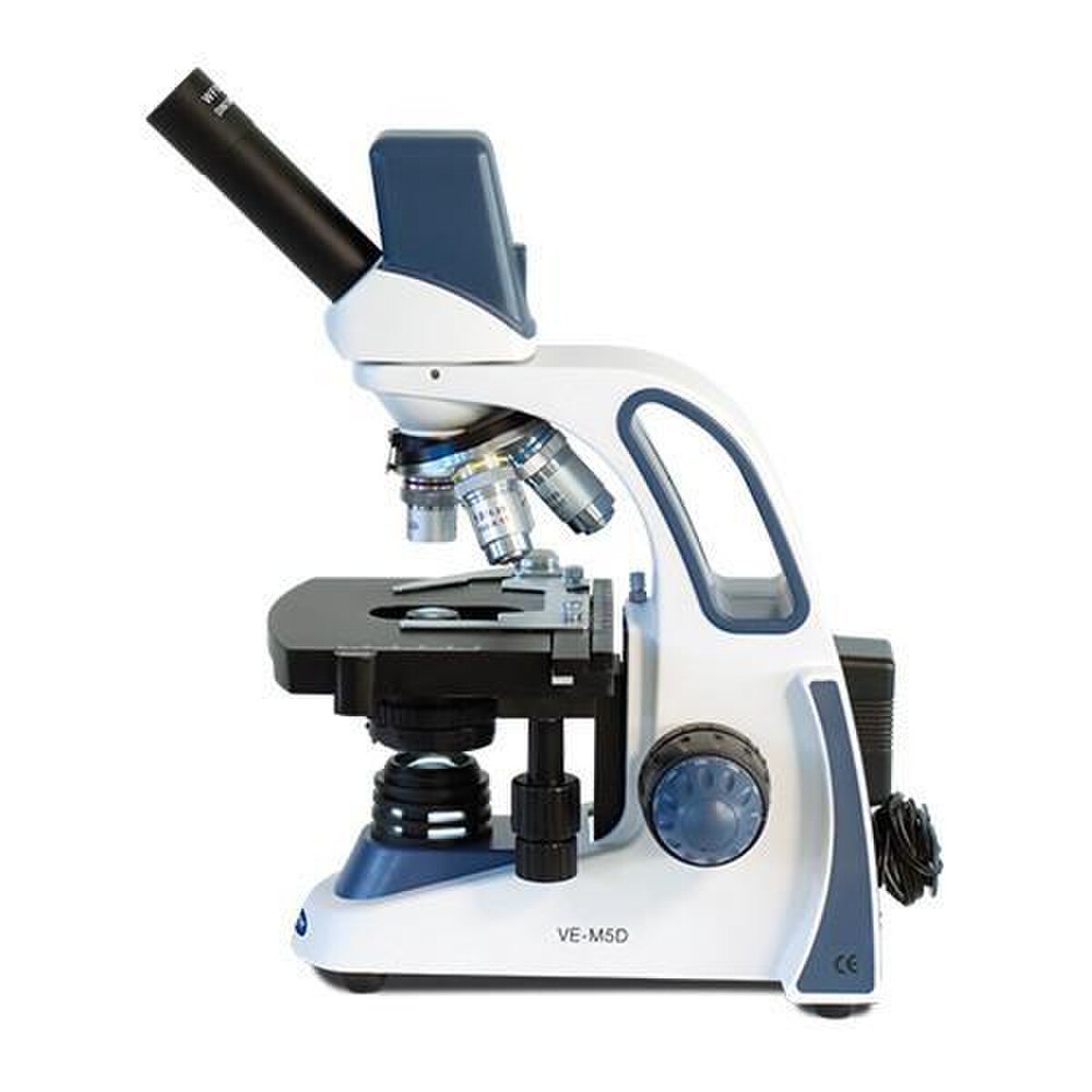

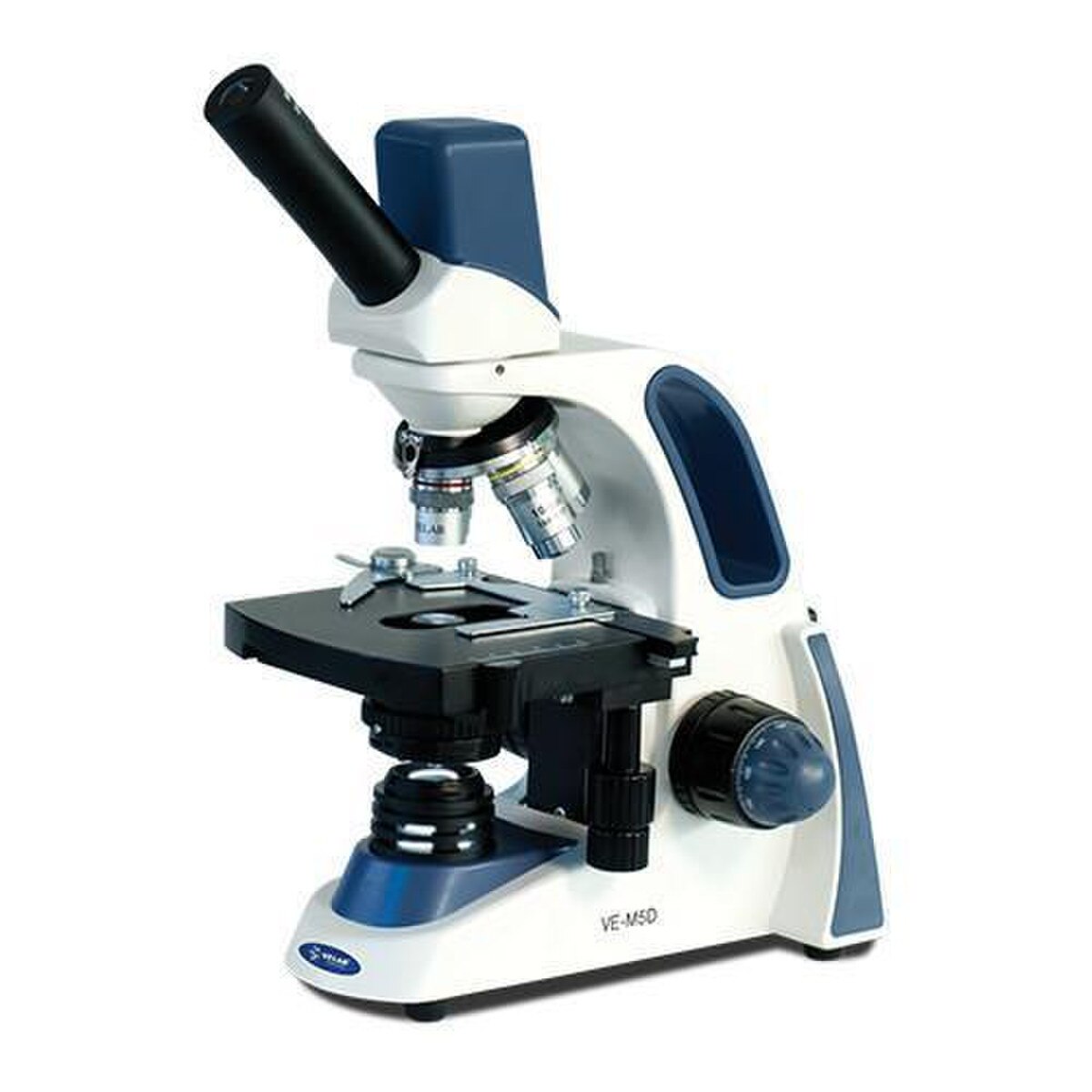

Biological Monocular Microscope w/ 3.0 MP Integrated Digital Camera (each)
Images are for representation only. Actual product may differ in size, color or options.
Biological Monocular Microscope w/ 3.0 MP Integrated Digital Camera (each)
The VE-M5D microscope can fulfil all kinds of basic and advanced procedures in clinical laboratories. Equipped with a 1.3MP digital camera, the VE-M5D is ideal for the education sector. It facilitates group observations of microorganisms, plants as well as the identification of different types of cells, even electronic elements. Includes easy-to-use software compatible with Windows operating systems to analyze and store images on your computer.
SPECIFICATIONS
EYEPIECE: WF 10X/18 mm with block screw.
HEAD: Monocular head, 45° inclined, 360° rotatable and integrated 1.3 MP digital camera.
NOSEPIECE: Quadruple nosepiece with click-stops.
OBJECTIVES : 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25 with height adjustment screw.
DIAPHRAGM : Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: LED with intensity control.
POWER SUPPLY: Three 1.5V AA rechargeable batteries (not included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 7.99" x 13.77" x 9.88"
ACCESSORIES INCLUDED
AC/DC adapter.
Adapter cable reel device.
Blue filter.
Dust cover.
Immersion oil.
Software CD.
USB cable..
WARRANTY
10-years limited warranty.
The VE-M5D microscope can fulfil all kinds of basic and advanced procedures in clinical laboratories. Equipped with a 1.3MP digital camera, the VE-M5D is ideal for the education sector. It facilitates group observations of microorganisms, plants as well as the identification of different types of cells, even electronic elements. Includes easy-to-use software compatible with Windows operating systems to analyze and store images on your computer.
SPECIFICATIONS
EYEPIECE: WF 10X/18 mm with block screw.
HEAD: Monocular head, 45° inclined, 360° rotatable and integrated 1.3 MP digital camera.
NOSEPIECE: Quadruple nosepiece with click-stops.
OBJECTIVES : 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25 with height adjustment screw.
DIAPHRAGM : Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: LED with intensity control.
POWER SUPPLY: Three 1.5V AA rechargeable batteries (not included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 7.99" x 13.77" x 9.88"
ACCESSORIES INCLUDED
AC/DC adapter.
Adapter cable reel device.
Blue filter.
Dust cover.
Immersion oil.
Software CD.
USB cable..
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Product Line: | VELAB |
| Class: | Digital |
| Grade: | Basic |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Body: | Stative Epoxy Paint Finish |
| Camera Port: | 1.3 MP Digital Camera |
| Condenser: | 1.25 N.A. Abbe with height adjustment screw |
| Eyepieces: | 18 mm F.D. |
| Eyepiece Type: | Widefield |
| Eyepiece Magnification: | 10X |
| Focusing: | Coarse and fine anti-slip control knob with tension adjustment |
| Head: | Monocular |
| Illumination: | LED with variable intensity control |
| Nosepiece: | Quadruple nosepiece with click-stops |
| Objective Magnification: | 4X, 10X, 40X, 100X (Oil) |
| Objective Type: | Achromatic optics, metallic finish, anti-slip grip and color ring for easy identification |
| Stage: | Double plate with X-Y coaxial movement, 130 x 130 mm / 5.11 x 5.11 inches, vernier, millimeter scale, clamp and height adjustment with stop |
| Viewing Head: | 45° Inclination; 360° Rotatable |
| Warranty: | 10 years limited |
| Overall Dimensions: | 10 x 16 x 13 in |
| Includes: | AC/DC Adapter, Adapter cable reel device, Blue filter, Dust cover, Immersion oil, Operation manual, Software CD, USB Cable |
