Dual View Compound Microscope (each)
Images are for representation only. Actual product may differ in size, color or options.

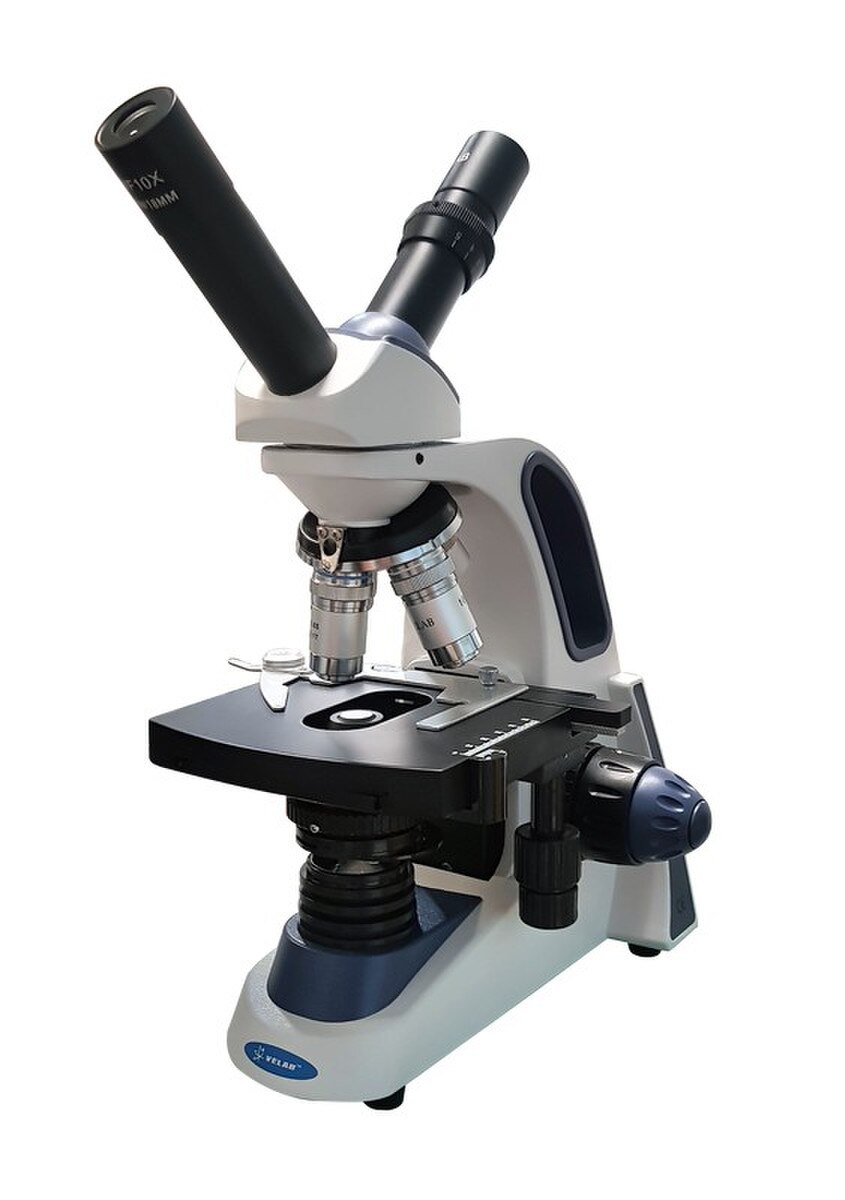

Dual View Compound Microscope (each)
Double-ocular monocular microscope to perform two simultaneous observations, recommended for basic and upper secondary education environments and in clinical laboratories
SPECIFICATIONS
EYEPIECES: WF 10x/18 mm with block screw.
HEAD: Double Monocular head, 45° inclined head, 360° rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95"
NOSEPIECE: Quadruple nosepiece with click-stops.

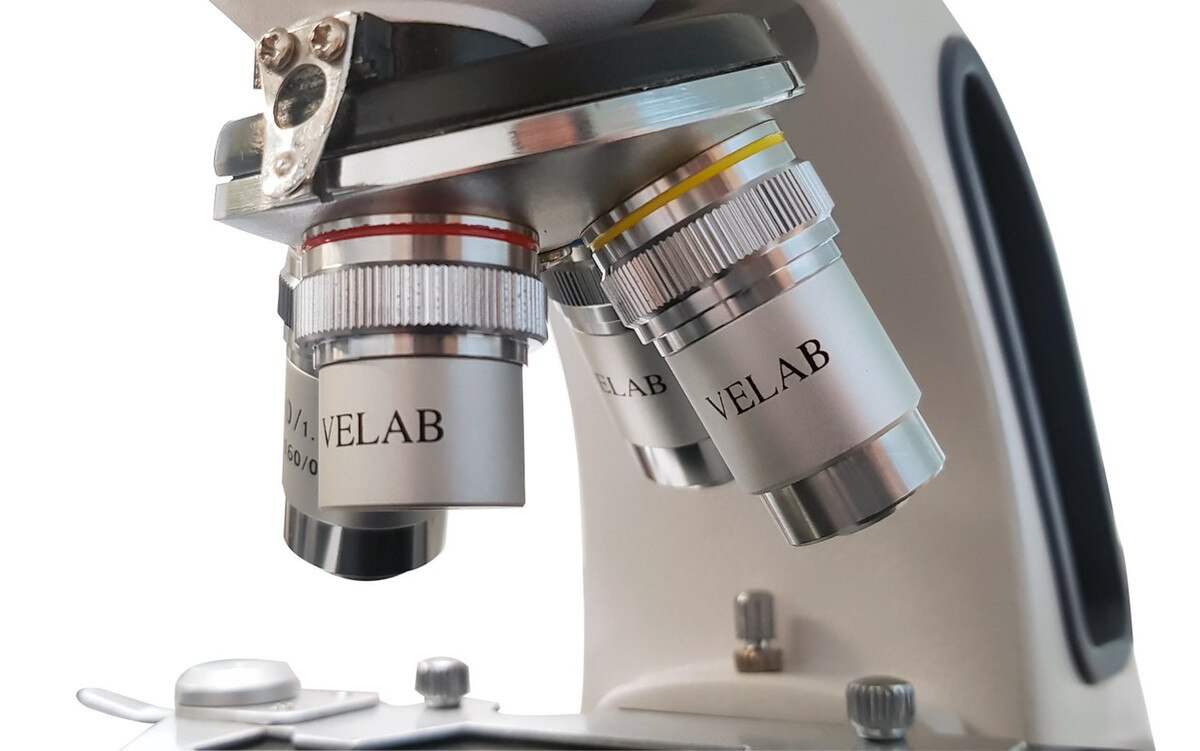

OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish
STAGE: Two-layer stage, with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.

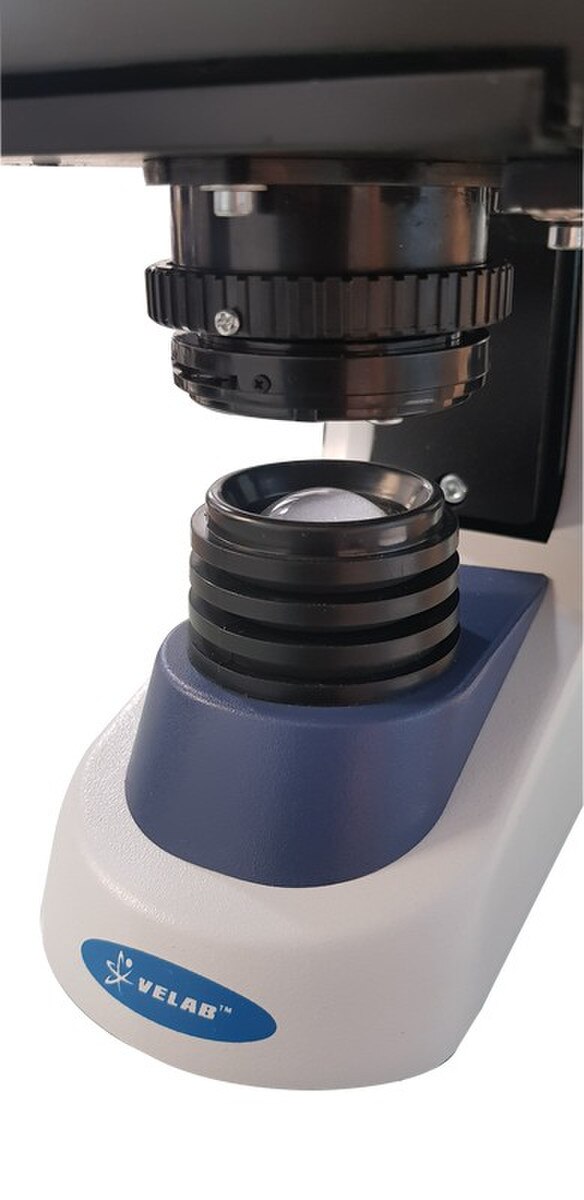

CONDENSER: Abbe, A.N. 1.25 with height adjustment screw.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: LED with intensity control.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
AC/DC Adapter.
Adapter cable reel device.
Blue filter.
Dust cover.
Immersion oil..
WARRANTY
10-years limited warranty.
Double-ocular monocular microscope to perform two simultaneous observations, recommended for basic and upper secondary education environments and in clinical laboratories
SPECIFICATIONS
EYEPIECES: WF 10x/18 mm with block screw.
HEAD: Double Monocular head, 45° inclined head, 360° rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95"
NOSEPIECE: Quadruple nosepiece with click-stops.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish
STAGE: Two-layer stage, with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment screw.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: LED with intensity control.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
AC/DC Adapter.
Adapter cable reel device.
Blue filter.
Dust cover.
Immersion oil..
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Head: | Monocular |
| Overall Dimensions: | 10 x 23 x 13 in |
