Digital Microscope w/ LCD Display (each)
Images are for representation only. Actual product may differ in size, color or options.
Digital Microscope w/ LCD Display (each)

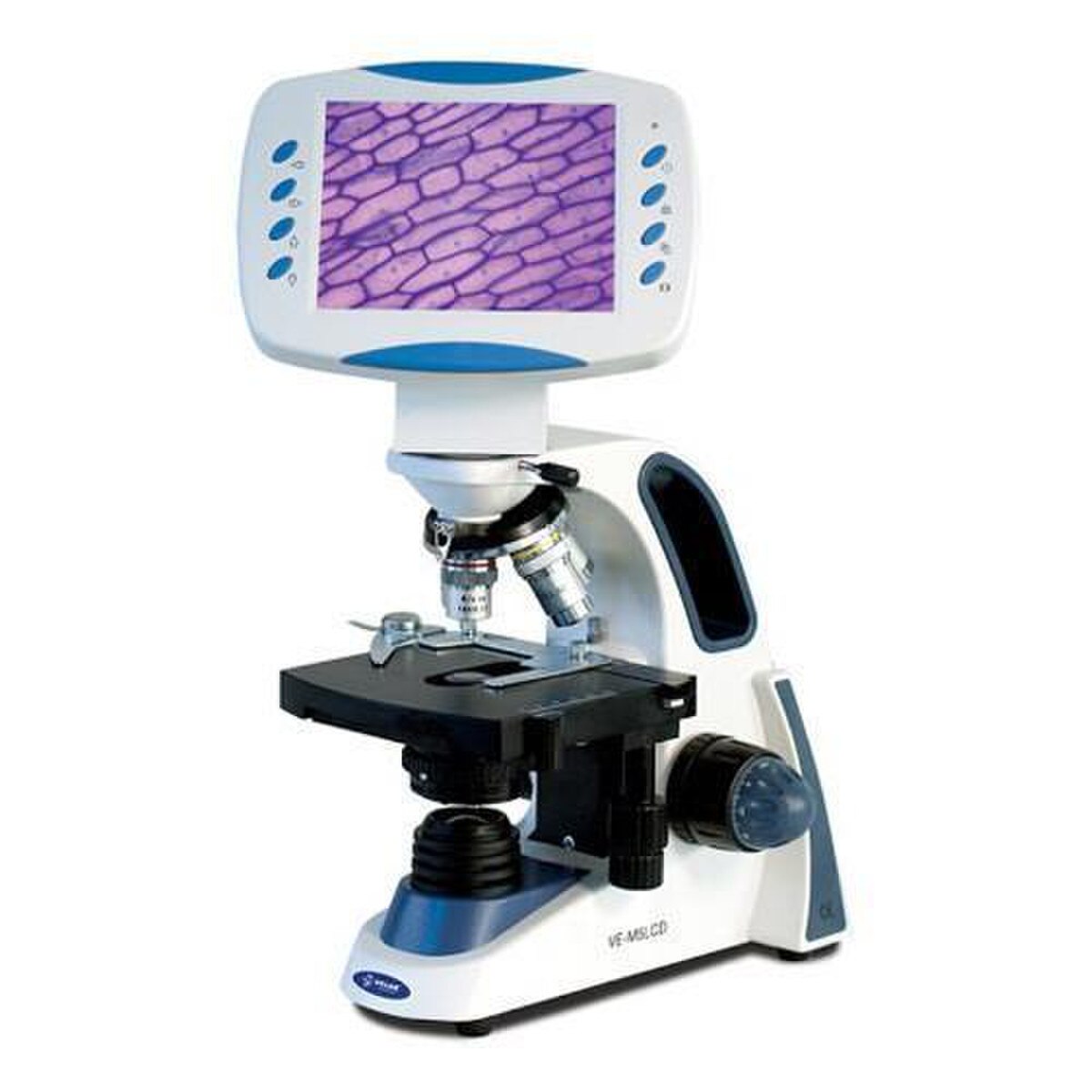

The VE-M5LCD microscope can fulfill all kinds of basic and advanced procedures. Ideal for education, as well as routine work in clinical laboratories.
SPECIFICATIONS

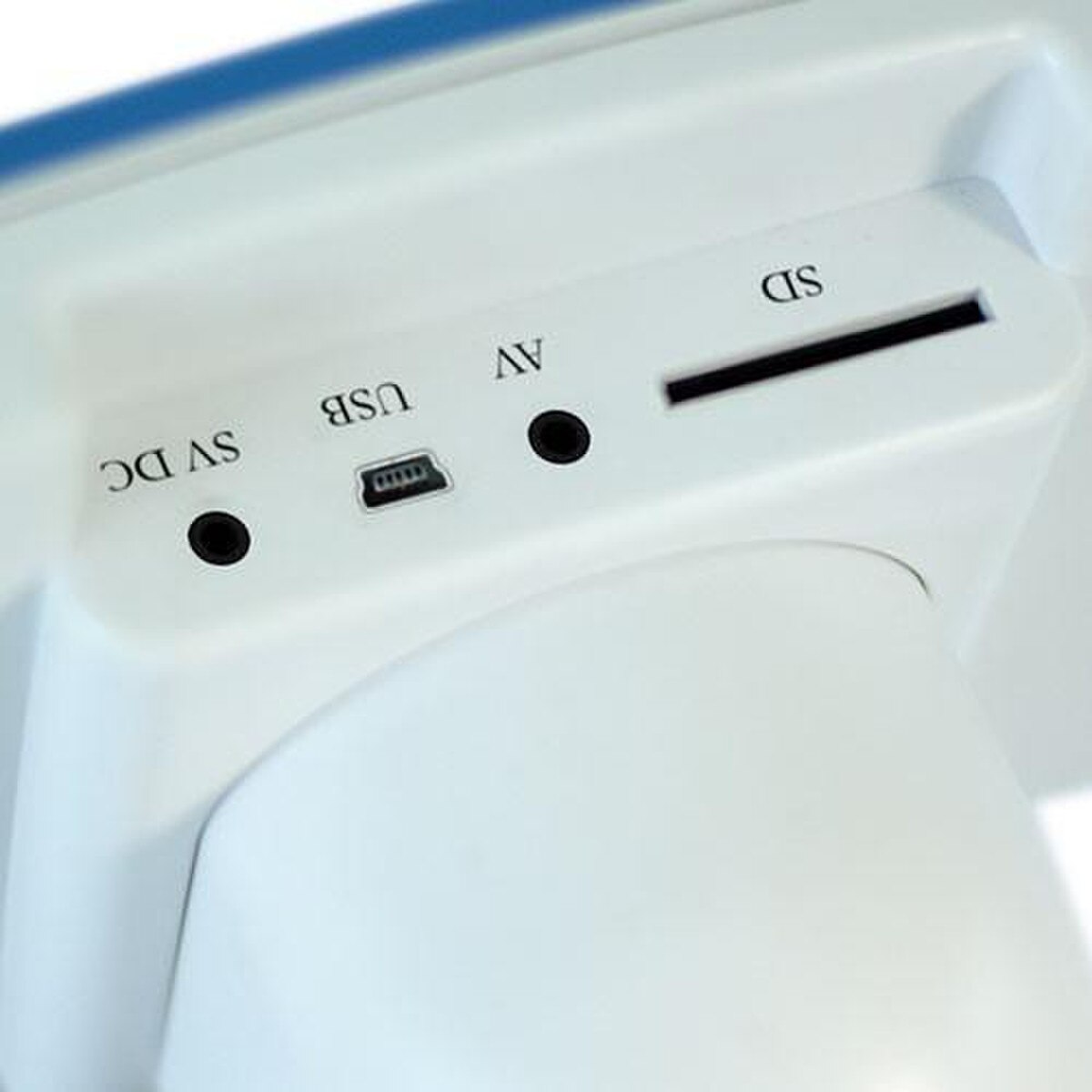

HEAD: 6" LCD screen (640 x 480p of resolution) with 3.0MP camera, SD card slot, AV and USB ports.
NOSEPIECE: Quadruple nosepiece with click-stops.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25 with height adjustment screw.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: LED with intensity control.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. LCD screen: 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 7.99" x 15.94" x 9.88"
ACCESSORIES INCLUDED
2 AC/DC adapters.
Adapter cable reel device.
Blue filter.
Dust cover.
Immersion oil.
Software CD..
WARRANTY
10-years limited warranty.
The VE-M5LCD microscope can fulfill all kinds of basic and advanced procedures. Ideal for education, as well as routine work in clinical laboratories.
SPECIFICATIONS
HEAD: 6" LCD screen (640 x 480p of resolution) with 3.0MP camera, SD card slot, AV and USB ports.
NOSEPIECE: Quadruple nosepiece with click-stops.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 5.11" x 5.11", vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25 with height adjustment screw.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: LED with intensity control.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. LCD screen: 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 7.99" x 15.94" x 9.88"
ACCESSORIES INCLUDED
2 AC/DC adapters.
Adapter cable reel device.
Blue filter.
Dust cover.
Immersion oil.
Software CD..
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Product Line: | VELAB |
| Class: | LCD Digital |
| Grade: | Basic |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Body: | Stative Epoxy Paint Finish |
| Camera Port: | 2.0 MP Digital Camera, SD card slot, AV and USB ports |
| Focusing: | Coarse and fine anti-slip control knob with tension adjustment |
| Head: | Monocular |
| Illumination: | LED with variable intensity control |
| Nosepiece: | Quadruple nosepiece with click-stops |
| Objective Magnification: | 4X, 10X, 40X, 100X (Oil) |
| Objective Type: | Achromatic optics, metallic finish, anti-slip grip and color ring for easy identification |
| Stage: | Double plate with X-Y coaxial movement, 130 x 130 mm / 5.11 x 5.11 inches, vernier, millimeter scale, clamp and height adjustment with stop |
| Warranty: | 10 years limited |
| Overall Dimensions: | 10 x 23 x 13 in |
| Includes: | 2 AC/DC Adapters, Adapter cable reel device, Blue filter, Dust cover, Immersion oil, Operation manual, Software CD |
