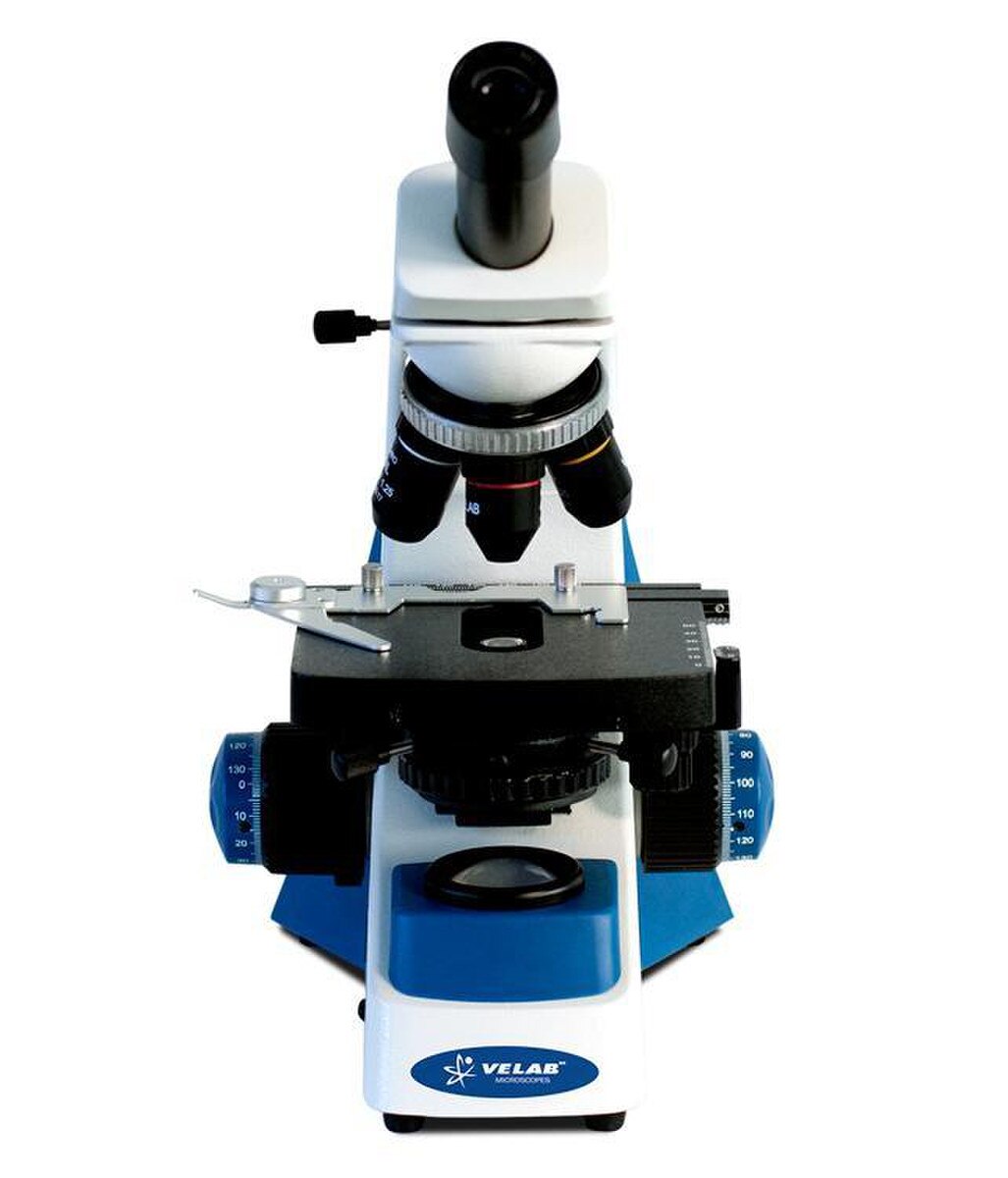

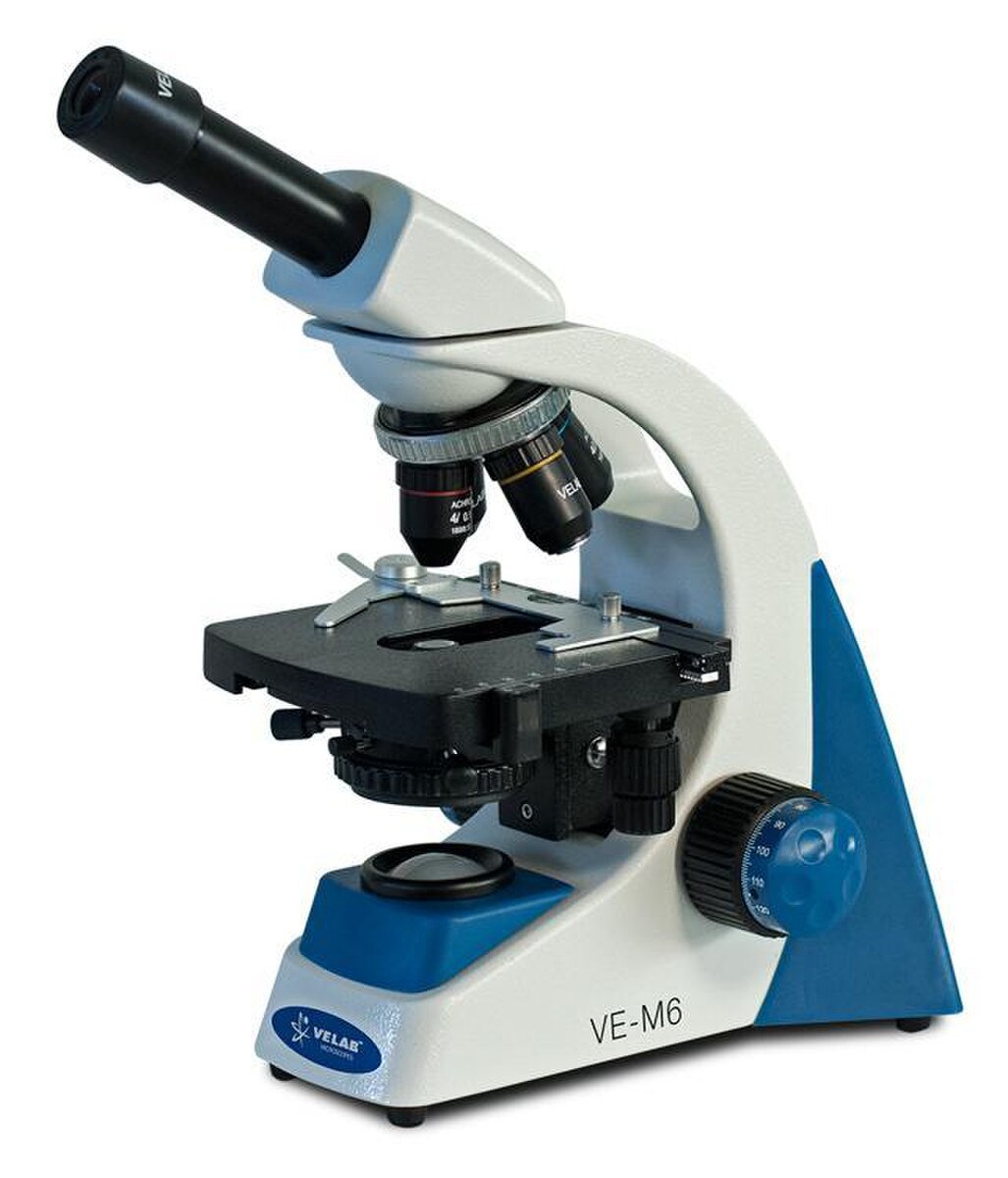

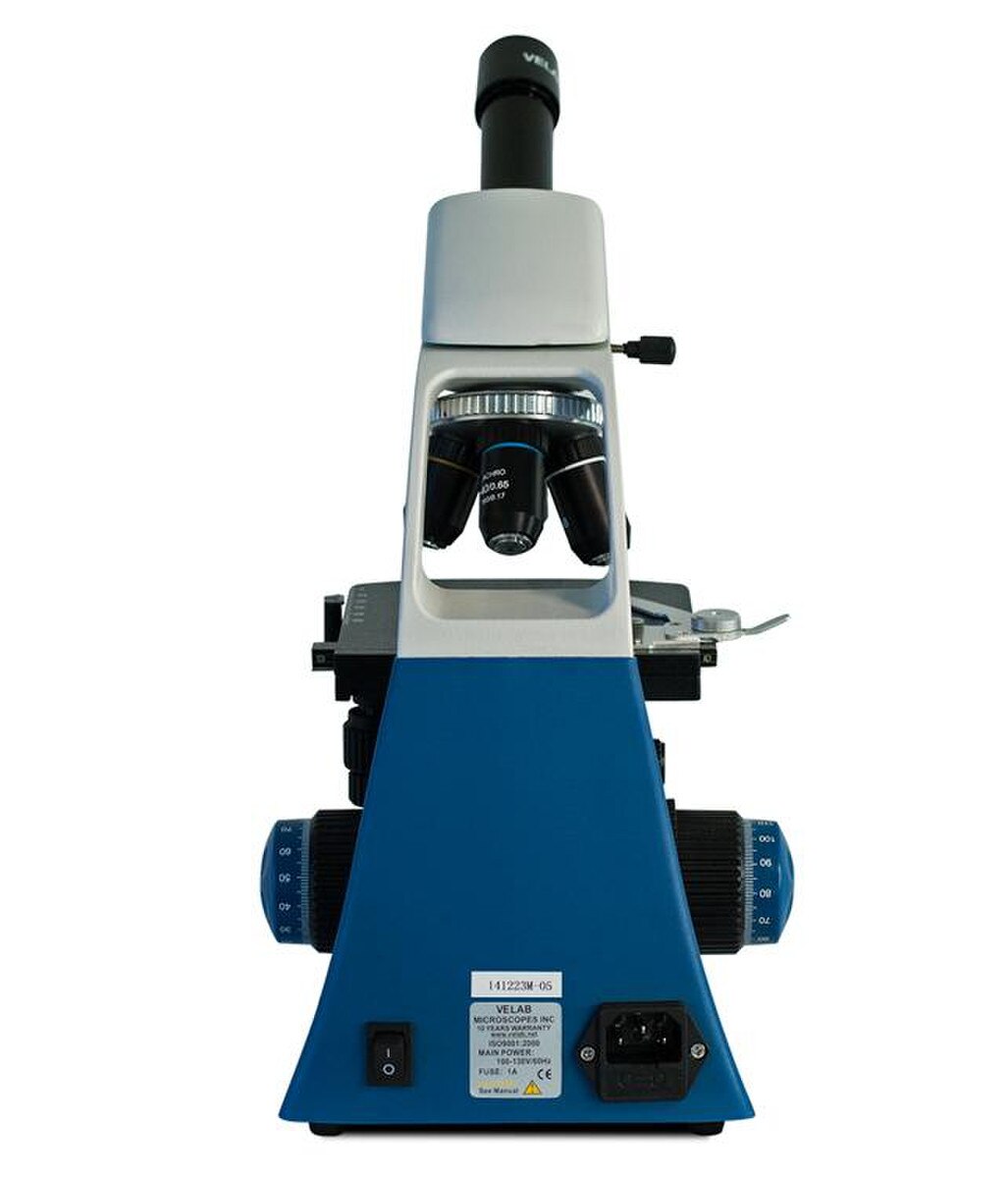

Biological Monocular Microscope (Advanced) (each)
Images are for representation only. Actual product may differ in size, color or options.
Biological Monocular Microscope (Advanced) (each)
Professional wide-plate microscope, ideal for higher education, research, as well as routine work in clinical laboratories.
SPECIFICATIONS
EYEPIECE WF 10X/18 mm with block screw.
HEAD Monocular head, 45° inclined, 360° rotatable.
NOSEPIECE Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, anti-slip grip and color ring for easy identification..
STAND Stative, robust and reinforced with epoxy paint finish.
STAGE Two-Layer stage with X-Y coaxial movement, 125 x 125 mm / 4.92" x 4.92", vernier, millimeter scale, clamp and height adjustment with stop
CONDENSER Abbe, N.A. 1.25 with height adjustment screw.
DIAPHRAGM Iris type with filter holder.
FOCUSING Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION LED with variable intensity control.
WEIGHT 11.52 lb / 5.22kg
DIMENSIONS 9.06" x 14.57" x 18.5" / 230 x 370 x 469 mm
POWER SUPPLY 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
Blue filter.
Dust cover.
Immersion oil.
Power cord..
WARRANTY
10-years limited warranty.
Professional wide-plate microscope, ideal for higher education, research, as well as routine work in clinical laboratories.
SPECIFICATIONS
EYEPIECE WF 10X/18 mm with block screw.
HEAD Monocular head, 45° inclined, 360° rotatable.
NOSEPIECE Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, anti-slip grip and color ring for easy identification..
STAND Stative, robust and reinforced with epoxy paint finish.
STAGE Two-Layer stage with X-Y coaxial movement, 125 x 125 mm / 4.92" x 4.92", vernier, millimeter scale, clamp and height adjustment with stop
CONDENSER Abbe, N.A. 1.25 with height adjustment screw.
DIAPHRAGM Iris type with filter holder.
FOCUSING Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION LED with variable intensity control.
WEIGHT 11.52 lb / 5.22kg
DIMENSIONS 9.06" x 14.57" x 18.5" / 230 x 370 x 469 mm
POWER SUPPLY 110-240V, 50/60 Hz AC adapter.
ACCESSORIES INCLUDED
Blue filter.
Dust cover.
Immersion oil.
Power cord..
WARRANTY
10-years limited warranty.
| Product Type: | Microscope |
| Brand: | VELAB |
| Head: | Monocular |
| Overall Dimensions: | 9 x 18 x 14 in |
