AFM-2960-14V-S6
Images are for representation only. Actual product may differ in size, color or options.

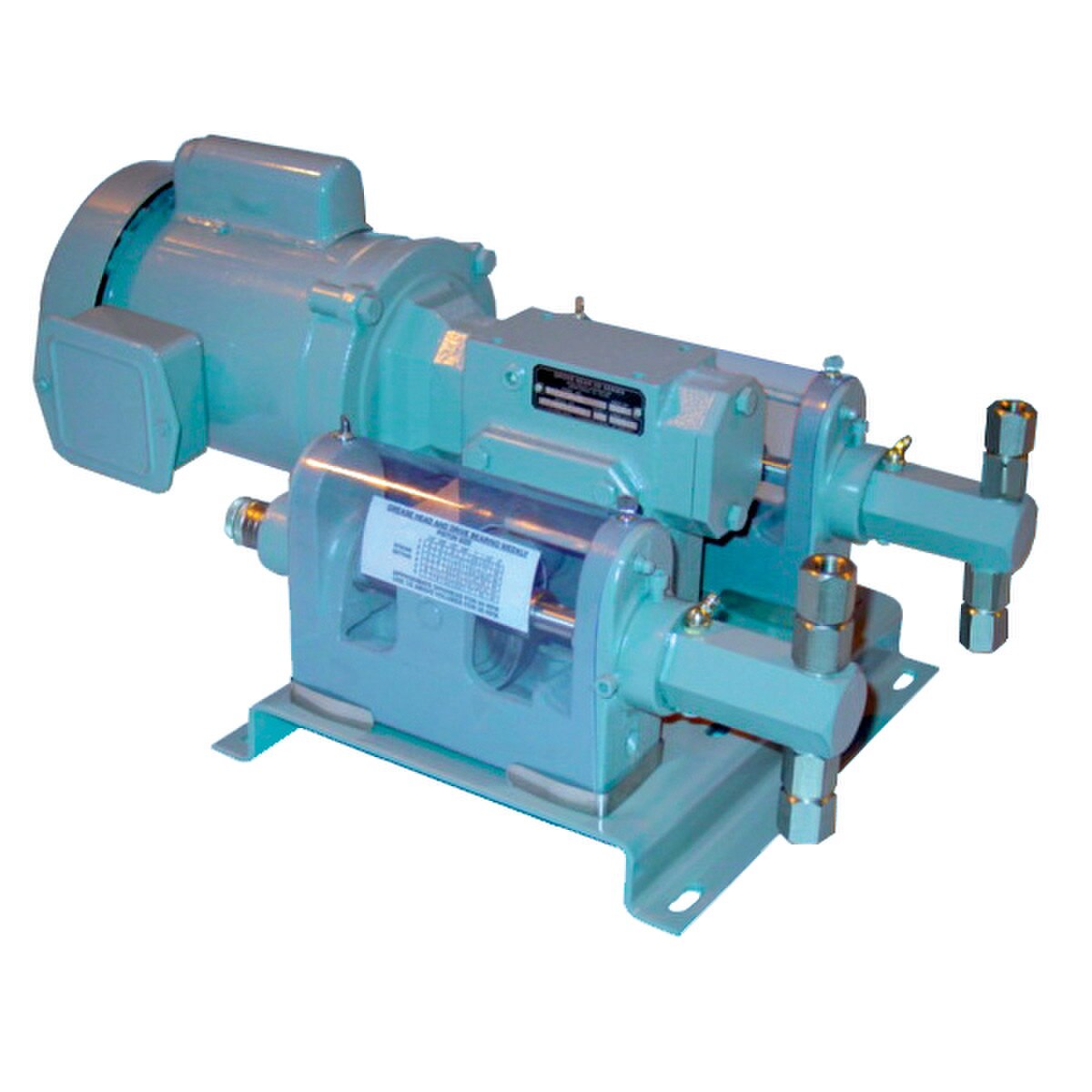

A&F Machine V-10 Piston Metering Pump, Duplex.
Per Head 288.0 - 1440.0 GPD (gallons per day), 12.0 - 60.0 GPH (gallons per hour), 25.6 - 128.0 ounces per minute
1090.2 - 5451.0 LPD (liters per day), 45.4 - 227.0 LPH (liters per hour), 757.08 - 3785.4 milliliters per minute
Per Head output rated at 100 PSI (6.89 BAR) maximum pressure.
Per Head 2" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1" NPT Male.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 14V = 1/2 Horsepower 90VDC, TEFC, Permanent Magnet (no power cord).
Wet End Materials: S6 = 316 Stainless Steel.
Includes: pressure relief valve (2) and instruction manual.
Per Head 288.0 - 1440.0 GPD (gallons per day), 12.0 - 60.0 GPH (gallons per hour), 25.6 - 128.0 ounces per minute
1090.2 - 5451.0 LPD (liters per day), 45.4 - 227.0 LPH (liters per hour), 757.08 - 3785.4 milliliters per minute
Per Head output rated at 100 PSI (6.89 BAR) maximum pressure.
Per Head 2" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1" NPT Male.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 14V = 1/2 Horsepower 90VDC, TEFC, Permanent Magnet (no power cord).
Wet End Materials: S6 = 316 Stainless Steel.
Includes: pressure relief valve (2) and instruction manual.
| Product Type: | Piston Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-10 |
| Class: | Duplex |
| Max Flow (GPH): | 60 |
| Max Flow (GPD): | 1440 |
| Max Pressure (PSI): | 100 |
| Max Viscosity (CPS): | 3,000 |
| Max Strokes per Minute: | 60 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 5 : 1 |
| Head/Fittings: | S6 (316 SS) |
| Valve Balls: | S6 (316 SS) |
| Valve / Seat / O-Ring: | Nickel Plated Copper Seal |
| Motor: | 1/2 HP 90VDC, TEFC, Permanent Magnet, 56C Frame (SCR ready) |
| Connections: | 1" MNPT |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase, SCR |
| Operating Modes: | Manual, (SCR Ready) |
| Net Weight: | 158 lbs |
| Overall Dimensions: | 29 x 12 x 11 inches |
| Includes: | Pressure Relief Valves and Owners Manual |
