4 Station Portable Jar Testing Apparatus (Flocculation Tester), 120VAC

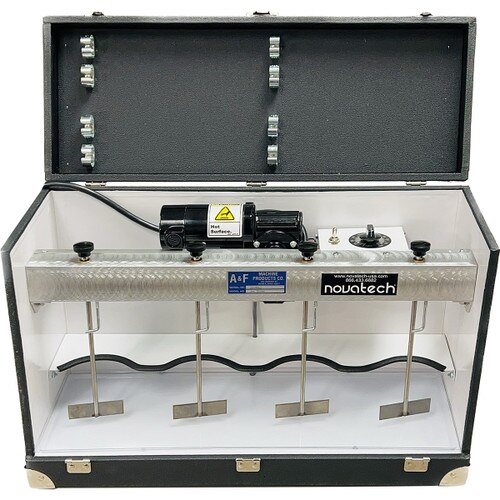

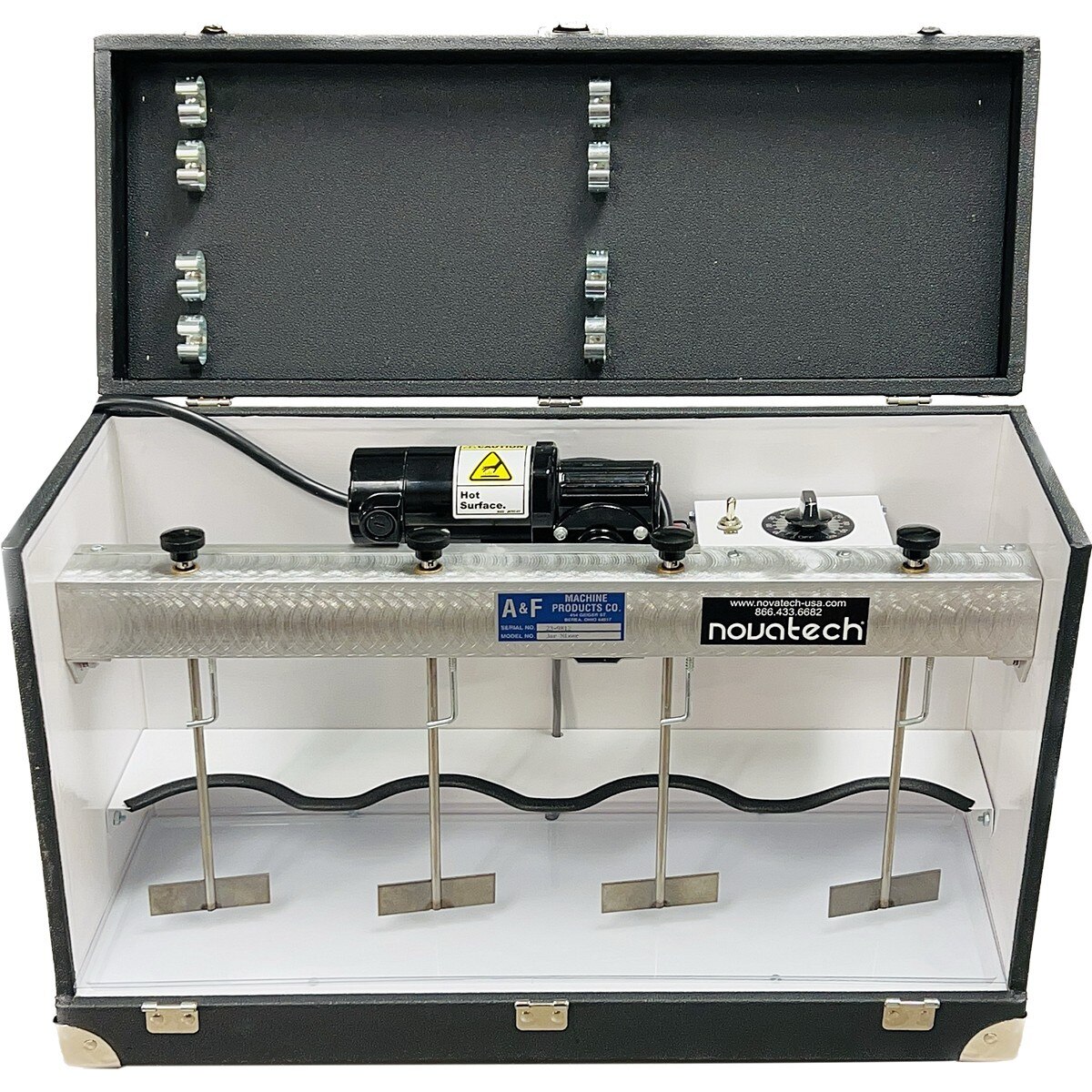

The AFM-JM-4 is a versatile and portable jar testing apparatus designed for efficient flocculation testing in both laboratory and field settings. This robust unit features four independent stations, each equipped with stainless steel paddles driven by a 1/15 hp variable speed gear drive motor, allowing for precise control of agitation speeds ranging from 6 to 250 RPM.

Key Features:

• Variable Speed Control: Adjust the speed of the agitators using a dial potentiometer.
• Built-in Fluorescent Floc Illuminator: Diffused lighting from a white opaque acrylic shelf aids in evaluating floc particle size, clarity, and liquid-solid separation.

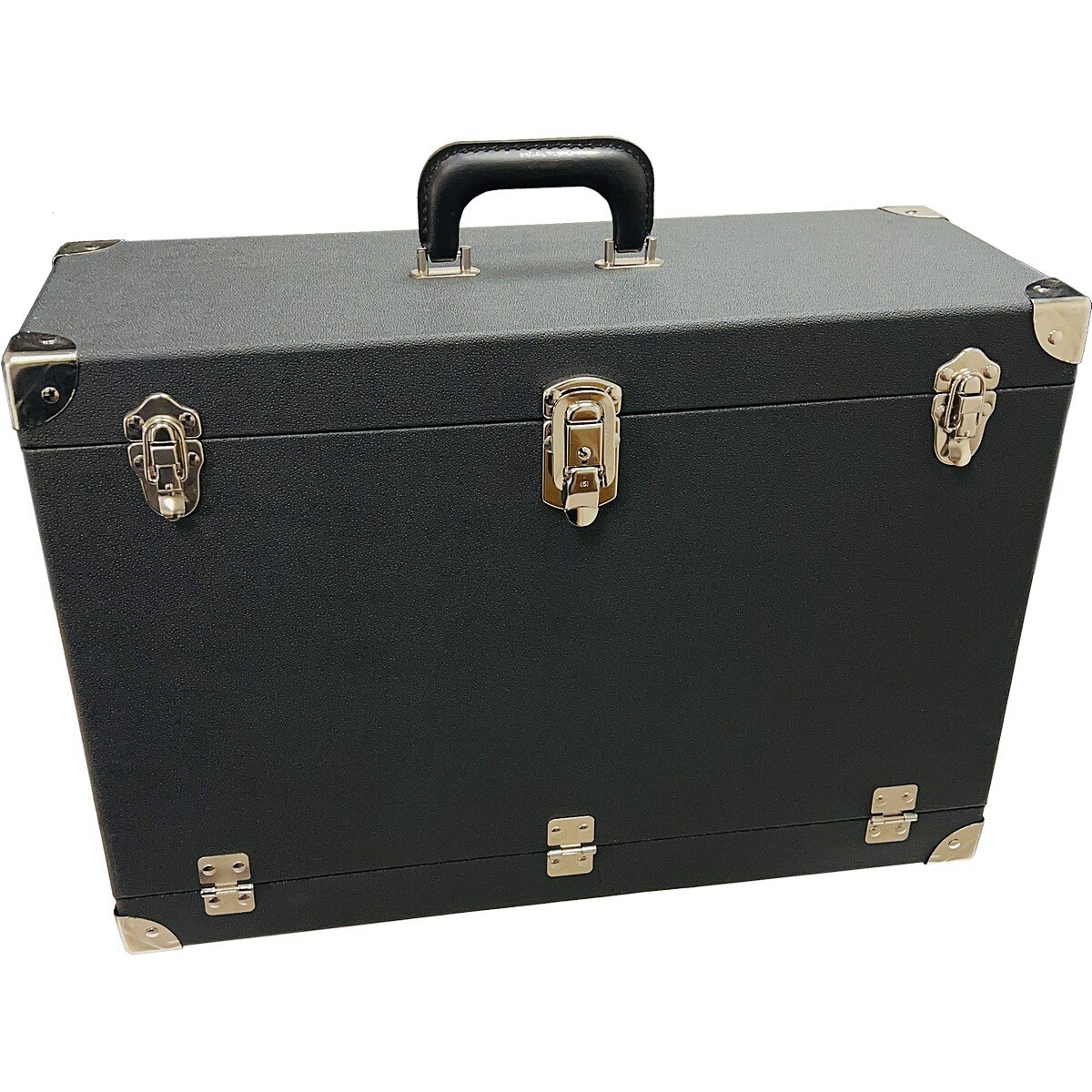

• Sturdy and Compact Design: The durable case is suitable for field use, with a removable front panel for easy access to agitators and controls. The lid includes clamps for securing pipettes and a heavy-duty handle for convenient transport.
• Complete Set: Includes 4 x 1000mL beakers and 4 x 10mL pipettes, making it ready for immediate use.
• Positive Gear Drive: Ensures consistent and variable speed agitation from 6 to 250 RPM.
• Power Supply: Includes a 120 VAC 60 Hz GFI protected power supply cord.

Specifications:

• Electrical Voltage: 120VAC 50/60Hz.
• Dimensions: 23 x 9 x 16 inches (58.4 x 22.9 x 40.6 cm).
• Shipping Dimensions: 24 x 10 x 17 inches (61.0 x 25.4 x 43.2 cm).
• Shipping Weight: 38 lbs (17.2 kg).

Applications: Ideal for testing sludge and suspended matter in water treatment processes, the AFM-JM-4 ensures reliable and repeatable results, making it an essential tool for environmental laboratories and field technicians.
