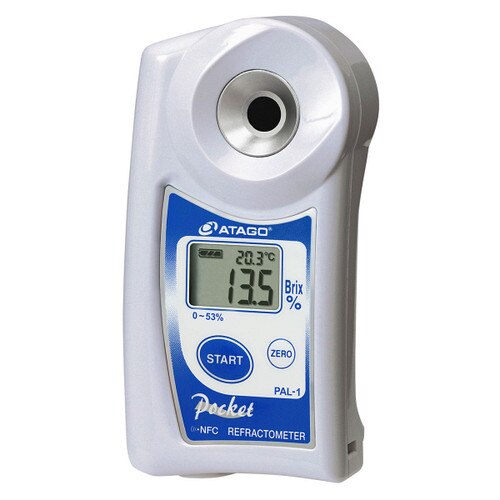

Atago Digital Pocket Refractometer, PAL-1 BLT/A+W
Images are for representation only. Actual product may differ in size, color or options.
Atago Digital Pocket Refractometer, PAL-1 BLT/A+W

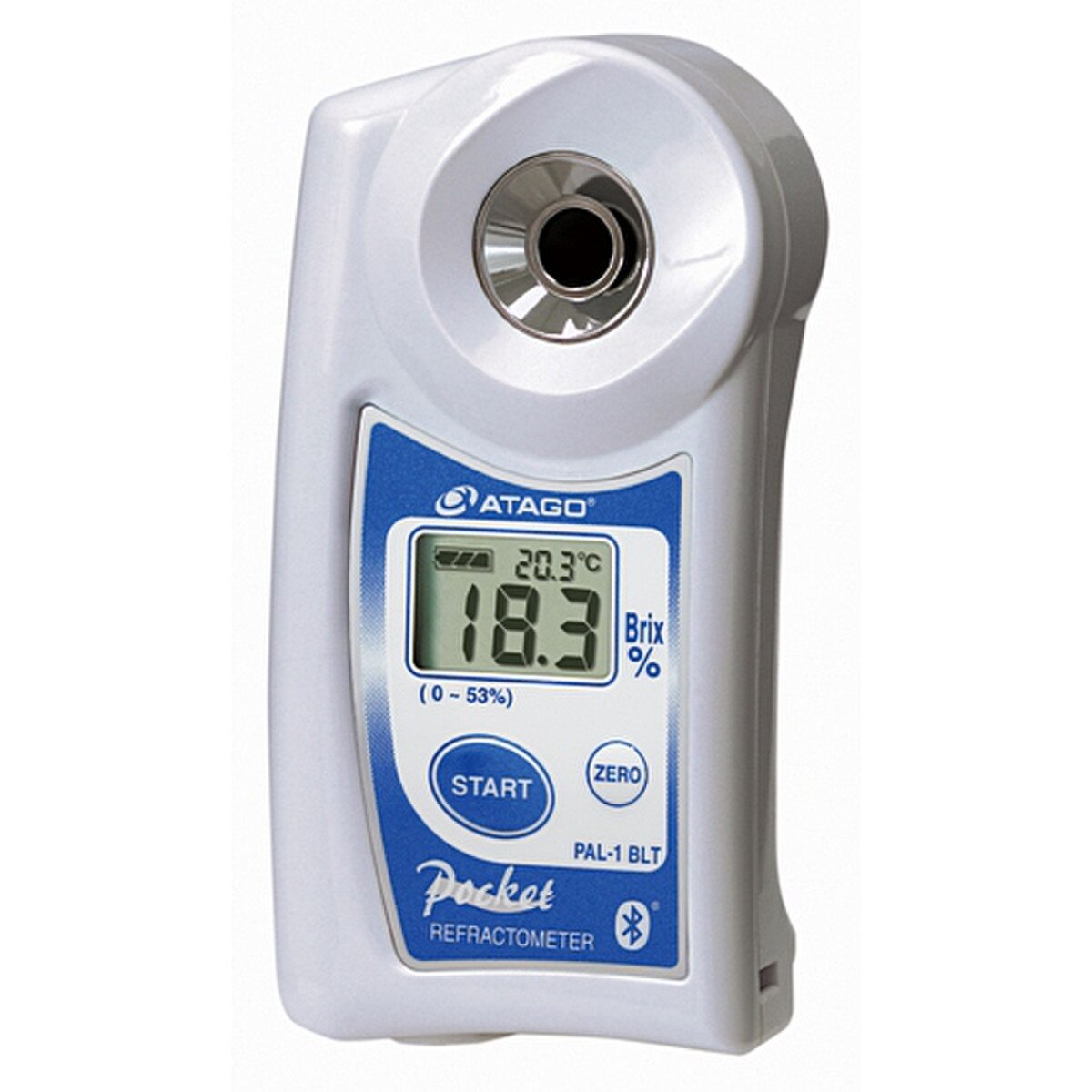

The Atago PAL-1 BLT/A+W (Catalog No. 3810A) is a Bluetooth-enabled digital refractometer designed for precise Brix measurements in the field or lab. With a measurement range of 0.0–53.0% Brix and automatic temperature compensation (ATC), it ensures fast, accurate readings. The integrated Bluetooth Ver. 2.1+EDR allows seamless data transfer to PCs, tablets, and smartphones using the free ATAGO Logger software. Its IP65-rated body is water-resistant and easy to clean, making it ideal for food, beverage, and industrial applications.
Specifications
- Model: PAL-1 BLT/A+W
- Part Number: 3810A
- Measurement Range: 0.0–53.0% Brix
- Resolution: 0.1% Brix
- Accuracy: ±0.2% Brix
- Temperature Compensation: Automatic (ATC)
- Bluetooth: Ver. 2.1+EDR, range approx. 3–7 m

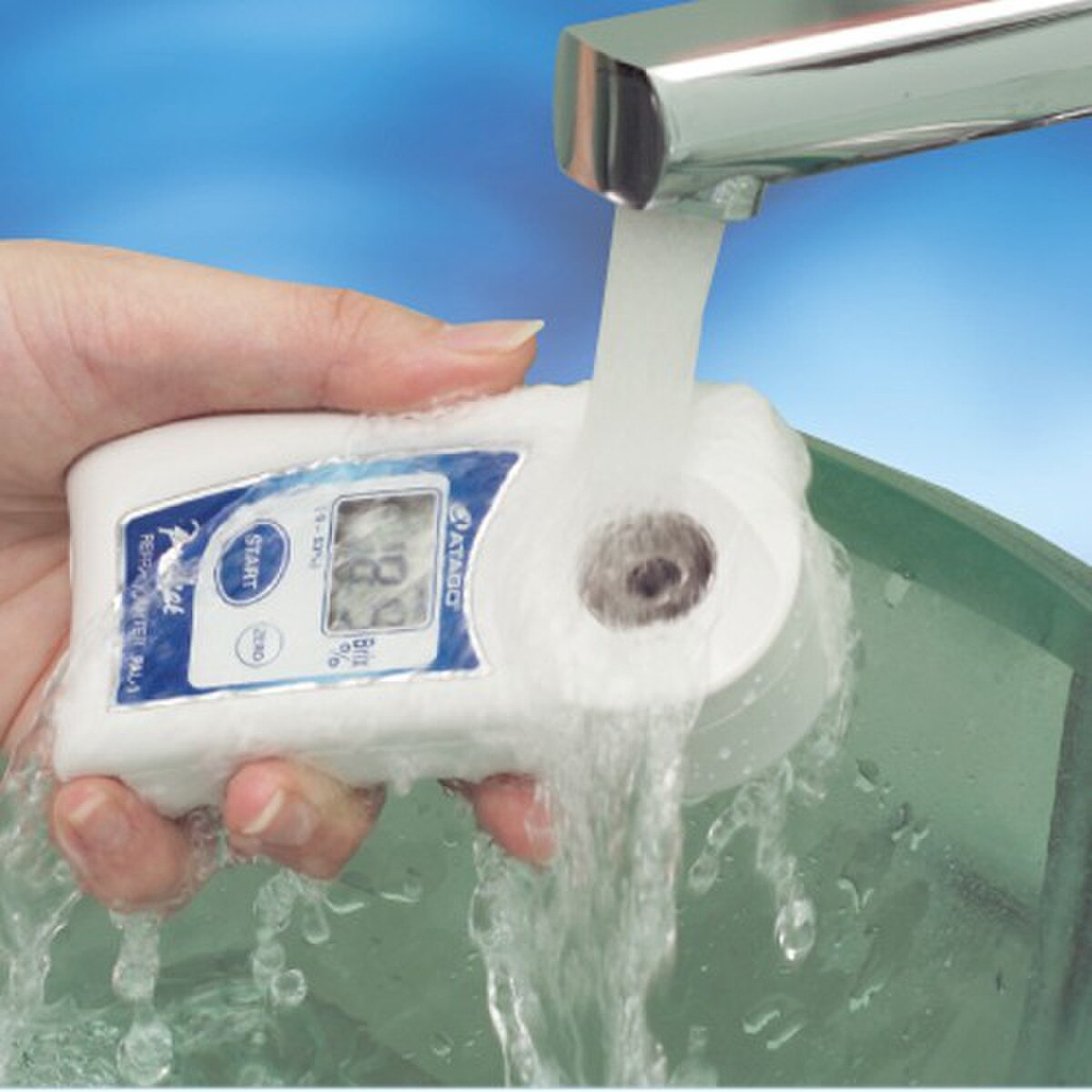

- Ingress Protection: IP65 (dustproof and water-resistant)
- Display: Digital LCD
- Power: 2 × AAA batteries
Features
- Bluetooth connectivity for wireless data transfer
- Fast 3-second digital readout
- Automatic temperature compensation for reliable results

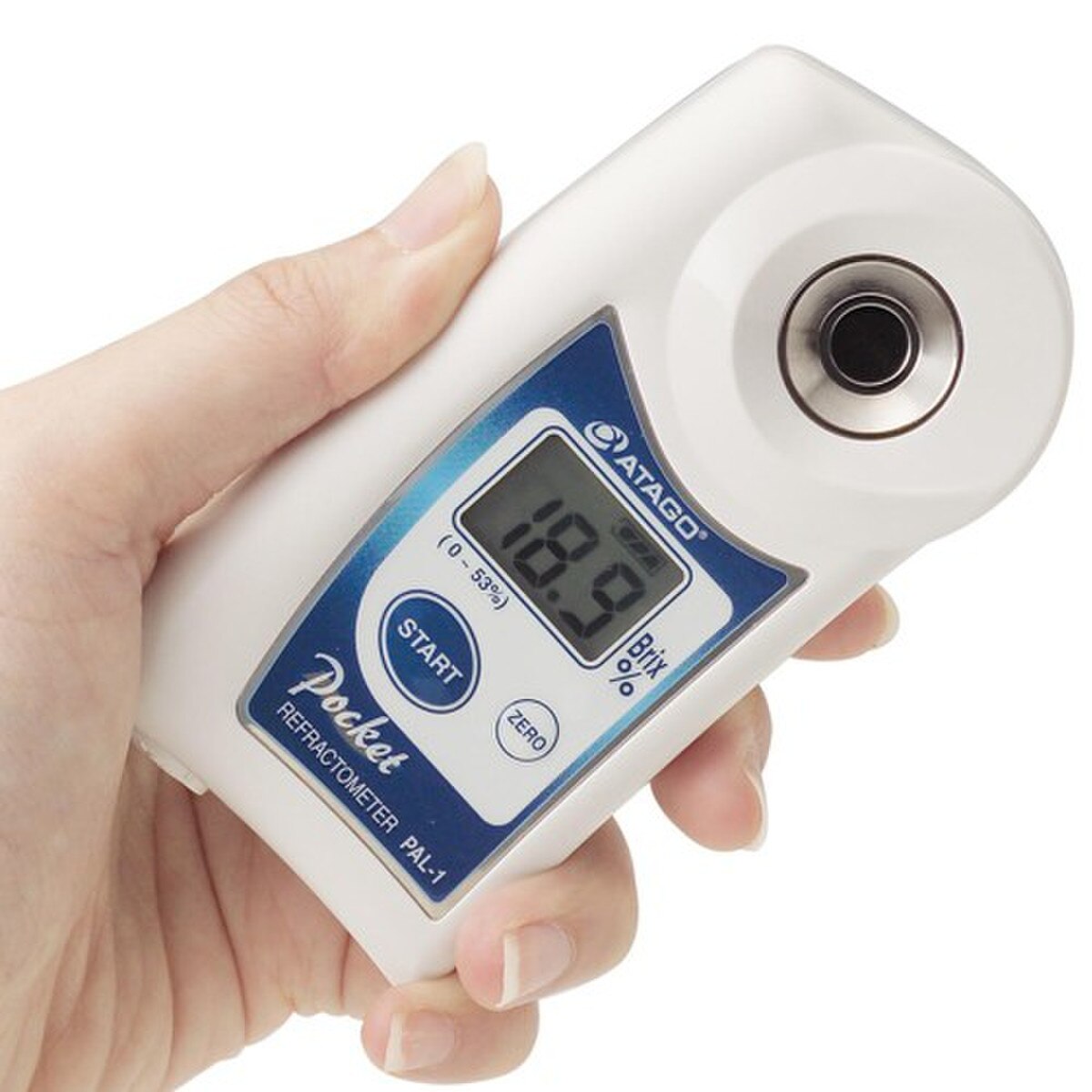

- Compact, ergonomic design for one-handed operation
- Easy calibration with distilled water
Included Accessories
- PAL-CASE (RE-39409)
- Strap (RE-39410)
- Silicon Cover “JORDAN for PAL” (RE-39414)
- SUPER EXTRACTOR (RE-29401)
- Sucrose Standards: 10% to 50% (±0.03–0.05%)
- Battery Case Cover with O-Ring (RE-38163)
- AC Battery Charger (RE-34802)
Applications
- Fruit juice and beverage testing
- Food processing and quality control
- Brewing and fermentation monitoring
- Industrial fluid concentration analysis
This item is NON-REFUNDABLE/NON-RETURNABLE once the order is placed. Please call if you are unsure this item will work for you
| Product Type: | Refractometer |
| Brand: | ATAGO |
| Product Line: | PAL |
| Grade: | Digital Pocket |
| Range: | 0.0 - 53.0% Brix |
| Resolution: | 0.1% |
| Accuracy: | ±0.2% |
| Temperature Range: | 9.0 to 99.9°C |
| Temperature Resolution: | 0.1°C |
| Temperature Accuracy: | ±1°C |
| ATC: | Yes (10 to 100°C) |
| Operating Modes: | Displays both Brix and Temperature. |
| Overall Dimensions: | 5.5 x 3.1 x 10.9cm |
| Includes: | Protective storage case, 2 x AAA Batteries, serialized Calibration Report certificate, and owner's manual. |
to go to ATAGO web site for Instruction Manual pdf and/or Usage Instruction video.
