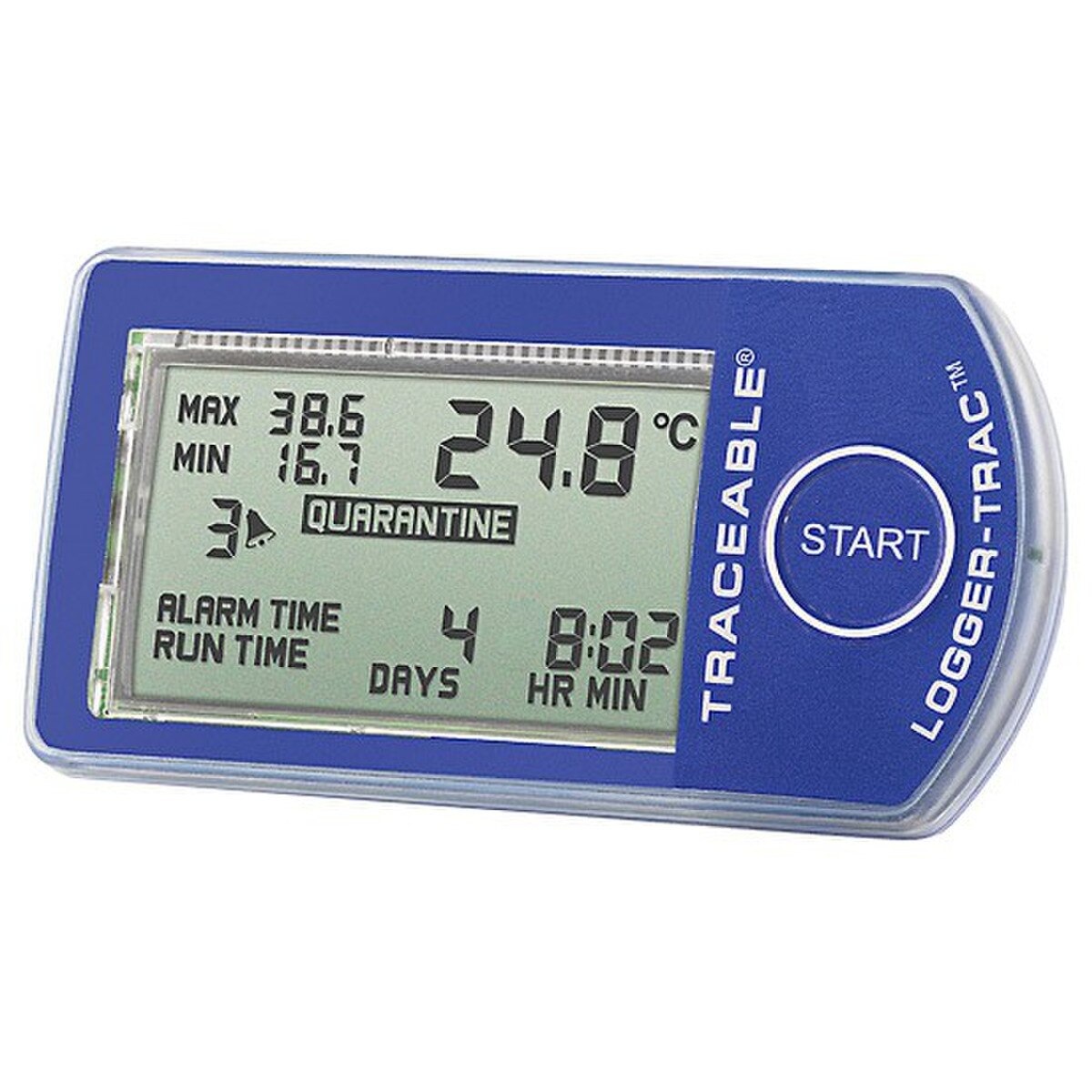

Traceable® 6540TR Logger-Trac™ Temperature Data Logger

Traceable® 6540TR Logger-Trac™ Temperature Data Logger

The Traceable® 6540TR Logger-Trac™ Temperature Data Logger is a compact, reusable temperature monitoring device designed for pharmaceutical storage, vaccine transportation, refrigerated logistics, laboratories, warehouses, and cold-chain applications. With configurable logging intervals, quarantine alerts, onboard memory, and an IP66-rated enclosure, it provides reliable temperature documentation for transportation and storage monitoring.

Key Features

• Reusable and reprogrammable temperature data logger
• Compact design for transportation and cold-chain monitoring
• Stores up to 7,680 temperature readings with date and time stamps
• User-programmable logging intervals from 2 seconds to 24 hours
• Configurable monitoring periods from 4 hours to 365 days
• Factory configured for 30-day operation with 5 minute, 33 second intervals
• Preset alarm limits of 2°C and 8°C
• Visible "QUARANTINE" alert for prolonged temperature excursions
• IP66-rated waterproof and dust-resistant housing
• User-selectable °F or °C display
• Programmable alarm and quarantine settings
• Includes A2LA-accredited Traceable® Certificate
• 1-year warranty

Product Details

The Logger-Trac™ 6540TR is engineered for monitoring temperature-sensitive products during storage and transportation. Its compact size and lightweight design make it ideal for refrigerated shipments, vaccine transport, pharmaceutical distribution, laboratory monitoring, and environmental temperature validation.

The logger arrives preconfigured for approximately 30 days of monitoring with readings recorded every 5 minutes and 33 seconds. Users may customize logging intervals, alarm thresholds, monitoring duration, start delays, and other parameters using optional software and communication accessories.

Internal memory stores up to 7,680 temperature readings, each with a date and time stamp for complete traceability. To preserve collected records, the logger automatically stops recording when memory is full rather than overwriting existing data.

A unique quarantine feature provides a highly visible "QUARANTINE" indication whenever temperatures exceed user-defined limits for longer than an allowable duration. This feature helps identify products that may require inspection or evaluation due to temperature excursions.

The rugged IP66-rated enclosure protects the logger in wet, dusty, humid, and refrigerated environments, making it suitable for warehouses, transportation containers, pharmaceutical facilities, food storage areas, and industrial applications.

Optional software and a communication cradle provide advanced programming, reporting, and data download capabilities. Users can configure logging intervals, recording duration, alarm limits, quarantine parameters, time zones, temperature units, and device identification settings.

Each logger includes an individually numbered Traceable® Certificate documenting traceability to SI units through NIST or other recognized National Measurement Institutes. Calibration is performed by an A2LA-accredited ISO/IEC 17025 laboratory. Guaranteed to have at least one year of calibration remaining on the certificate.

Specifications

• Logger Type: Temperature Data Logger
• Channels: 1
• Temperature Range: -35 to 50°C (-31 to 122°F)
• Temperature Accuracy: ±0.2°C (±0.4°F)
• Resolution: 0.1°C / 0.1°F
• Memory Capacity: 7,680 readings
• Logging Interval: 2 seconds to 24 hours
• Logging Duration: 4 hours to 365 days
• Alarm Function: User-configurable quarantine alarm
• Quarantine Display: "QUARANTINE" alert
• Display: LCD
• Ingress Protection: IP66
• Dimensions: 2.56 × 1.34 × 0.35 in.
• Weight: 0.65 oz
• Battery: One CR2450 lithium battery
• Software: Optional for programming and data analysis
• Communication Cradle: Required for programming and data download (sold separately)
• Description: Logger-Trac™ Temperature Data Logger
• Warranty: 1 Year

Includes

• Traceable® Certificate
• CR2450 lithium battery

Ideal for pharmaceutical storage, vaccine transportation, laboratory monitoring, refrigerated warehouses, food safety programs, cold-chain logistics, chemical storage, and environmental monitoring applications requiring reliable temperature documentation and traceable calibration.
