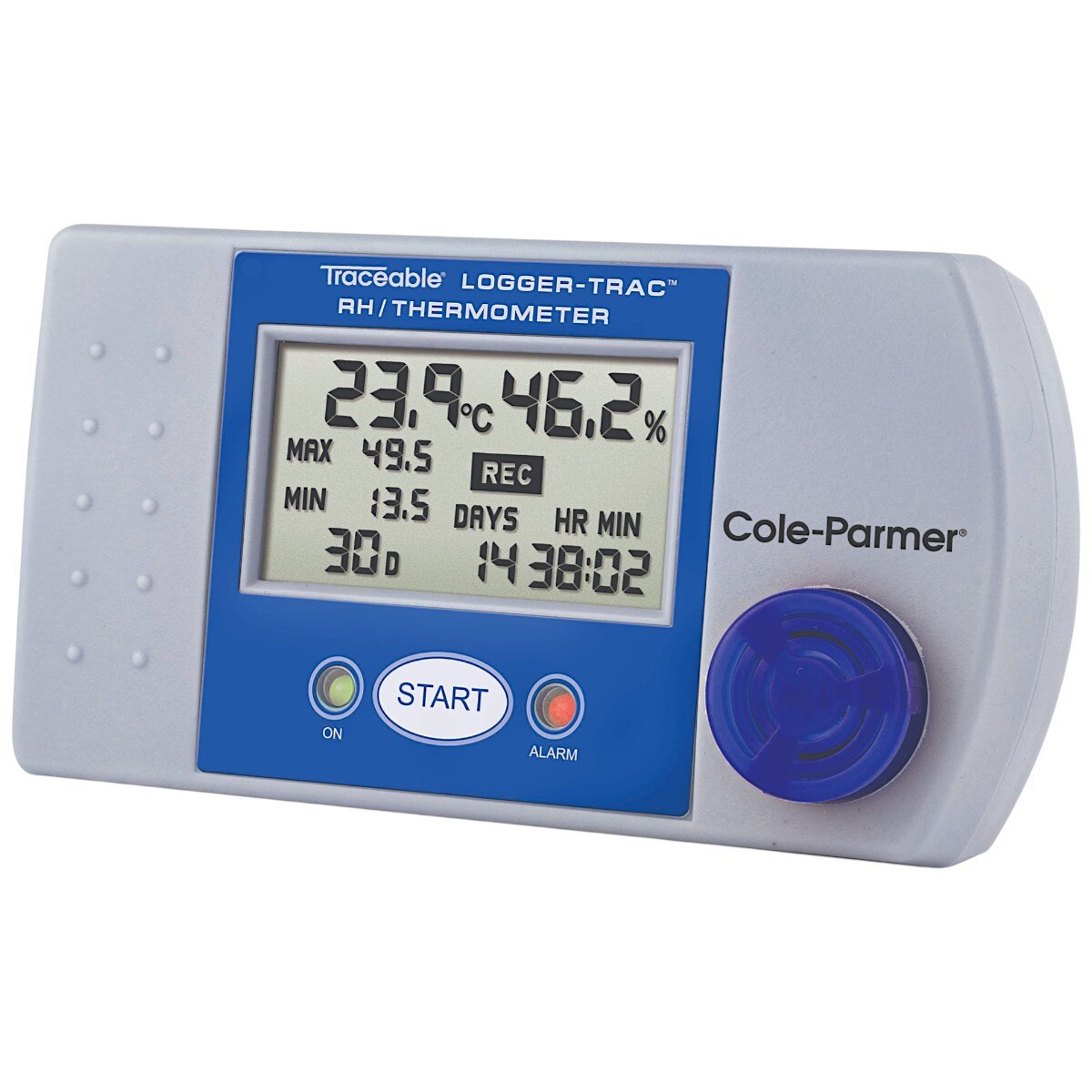

Traceable® 6550TR Logger-Trac™ Temperature and Relative Humidity Data Logger

Traceable® 6550TR Logger-Trac™ Temperature and Relative Humidity Data Logger

The Traceable® 6550TR Logger-Trac™ Temperature and Relative Humidity Data Logger is a compact, reusable environmental monitoring device designed for pharmaceutical storage, vaccine distribution, laboratories, cleanrooms, warehouses, transportation monitoring, and quality assurance applications. It records both temperature and humidity measurements, providing reliable environmental documentation with large memory capacity, programmable alarms, and data analysis capabilities.

Key Features

• Monitors and records temperature and relative humidity
• Reusable and reprogrammable design
• Stores up to 30,720 readings with date and time stamps
• Includes software for setup, data download, analysis, and reporting
• Compact design ideal for transportation and storage monitoring
• Factory configured for refrigerated applications with 2°C and 8°C alarm limits
• User-programmable sampling intervals from 2 seconds to 24 hours
• Configurable monitoring periods from 4 hours to 365 days
• User-defined alarm settings and notifications
• Selectable °F or °C display units
• Includes A2LA-accredited Traceable® Certificate
• 1-year warranty

Product Details

The Logger-Trac™ 6550TR is designed for applications where both temperature and humidity must be documented. Its compact size makes it especially suitable for monitoring storage facilities, laboratories, vaccine shipments, pharmaceutical products, environmental chambers, cleanrooms, and transportation environments.

The data logger arrives preconfigured to record readings every 5 minutes and 33 seconds for approximately 30 days, with refrigerated alarm limits set at 2°C and 8°C. Users can customize recording intervals, monitoring duration, alarm settings, device names, and additional parameters through the included software.

Internal memory stores up to 30,720 temperature and humidity readings with complete date and time stamps. Once memory capacity is reached, recording stops automatically to preserve stored records.

The included software supports logger configuration, report generation, alarm management, daylight savings adjustments, time zone selection, and management of multiple compatible Logger-Trac™ devices from a single installation.

Humidity monitoring capabilities make the logger ideal for pharmaceutical storage, warehouses, archives, cleanrooms, laboratories, manufacturing facilities, and other environments where moisture control is critical.

A settings reference label on the back of the logger provides quick verification of configuration parameters without requiring software access.

Each unit includes an individually numbered Traceable® Certificate documenting traceability to SI units through NIST or other recognized National Measurement Institutes. Calibration is performed by an A2LA-accredited ISO/IEC 17025 laboratory. Guaranteed to have at least one year of calibration remaining on the certificate.

Specifications

• Logger Type: Temperature and Relative Humidity Data Logger
• Channels: 1
• Temperature Range: -29 to 72°C (-20.2 to 161.6°F)
• Temperature Resolution: 0.1°C / 0.1°F
• Temperature Accuracy: ±0.2°C from 0 to 10°C; ±0.5°C outside this range
• Humidity Range: 0 to 100% RH
• Humidity Resolution: 0.1% RH
• Humidity Accuracy: ±3% RH from 25 to 75% RH; ±5% RH otherwise
• Memory Capacity: 30,720 readings
• Logging Interval: 2 seconds to 24 hours
• Logging Duration: 4 hours to 365 days
• Alarm Settings: User configurable
• Display: LCD
• Dimensions: 3.25 × 2 × 1.12 in.
• Weight: 0.85 oz
• Battery: One CR2450 lithium battery
• Software Included: Yes
• Connection: USB to Mini USB converter cable required (sold separately)
• Description: Temperature and Relative Humidity Data Logger
• Warranty: 1 Year

Includes

• Traceable® Certificate
• Data logging software
• CR2450 lithium battery

Ideal for pharmaceutical storage, vaccine programs, laboratories, cleanrooms, healthcare facilities, warehouses, transportation validation, environmental monitoring, food storage, and quality assurance applications requiring documented temperature and humidity monitoring.
