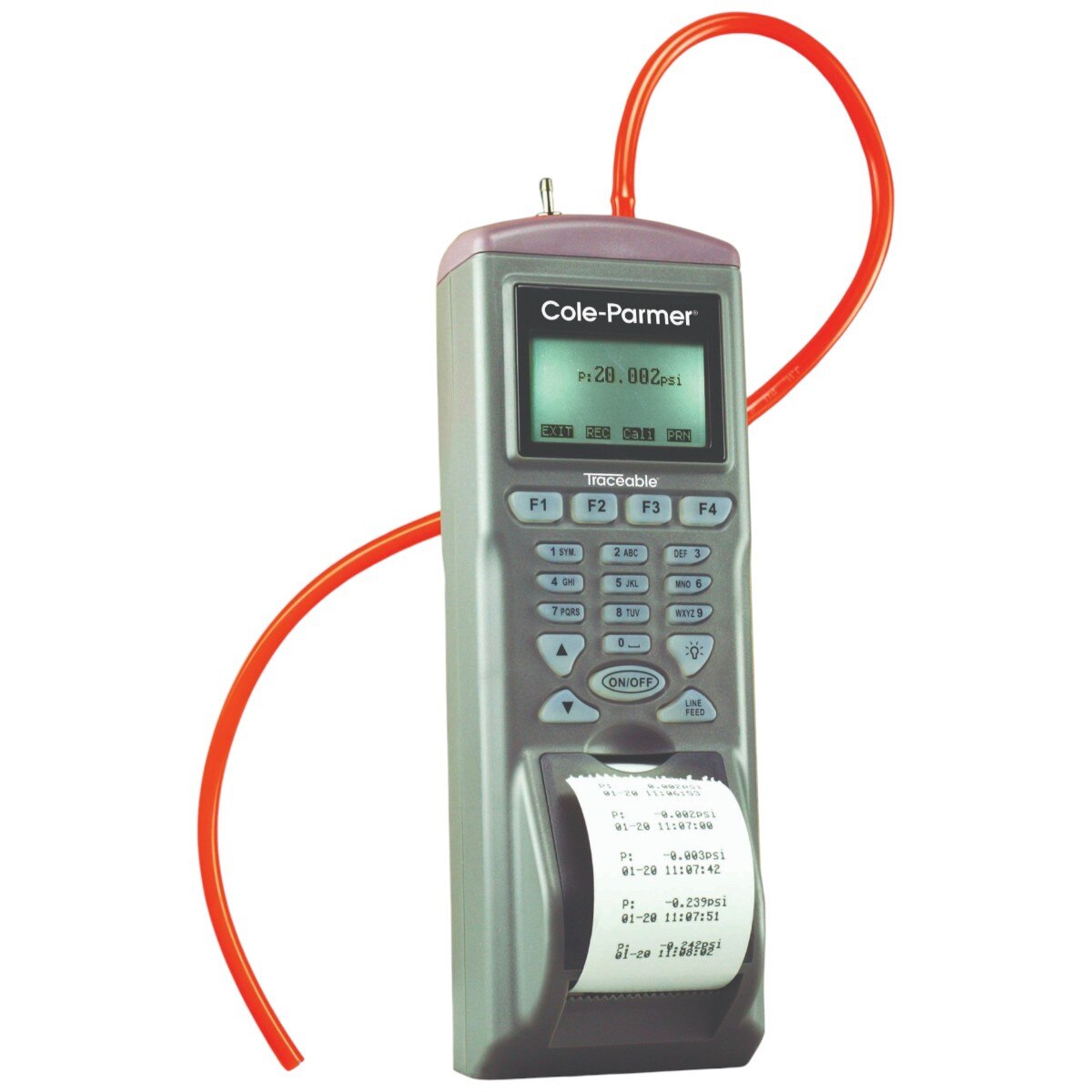

Traceable® 3466TR Printing Digital Manometer (±5 psi)

This Traceable® printing digital manometer measures gauge and differential pressure/vacuum in eleven selectable units with a rapid 0.5‑second response time. The built‑in thermal printer outputs readings directly from the meter and the internal memory stores up to 12,000 measurements for documentation. The large 4‑digit LCD provides clear readings, and the unit can be zeroed at any time with a single button press. A memory function recalls the highest and lowest readings over any measurement period, and a data‑hold feature freezes the display for recording. Hose fittings accept tubing with 1/16 to 3/16 inch (1.6 to 4.8 mm) inner diameter. Each meter includes a NIST‑traceable calibration certificate issued by an A2LA‑accredited laboratory.

• Item Number: 98767-01
• Model: 3466TR
• Pressure Range: –5 to 5 psi
• Units: 11 selectable (psi, mbar, bar, cmH₂O, inH₂O, ftH₂O, mmHg, inHg, kg/cm², oz/in², kPa)
• Accuracy: ±0.3% of full scale
• Response Time: 0.5 seconds
• Display: 4‑digit LCD, 5/8‑inch‑high digits
• Printing: Built‑in thermal printer; stores up to 12,000 readings
• Features: MIN/MAX memory; zero function; data hold; differential mode; count‑up timer to 99:59:59
• Operating Temperature: 32 to 122 °F (0 to 50 °C)
• Included: Pressure sensor, two 19‑inch tubing sections, hard carrying case, roll of printer paper, battery, NIST‑traceable certificate
• Warranty: 1 year
