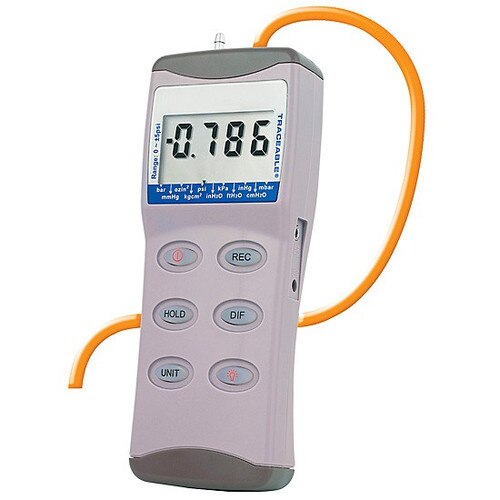

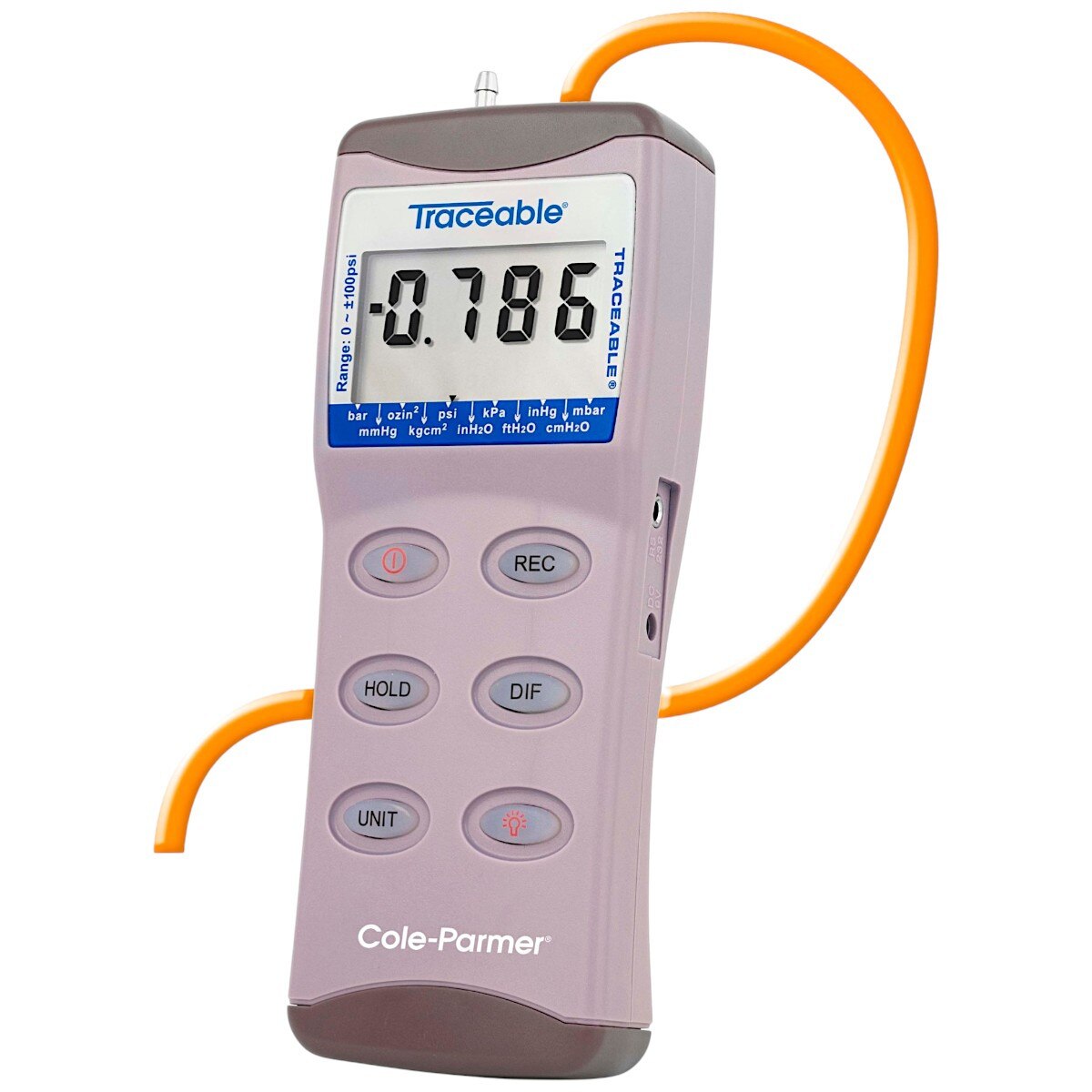

Traceable® Manometer / Pressure / Vacuum Gauge 0-5 PSI, Non-Printing with a NIST Traceable® Calibration Certificate (each)
Manometer displays gauge and differential pressure/vacuum in eleven different units. Response time is 0.5 second. Simple hose fittings on the unit permit using hose/tubing with inside diameters from 1/16 to 3/16 inches. Large 5/8-inch-high digits are visible from six feet.
At the touch of a button unit may be zeroed or any pressure may set to zero. Differential feature permits reading the difference of the pressure or vacuum between two different sources. Memory feature recalls highest and lowest reading over any time period. A count-up timer displays up to 99 hours, 59 minutes, 59 seconds. A DATA HOLD key freezes the display to capture readings. Brilliant backlighting permits reading even in dark areas. Computer output permits all units to be connected to a computer for monitoring and storing unlimited results. Accuracy is ±0.3% of full scale between 0 to 50°C. To assure accuracy an individually serial-numbered Traceable® Certificate is provided from our ISO 17025 calibration laboratory accredited by A2LA. It indicates traceability to standards provided by NIST (National Institute of Standards and Technology).
Non-printing model is supplied with Traceable® Certificate, 2-hose/tubing (4mm or 1/6” width, 19" length, 9-volt battery and ABS plastic carrying case. Size is 2-3/4 x 7-1/8 x 1-1/8 inches and weight is 5 ounces. Replacement battery Cat. No. 1112.
This unit features computer output. To utilize this feature, connect the unit to a PC with an accessory Data Acquisition System. (SOLD SEPARATELY)
Manometer displays gauge and differential pressure/vacuum in eleven different units. Response time is 0.5 second. Simple hose fittings on the unit permit using hose/tubing with inside diameters from 1/16 to 3/16 inches. Large 5/8-inch-high digits are visible from six feet.
At the touch of a button unit may be zeroed or any pressure may set to zero. Differential feature permits reading the difference of the pressure or vacuum between two different sources. Memory feature recalls highest and lowest reading over any time period. A count-up timer displays up to 99 hours, 59 minutes, 59 seconds. A DATA HOLD key freezes the display to capture readings. Brilliant backlighting permits reading even in dark areas. Computer output permits all units to be connected to a computer for monitoring and storing unlimited results. Accuracy is ±0.3% of full scale between 0 to 50°C. To assure accuracy an individually serial-numbered Traceable® Certificate is provided from our ISO 17025 calibration laboratory accredited by A2LA. It indicates traceability to standards provided by NIST (National Institute of Standards and Technology).
Non-printing model is supplied with Traceable® Certificate, 2-hose/tubing (4mm or 1/6” width, 19" length, 9-volt battery and ABS plastic carrying case. Size is 2-3/4 x 7-1/8 x 1-1/8 inches and weight is 5 ounces. Replacement battery Cat. No. 1112.
This unit features computer output. To utilize this feature, connect the unit to a PC with an accessory Data Acquisition System. (SOLD SEPARATELY)
| Product Type: | Manometer / Pressure / Vacuum Gauge |
| Brand: | Traceable |
| Overall Dimensions: | 2-3/4 x 7-1/8 x 1-1/8 inches |
| Includes: | Traceable® Certificate, 2-hose/tubing (4mm or 1/6 inch width, 19 inch length), 9-volt battery, and ABS plastic carrying case |
