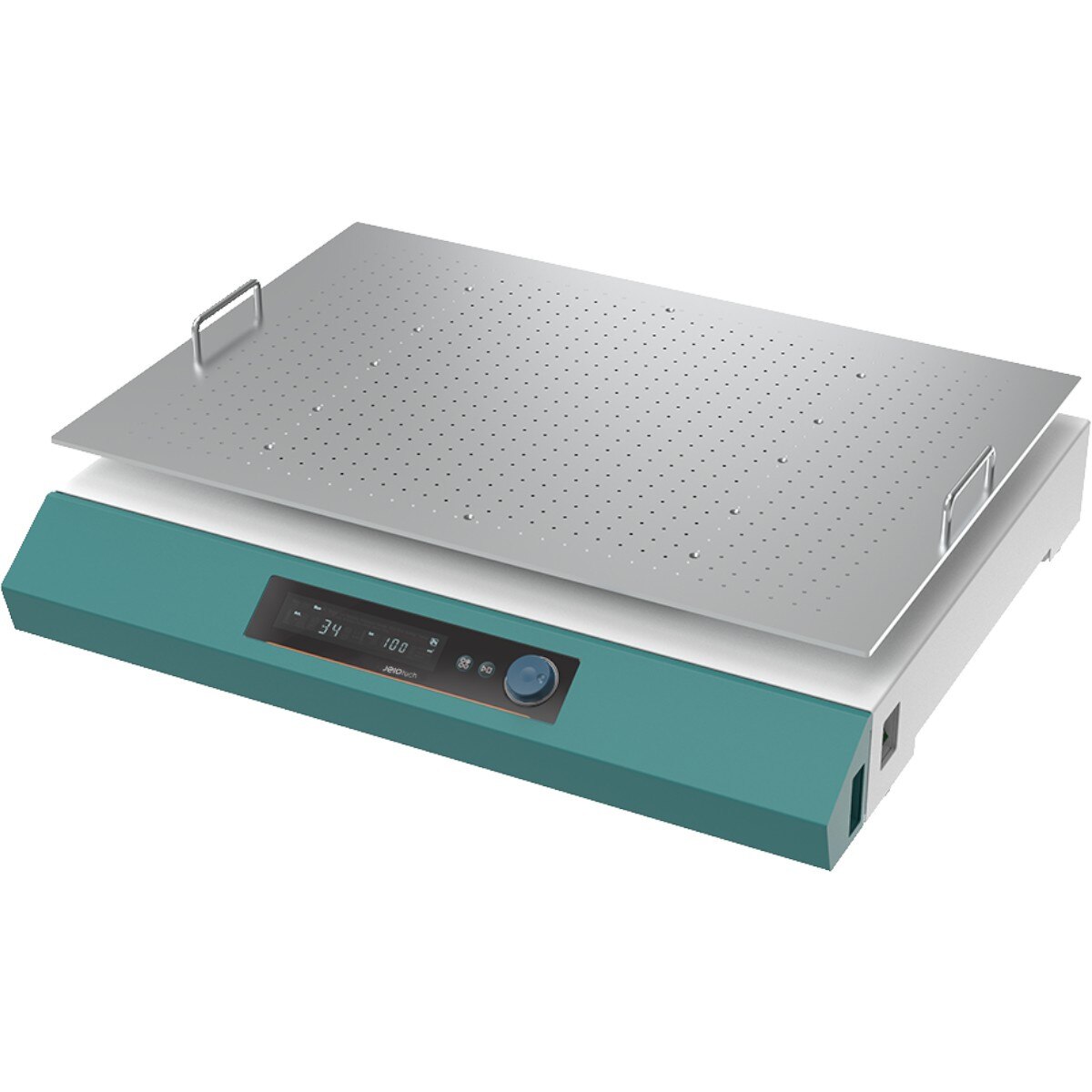

OS-7100 Shaker (Orbital, 1.0"), 115 VAC

Jeio Tech OS-7100 is a powerful, low-profile orbital shaker engineered for demanding lab workflows. A direct-drive brushless motor and triple-cam system deliver smooth, maintenance-free motion across a wide 30 – 500 rpm range, while microprocessor PID control and VFD read-out ensure precise speed regulation—even under heavy loads. The 25.4 mm (1 in) orbital diameter suits vigorous mixing of flasks up to 50 L (with optional holder), and the rugged steel chassis minimizes vibration at high speed. An intuitive membrane keypad, RS-232/USB ports for external control, and mobile-app monitoring (via LC GreenBox) round out a feature set built for repeatable, 24/7 operation.

Key Features:

• Wide Speed Range – 30 – 500 rpm with ±1 rpm (≤100 rpm) or ±1 % (>100 rpm) accuracy.
• High Load Capacity – Maintains 500 rpm at 10 kg, 400 rpm at 30 kg; “Best Effort Run” auto-adjusts speed if overloaded.
• 25.4 mm Orbit – Optimized for vigorous flask/aeration studies; smooth start/stop prevents spills.
• Low-Profile Chassis – 151 mm height reduces bench vibration and eases vessel access.
• User-Friendly Control – Bright VFD, membrane keys, 1/5/10 rpm increment selection, 1 min – 999 h 59 min timer.
• Data Connectivity – Built-in RS-232 and USB for PC control/data logging; optional mobile monitoring via LC GreenBox.
• Safety Suite – Speed-deviation alarm, over-current protection, stalled-platform detection, and auto-restart after power loss.
• Platform Flexibility – Universal platform, clamps, and heavy-duty carboy holders sold separately for vessels up to 50 L.

Technical Specifications:

• Motion Type: Orbital.
• Orbital Diameter: 25.4 mm (1 in).
• Speed Range: 30 – 500 rpm.
• Speed Stability: ±1 rpm (≤100 rpm) / ±1 % (>100 rpm).
• Maximum Load: 10 kg at 500 rpm; 30 kg at 400 rpm.
• Timer Range: 1 min – 999 h 59 min.
• Platform Dimensions: 755 × 520 mm (29.6 × 20.5 in).
• Overall Dimensions: 755 × 627 × 151 mm (29.7 × 24.7 × 5.9 in).
• Net Weight: 117 kg (257.9 lb).
• Electrical (SKU AAH3D1465U): 120 V ±10 %, 50/60 Hz, 0.8 A.
• Materials/Finish: Powder-coated steel body; corrosion-resistant.
• Ingress Protection: N/A (benchtop instrument).
• Included: Shaker body, user manual, power cord.
• Accessories (sold separately): Platforms, flask clamps, tube racks, heavy-duty 20 L/50 L carboy holders.

Use OS-7100 when you need reliable high-speed orbital mixing with rock-solid stability, digital precision, and upgrade paths for data-logging or remote monitoring.
