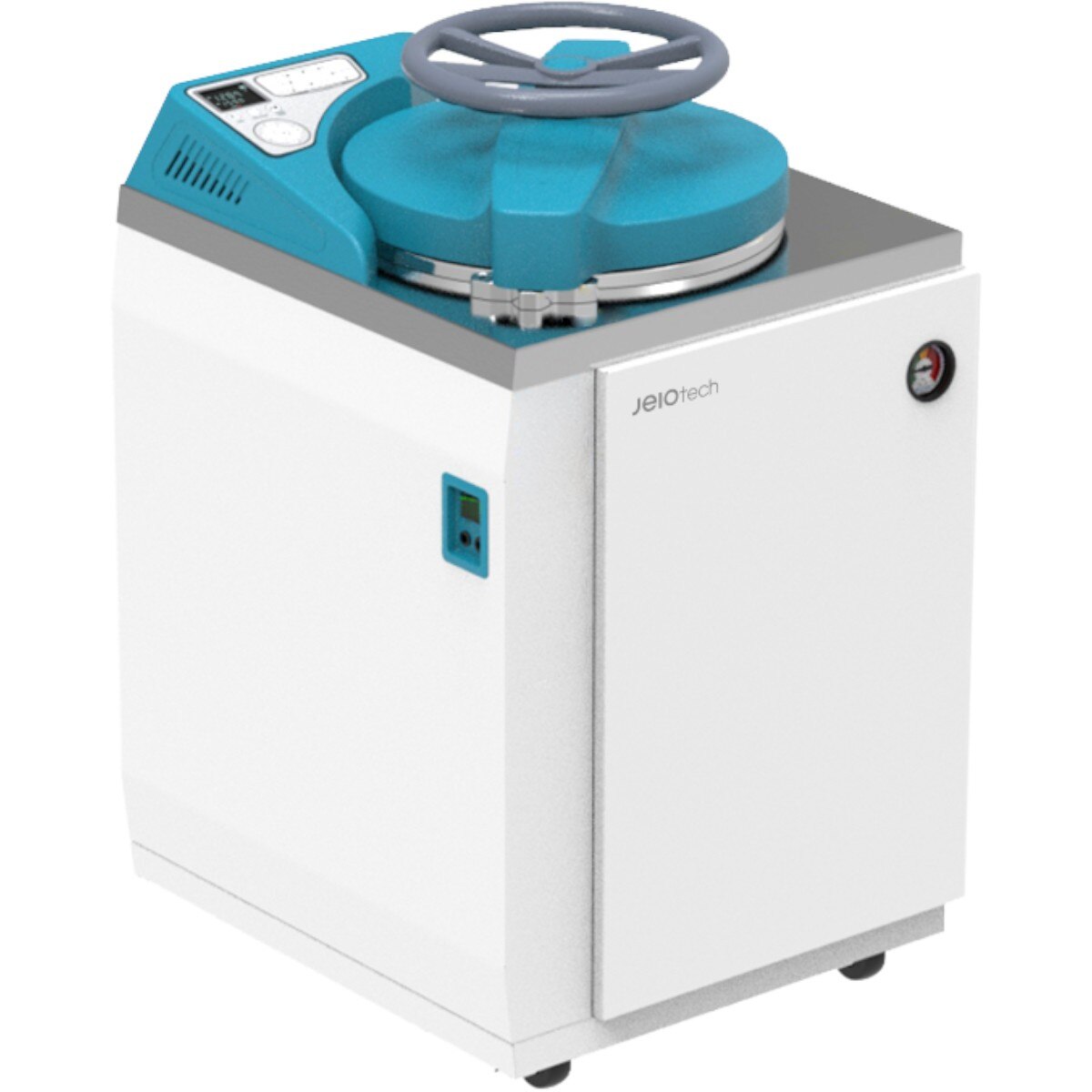

JeioTech ST-65G Vertical Autoclave – 65 L, 230 V, 50/60 Hz

The ST-65G ups capacity to 65 L while retaining the same microprocessor-controlled, fully automatic sterilization cycle of the ST-50G. Top-loading, stainless-steel chamber, VFD display, LED cycle alerts, and analog pressure gauge ensure precise, safe operation in research, clinical, and production labs.

Specifications

• Catalog Number: AAHL1025K
• Model: ST-65G
• Capacity: 65 L
• Sterilization Temperature: 110 to 123 °C
• Melting Temperature: 60 to 100 °C
• Pressure at 121 °C: 1.1 to 1.2 kg/cm²
• Gauge Range: –0.1 to 0.6 MPa
• Chamber Material: Stainless steel
• Voltage: 230 V, 50/60 Hz

Features

• PID controller with temperature calibration
• Automated cycle: heating → safety check → sterilization → exhaust → end
• Standard & program modes for sterilization and media melting
• Digital VFD plus LED process indicators and pressure gauge
• Replaceable silicone door gasket
• Optional data-logging recorder
• Comprehensive safety interlocks and alarms

Applications

• Batch sterilization in clinical, pharmaceutical, and research labs
• Decontamination of solids and liquids
• High-throughput agar melting
• Drying and heat treatment
