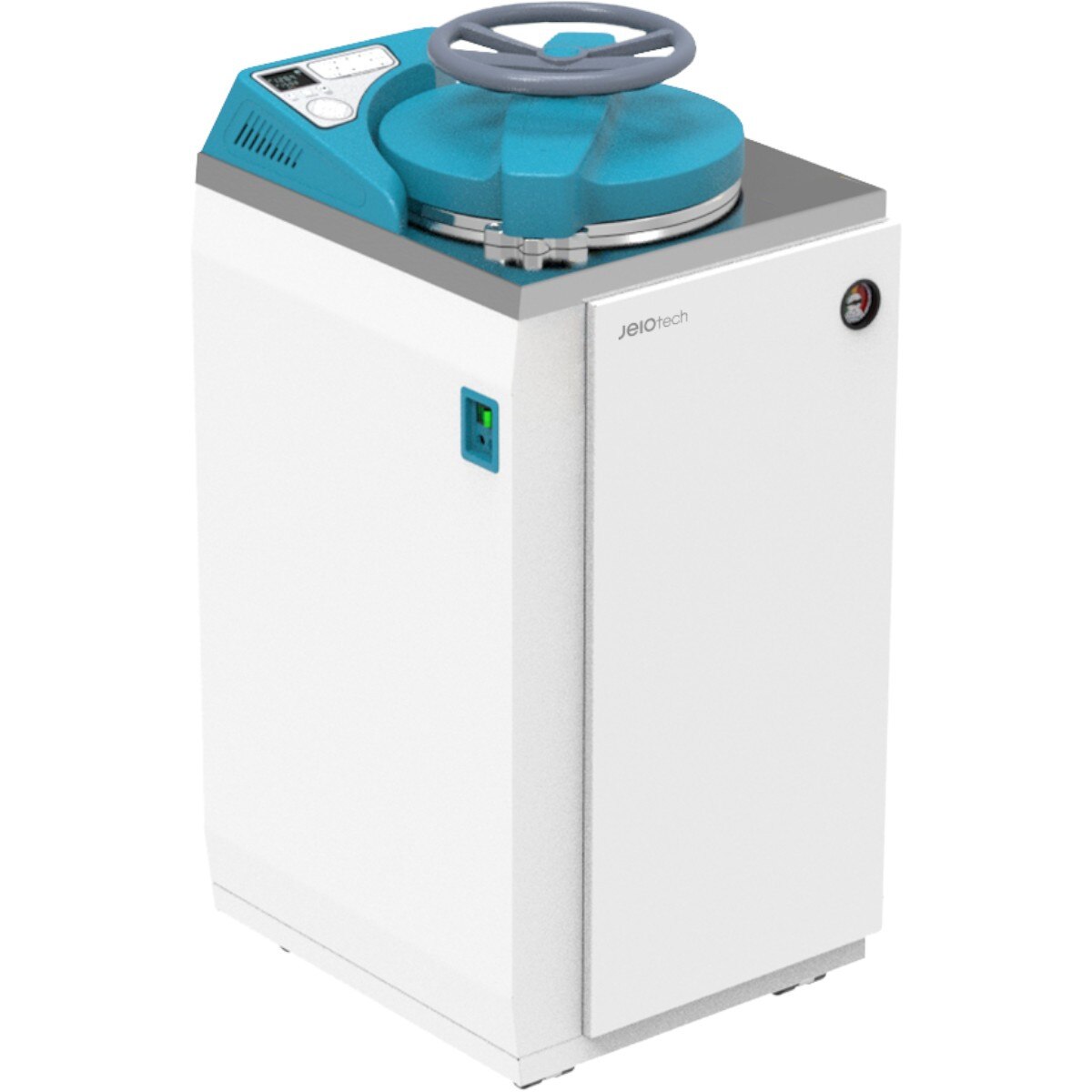

JeioTech ST-105G Vertical Autoclave – 105 L, 230 V, 50/60 Hz

The ST-105G is the largest model in the ST-G series, with a 105 L chamber for high-capacity sterilization or media melting. It features the same microprocessor-controlled cycles, safety interlocks, and user-friendly display of its smaller counterparts, scaled for production environments requiring bulk throughput.

Specifications

• Catalog Number: AAHL1045K
• Model: ST-105G
• Capacity: 105 L
• Sterilization Temperature: 110 to 123 °C
• Melting Temperature: 60 to 100 °C
• Pressure at 121 °C: 1.1 to 1.2 kg/cm²
• Gauge Range: –0.1 to 0.6 MPa
• Chamber Material: Stainless steel
• Voltage: 230 V, 50/60 Hz

Features

• PID microprocessor controller with calibration function
• Automatic cycle management for sterilization and melting
• Programmable timing 1–999 min at set temperatures
• VFD and LED status indicators plus pressure gauge
• Removable, stackable trays for batch processing
• Replaceable silicone gasket and optional recorder
• Full suite of safety protections and alarms

Applications

• Large-scale sterilization in industrial labs
• Bulk media melting and preparation
• Multi-station workflow in teaching or QC facilities
• Heat treatment and drying of materials
