KOF-1-40-3-6-2
Images are for representation only. Actual product may differ in size, color or options.

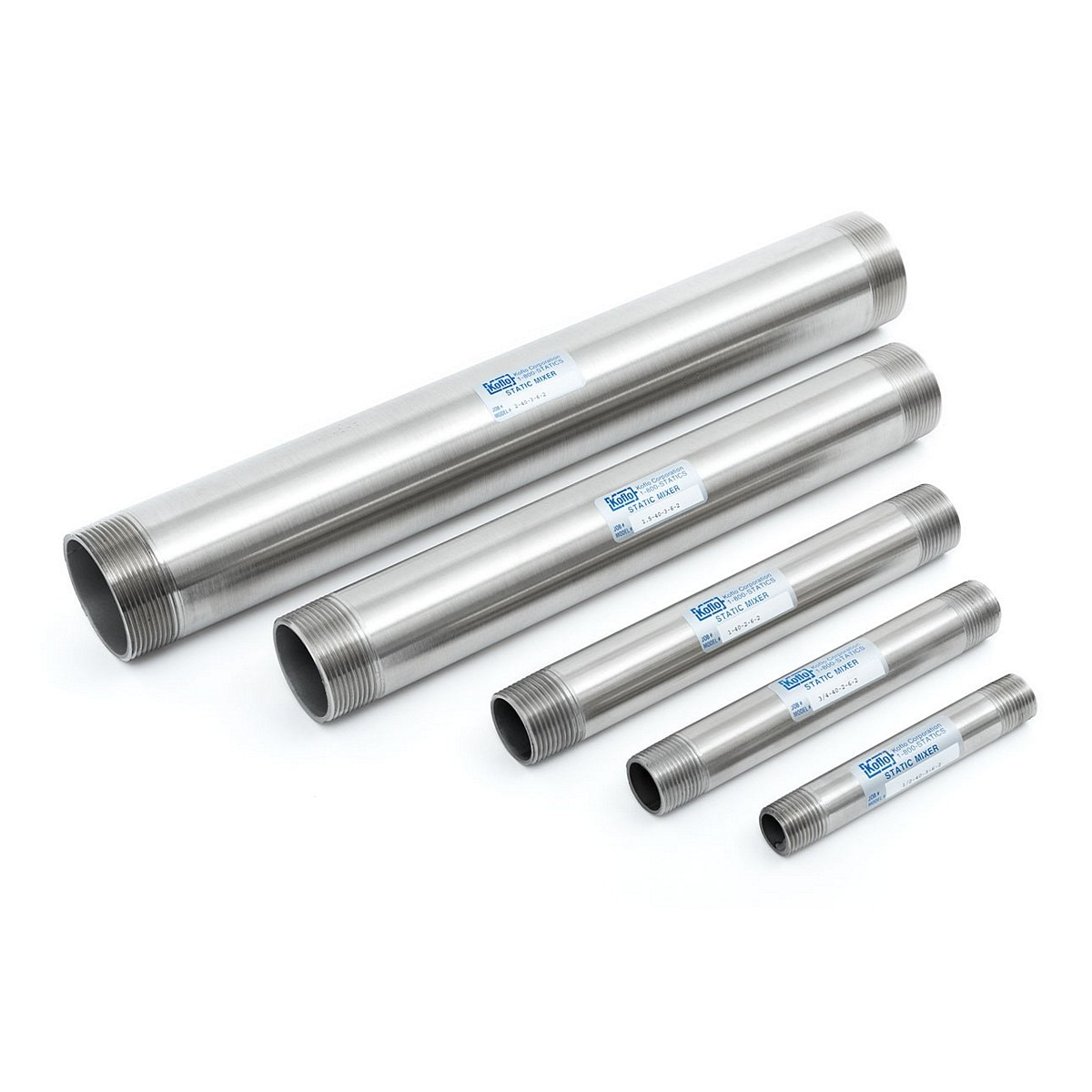

1" MNPT Static Mixer 6 elements, 9" long, 316L Stainless Steel
Koflo threaded stainless steel mixers in sizes 1/4"- 2" are constructed of 316 / 316L stainless steel with either 6 or 12 mixing elements. All mixers are precision-welded into a schedule 40 housing and come complete with male NPT threaded ends.
Typical Applications
- Polymer dilution.
- Chemical blending.
- Water Treatment.
- pH Adjustment
Static mixers are versatile mixing devices that can be used in a wide range of industries and applications beyond those listed above.
Features
Housing: Schedule 40 316/316L Stainless Steel
Elements: Koflo Blade™ Style 316/316L Stainless Steel
End Connections: Machined Male NPT (Threaded Ends)
- Industrial grade materials and craftsmanship ensure long service life and durability under demanding conditions.
- Third party certified to NSF / ANSI 61.
| Model Number | Pipe Dia. MNPT Ends | Number of Elements | Length | Pressure Rating* (psig) | Weight (lb) |
|---|---|---|---|---|---|
| 1/4-40-3-6-2 | 1/4" | 6 | 3" | 2027 | 0.15 |
| 1/4-40-3-12-2 | 1/4" | 12 | 6" | 2027 | 0.30 |
| 3/8-40-3-6-2 | 3/8" | 6 | 4" | 1741 | 0.20 |
| 3/8-40-3-12-2 | 3/8" | 12 | 8" | 1741 | 0.40 |
| 1/2-40-3-6-2 | 1/2" | 6 | 5" | 1512 | 0.35 |
| 1/2-40-3-12-2 | 1/2" | 12 | 10" | 1512 | 0.75 |
| 3/4-40-3-6-2 | 3/4" | 6 | 7" | 1314 | 0.70 |
| 3/4-40-3-12-2 | 3/4" | 12 | 13" | 1314 | 1.33 |
| 1-40-3-6-2 | 1" | 6 | 9" | 1172 | 1.25 |
| 1-40-3-12-2 | 1" | 12 | 17" | 1172 | 2.45 |
| 1.5-40-3-6-2 | 1.5" | 6 | 13" | 989 | 3.20 |
| 1.5-40-3-12-2 | 1.5" | 12 | 26" | 989 | 6.10 |
| 2-40-3-6-2 | 2" | 6 | 17" | 898 | 5.55 |
| 2-40-3-12-2 | 2" | 12 | 33" | 898 | 10.85 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | 316L Stainless Steel |
| Length: | 9" |
| Net Weight: | 1.25 lb |
| Certifications: | NSF 61 Certified |
