KOF-2-40-3-12-2
Images are for representation only. Actual product may differ in size, color or options.

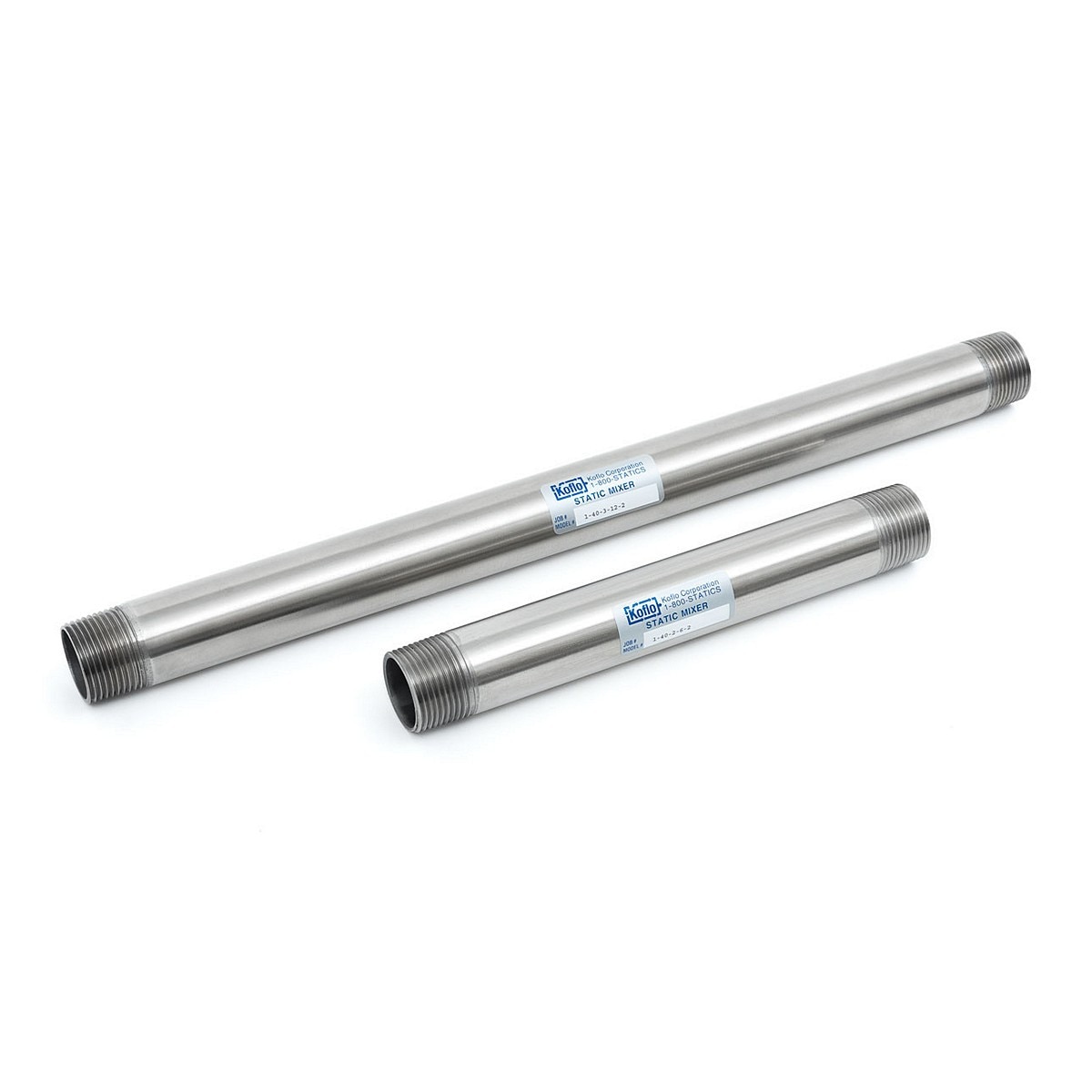

2" MNPT Static Mixer 12 elements, 33" long, 316L Stainless Steel
Koflo threaded stainless steel mixers in sizes 1/4"- 2" are constructed of 316 / 316L stainless steel with either 6 or 12 mixing elements. All mixers are precision-welded into a schedule 40 housing and come complete with male NPT threaded ends.
Typical Applications
- Polymer dilution.
- Chemical blending.
- Water Treatment.
- pH Adjustment
Static mixers are versatile mixing devices that can be used in a wide range of industries and applications beyond those listed above.
Features
Housing: Schedule 40 316/316L Stainless Steel
Elements: Koflo Blade™ Style 316/316L Stainless Steel
End Connections: Machined Male NPT (Threaded Ends)
- Industrial grade materials and craftsmanship ensure long service life and durability under demanding conditions.
- Third party certified to NSF / ANSI 61.
| Model Number | Pipe Dia. MNPT Ends | Number of Elements | Length | Pressure Rating* (psig) | Weight (lb) |
|---|---|---|---|---|---|
| 1/4-40-3-6-2 | 1/4" | 6 | 3" | 2027 | 0.15 |
| 1/4-40-3-12-2 | 1/4" | 12 | 6" | 2027 | 0.30 |
| 3/8-40-3-6-2 | 3/8" | 6 | 4" | 1741 | 0.20 |
| 3/8-40-3-12-2 | 3/8" | 12 | 8" | 1741 | 0.40 |
| 1/2-40-3-6-2 | 1/2" | 6 | 5" | 1512 | 0.35 |
| 1/2-40-3-12-2 | 1/2" | 12 | 10" | 1512 | 0.75 |
| 3/4-40-3-6-2 | 3/4" | 6 | 7" | 1314 | 0.70 |
| 3/4-40-3-12-2 | 3/4" | 12 | 13" | 1314 | 1.33 |
| 1-40-3-6-2 | 1" | 6 | 9" | 1172 | 1.25 |
| 1-40-3-12-2 | 1" | 12 | 17" | 1172 | 2.45 |
| 1.5-40-3-6-2 | 1.5" | 6 | 13" | 989 | 3.20 |
| 1.5-40-3-12-2 | 1.5" | 12 | 26" | 989 | 6.10 |
| 2-40-3-6-2 | 2" | 6 | 17" | 898 | 5.55 |
| 2-40-3-12-2 | 2" | 12 | 33" | 898 | 10.85 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | 316L Stainless Steel |
| Length: | 33" |
| Net Weight: | 10.85 lb |
| Certifications: | NSF 61 Certified |
