Lovibond® BD606 Respirometric BOD Meter – 12-Position Wastewater Analyzer
Images are for representation only. Actual product may differ in size, color or options.

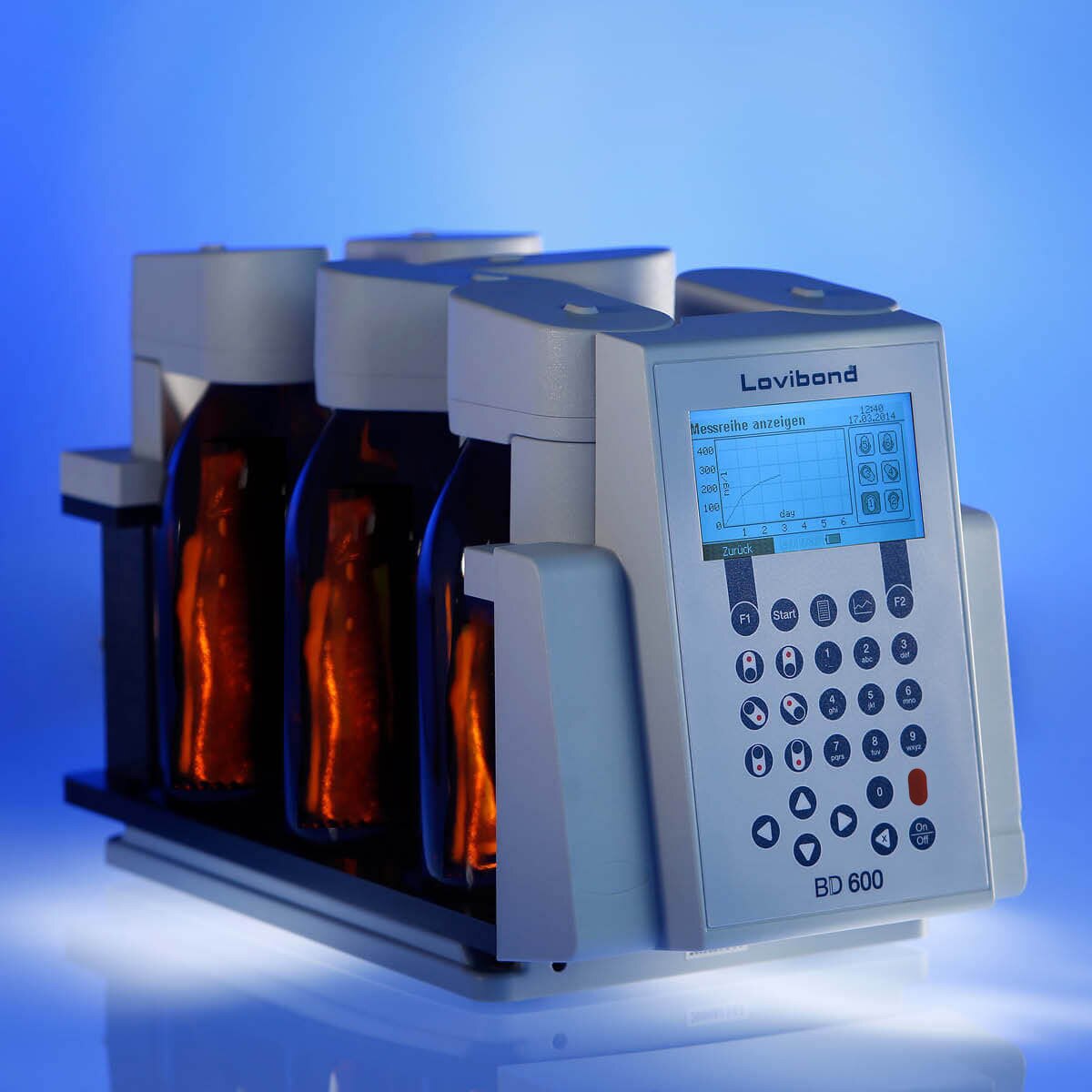

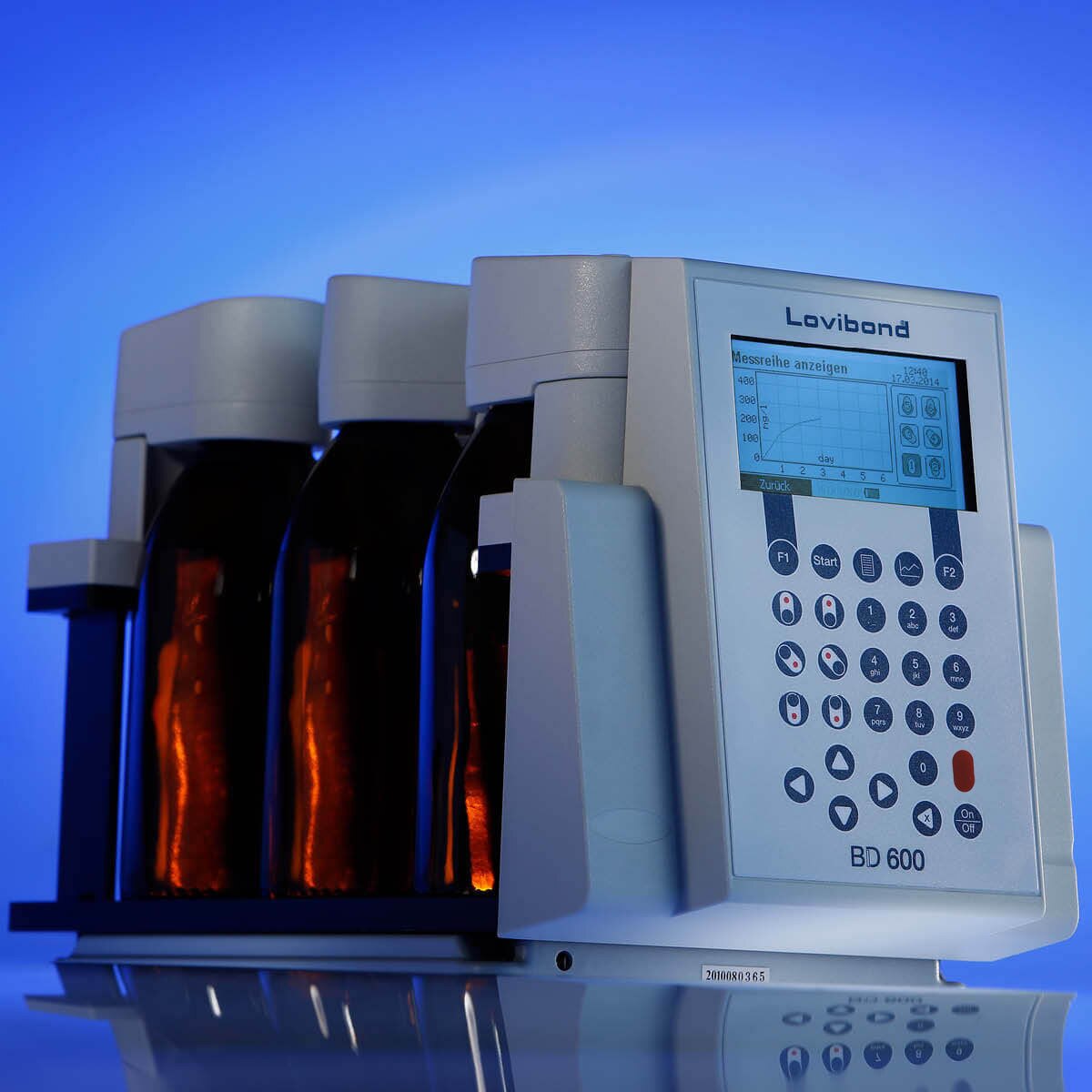

Lovibond BD606 Respirometric BOD Meter – 12-Position Wastewater Analyzer
The BD606 (Catalog No. 2444465) is a high-capacity respirometric system for Biochemical Oxygen Demand (BOD) analysis in wastewater. With 12 simultaneous measuring stations, it’s ideal for municipal and industrial labs requiring efficient batch testing. The system automates BOD measurement using mercury-free pressure sensors and includes a large graphic display, USB/SD card interfaces, and remote control for incubator monitoring.
Key Features
- Model: BD606
- Catalog No.: 2444465
- Measurement Principle: Manometric (mercury-free electronic pressure sensor)
- Measurement Range: 0–40, 0–80, 0–200, 0–400, 0–800, 0–2000, 0–4000 mg/L BOD
- Measurement Duration: Selectable from 1 to 28 days

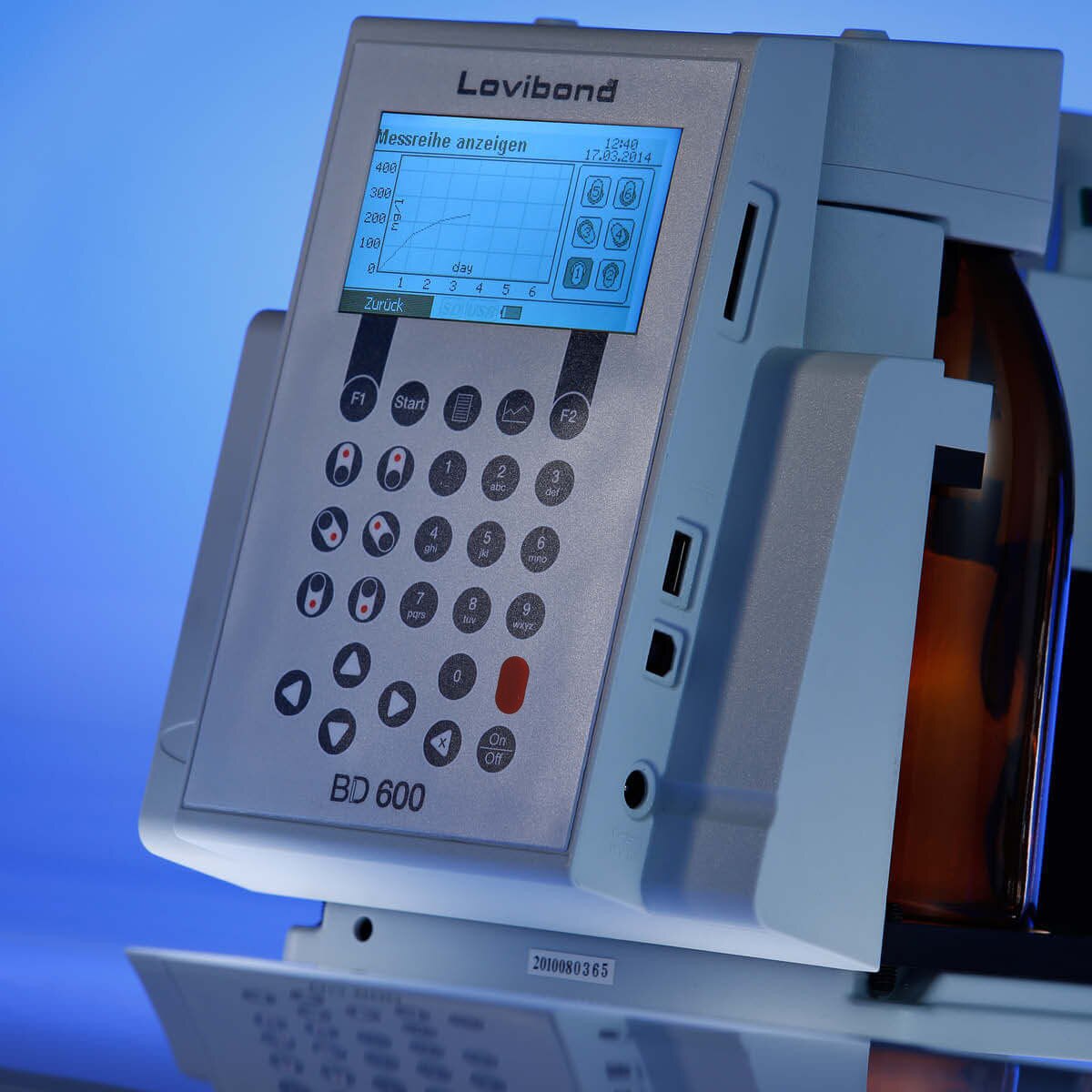

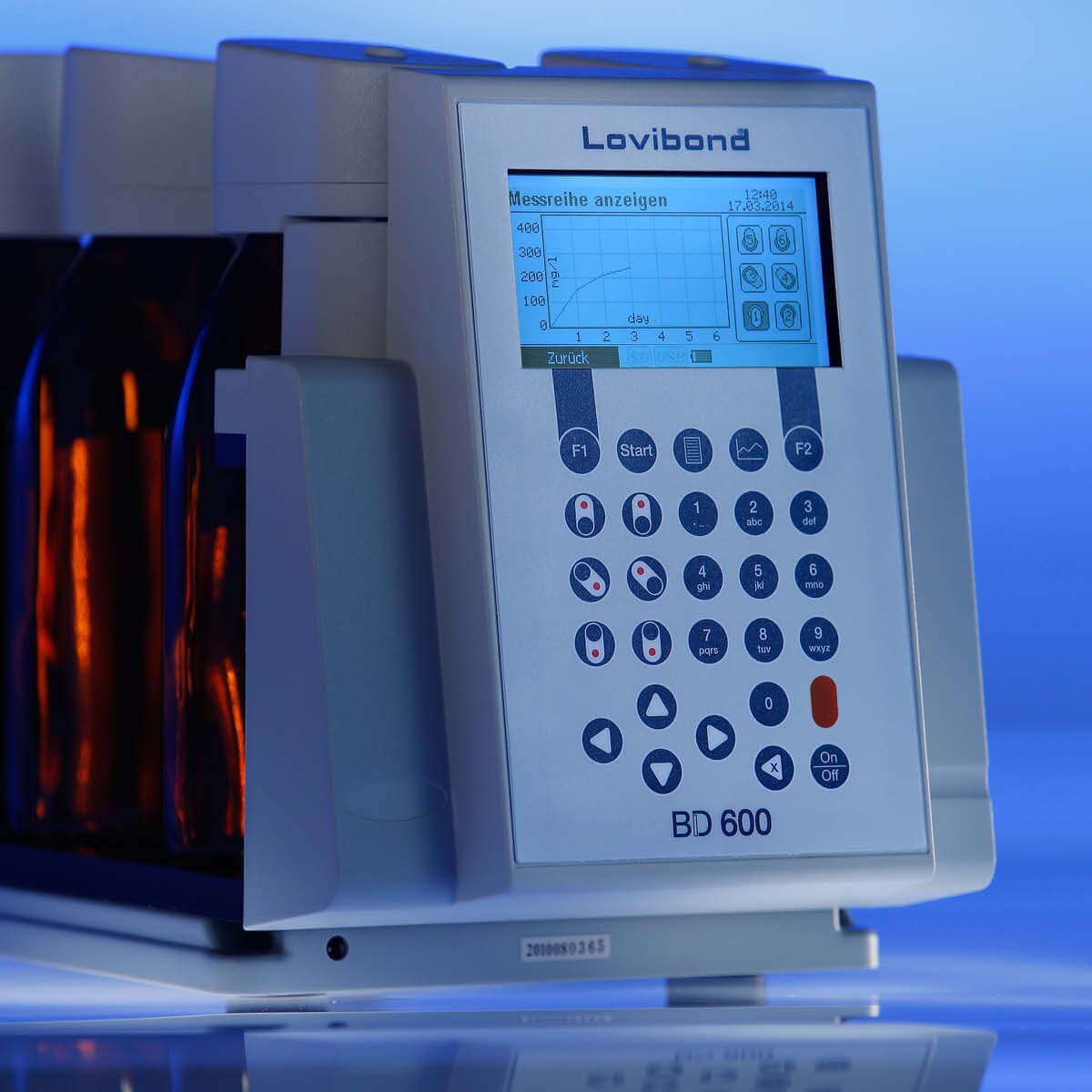

- Display: Backlit graphic display with BOD curve visualization
- Interfaces: USB and SD card
- Autostart: Yes
- Sample Tracking: LED indicators and sample ID assignment
- Remote Control: Included for incubator viewing
- Compliance: CE EMC (DIN EN 61326)
Dimensions & Weight
- Unit size: 181 × 230 × 375 mm (7.13 × 9.06 × 14.76 in)
- Weight: 4.1 kg (5.775 kg with bottles, batteries, and stirring unit)
Performance
- Measuring Stations: 12
- Storage Interval: Hourly (Day 1), every 2 hours (Day 2), daily (Day 3–28)
- Power Supply: 100–240 V / 50–60 Hz or 3 × C-size batteries
- Protection Class: IP53
Applications
- Wastewater treatment process control
- Environmental monitoring
- Industrial effluent analysis
Included Accessories
- 12 Sensor heads
- Control unit with batteries
- Inductive stirring unit
- Power supply with Y-cable
- 12 Sample bottles
- 12 Rubber gaskets
- 12 Magnetic stirring rods
- 50 ml Potassium hydroxide solution (45%)
- 50 ml Nitrification inhibitor
- Overflow measuring flasks (157 ml and 428 ml)
- Remote control
- User manual and guarantee sheet
Optional Accessories
- Inductive Stirring Unit: 2444456
- BOD Sensor: 2444470
- Y-Cable: 2444475
- Remote Control: 2444481
- USB Cable (3m): 2444482
- Magnetic Stirring Rod: 418633
- Rubber Gasket (4.5 cm): 418636
- Magnetic Rod Remover: 418638
- BOD Sample Flask (500 ml): 418644
- Overflow Measuring Flasks: 418654–418660, 418664
| Product Type: | BOD Measurement |
| Brand: | Lovibond |
| Product Line: | Lovibond |
