Lovibond® MD50 Colorimeter – Suspended Solids (No Reagents Required)

MD50 Colorimeter – Suspended Solids (No Reagents Required)

The MD50 Suspended Solids is a rugged, single-parameter colorimeter designed for rapid quantification of total suspended solids (TSS) in water samples. Using an attenuated radiation method, it delivers accurate results in under 3 seconds—without the need for reagents. Ideal for wastewater, raw water, and drinking water applications, this instrument combines precision optics with field-ready durability.

Key Features

• Suspended solids measurement: 10–750 mg/L TSS (Method M384 – Turbidity / Attenuated Radiation)
• Optical system: LED with spectrometer sensor and interference filter (680 nm)
• Photometric range: 0–3 Abs with ±3% FS accuracy
• Zero reagent operation: No chemicals required for measurement

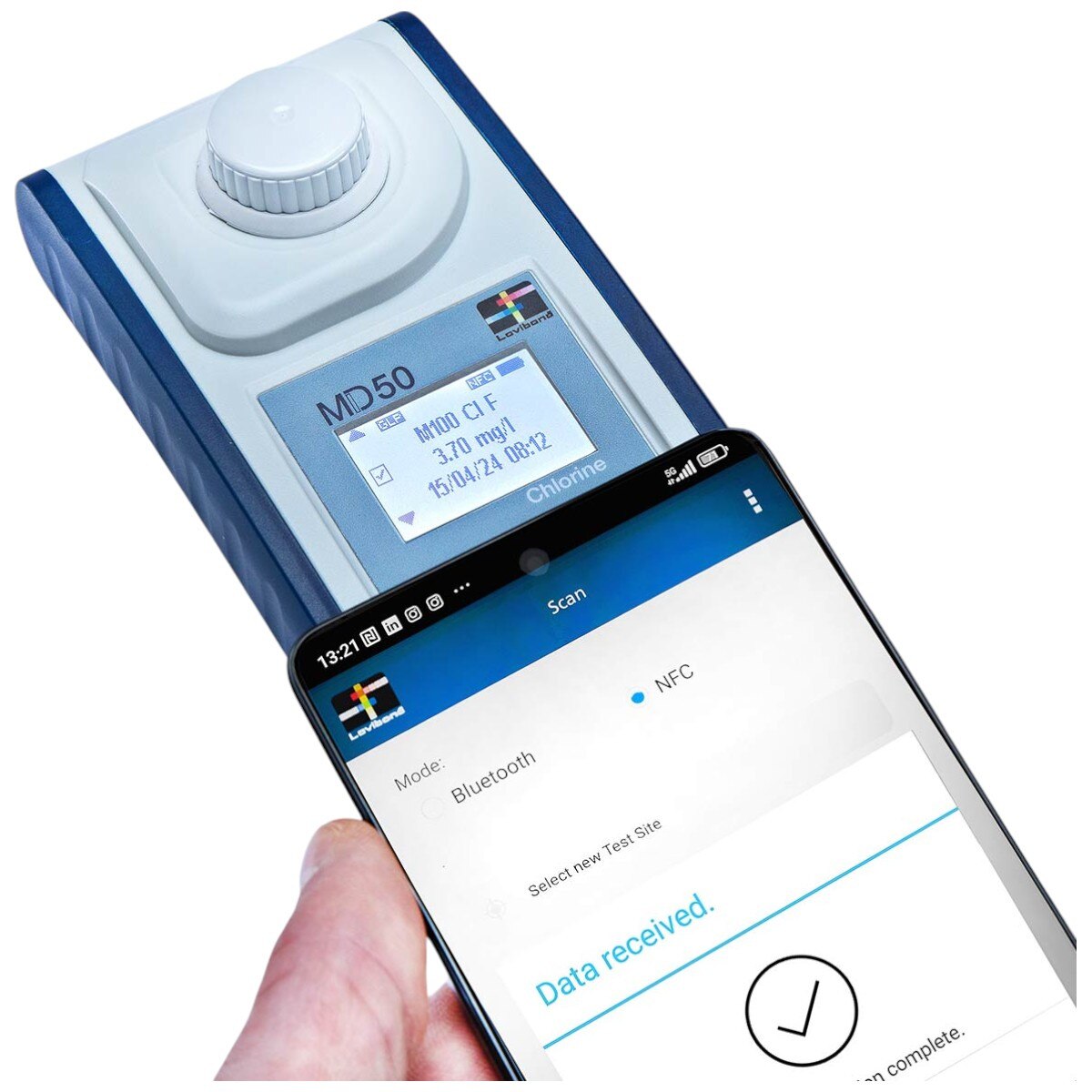

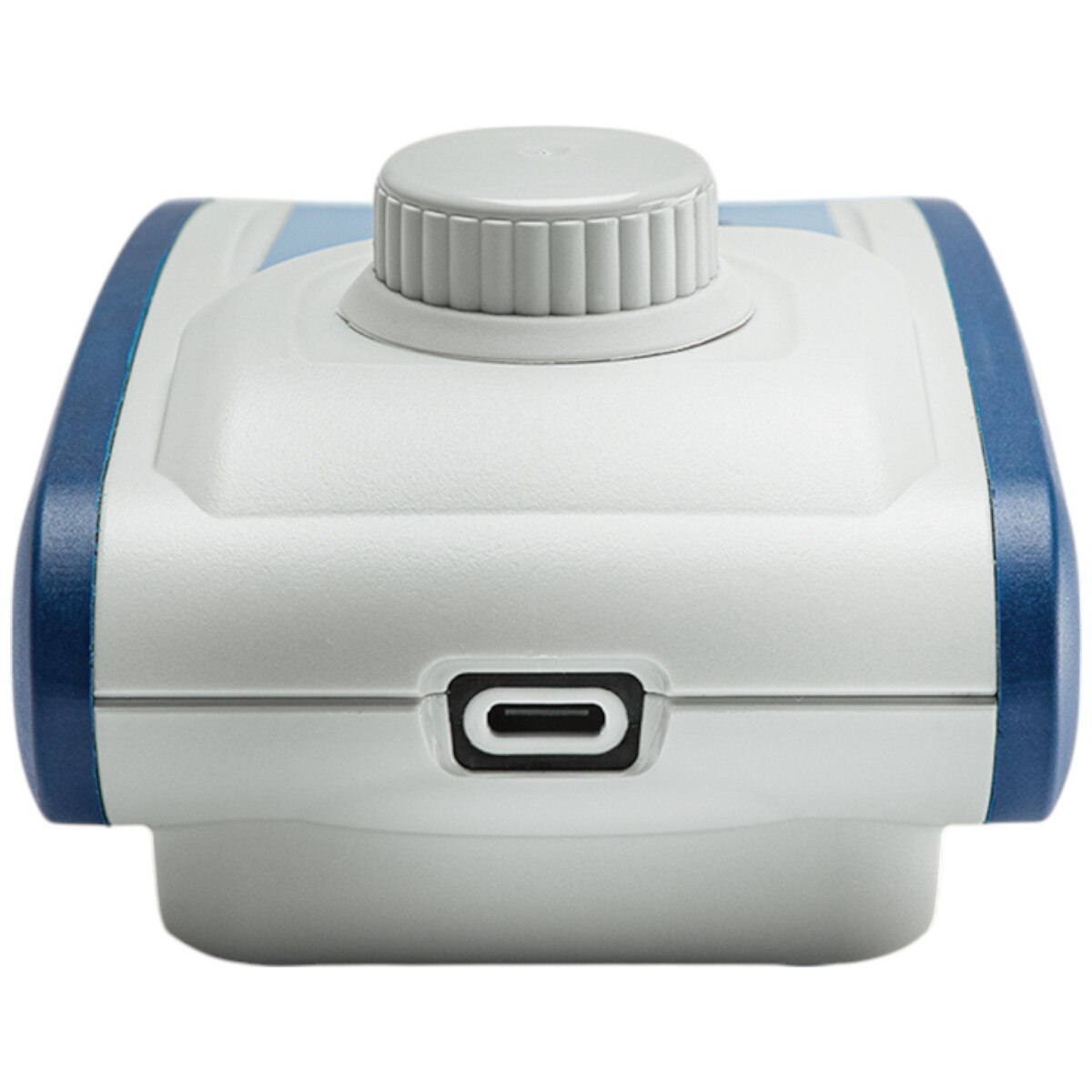

• Connectivity: Wireless (NFC) and USB-C interface compatible with AquaLX® and Lovibond® Data Expert
• GLP-compliant recording: Every change is logged with timestamp and protocol traceability
• One-Time-Zero function: Remains active up to 8 hours unless powered off
• User calibration: One-point calibration with automatic protocol logging
• User-defined methods: Programmable via Lovibond® Data Expert software
• Internal memory: Stores 100 readings with timestamps, even during battery replacements
• Auto-off: Preserves battery during idle periods
• Battery life: Up to 5,000 measurements without backlight
• Environmental range: 41–122 °F (5–50 °C), 30–95% RH (non-condensing)
• Protection class: IP67-rated housing for dustproof and waterproof operation
• Dimensions & weight: 6.1 × 3.0 × 1.8 in (155 × 76 × 45 mm), approx. 8.7 oz (247 g)

Applications

Drinking Water Treatment • Raw Water Treatment • Waste Water Treatment • Industrial Process Monitoring

Delivery Content

• 1 MD50 Suspended Solids Colorimeter in carrying case (Part Number: 280170)
• 2 AA batteries
• 3 round glass cuvettes with lids and sealing rings
• 1 syringe (10 mL)
• 1 screwdriver
• 3 stirring rods
• 1 cleaning brush
• 1 USB-C to USB-A cable
• Instruction manual
• Certificate of Conformity (COC)
• Warranty information
