Lovibond® MD50 Colorimeter – Manganese (Tablet Reagents)

Lovibond® MD50 Colorimeter – Manganese (Tablet Reagents)

Single-parameter colorimeter for precise manganese determination in drinking water, raw water, and industrial applications. The MD50 combines a robust IP67 housing with an optimized optical system for reliable field and laboratory measurements.

Key Features

• Purpose-built for manganese with factory-programmed methods for LR, L, T, and HR ranges.
• Optimized for low concentrations to support regulatory drinking-water requirements.
• Rugged IP67 design with rubber-protected sides and sealed keypad for field use.
• LED light source with spectrometer sensor and interference filters for stable optical performance.
• One-Time-Zero (OTZ): zero once per sample; no re-zero required for subsequent tests.
• User calibration with one-point adjustment and automatic logging.
• User-defined methods available via PC software.
• Data storage for up to 100 results with date/time stamp; retained during battery replacement.

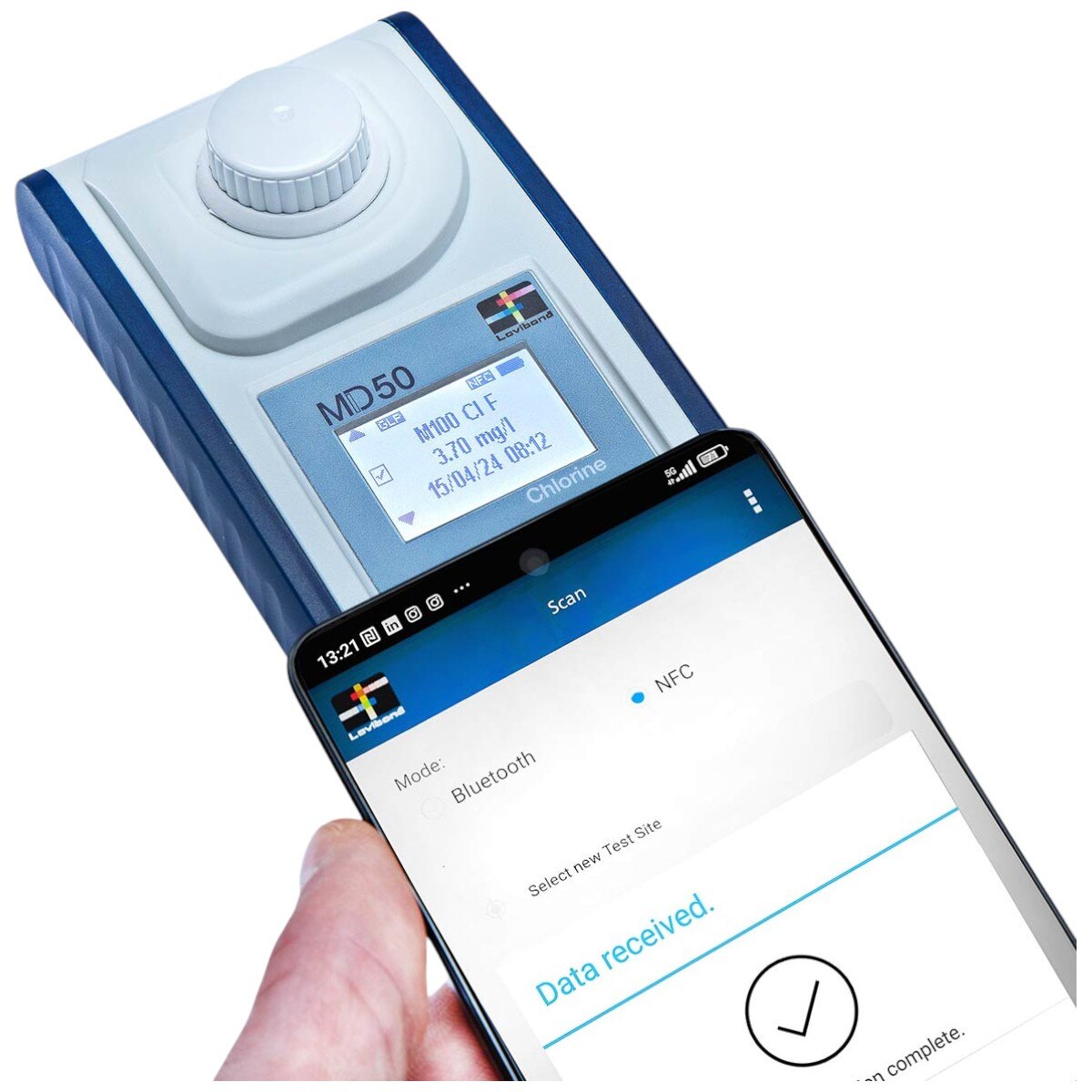

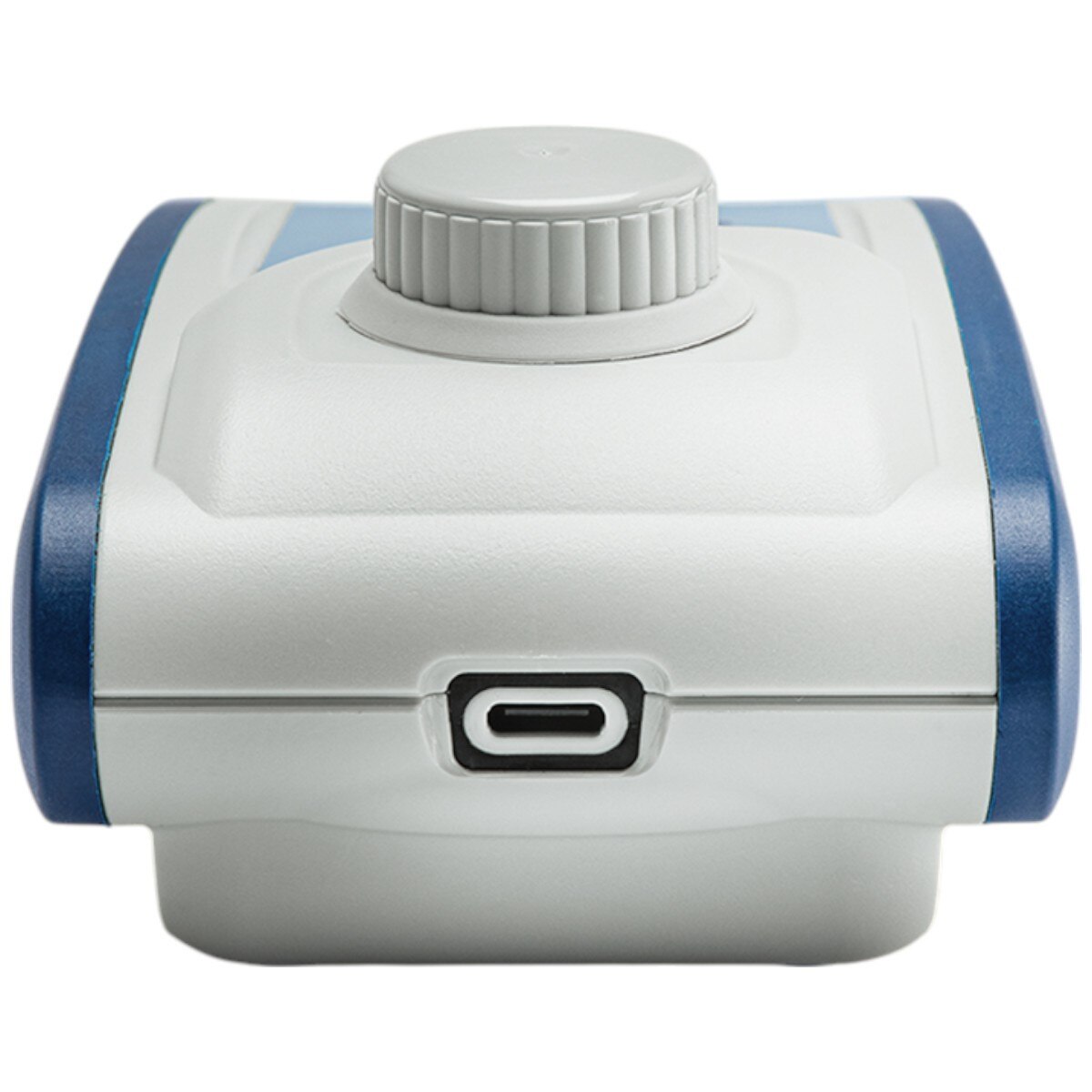

• USB-C and NFC interfaces for data export to AquaLX® app or CSV.
• Compact, ergonomic design with rubber feet for stable bench operation.

Manganese Measurement Ranges

• Manganese LR PP: 0.01–0.7 mg/L Mn (PAN method).
• Manganese L: 0.05–5 mg/L Mn (formaldoxime method).
• Manganese T: 0.2–4 mg/L Mn (formaldoxime method).
• Manganese HR PP: 0.1–18 mg/L Mn (periodate oxidation method).

Technical Specifications

• Optical system: LED light source with spectrometer sensor.
• Wavelengths (variant-specific): 415, 445, 480, 515, 530, 555, 590, 630, 680 nm.
• Photometric range: 0–3 Abs.
• Accuracy: ±3% of full scale (20–25 °C).
• Compatible vials: 13 mm, 16 mm, and 24 mm round cuvettes.
• Display: backlit LCD.
• Interfaces: USB-C, NFC.
• Data memory: 100 records with date/time stamp.
• Battery life: approx. 5,000 measurements.
• Dimensions: 6.1 × 2.99 × 1.77 in.
• Compliance: CE.

Product Identification

• MPN: 280220
• Brand: Lovibond®
• Series: MD50 Colorimeter
• Parameter: Manganese

Standard Delivery Contents

• MD50 Manganese Colorimeter instrument.
• Carrying case.
• 100 × Manganese LR 1 tablets.
• 100 × Manganese LR 2 tablets.
• Adapter for 16 mm cuvettes.
• 2 × AA batteries.
• Screwdriver.
• 1 mL syringe.
• 2 mL syringe.
• USB-C to USB-A cable.
• Quick-start QR insert.
• Certificate of Conformance.
• Warranty information.

Recommended Accessories

• Round cuvettes, 24 mm (sets of 5 or 12).
• Cuvette stand, 6-position, 24 mm.
• Measuring beaker, 100 mL.
• Stirring rods, 10 cm and 13 cm.
• Mixing cylinder with stopper, 25 mL.
• Plastic funnel.
• Cleaning brush, approx. 11 cm.
• Water sampler with 250 mL bottle.
• USB-C cable, 1 m.
• Verification standard kits for MD50/MD150.

Typical Applications

• Drinking water treatment monitoring.
• Raw water and source water analysis.
• Industrial process and cooling water control.
• Galvanization and metal finishing operations.
