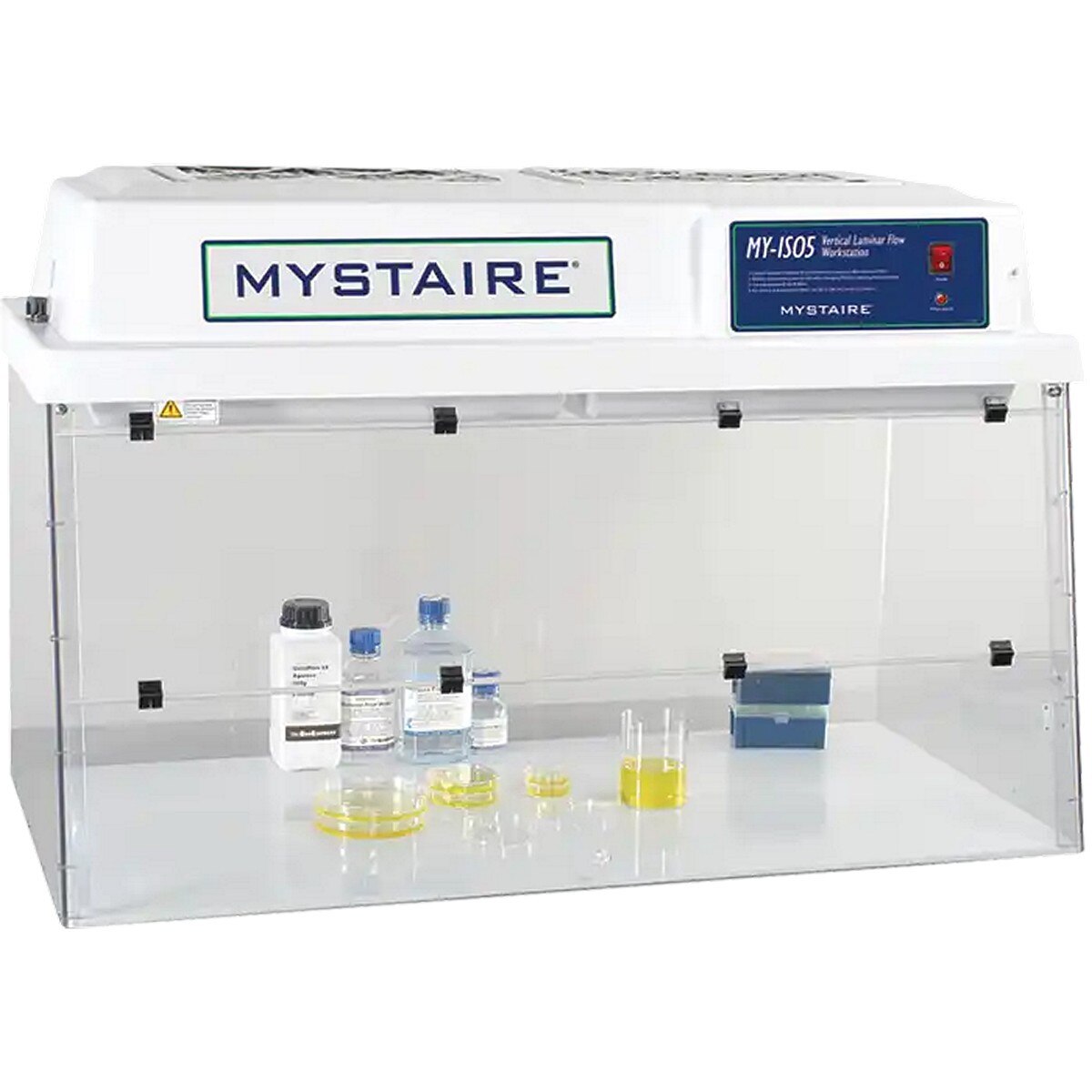

MY-ISO5 48" ISO 5 Vertical Laminar Flow Workstation, 110V

The Mystaire MY-VLF48 is the largest standard-width model in the ISO 5 series, offering a full four feet of clean bench space for high-throughput workflows, dual-operator setups, or oversized equipment. With dual blowers and dual-stage filtration, it maintains uniform laminar airflow across the entire work surface. Despite its expanded capacity, the unit retains a compact 24″ depth, making it compatible with standard casework and mobile carts.

Key Features

• Air quality: ISO 5 / Class 100 with 99.99% HEPA efficiency at 0.3 µm
• Filtration system: Two-stage design with 2 pre-filters and 2 HEPA filters for consistent airflow across the full 48″ span
• Construction: Polypropylene base and clear polycarbonate shell for chemical resistance and easy cleaning
• Blower system: Dual brushless, spark-less motors with automatic activation when sash is raised
• Lighting: Integrated fluorescent lighting for full-chamber visibility
• Filter monitoring: Audible and visual alarm alerts users when airflow is compromised
• Workspace capacity: 47″ wide internal chamber accommodates large instruments or multiple users
• Portability: Weighs 95 lb, suitable for benchtop or mobile cart mounting

Technical Specifications

• External dimensions: 48″ W × 24″ D × 30″ H (1219 × 610 × 762 mm)
• Internal work area: 47″ W × 23″ D × 18″ H (1194 × 584 × 457 mm)
• Sash openings: 45″ × 10″ and 45″ × 20″
• Electrical: 110 V, 220 W
• Filtration: 2 pre-filters and 2 HEPA filters
• Weight: 95 lb (43 kg)
• Compliance: Meets ISO 14644-1 and ANSI/IEST RP-CC-002 standards
