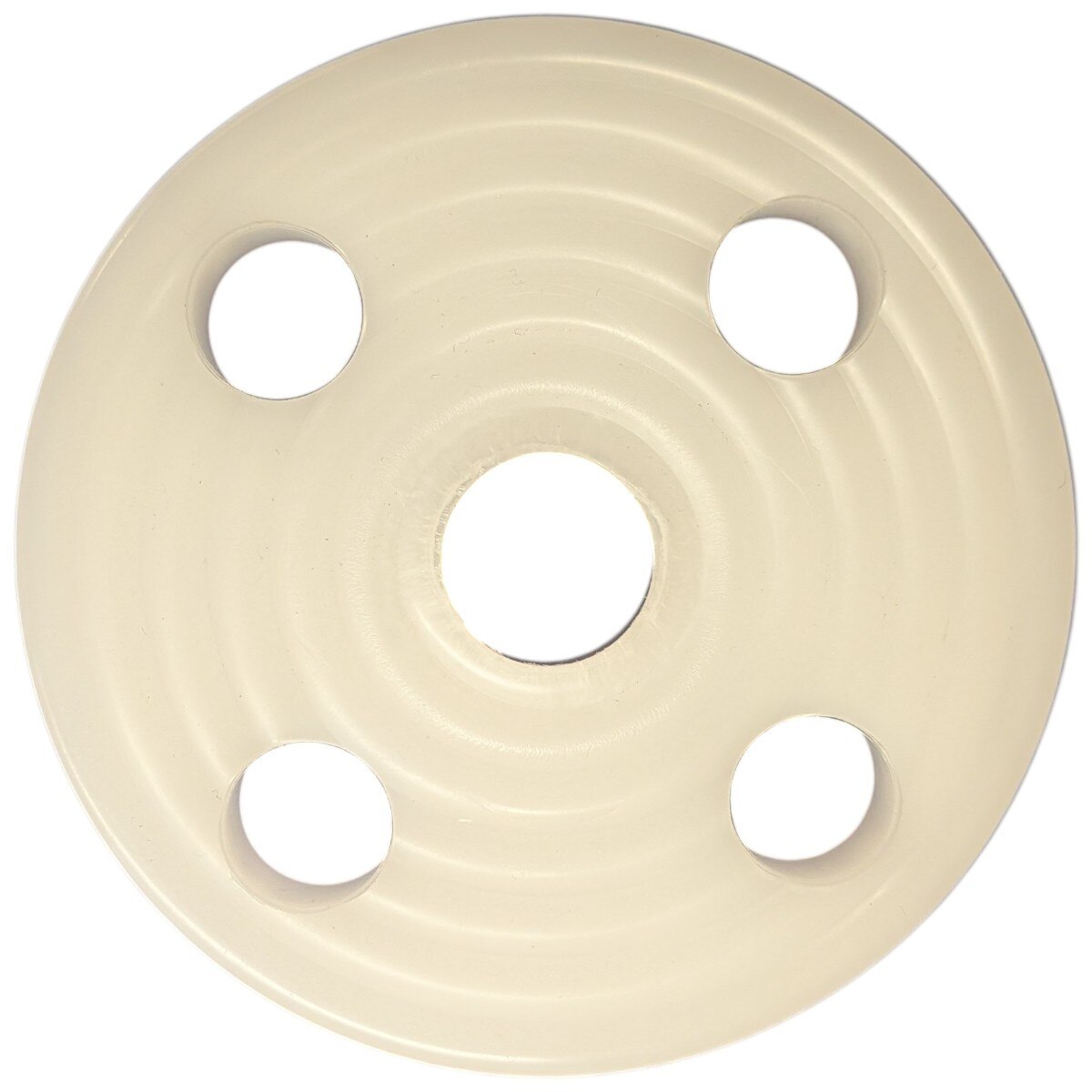

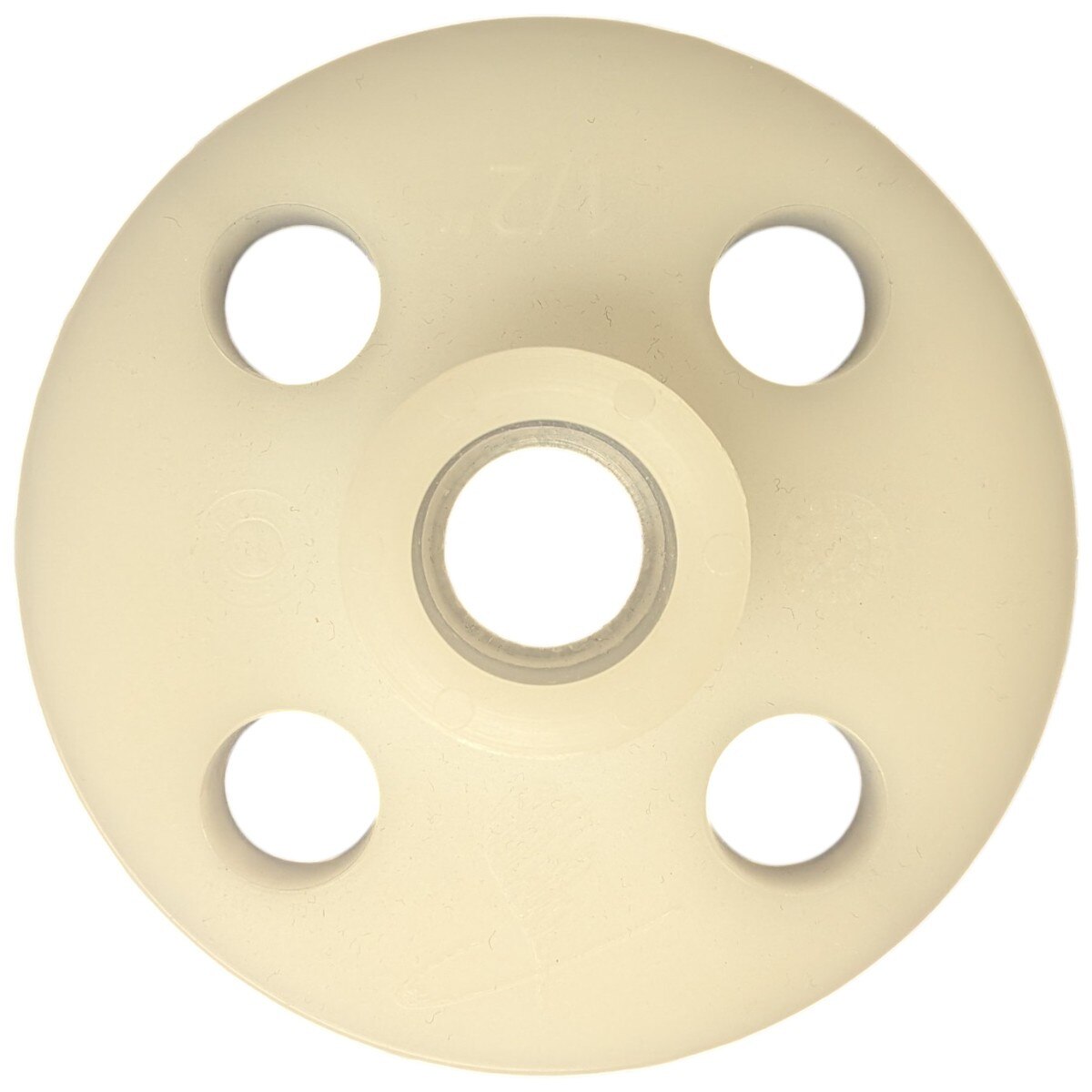

Polypropylene Socket Fusion Flange – 1/2"
Images are for representation only. Actual product may differ in size, color or options.
Polypropylene Socket Fusion Flange – 1/2"
Schedule 80 polypropylene fusion socket flange designed for ANSI B16.5 bolting patterns and flat‑face thermoplastic systems.
- Model: FLGPP-.5-S
- Material: Virgin unpigmented Type I PP (ASTM D4101)
- Connection: Socket fusion (ASTM F2657)
- Size: 1/2"
- Pressure Rating: 150 psig at 68°F
- Compatible with ASTM S80 pipe
“Primary Fluid Systems is proud to introduce its new product line: FLGPP and FLGPVDF series Fusion Socket Flanges.”
| Product Type: | Socket Fusion Flange |
| Brand: | Primary Fluid Systems |
| Product Line: | PFS Fusion Socket Flanges |
| Material: | Polypropylene (PP) |
| Max Pressure (PSI): | 150 PSIG (10 bar) at 68°F (20°C) |
| Connections: | 1/2" Socket Fusion |
| Outer Diameter: | 3.5" |
| Notes: | Thermoplastic Pipe Flange |
