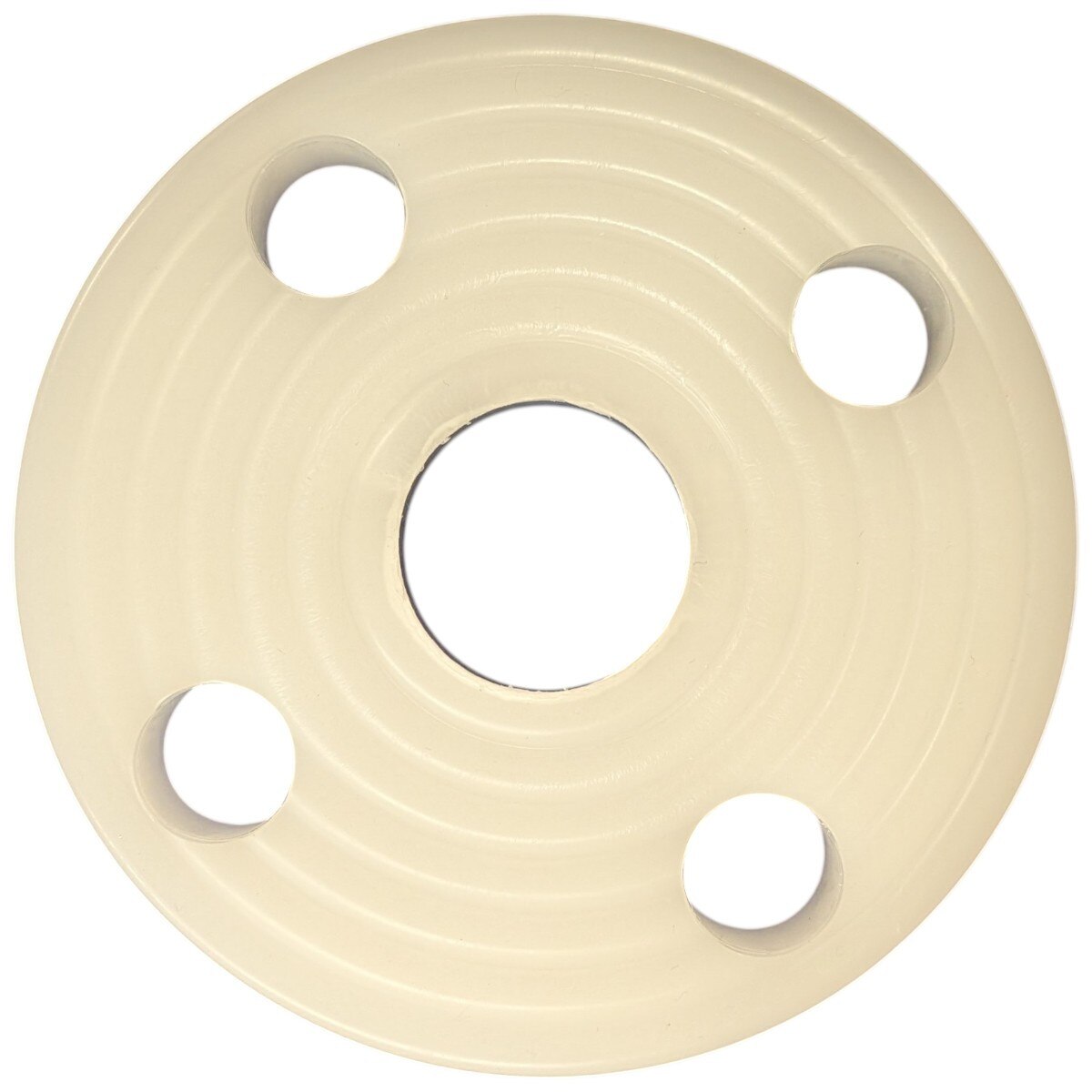

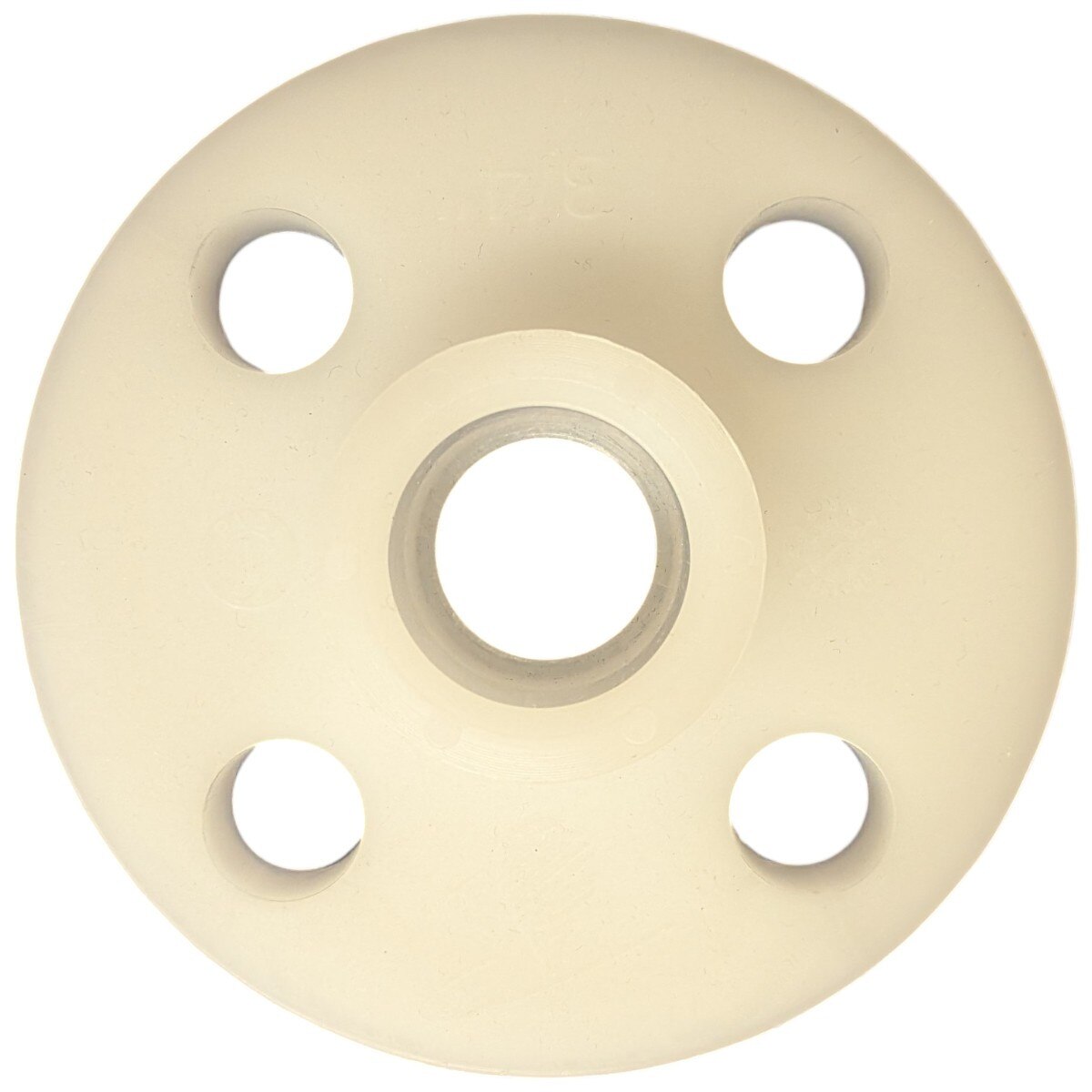

Polypropylene Socket Fusion Flange – 3/4"
Images are for representation only. Actual product may differ in size, color or options.
Polypropylene Socket Fusion Flange – 3/4"
Fusion‑welded polypropylene flange engineered for ANSI B16.5 bolt patterns and flat‑face sealing.
- Model: FLGPP-.75-S
- Material: Virgin Type I PP, Schedule 80
- Connection: Socket fusion (ASTM F2657)
- Size: 3/4"
- Pressure Rating: 150 psig at 68°F
- Use With: ASTM S80 pipe
“Maximum Pressure to 150 PSIG (10 bar) at 68ºF (20℃).”
| Product Type: | Socket Fusion Flange |
| Brand: | Primary Fluid Systems |
| Product Line: | PFS Fusion Socket Flanges |
| Material: | Polypropylene (PP) |
| Max Pressure (PSI): | 150 PSIG (10 bar) at 68°F (20°C) |
| Connections: | 3/4" Socket Fusion |
| Outer Diameter: | 3.875" |
| Notes: | Thermoplastic Pipe Flange |
